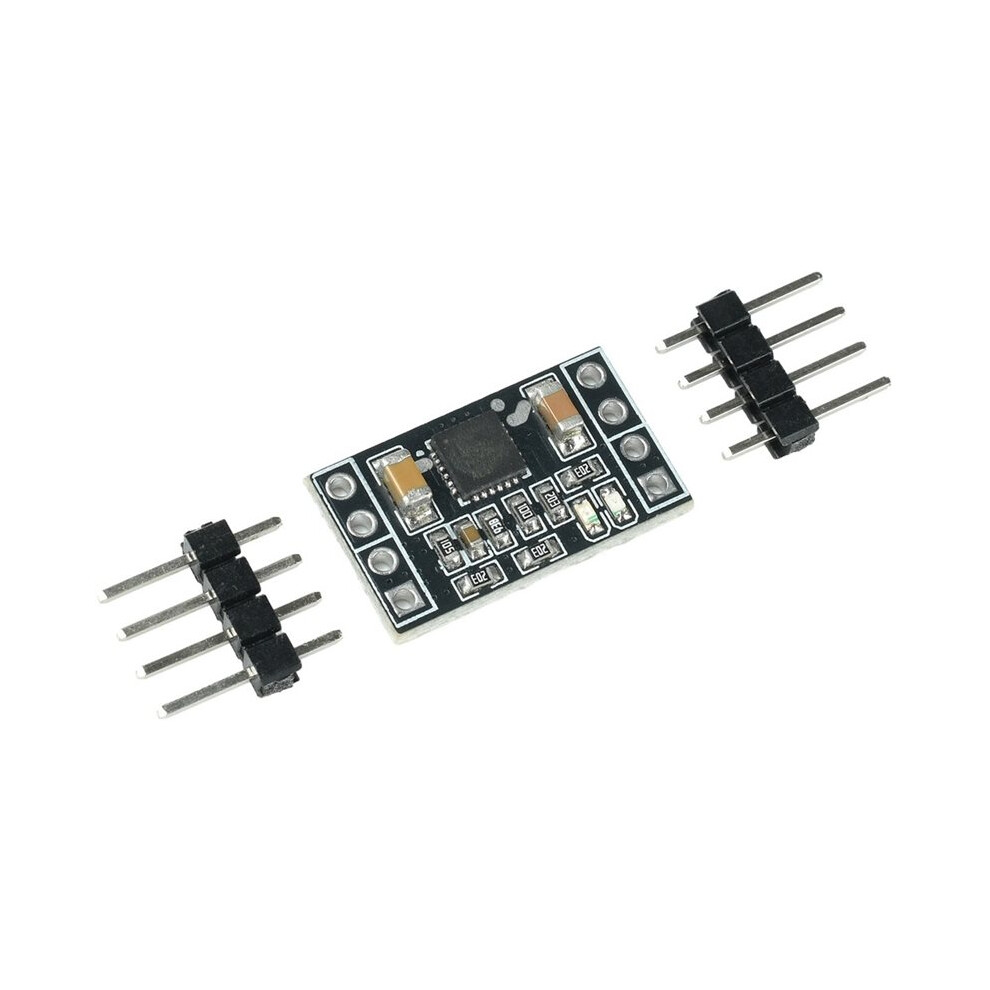

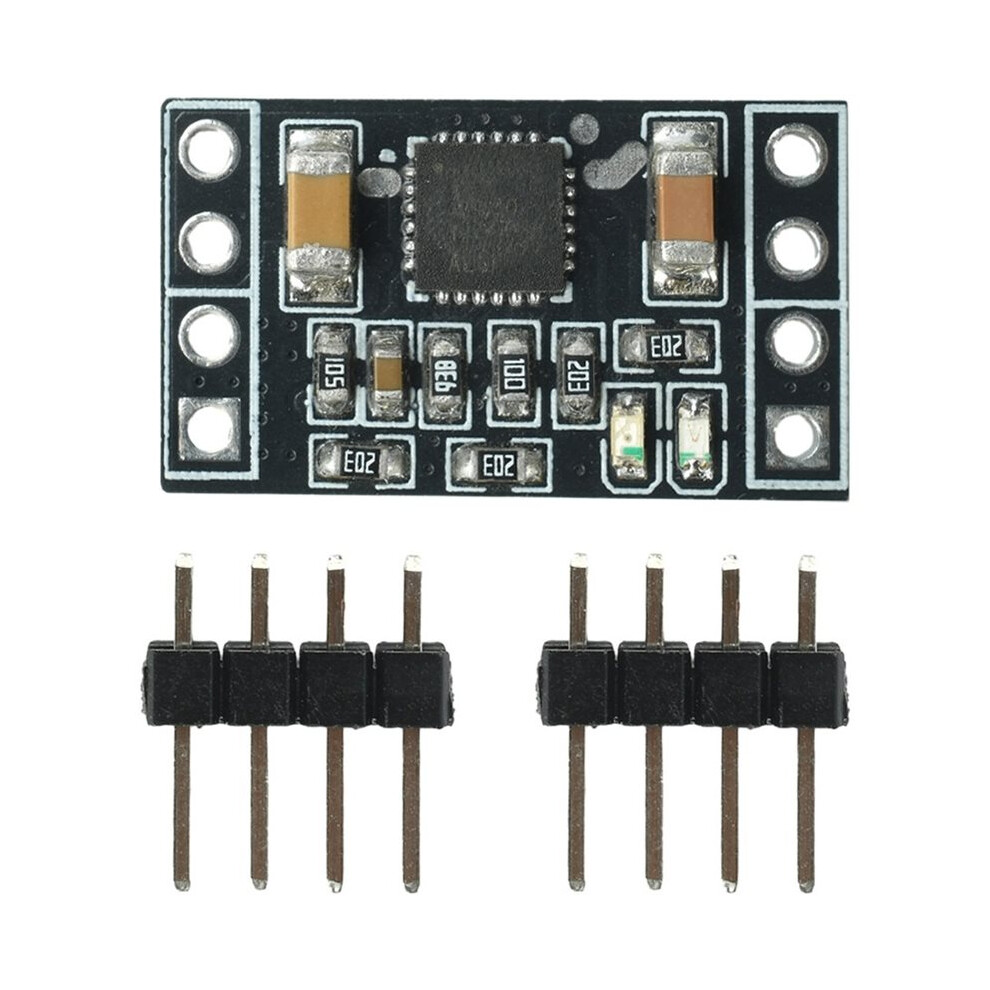

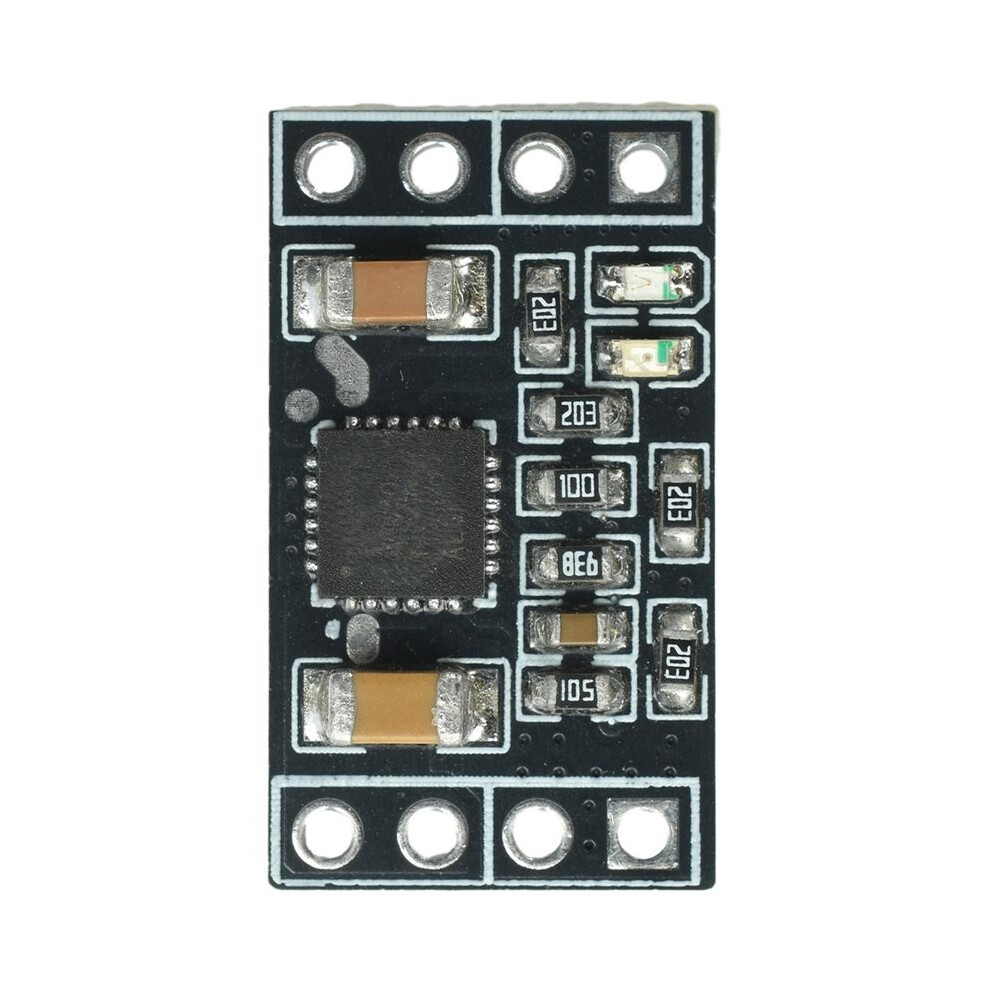

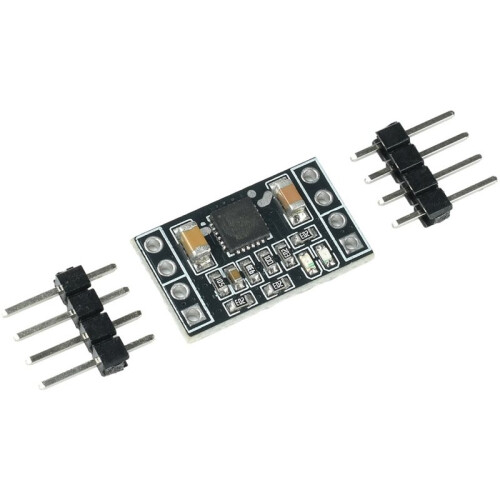

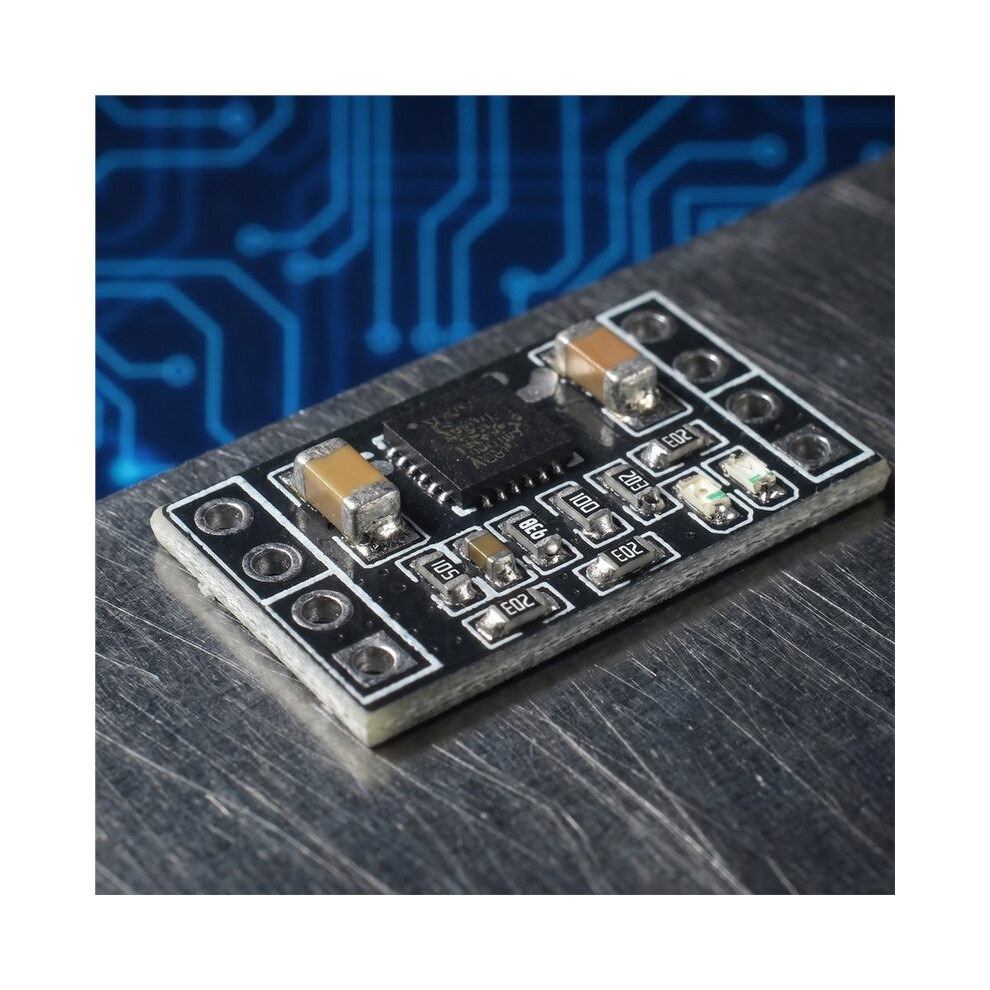

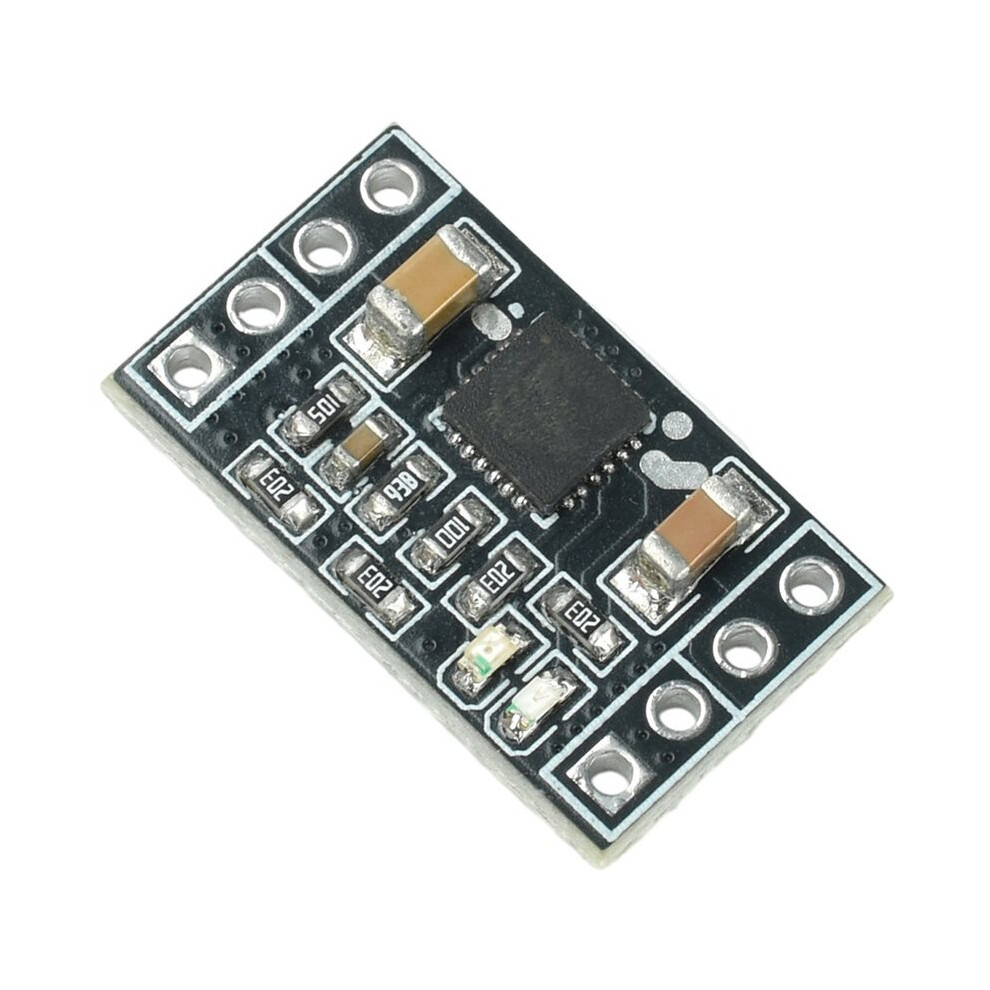

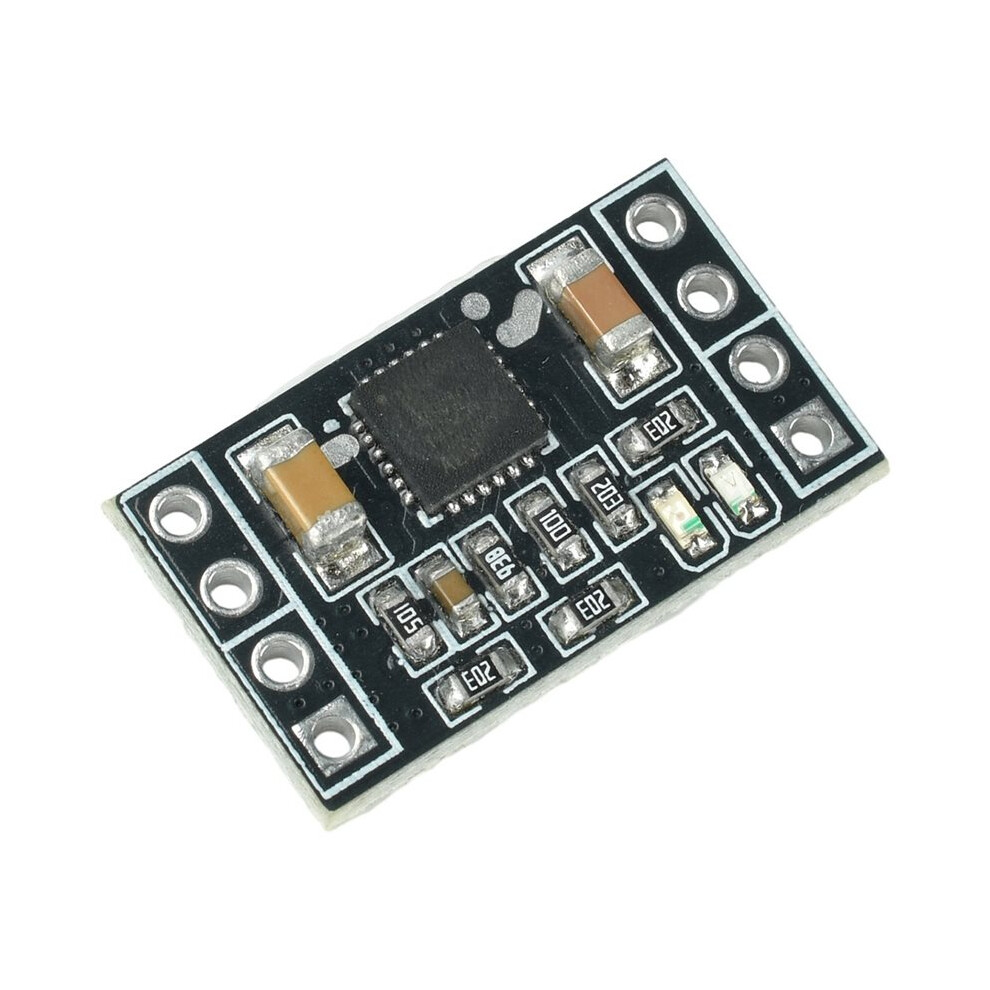

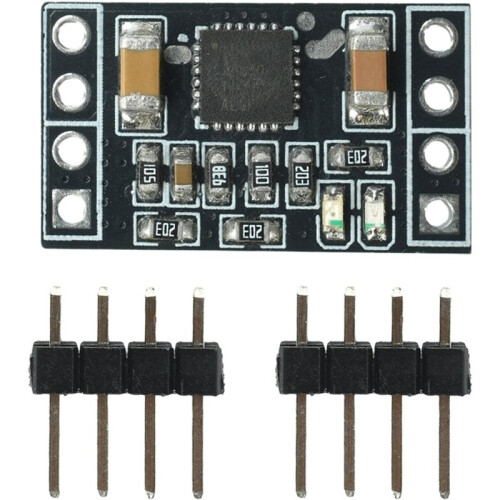

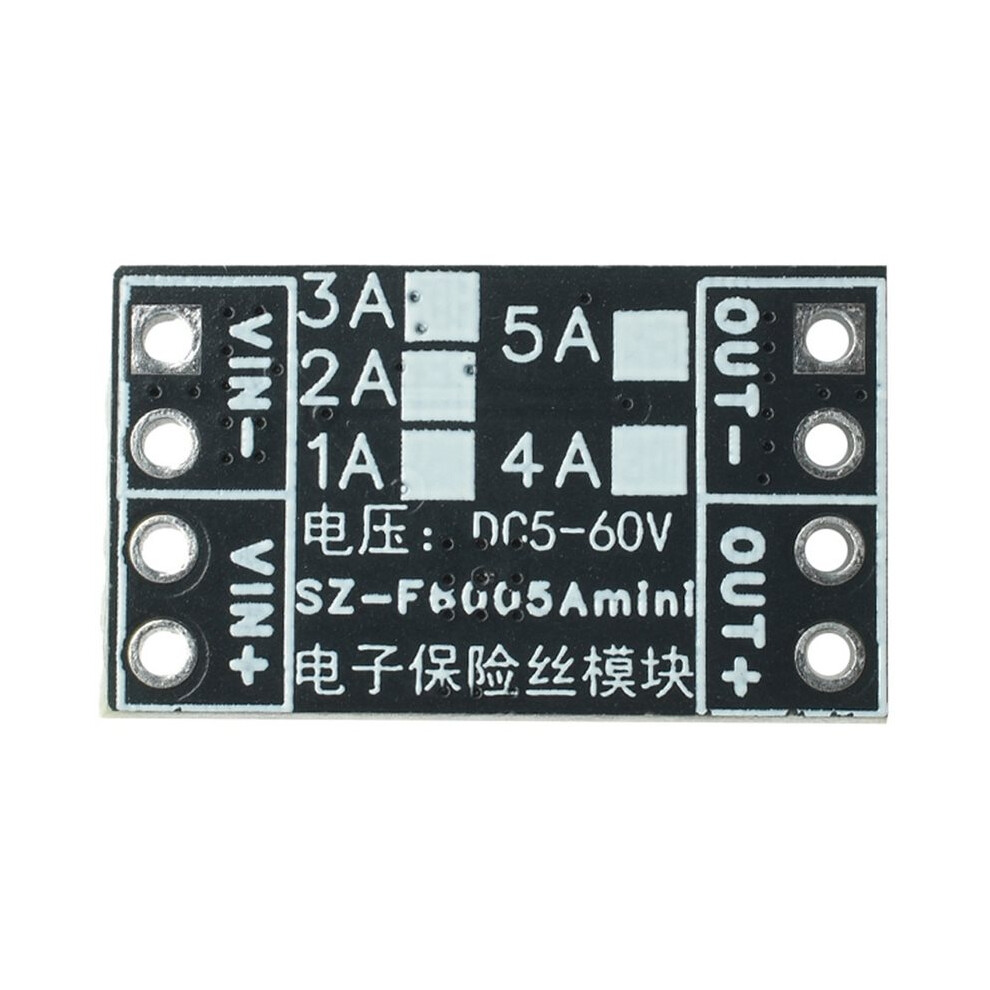

5-60V 5A Electronic Fuse Module Auto Manual Resettable Overcurrent Short Circuit over Tem Protection Board

5-60V 5A Electronic Fuse Module Auto Manual Resettable Overcurrent Short Circuit over Tem Protection Board Description

1. With the dual support of precise overcurrent monitoring and rapid short-circuit cutting, the output is instantly turned off when the current is abnormal. The input voltage range is 5-60V, and the transient maximum does not exceed 65V. Exceeding this range will permanently damage the module.
2. OVP overvoltage and UVP undervoltage dual threshold real- monitoring, and once the input voltage exceeds the limit, the output is immediately cut off. Soft start slow boost, built-in surge suppression mechanism, effectively avoiding the damage of surge current to the system.
3. The output capacity of the power supply should be greater than the current limit set by the module; If the current of the power supply itself is very low, it will be clamped by the power supply during a short circuit, and the module protection function will be abnormal.

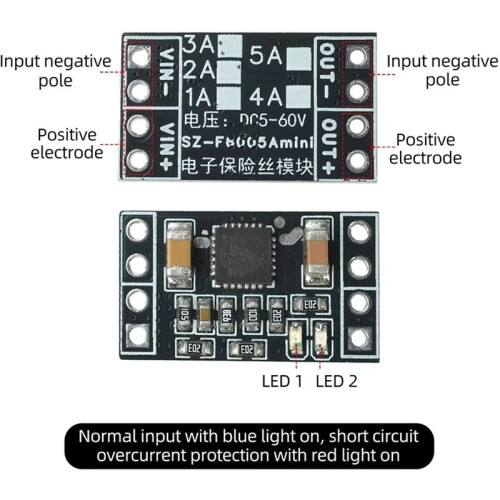

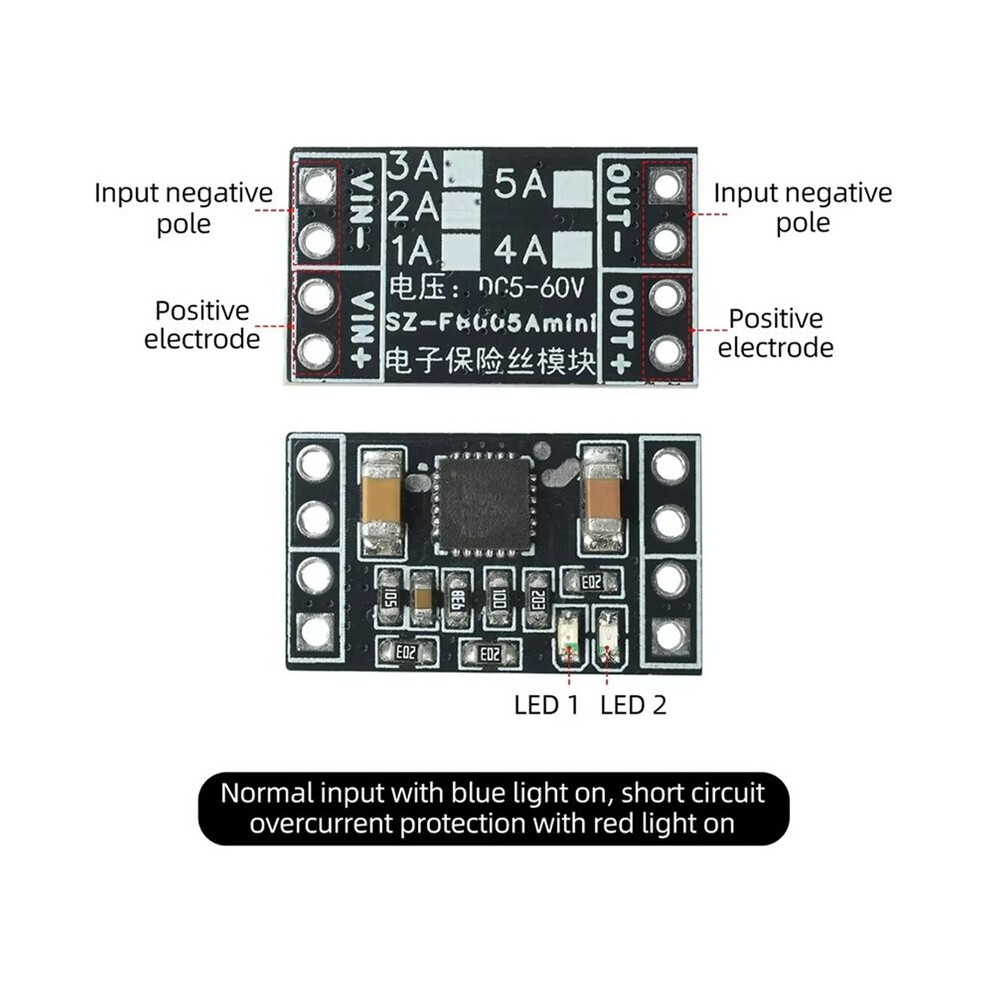

4 If the temperature rise of the module exceeds the standard, the protection mechanism will be triggered to avoid performance degradation or device damage caused by continuous overheating. Real output signal when protection action occurs, quickly locate the fault source, and operate more efficiently.
5. When selecting the current limit value, do not set it exactly equal to the rated current of the load. It should be greater than the normal operating current, otherwise the surge during power may cause false protection tripping.

Product Specifications
Working voltage: 5-60V
Current limiting range: 5A
Static power consumption: working at 1.38mA; turning off sleep at 21 μ A
Working temperature -20 ~+60
Protection functions: overcurrent protection, short circuit quick protection, 4.5V undervoltage protection. 60V overvoltage protection, chip overheating protection
Precautions
1. The output voltage follows the input voltage and does not increase or decrease
