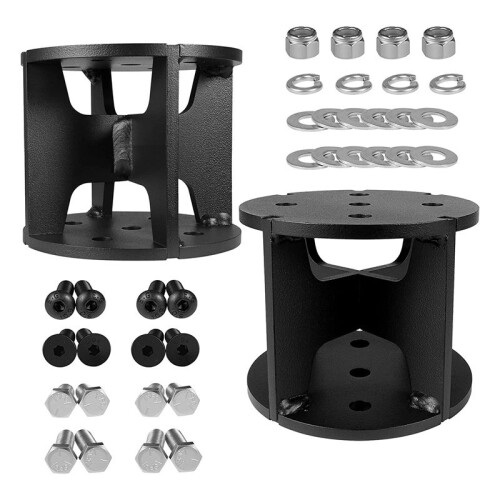

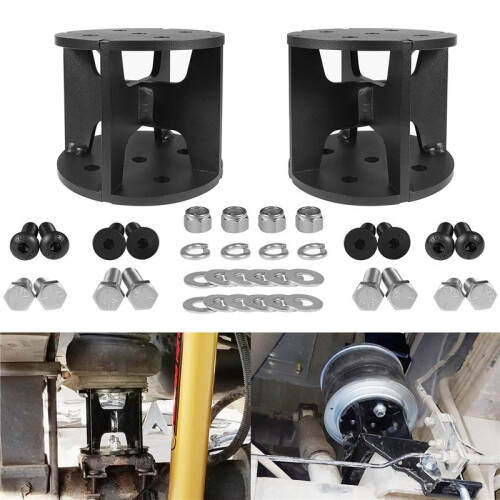

52440 Spacers 4 Inch Compatible with Most Air Spring Lift Kits

52440 Spacers 4 Inch Compatible with Most Air Spring Lift Kits Description

About this item: Fitment -- Fit for most of bellows-style air springs, fit for 's load lifter 5000 series and load lifter 7500 XL. Available in 4 INCH straight and 6 INCH straight heights(this one is 4 INCH)
Function -- Our spacers remove the slack between the air bag and the axle thereby allowing the driver to enjoy a smooth and controlled ride with an already lifted truck.
Material -- Made of heavy-duty CNC machined steel with engineering technology, coated at for rust and corrosion resistance. It is solid to even handle more than 10T force.
In Kit -- for lower bracket and air spring connection for applications.

Universal Air Spring Spacers
Manufacturer Part Number:52440
Hardware for attaching to lower bracket and air spring
Works on all of bellows style air springs, compatible with 's load lifter 5000 series and load lifter 7500 XL.
Installation Steps
1. Before installation, release all air from the air spring. Remove the lower bracket from the car, then remove the fasteners to separate the air spring and lower bracket.
2. Use the longer hardware provided with the Universal Air Spring Spacer Kit to attach the lift spacer to the lower bracket. Depending on the application, hex-head cap screws, flat-head screws or button-head screws be used to bolt the lower bracket/lift spacers together. Tighten the screws to 31 lb.-ft. (42 Nm).
3. Attach the lift spacer to the air using the new hardware provided in this kit. Tighten the screws to no more than 20 lb.-ft. (27 Nm).
4.Reattach the lower bracket to the vehicle. Cycle the suspension to that the air spring has 1/2 INCH (13mm) of clearance all the way around.
Material: Metal
colour: black

Package Contents:
1 set x Spacers

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
