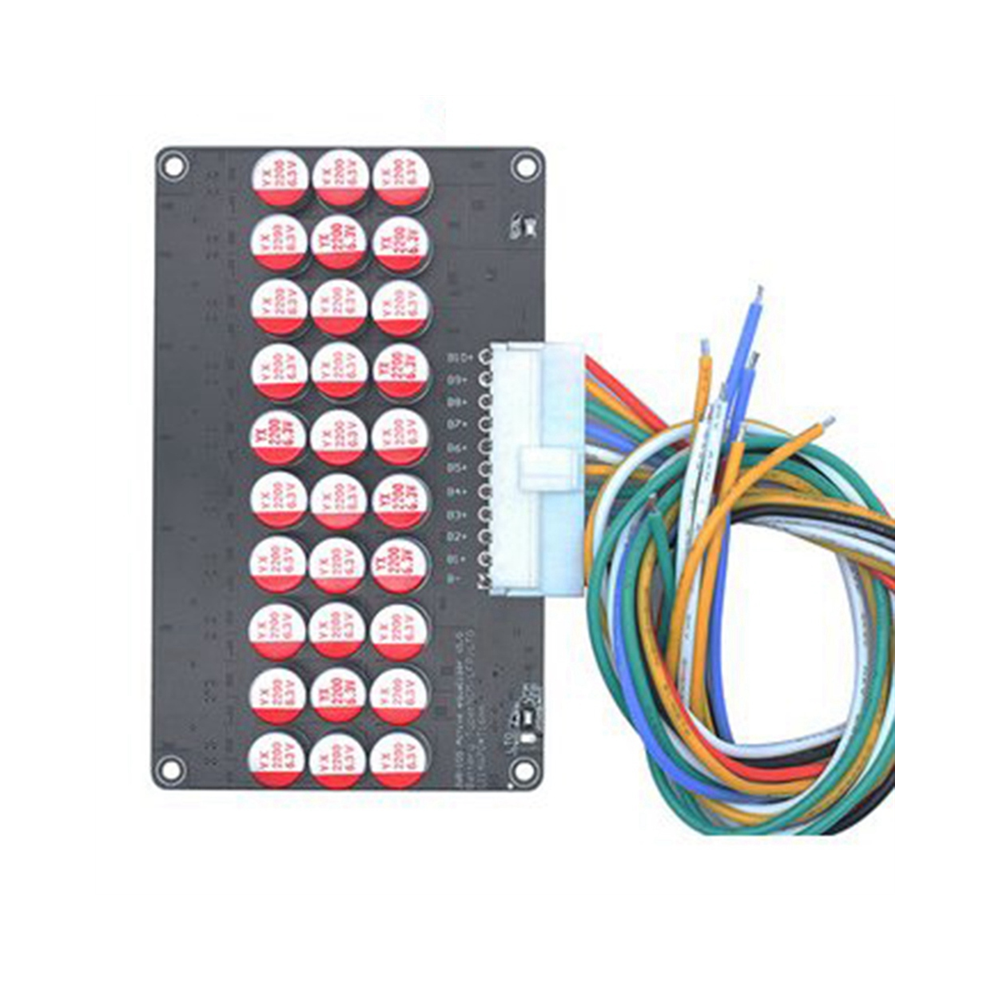

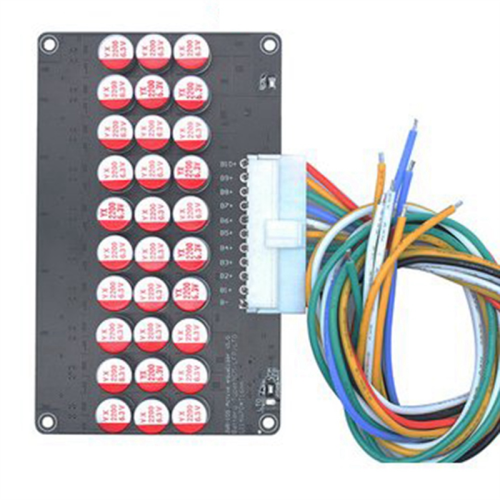

5.5A Current Active Balancer 10S Equalizer Lithium

5.5A Current Active Balancer 10S Equalizer Lithium Description

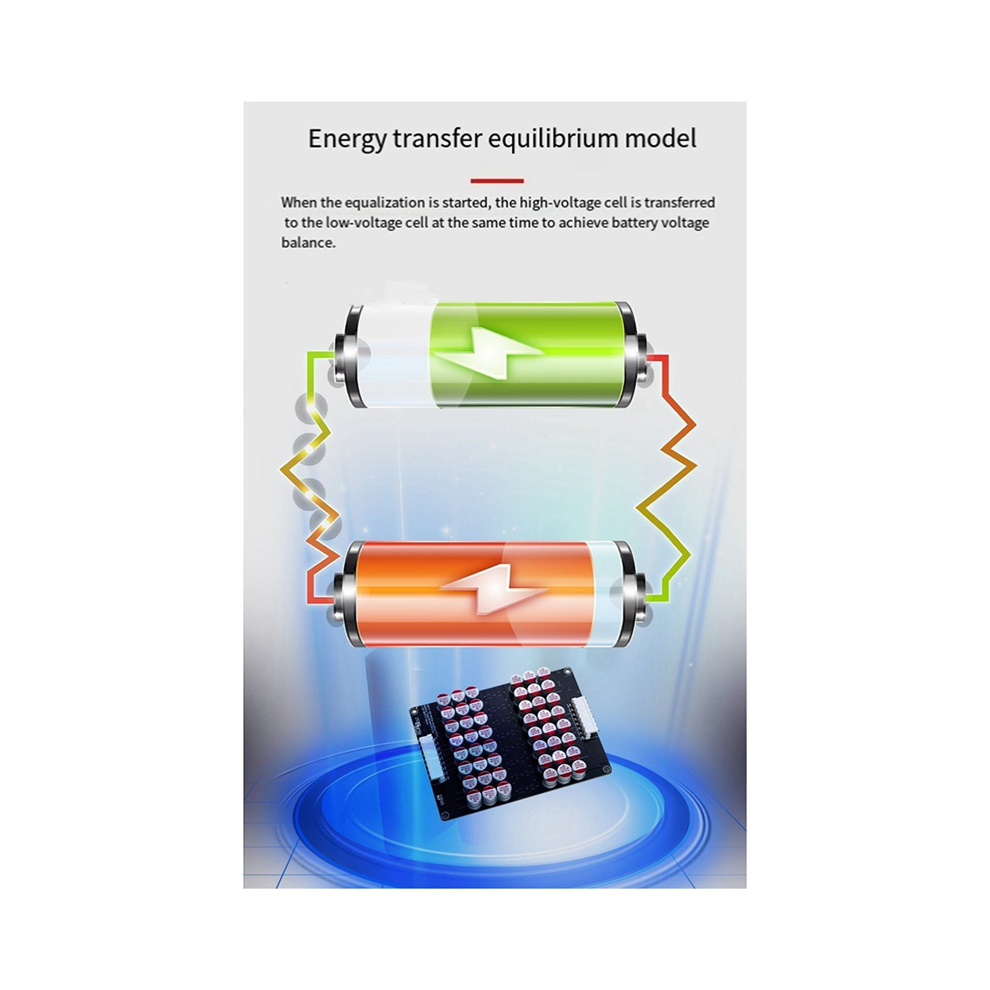

1. The capacitor cooperates with the transfer charge pusher, the balance board is connected to the battery, and the balance is started.
2. new ultra-low internal resistance MOS, 2OZ copper thick PCB
3. Balance current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current
4. The current mode is less than 0.1mA, and the balance voltage accuracy is within 5mv!
5. Quiescent current is about 12mA. The recommended battery capacity is 60-300AH.

With under-voltage sleep protection, it automatically stop when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.
Applicable to all devices suitable for ternary lithium, lithium iron phosphate, and lithium titanate.
Model:capacitor equalizer
Accessory Type:Battery Accessory
Application:lithium iron phosphate/lithium titanate battery
Series compatible:10S
Colour:As Shown
Material:Plastic
Size:cable:40cm

Package Contents:
1 * battery equalizer
1 * flex cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
