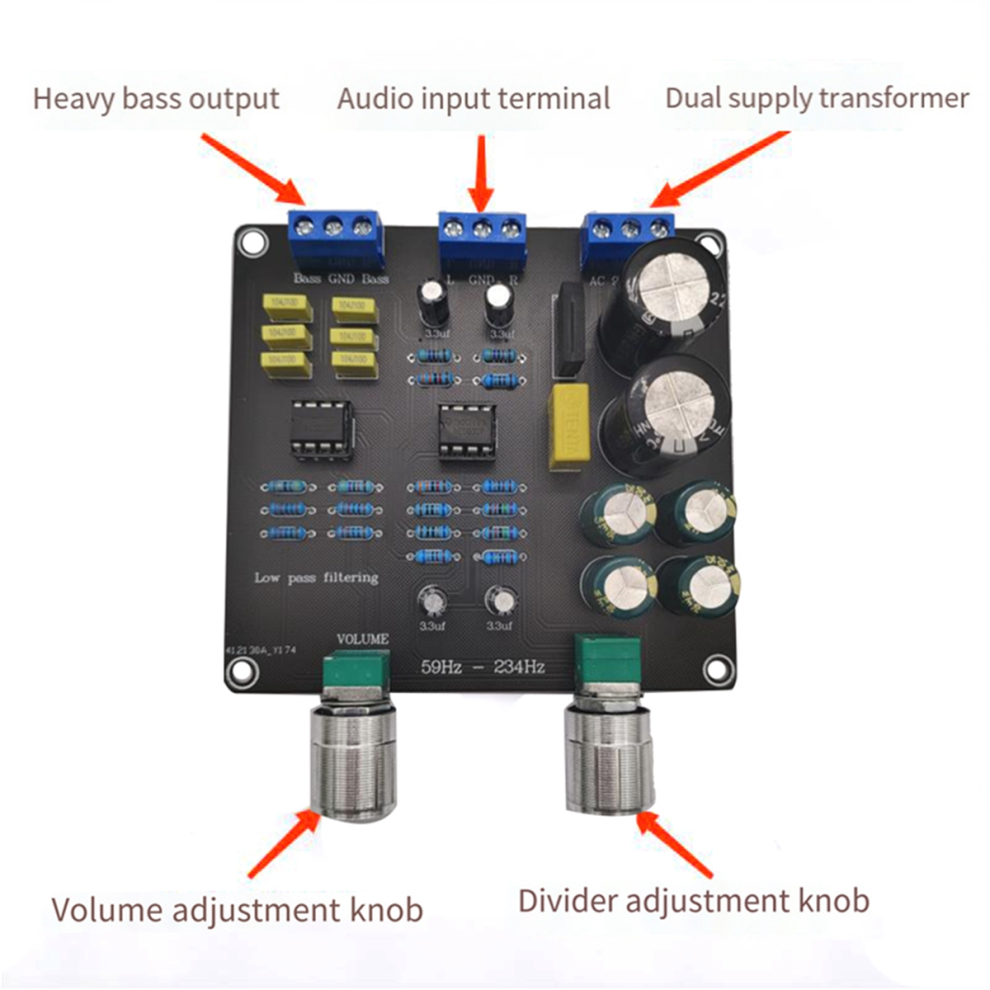

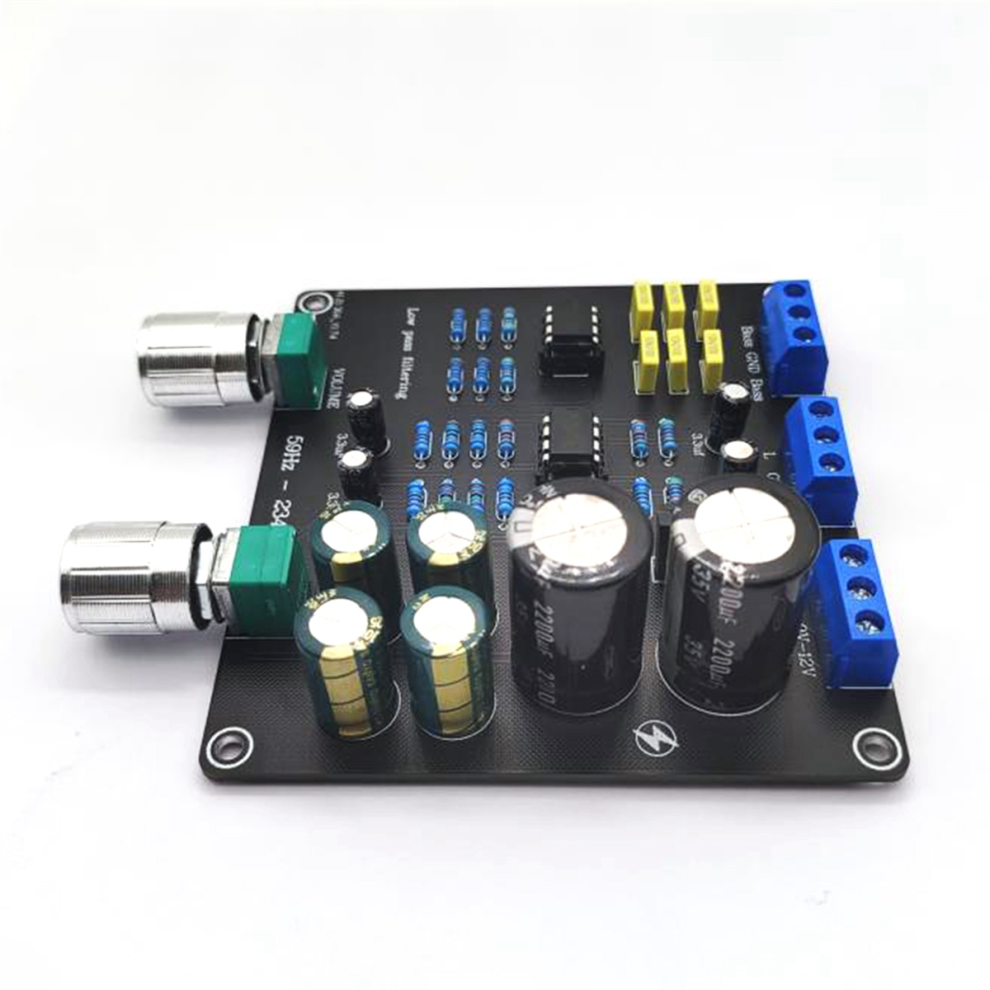

59Hz-234Hz Low-Pass Filter Super Crossover Board

59Hz-234Hz Low-Pass Filter Super Crossover Board Description

Made of high-quality double-sided panels, simple and beautiful, with reasonable wiring, this module has a very high signal-to-noise ratio and good anti-interference ability.
Voltage:AC 9V-12V
Power: 10W dual power transformer
Audio input: two-channel stereo input
Audio output: Continuously adjustable subwoofer output

Frequency division point: 59Hz -- 234Hz continuously adjustable
PCB module size:89x83x28 mm
Module weight: 79 grams
This module is a subwoofer processing circuit with continuously adjustable crossover points, that is, a low-pass filter. The output end is connected to an ordinary pure power amplifier to form a subwoofer amplifier. The input can channel or two channels. channel stereo, very flexible and convenient to use, and a transformer with very small circuit power consumption is enough.
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Colour:Black
Material:PCB

Package Contents:
1 x Crossover Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
