5MP OV5640 Camera T-Display-S3-Pro ESP32-S3 Touch Display 2.33inch LCD Development Board I2C Sensor Module WiFi D
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 137,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (€6.36) | Mon 9th - Sat 14th Nov
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- Upgraded Features: The T-Display-S3-Pro is an advanced version featuring a larger 2.33-inch LCD screen and the addition of the SY6970 chip for enhanced OTG phone support.
- It retains the robust ABS casing and offers expandability via a POGOpin for camera modules. The board includes a built-in 3.8V 470mA battery, ambient light, and proximity sensors, dual QWIIC ports, and a power switch for battery management.
- Support and Resources: Access sample code and technical support on GitHub to maximize the board's capabilities.
- Support USB OTG function
- Camera ESP32-S3 LCD
5MP OV5640 Camera T-Display-S3-Pro ESP32-S3 Touch Display 2.33inch LCD Development Board I2C Sensor Module WiFi D Description
Upgraded Features: The T-Display-S3-Pro is an advanced version featuring a larger 2.33-inch LCD screen and the addition of the SY6970 chip for enhanced OTG phone support.
It retains the robust ABS casing and offers expandability via a POGOpin for camera modules. The board includes a built-in 3.8V 470mA battery, ambient light, and proximity sensors, dual QWIIC , and a power for battery management.
Support and Resources: Access sample code and technical support GitHub to maximize the board's capabilities.
Support USB OTG function

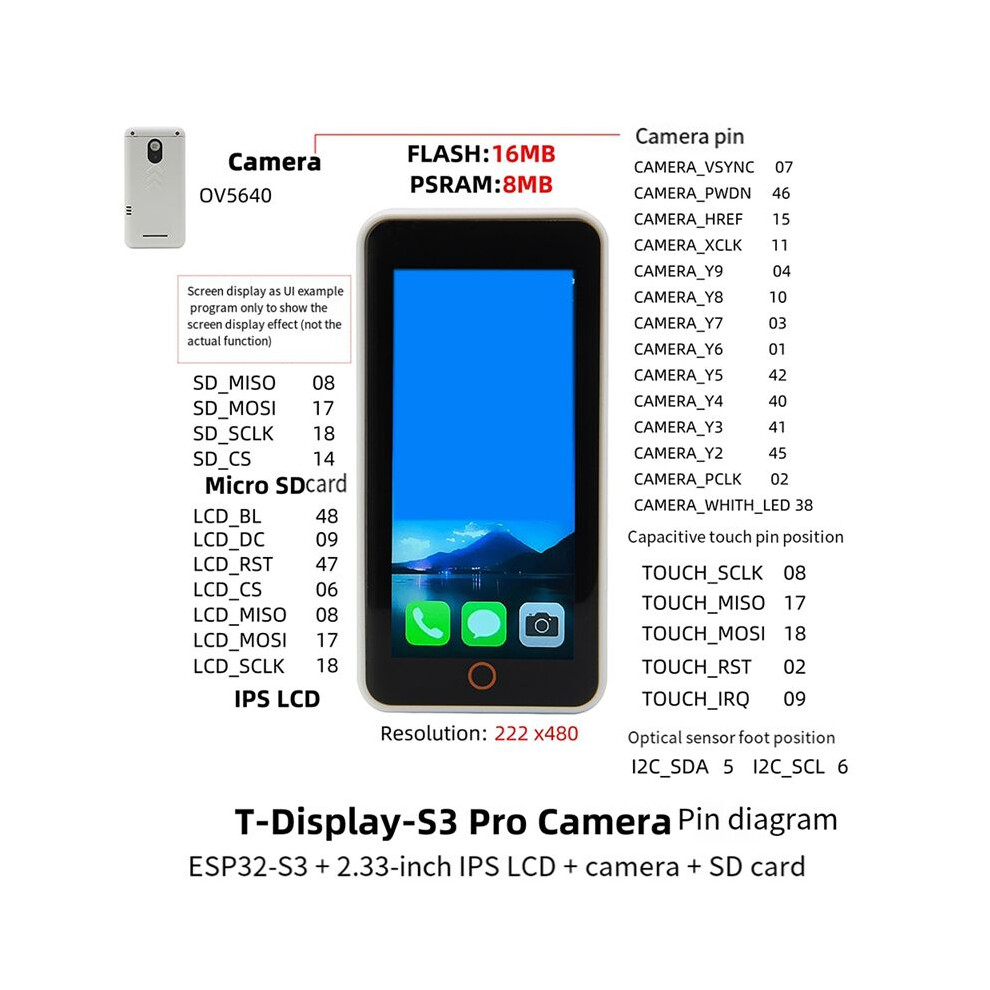

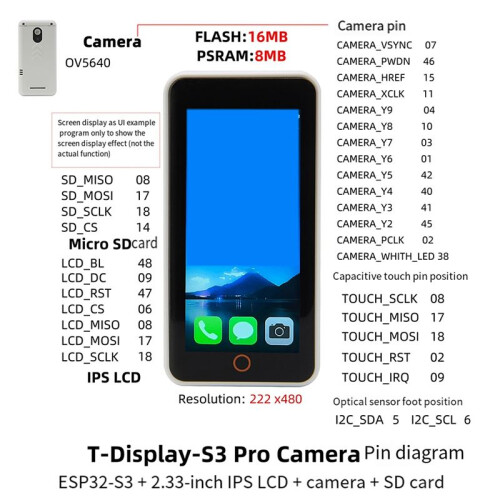

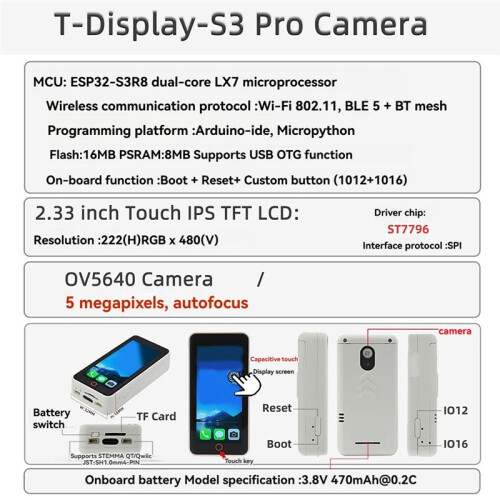

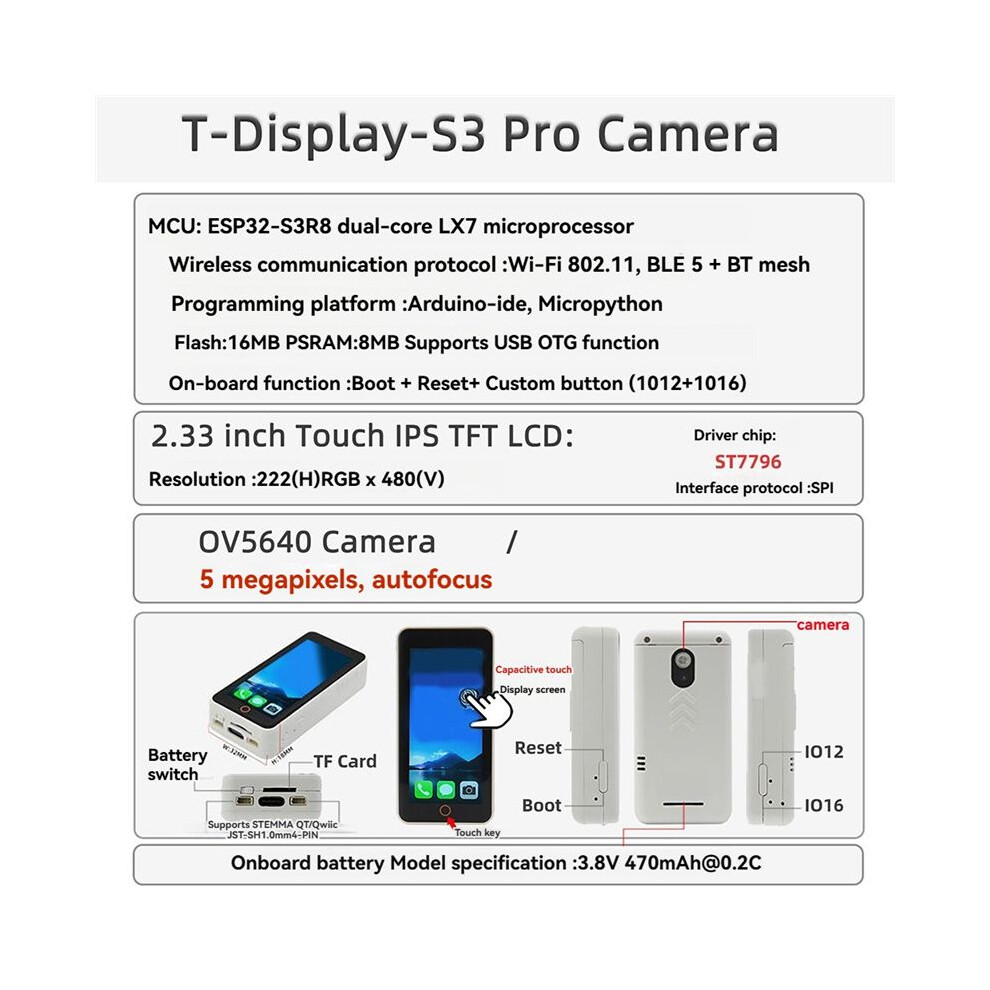

2.33 inch Touch IPS TFT LCD: Resolution: 222(H)RGB x 480(V)
MCU: ESP32-S3R8,Dual-core LX7 microprocessor
Wireless communication protocol: Wi-Fi 802.11, BLE 5 + BT mesh
Programming platform: for -ide, for Micropython
Flash: 16MB
PSRAM: 8MB
Onboard functions: Boot + Reset + custom buttons (1012+1016)
OV5640 Camera:5MP, auto focus
The product appearance and printed words may vary depending the batch, but this does not affect use.
Colour:D:White & Orange
Material:Plastic
Package Contents:
1 * LCD Development Board
Details
| OPC | PYGKTB7 |
|---|---|
| Codes | 6033008150891 (EAN) |
| Product and Safety Information |
Product Data
| Height | 8cm |
|---|---|
| Width | 10cm |
| Length | 12cm |
| Weight | 0.3kg |
| Colour | White & Orange |
| Material | Plastic |
