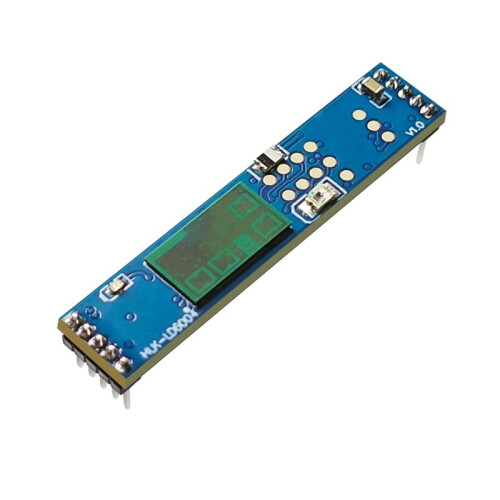

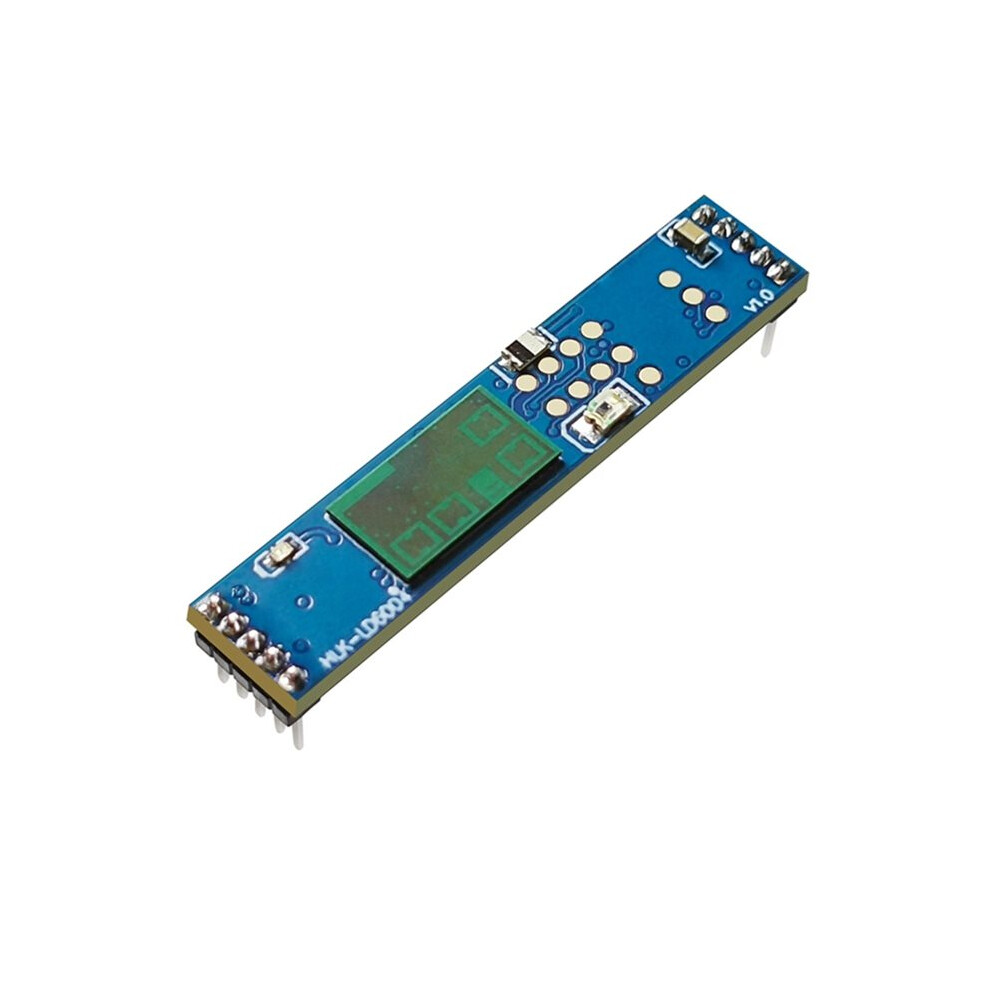

5pcs 60G High-Precision Millimeter-Wave Module LD6004 Multi-Target 3D Human Presence Sensing Serial Communication

5pcs 60G High-Precision Millimeter-Wave Module LD6004 Multi-Target 3D Human Presence Sensing Serial Communication Description

The HLK-LD6004 is a 60GHz module based FMCW signal processing

Combined with signal processing algorithms, it achieves highly sensitive human presence sensing, capable of identifying moving, slightly moving, and stationary human bodies, and calculating auxiliary information such as target distance, angle, and speed
It is suitable for home appliances, motion-sensor lights, home applications, and other scenarios, enabling the detection of human presence within a spatial range and the tracking of multiple self-targeted human trajectories



Specifications
Operating Frequency: 60 GHz (58-64 GHz)
Transmit Power: 12 dBm
Modulation Method: FMCW
Antenna Gain: 4 dBi
Detection Angle: Azimuth 60 / Elevation 60
Side-mount Sensing Distance: Less than 6 m (1.5-2 m for side-mount)
Recognition Accuracy: 95% (Typ.)
Power Supply Requirements: 3.3V (Typ.)/Greater than 1A
Operating Temperature: -20 to +85
Ambient temperature: -40 to +85
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Color: As Shown
Material: PCB

Package Contents:
5*Human Detection Module
