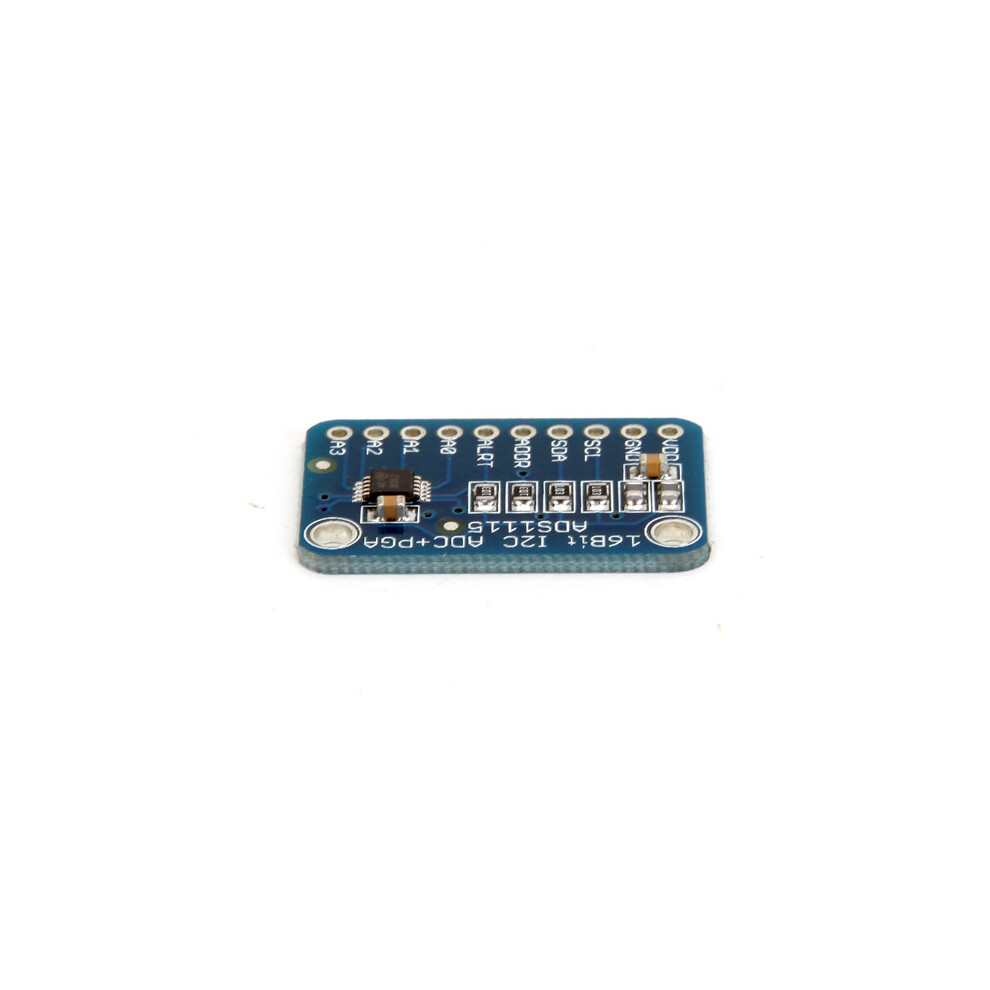

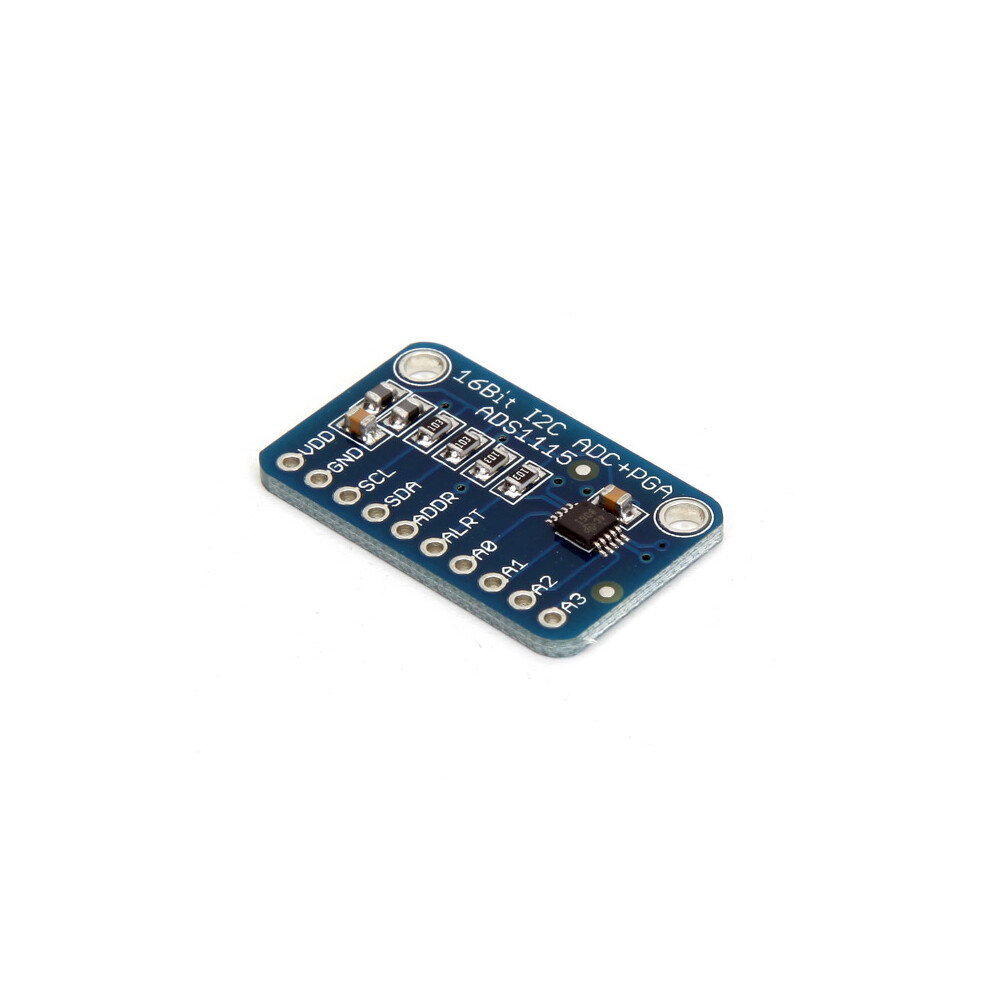

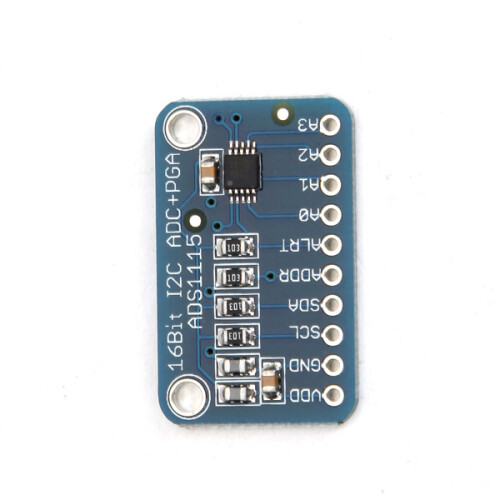

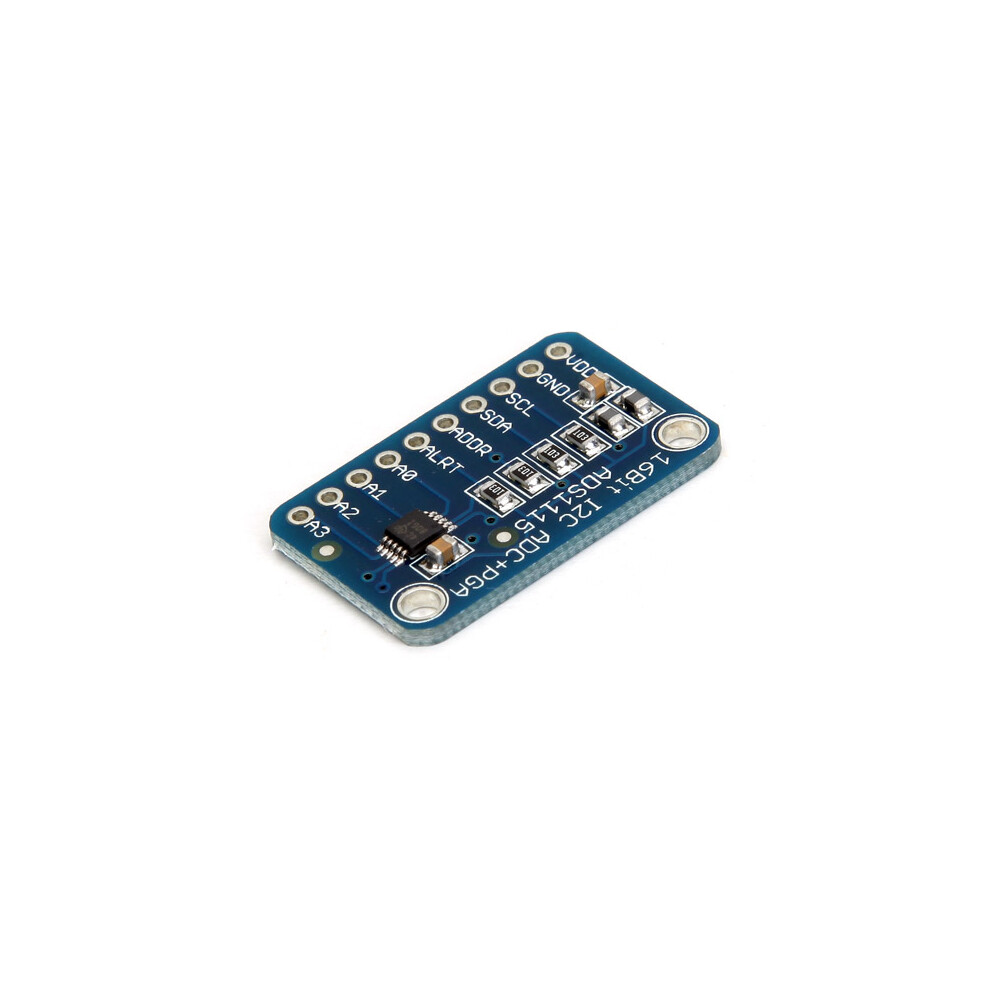

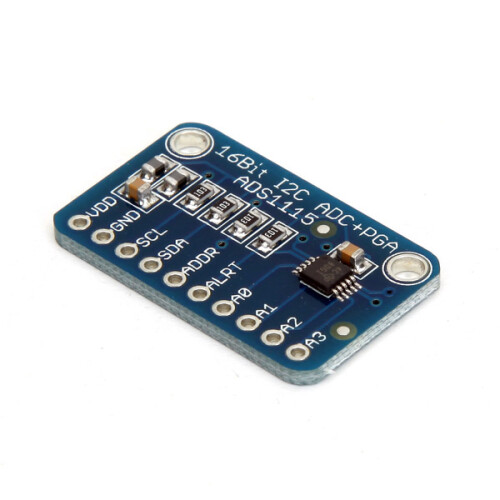

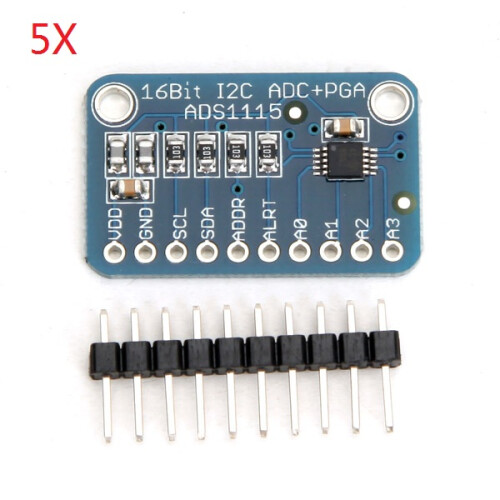

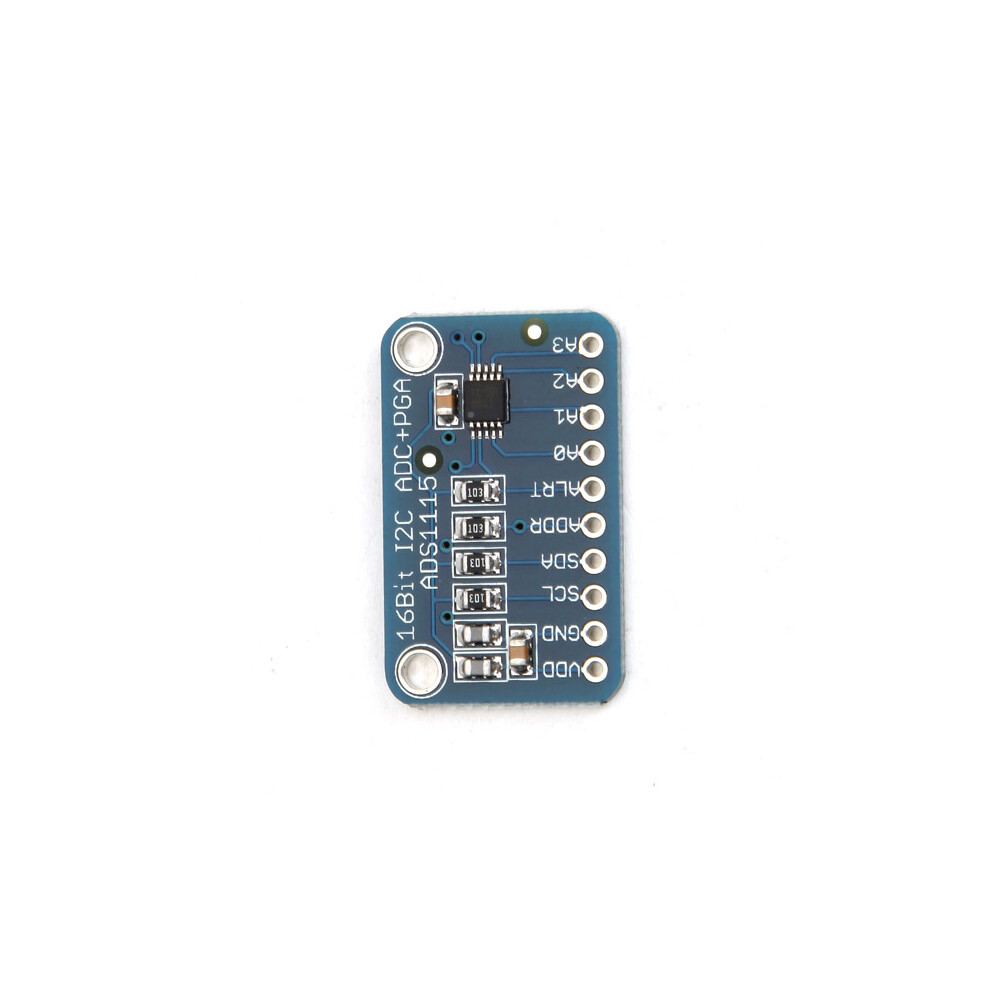

5Pcs CJMCU-ADS1115 16Bit ADC Development Board Module

5Pcs CJMCU-ADS1115 16Bit ADC Development Board Module Description

Feature: Wide supply voltage range: 2.0V to 5.5V Low current consumption: Continuous mode: Only 150 μ Single-shot mode: automatically turns off Programmable data rate: 8SPS to 860SPS Low drift internal voltage reference Internal Oscillator Internal PGA Four single-ended or two differential inputs (ADS1115) Programmable comparator (ADS1114 and ADS1115) Operating temperature: -40 ° C to + 140 ° C Note: Blue PCB and purple PCB will send in random Description: ADS1113, ADS1114 and ADS1115 are precision analog-to-digital converter (ADC) paragraph 16 of resolution, ultra-small, lead-free, QFN-10 or MSOP-10 package available. The ADS1113 / 4/5 design precision, power and easy-to-remember implementation. ADS1113 / 4/5 features an onboard reference and oscillator. Data transfer via a I 2 C-compatible serial interface, four I 2 C slave address. ADS1113 / 4/5 operating range from 2.0V to 5.5V single supply Package included: 5 x CJMCU-ADS1115 16Bit ADC Development Board Module
