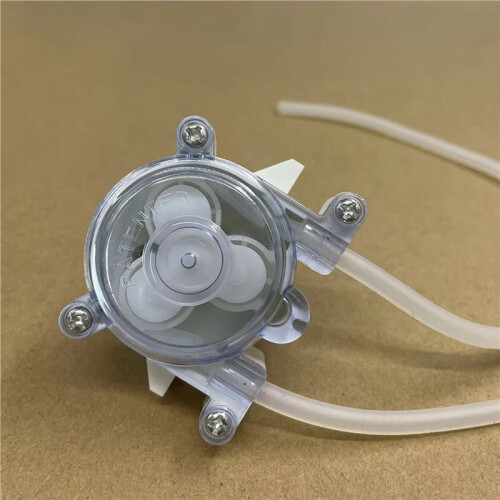

5X Micro-Peristaltic Pump 6V 9V 12V Small 500 Geared Motor Dosing Liquid Water Squeeze Reversible

5X Micro-Peristaltic Pump 6V 9V 12V Small 500 Geared Motor Dosing Liquid Water Squeeze Reversible Description

We used DC12V voltage to test pumping, and although the flow rate of the pump was not large,the pressure was very strong. If the mouth of the pipe is slightly reduced by hand,the water column will spray out straight and hit the water surface with considerable force.
The characteristic of a squeeze pump is that it has a small flow rate but good outlet pressure,making it suitable for pumping viscous/non viscous liquids such as ink.

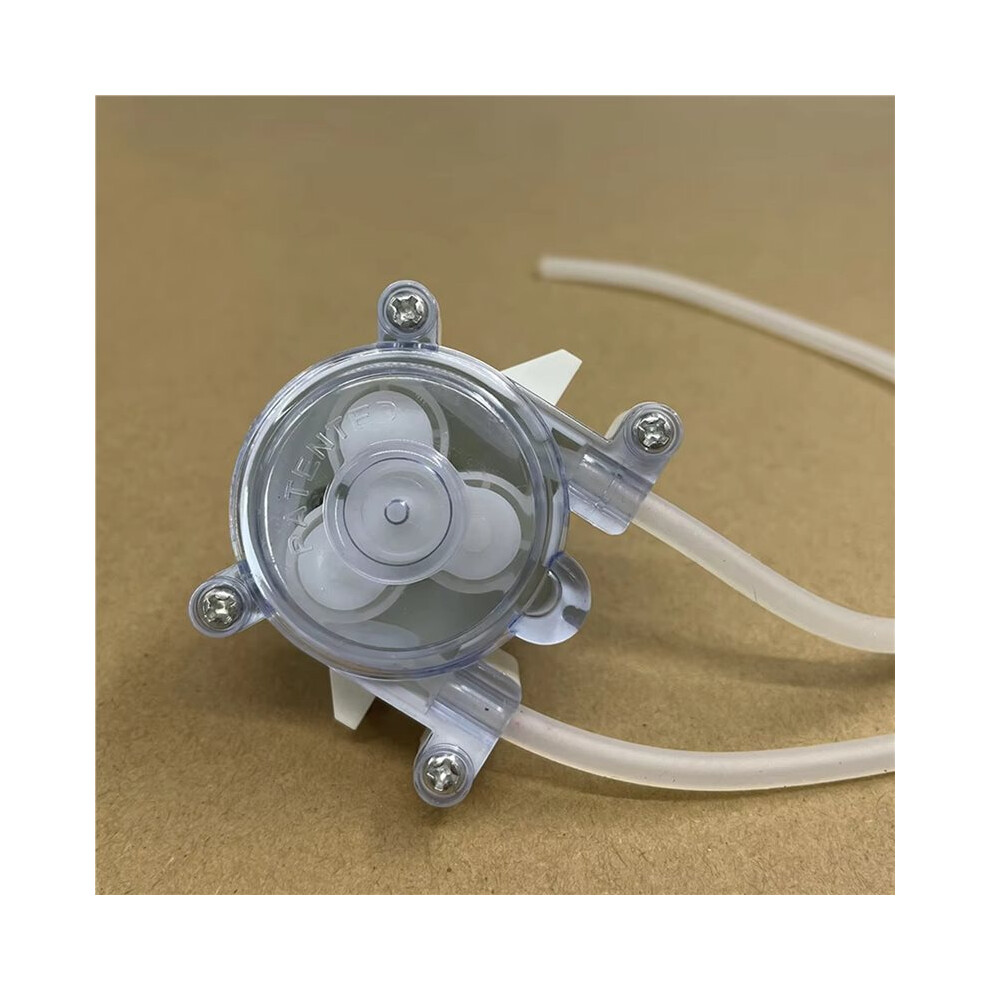

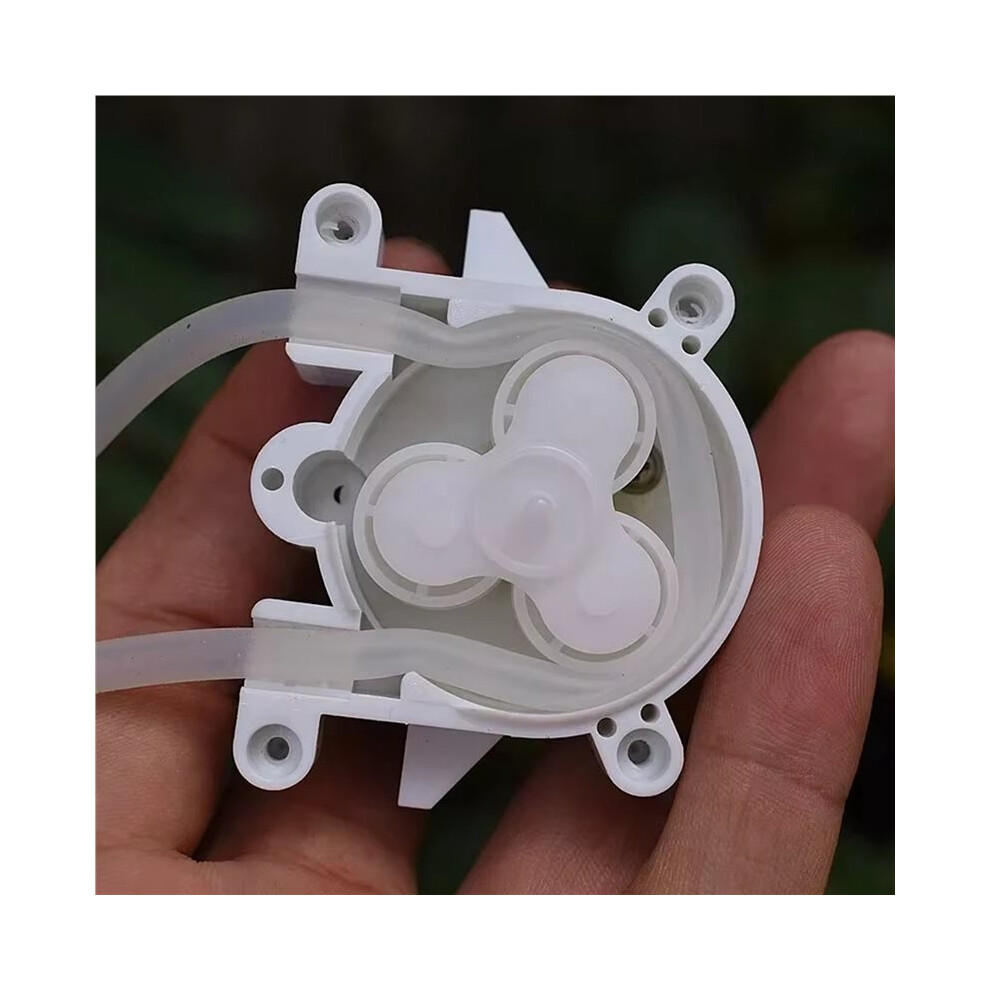

The peristaltic pump has a three roller structure inside. The lower half of the three rollers is a gear.
The large gears the three rollers and the small gears the motor shaft form a reduction ratio,
which is a relatively novel design.
We found during the testing process that due to the lack of plastic particles at both ends of the hose
and the absence of fixed connections to other accessories, the silicone hose would move during the
pumping process. So when in actual use, the silicone tube should be securely connected to other accessories.
Voltage: DC6V Current during pumping: 0.5 A
Voltage: DC12V Current during pumping: 0.6 A
Color: As Shown
Material: plastic

Package Contents:
5 x Pump
