6GHZ Microwave Resistor Combiner/Splitter Simple Power Splitter One to Two Splitter Module

6GHZ Microwave Resistor Combiner/Splitter Simple Power Splitter One to Two Splitter Module Description

Description:
Module Model: KDTRES1027-007
Summary: Simple Splitter and Combiner
Module Function:
Module Bandwidth: DC - 6 GHz

Summary: Operating up to 8 GHz
Module Type: Passive Component
Module Isolation:
Summary: Low isolation module, less than 10 dB
Module Insertion Loss: 6.2 dB
Summary: [In-band 6 GHz]
Input and Output Standing Wave Ratio: 1.5
Summary: [In-band 6 GHz]
Module Interface Type: SMA
Summary: External Screw Hole
Module Application:
Summary: Splitter and Combiner

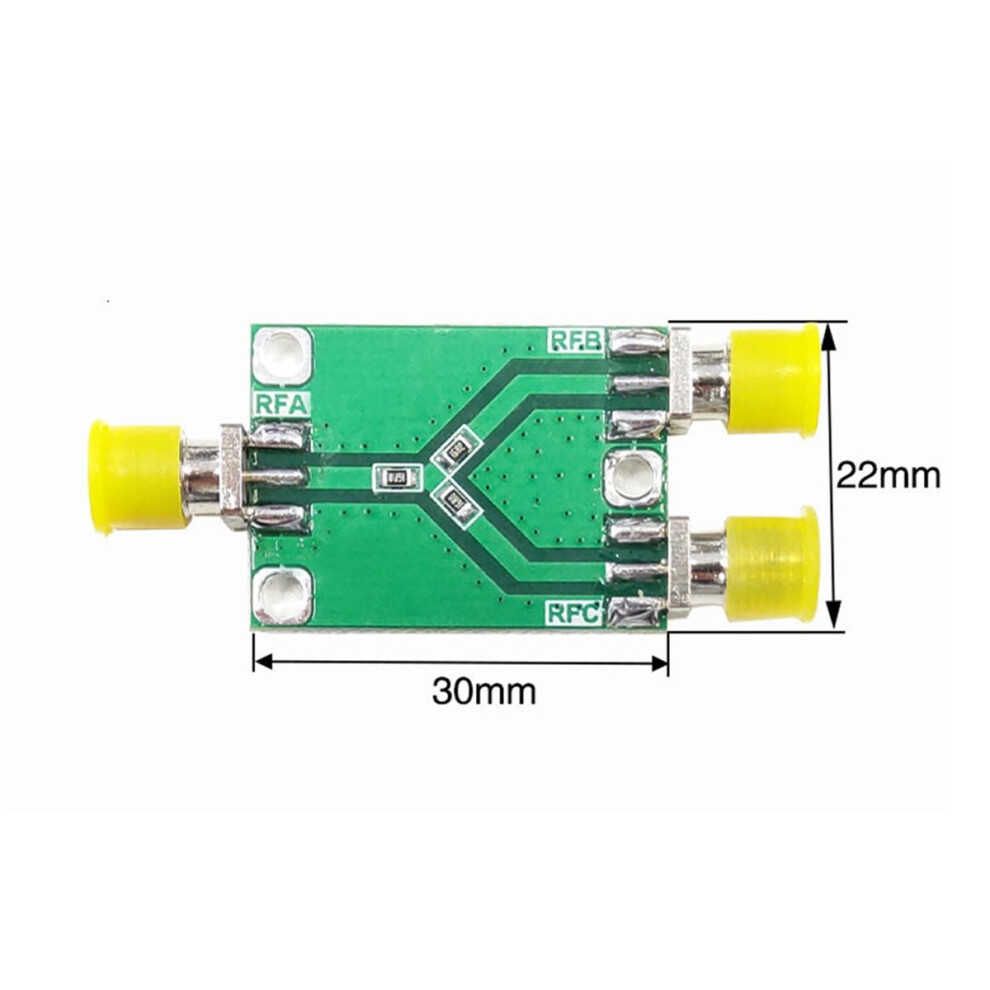

Module Dimensions: 30 x 22 x 5 mm
Module Weight: 6.88 g
Module Positioning Hole: M3
Color: Green & Yellow
Material: PCB

Package Contents:
1 x microwave resistor

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
