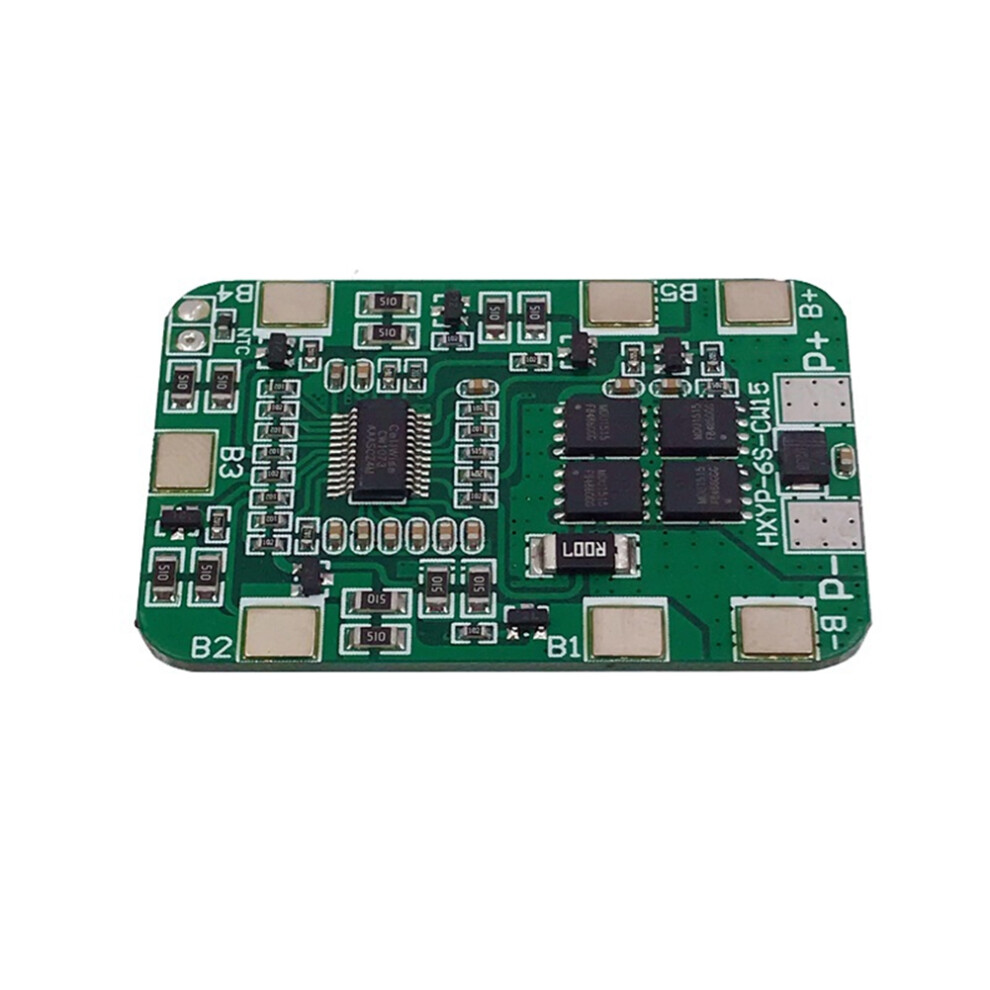

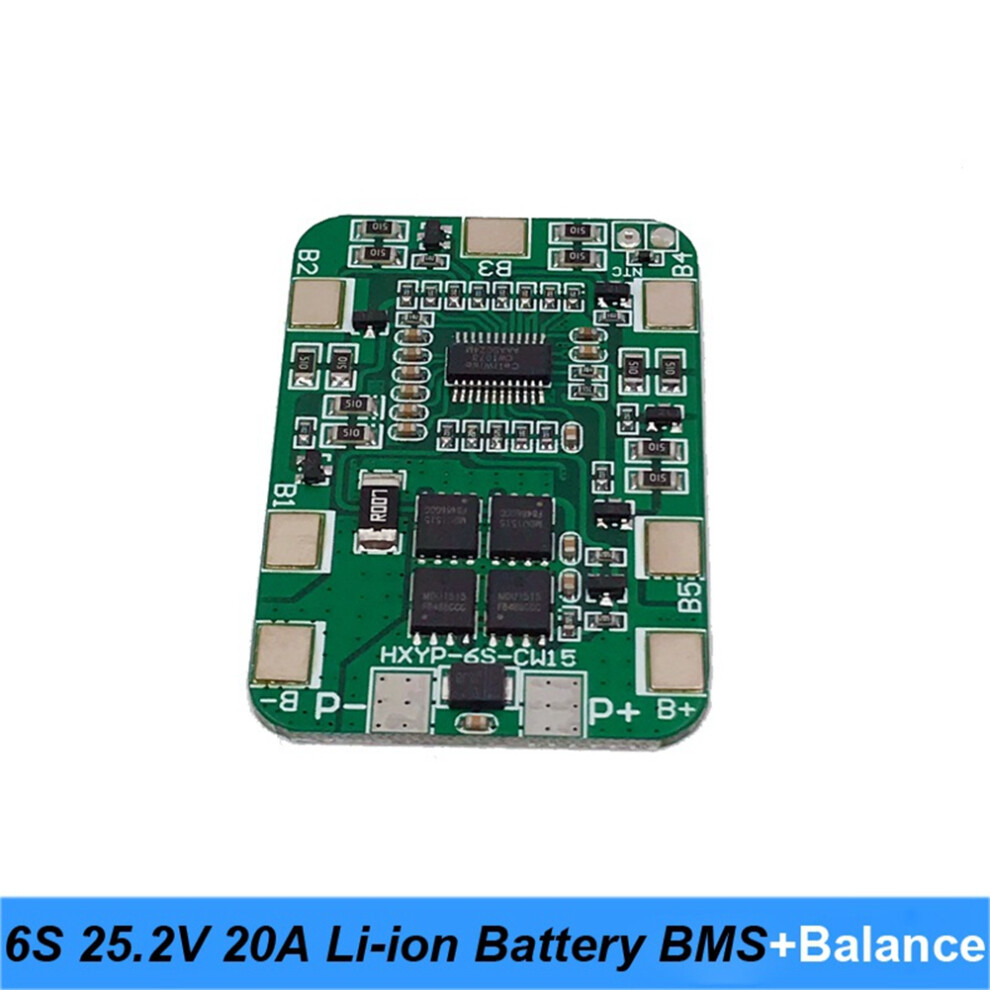

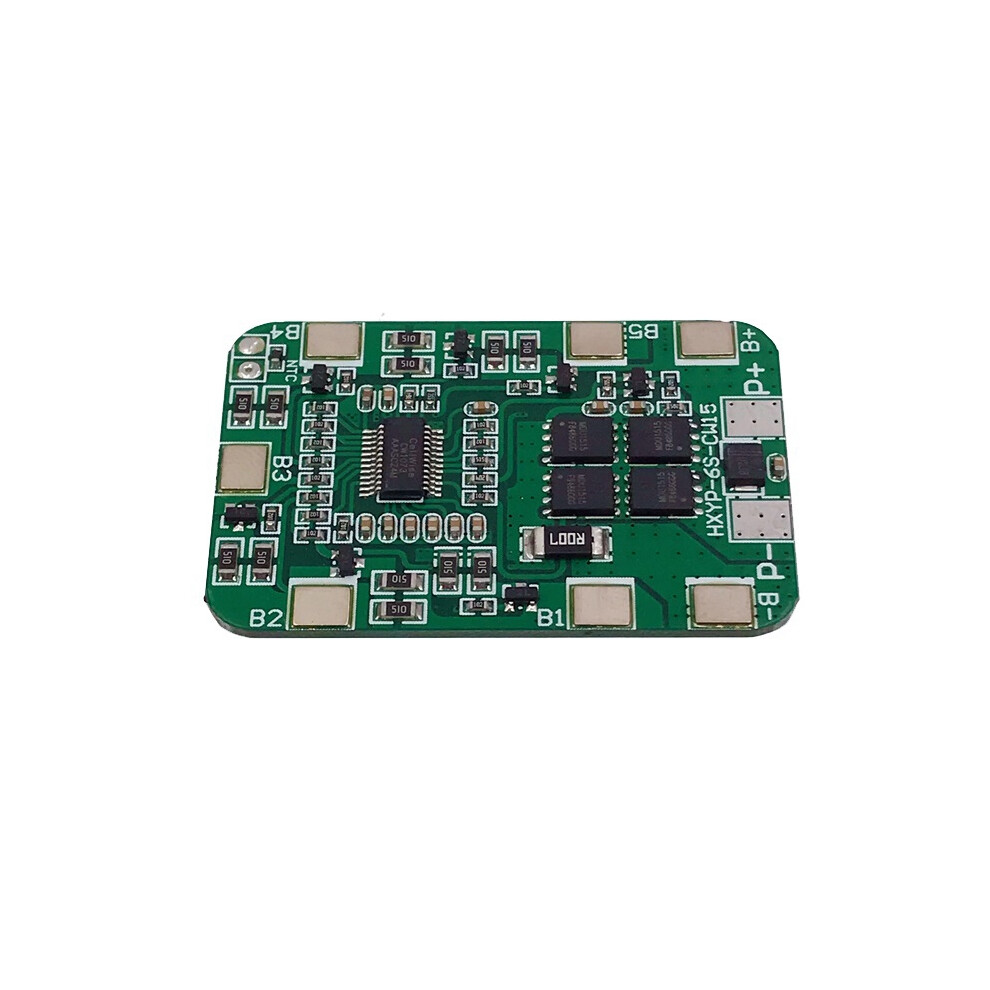

6S 25.2V 20A Lithium Battery Board with Balancing for 25V Screwdriver and 24V Pack Use

6S 25.2V 20A Lithium Battery Board with Balancing for 25V Screwdriver and 24V Pack Use Description

Name: protection board Charging voltage: 25 V Charge MOS pressure value: 35 V Discharge MOS pressure value: 35 V Charging current: 5-6 A Continuous discharge current: 20 A Over current protection: 50/55/60 A Over current protection delay: 20/25/30mS Single section since the power consumption: 30uA Single section between the power consumption: 3uA Single section over charge detection voltage: 4.18- /4.22V Over charge recovery voltage 4.05- 4.15 V Over charge detection delay: 0.5/1.0/2.0S Single section over discharge detection voltage: 2.75-2.85 V Over discharge recovery voltage: 2.90-3.20 V Over discharge detection delay: 0.5-2.0S Short / over / over current protection recovery short circuit / over discharge / over current protection after removal of load auto recovery Short circuit protection delay: 200/500/600uS The normal working state of B- to P- resistance: 5m ohm Continuous 20A current maximum temperature rise: 25 Working environment (humidity) relative humidity: greater or equal to 98% (long-term stability under the humidity) Working environment (temperature) -30 ~ 80(in the lower temperature range of long-term stability) colour: green Material: plastic Package Contents: 1 x 6S 25.2V 20A Lithium Battery Board Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
