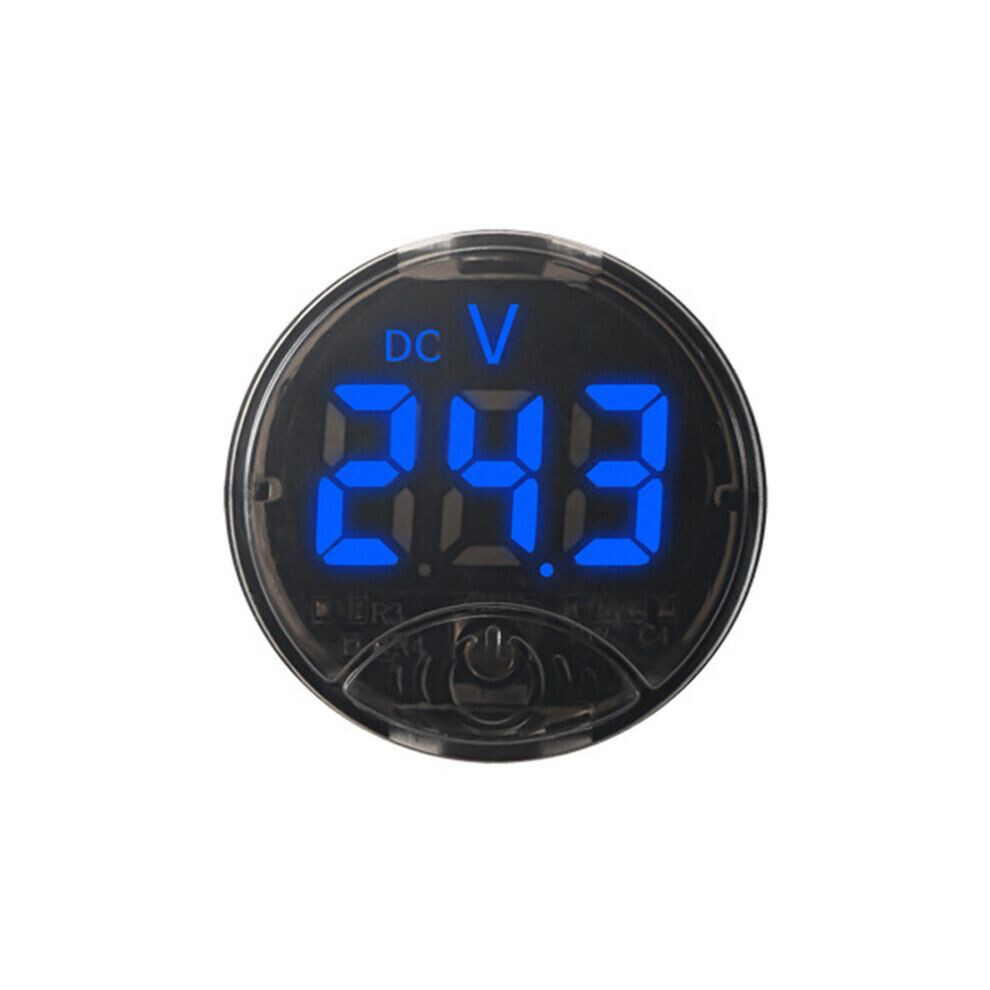

7-120VDC Touch Control Voltage Meter with Alarm, Custom Colors, 33.5mm

7-120VDC Touch Control Voltage Meter with Alarm, Custom Colors, 33.5mm Description

7-120VDC Touch Control Voltage Meter with Alarm, Custom Colors, 33.5mm Description
7-120VDC 0-120VDC Touching Control Voltage Meter with Low Voltage Alarm and Reverse Polarity Protecting Function Digital Display Colors Customizable
This voltage meter adopts premium integrated circuit chips, with an intuitive touchswitch interface for ease of use. Equipped with an intuitive touchswitch interface for ease of use. The meter also includes a programmable low-voltage alarm function that provides real-time alerts when voltage drops below a user-defined threshold, ensuring proactive system maintenance and preventing potential equipment damage. With a programmable low-voltage alarm function that provides real-time alerts when voltage drops below a user-defined threshold, ensuring proactive system maintenance and preventing potential equipment damage. Four optional display colors-red, green, blue, and white.
Features:
【Premium Componentry & Enhanced Reliability】: Adopts premium integrated circuit chips, the voltage meter provides an extended lifespan and superior quality compared to conventional alternatives, ensuring accurate and dependable voltage readings even under demanding conditions.
【Universal Compatibility Design】: Offering both 7-120VDC and 0-120VDC measurement ranges depending on the two-wire or three-wire connection, the touching-controlled voltage meter meets the diverse voltage monitoring needs of various direct current systems, allowing users to choose the appropriate configuration for their specific application.
【Touchcontrol & Low Voltage Alarm】: Equipped with an intuitive touchswitch interface for ease of use. The meter also includes a programmable low-voltage alarm function that provides real-time alerts when voltage drops below a user-defined threshold, ensuring proactive system maintenance and preventing potential equipment damage.

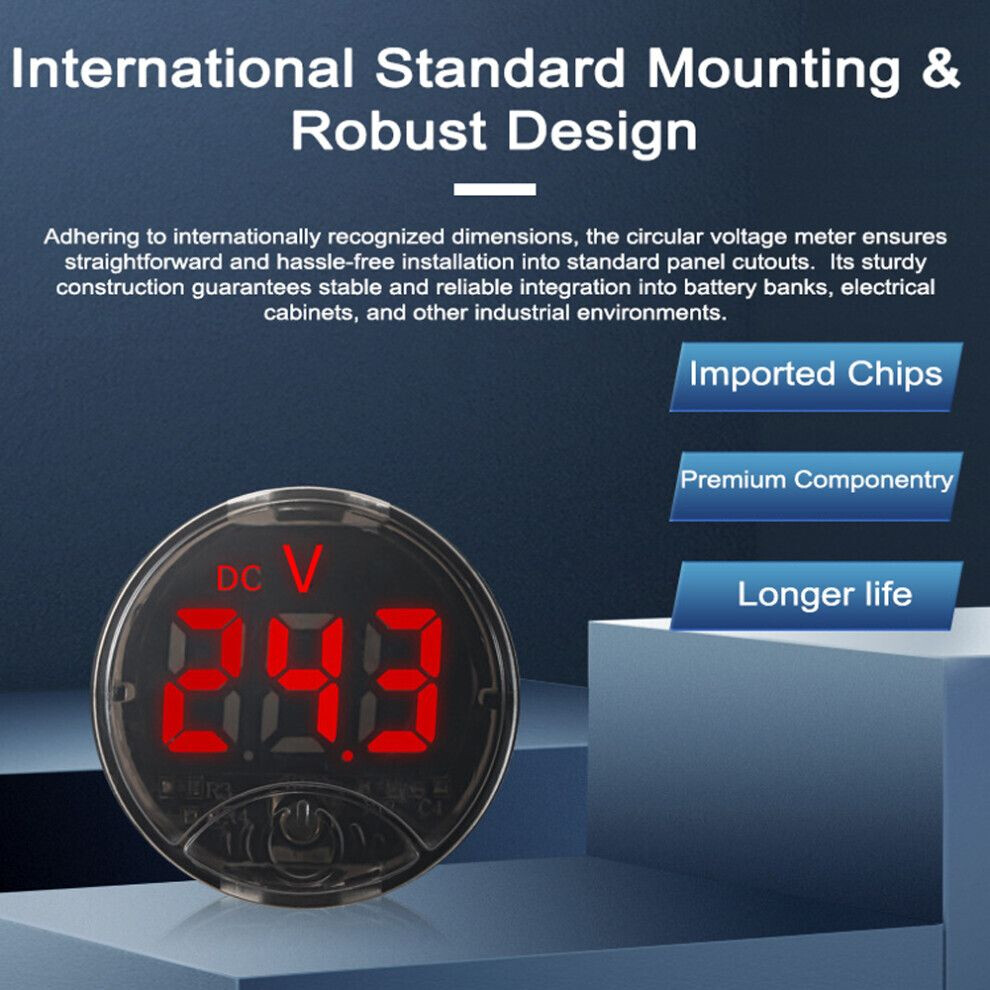

【International Standard Mounting & Robust Design】: Adhering to internationally recognized dimensions, the circular voltage meter ensures straightforward and hassle-free installation into standard panel cutouts. Its sturdy construction guarantees stable and reliable integration into battery banks, electrical cabinets, and other industrial environments.

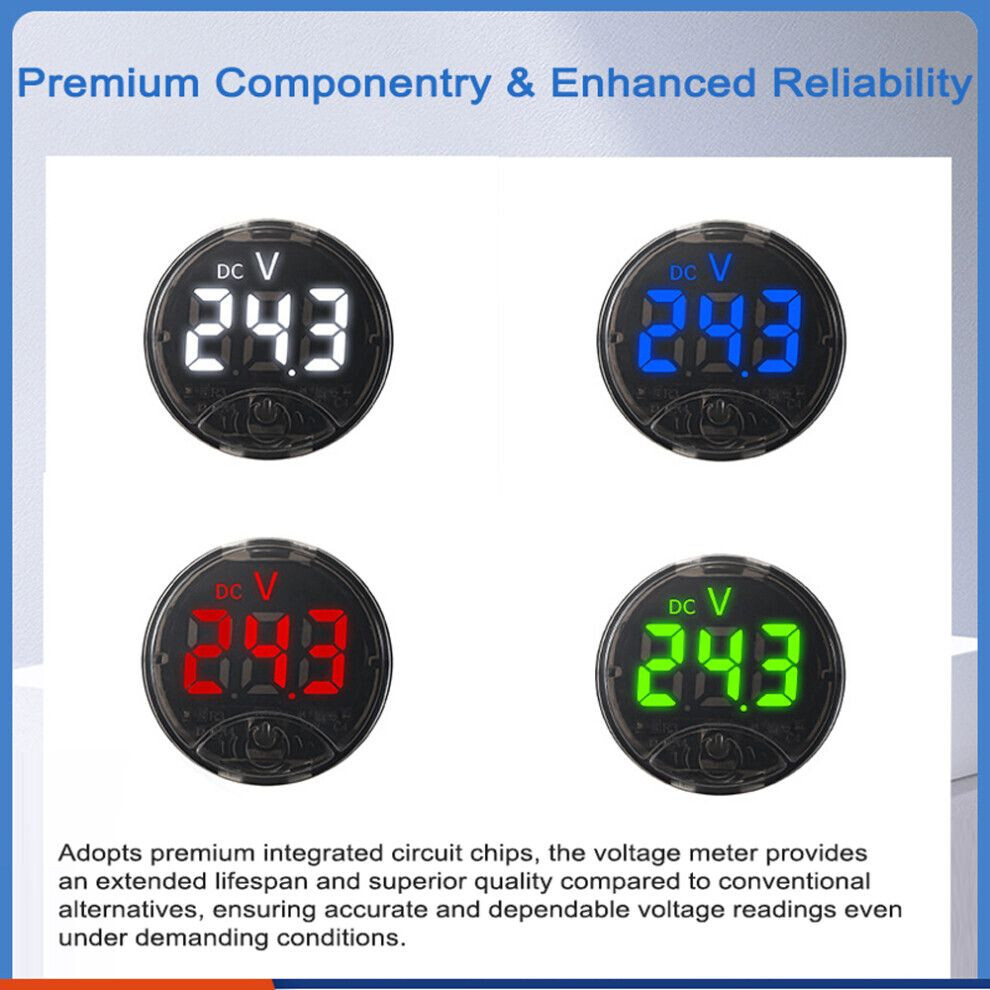

【Personalized Display Options】: Four optional display colors design, red, green, blue, and white, allow users to customize the visual appearance according to their individual preferences or existing equipment aesthetics, further enhancing the overall user experience and appearance of the installation.
Specifications:
Name: Voltage Meter
Material: plastics
Display color: red, green, blue, white (optional)
Detection voltage for two-wire models: 7-120VDC
Powersupply voltage for three-wire models: 7-24V
Detection voltage for three-wire models: 0-120VDC
Operating current: ≤20MA (ultra-low power consumption)
Display mode: customized digital tube
Installation aperture: circular diameter 30mm
Measurement rate: ≥200mS/time
Measurement accuracy: 1% (±1 word)
Item size: 33.5 * 33.5 * 18.4mm / 1.32 * 1.32 * 0.72in
Package size: 35 * 35 * 20mm / 1.38 * 1.38 * 0.79in
Package weight: 12.5g / 0.44ounce
Packing List:
1 * Voltage Meter
