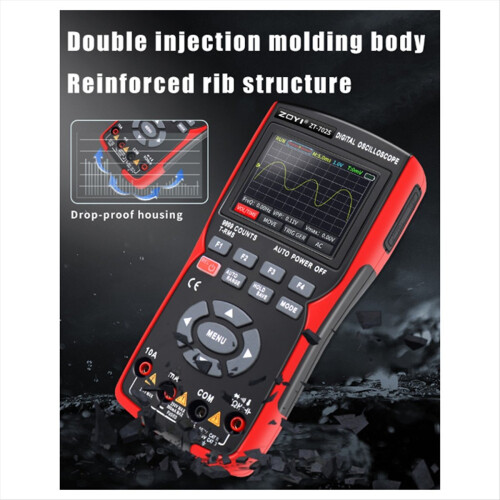

702S Digital Oscilloscope High- Dual Purpose English

702S Digital Oscilloscope High- Dual Purpose English Description

Model:702S
100% New
Type: Dual purpose Oscilloscope Multimeter
Operating Mode: Manual

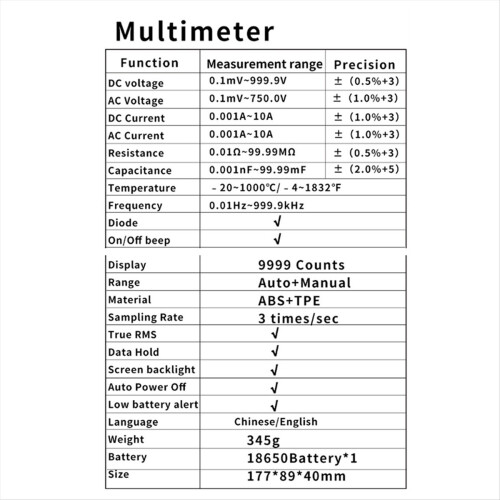

Measuring Capacitance Range: 0.001nF-99.99mF

Measuring Resistance Range: 0.01Ω-99.99MΩ
: ELECTRICAL
Model Number: -702S
DC Current: 0.001A-10A
AC Current:0.001A-10A
AC Voltage:0.1mV-750.0V
DC Voltage:0.1mV-999.9V
Display Type:Digital display
Frequency:0.01Hz-999.9kHz
Diode:Yes
On/Off beep:Yes
True RMS:Yes
Data Hold:Yes
Screen backlightAuto Power Off:Yes
Low battery alert:Yes
Display:9999 Counts
Sampling Rate:3 times/sec
Broadband:10MHz
Sampling method:Real-time sampling
Real-time sampling rate:48MSa/s
Input Coupling:DC,AC
Input impedance:1Ω2, 16pf
Probe attenuation:X1,X10
Maximum input voltage:150V(DC+AC )
Sampling rate range:1.5Sa/s-48MSa/s
Waveform interpolation:(sinx)x
Sweep speed range:50ns/-20s/
Time base accuracy:20ppm
Specifications: English version standard
Colour:As Shown
Material:ABS

Package Contents:
1 x Dual purpose Oscilloscope Multimeter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
