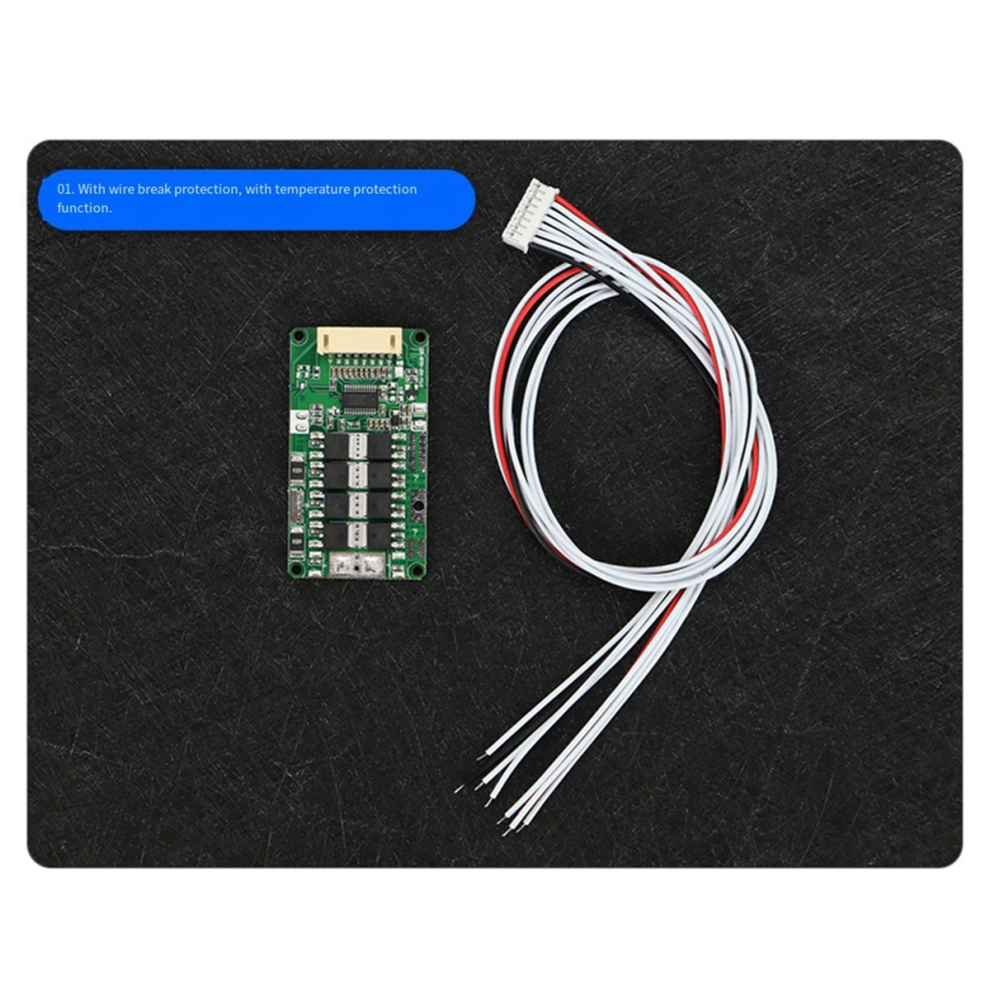

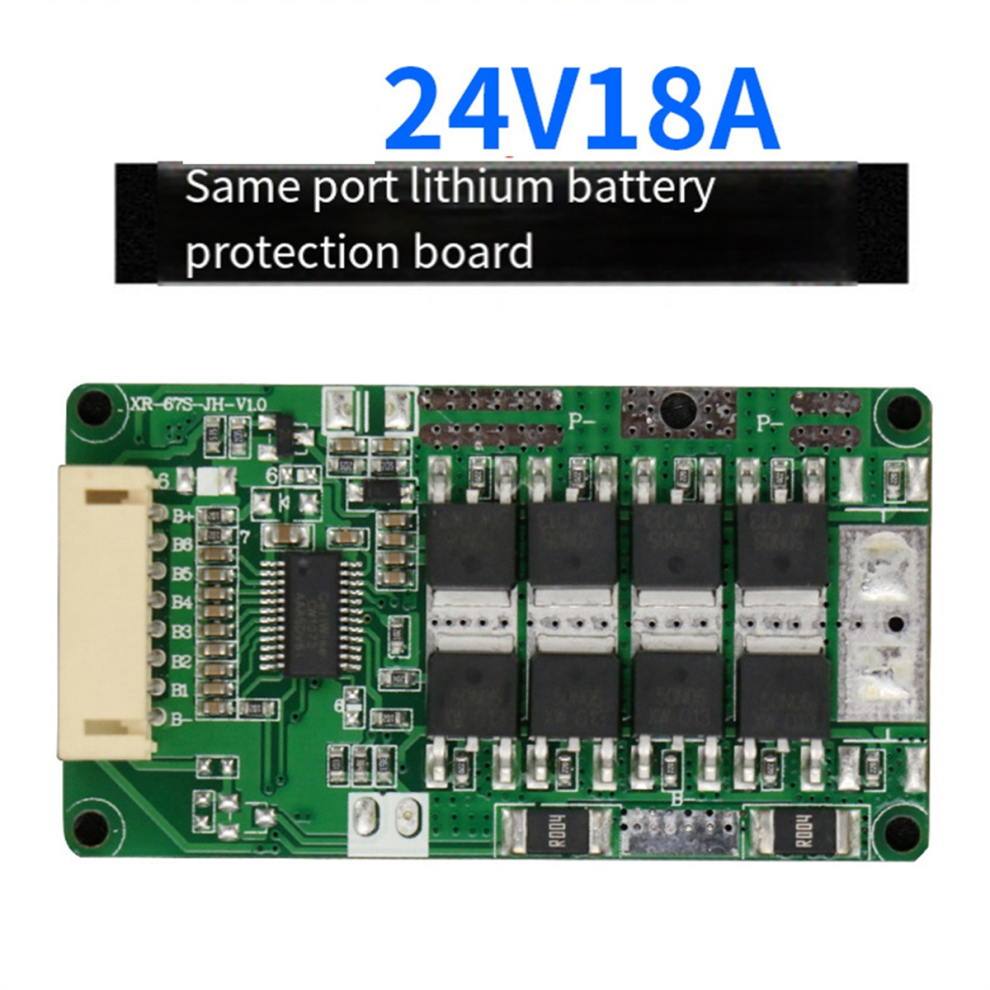

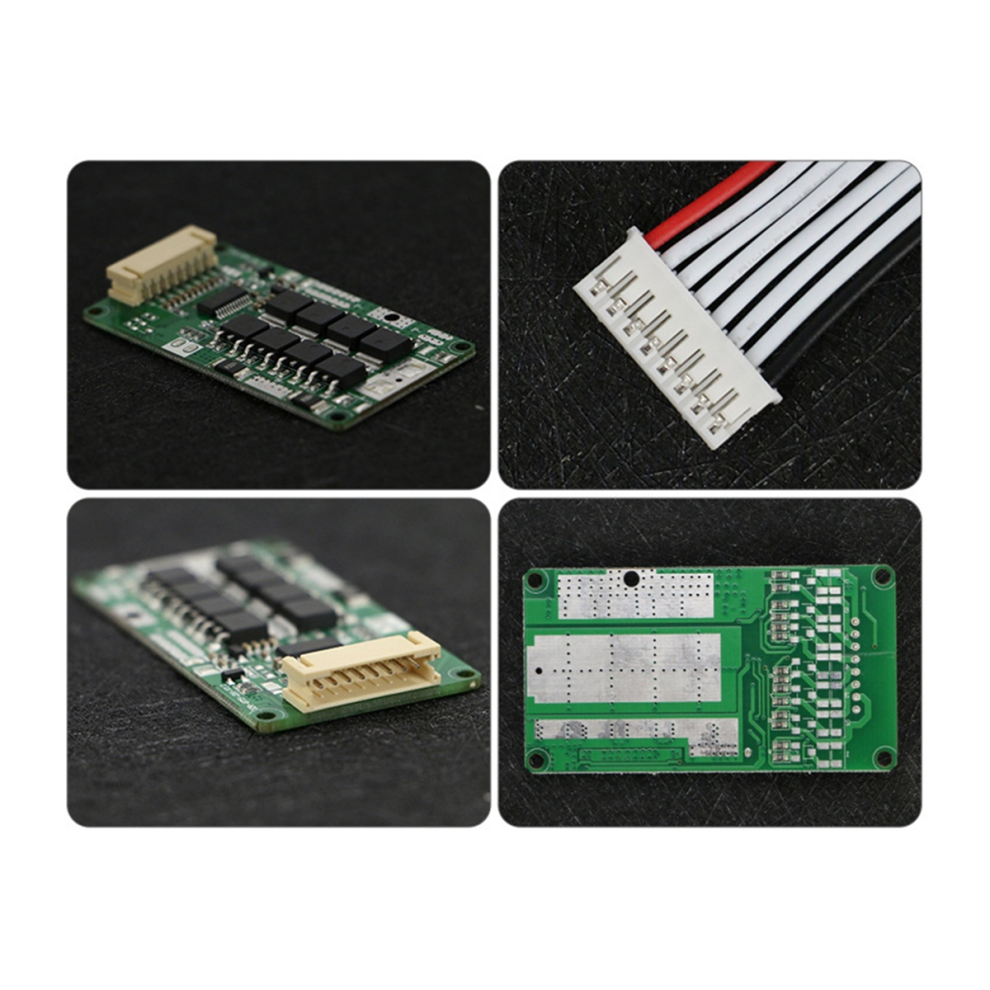

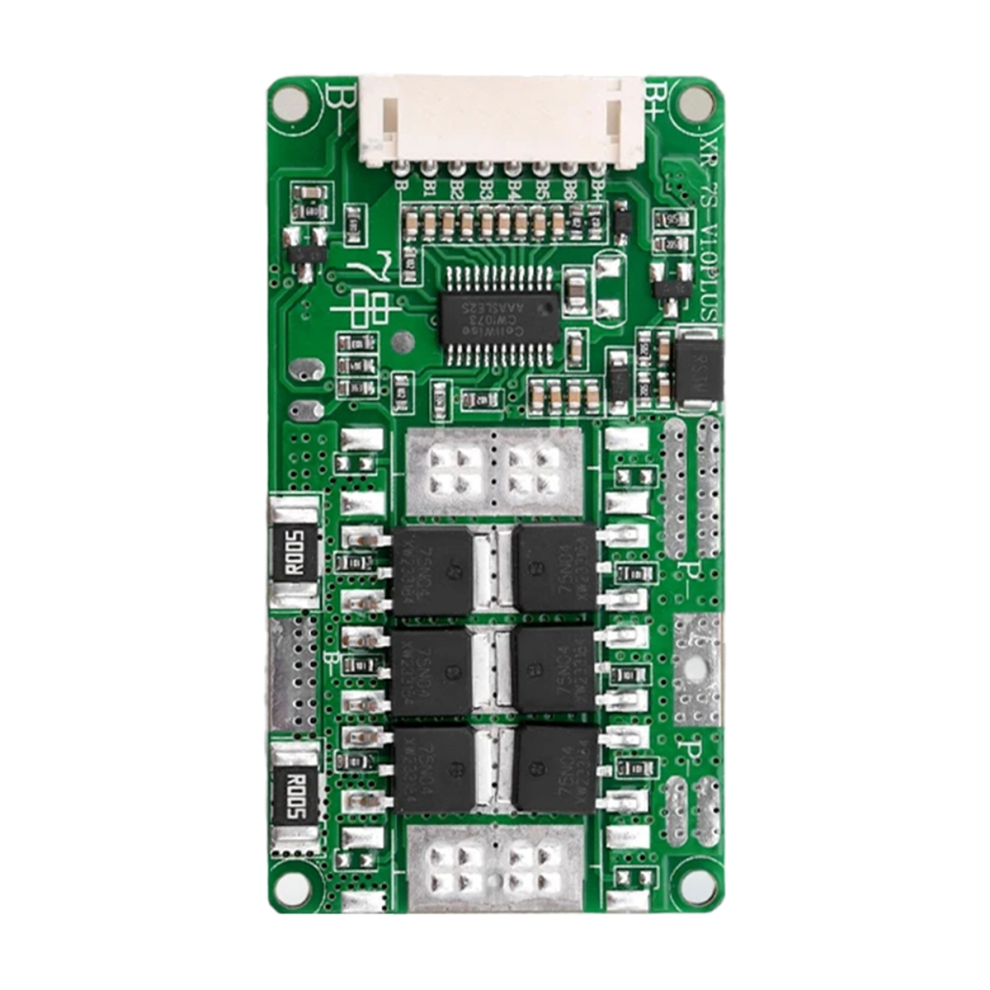

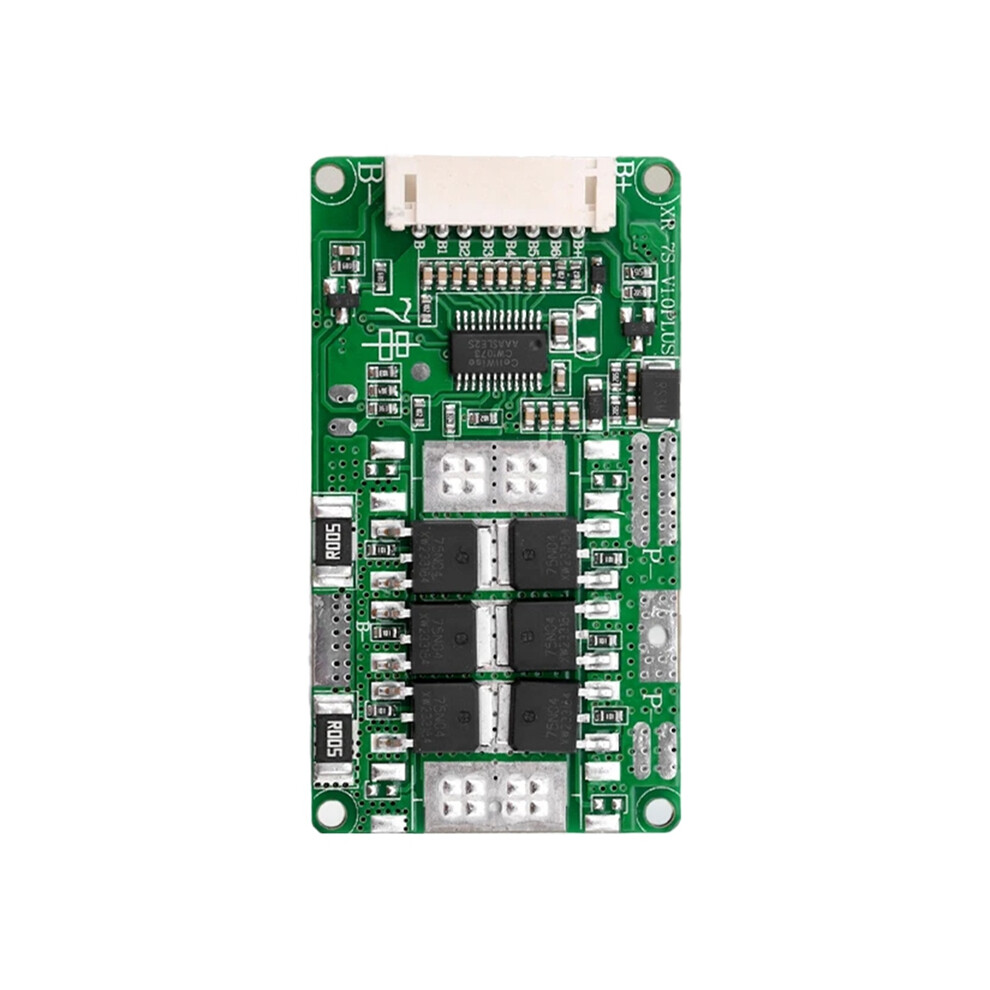

7S 24V15A Same Port Lithium Battery Charging Protection Board Overcurrent/Voltage/Discharge Short Circuit

7S 24V15A Same Port Lithium Battery Charging Protection Board Overcurrent/Voltage/Discharge Short Circuit Description

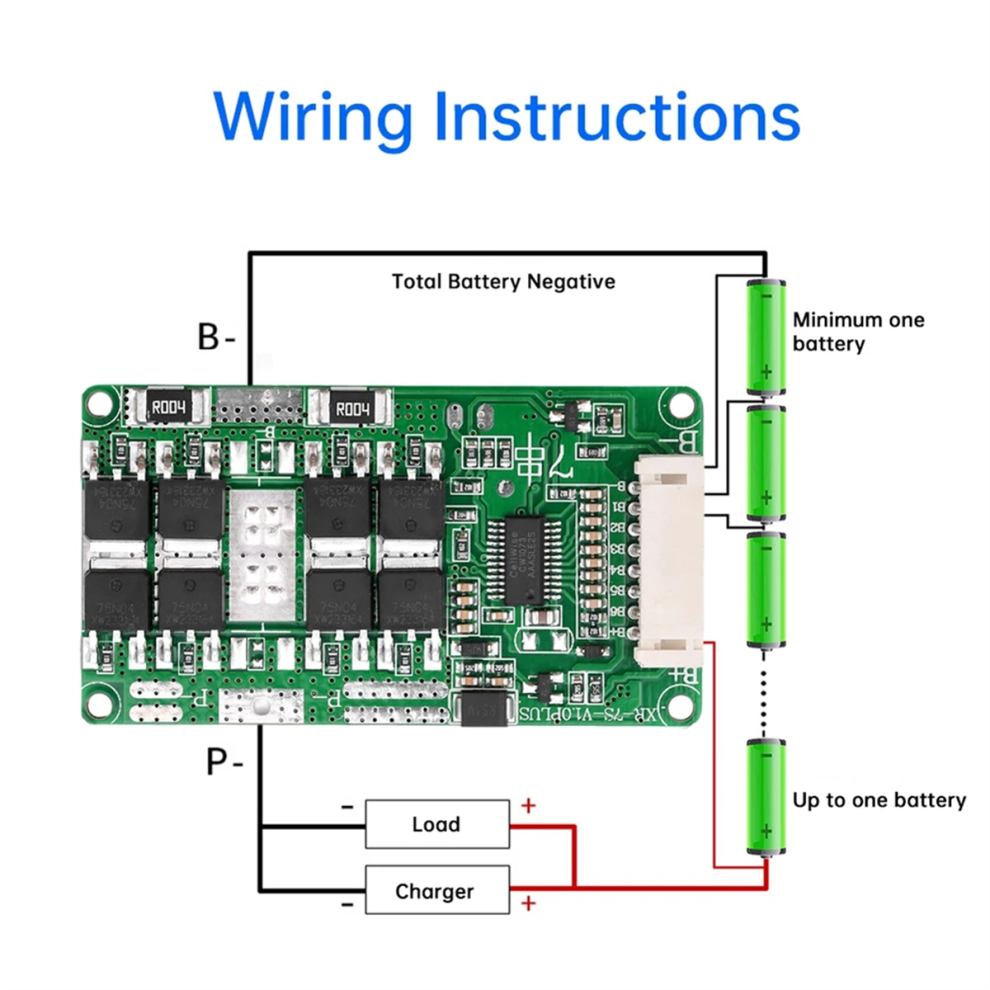

1. The use of high-quality materials, product quality assurance 2. Exquisite and compact appearance, beautiful arrangement of components 3. Using a single integrated circuit, more stable performance 4. The product has over-current protection, over-voltage protection, over-discharge protection, short-circuit protection, charging protection and other protection functions, the use of more secure and safe! 5. Wide range of applications, suitable for a variety of industrial DIY occasions Wiring: same port Single battery over-discharge voltage: 2.7V0.08V Continuous working current: 15A Instantaneous protection current: 50A Overcurrent recovery conditions: charging recovery or disconnecting the load Short-circuit recovery condition: charging recovery or disconnecting the load Single battery overcharge voltage: 4.25V0.025V Continuous charging current: 10A/15A/18A Charger voltage: 30V (recommended) Operating power consumption: 30uA Main circuit conduction internal resistance: 20mΩ Temperature range: -40 to +80 Disconnection protection: Yes Wire size: 2.0MM pitch/40CM length Attention: Lithium batteries should be with lithium battery charger, do not use lead-acid battery charger, lead-acid charging may be high-voltage breakdown of the protection board MOS tubes, resulting in the protection board overcharge is not protected. 18650 battery charger voltage: the number of battery strings * 4.2V Colour:Photo Color Material:plastic+metal Package Contents: 1 x protective board 1 x line line Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
