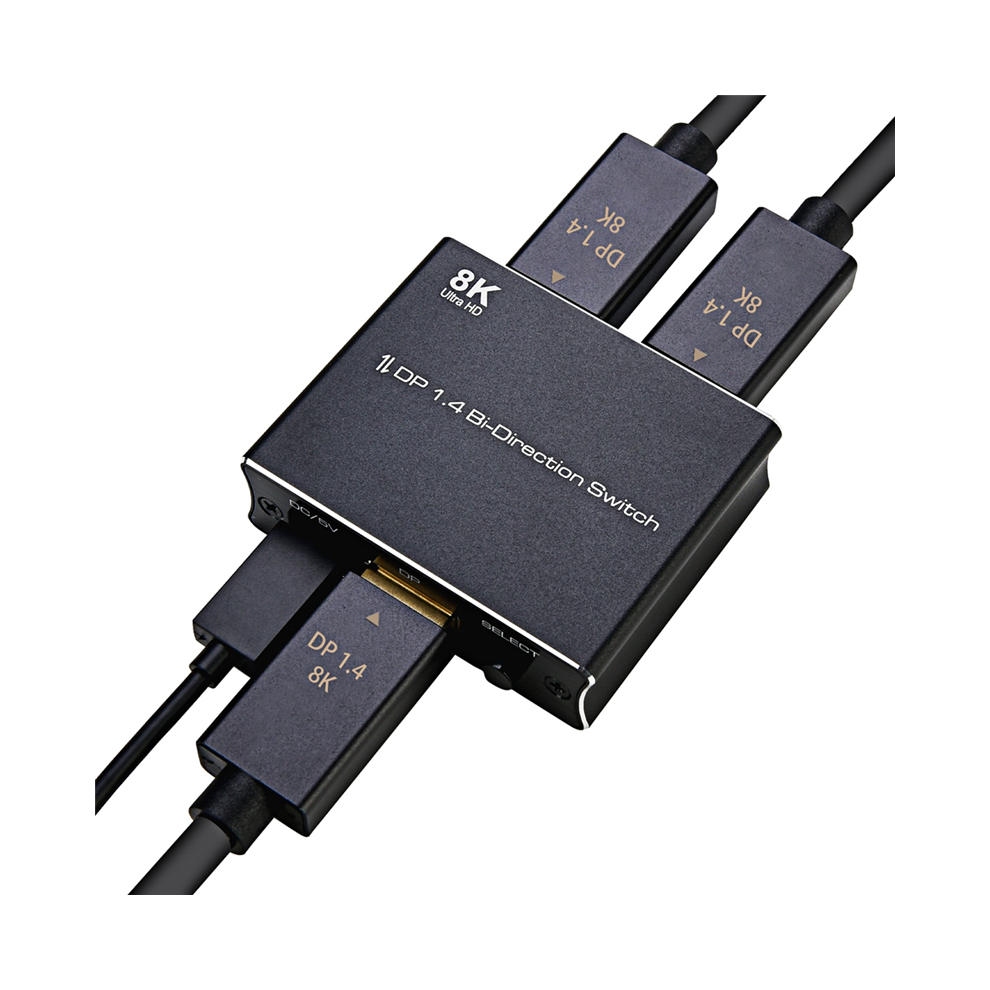

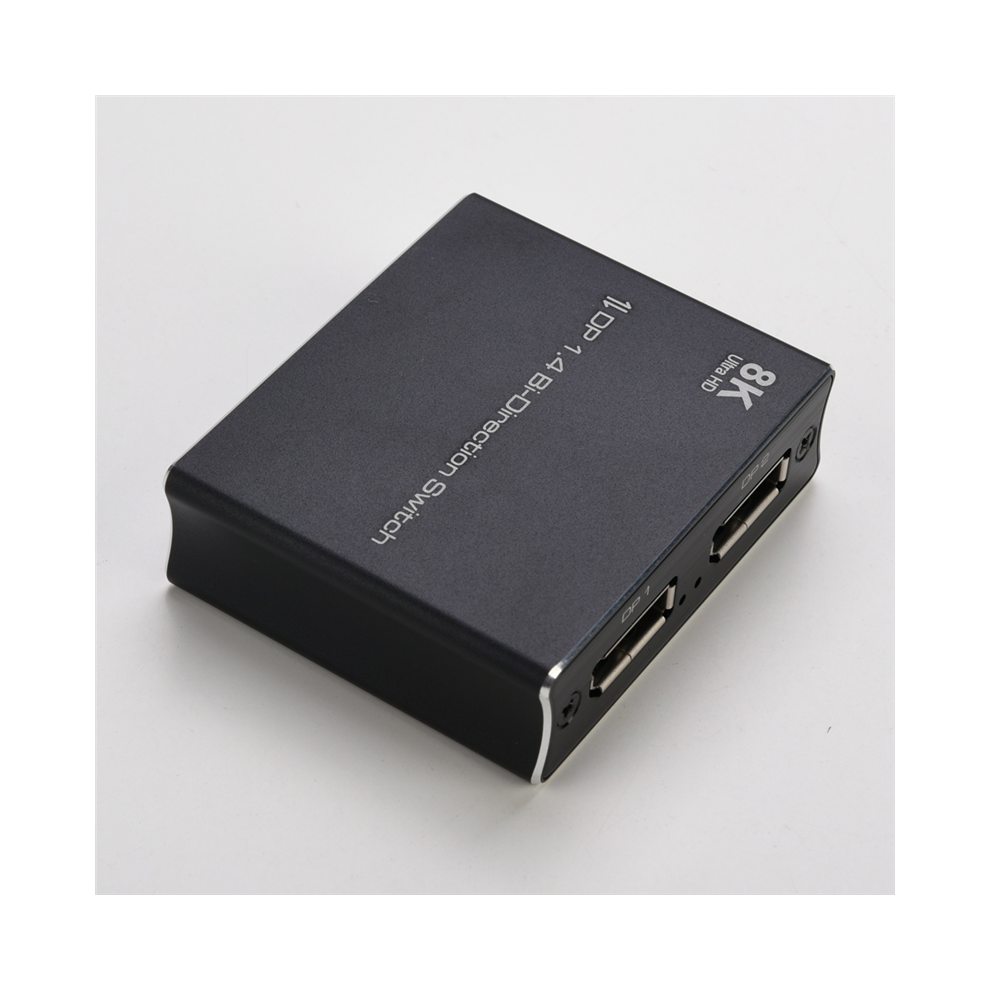

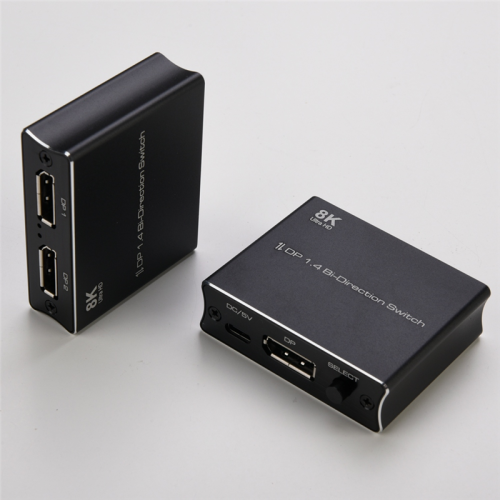

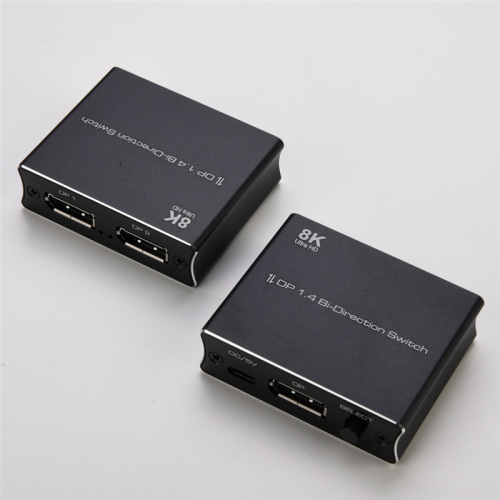

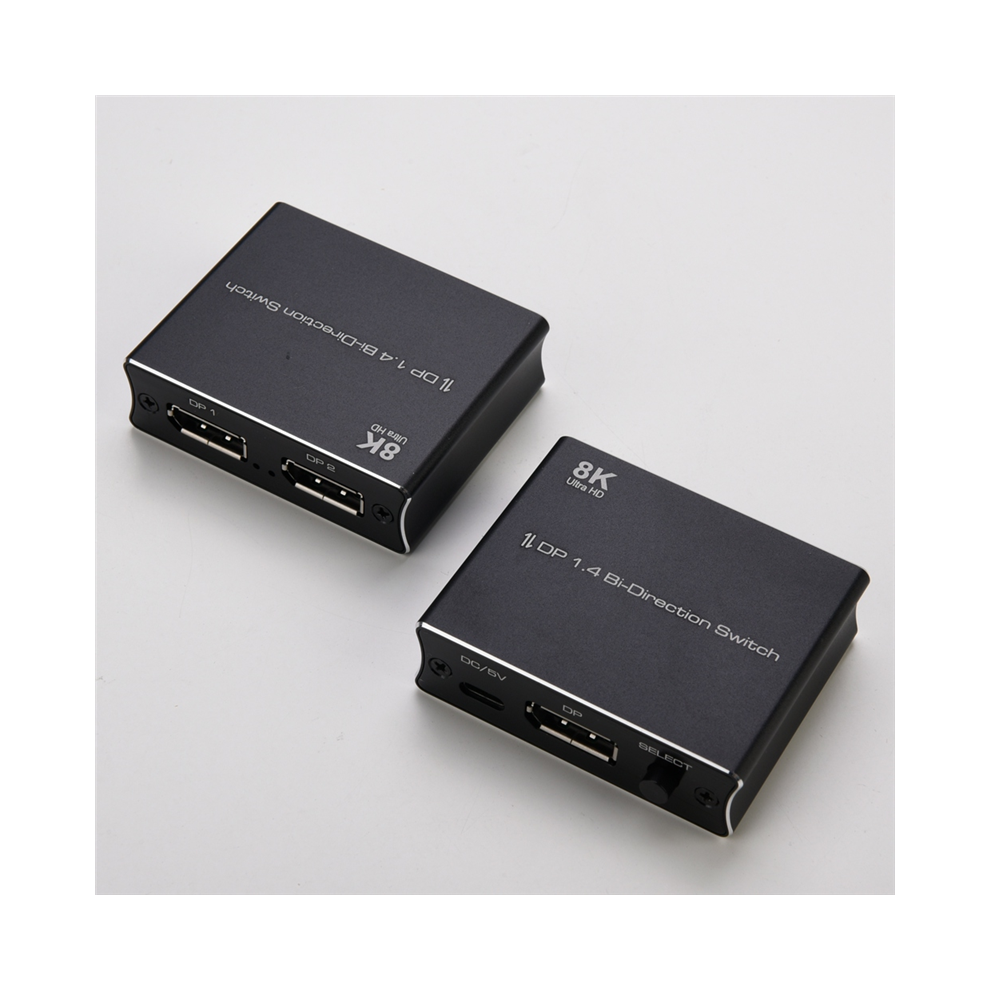

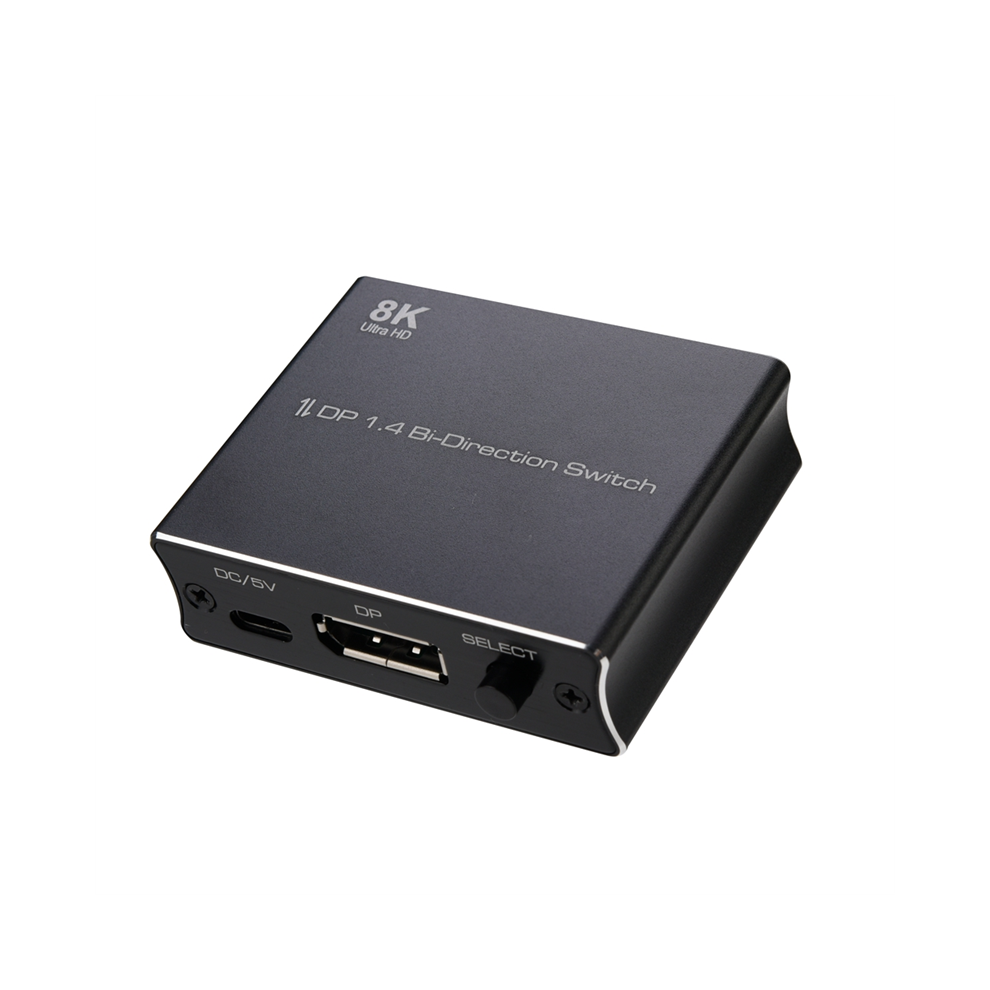

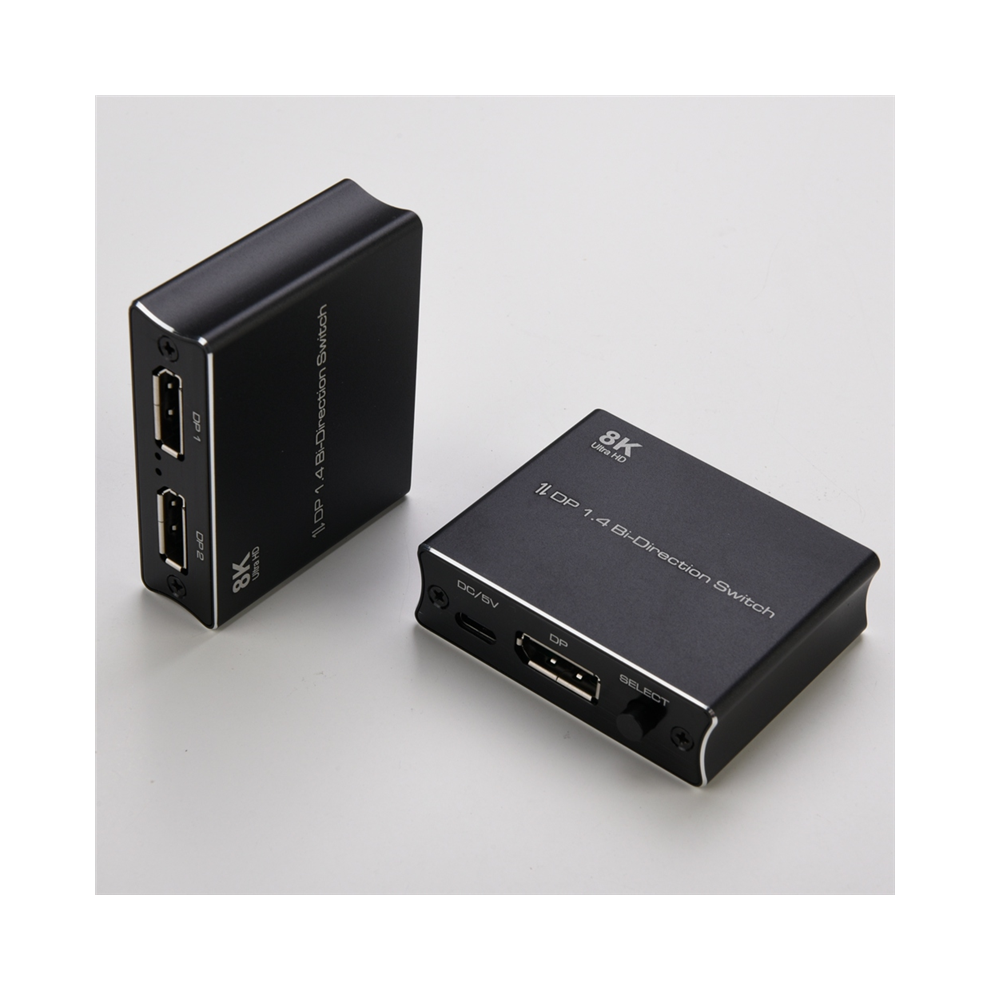

8K DP Switch DisplayPort 1.4 Bi-Direction Converter 2X1/1X2

8K DP Switch DisplayPort 1.4 Bi-Direction Converter 2X1/1X2 Description

Product Features: 1. DP Bi-direction Switcher. This displayport switcher support DP1.4 and Bi-direction, which means you can connect it in two-way. You can connect two DP source to one DP display or connect one DisplayPort source to toggle between two displays.
2. Up to 8K@30Hz
Support 8K@30Hz,4K@120Hz,1080P@240Hz HD resolution both input and output. This Displayport converter can provide you a high quality and clear image when transfer to multiple media devices. (Note: please make sure you have connect standard DP 1.4 cable.)
3. Plug and Play
This DP switch box is easy to to setup and operate. Also, it can install in minutes. Just the button, the indicator lights has swap signal and show the working status in a second.

LED Indication
According to the above said, when source or sink is working, the LED relative to is light. When the indicator lights has turn on, the displayport switch converter can provide you with transfer rates up to 48Gbps and can compatible with all DP standards devices.
Important Note
When you connect to multiple display, it required external power which is DC5V power supply to maintain connection. Also, this is DisplayPort Switcher, Not -compatible or USB-C Switcher. Please do not confuse it. Thank you!
Specifications:
1. DP Resolution: 8K@30Hz/4K@120Hz/1080P@240Hz
2. Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
3. Input/Output DDC Signal: 5Volts p-p (TTL)
4. Input Cable Distance: 15m AWG26 -compatible standard cable
5. Output Cable Distance: 20m AWG26 - compatible standard cable
6. Max Working Current: 1000mA
7. Operating Temperature Range: (-15 to +55)
8. Operating Humidity Range: 5 to 90%RH (No Condensation)
Color: black
Material: aluminum

Package Contents:
1 x Bi-direction Switch
1 x USB Power Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
