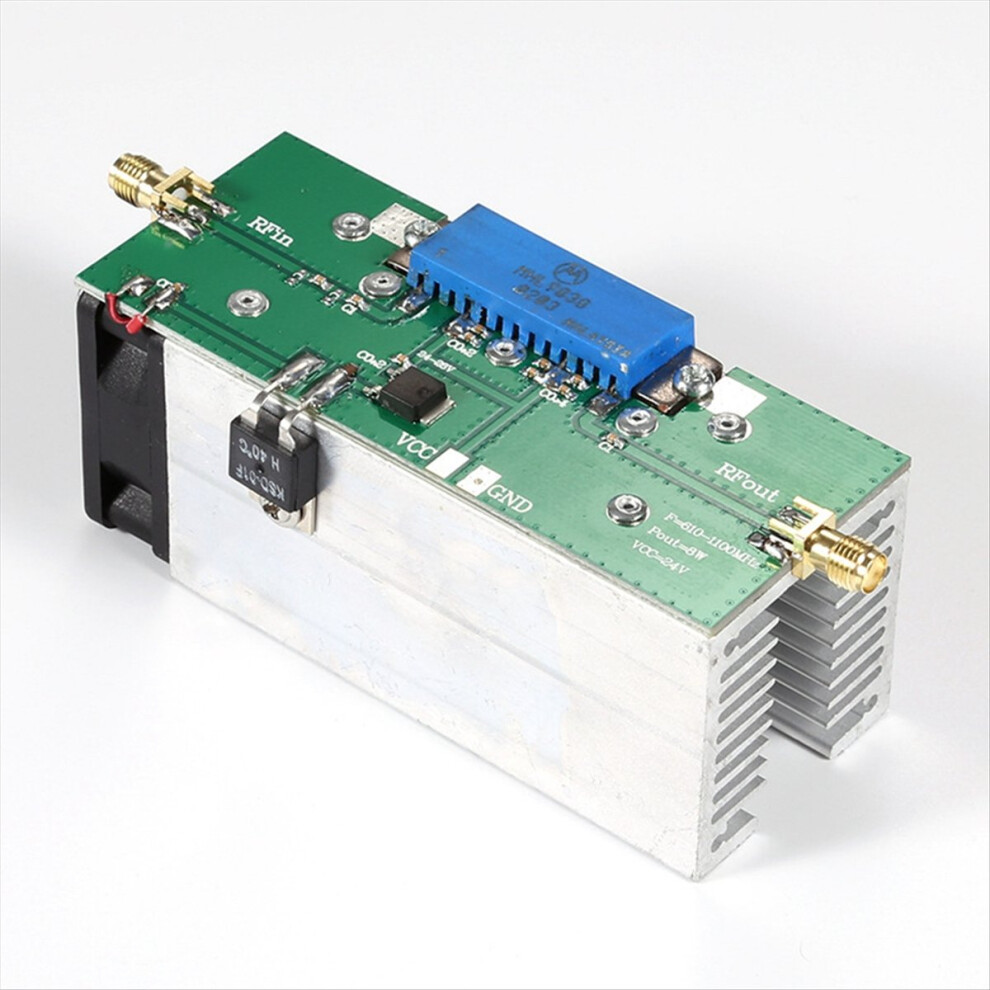

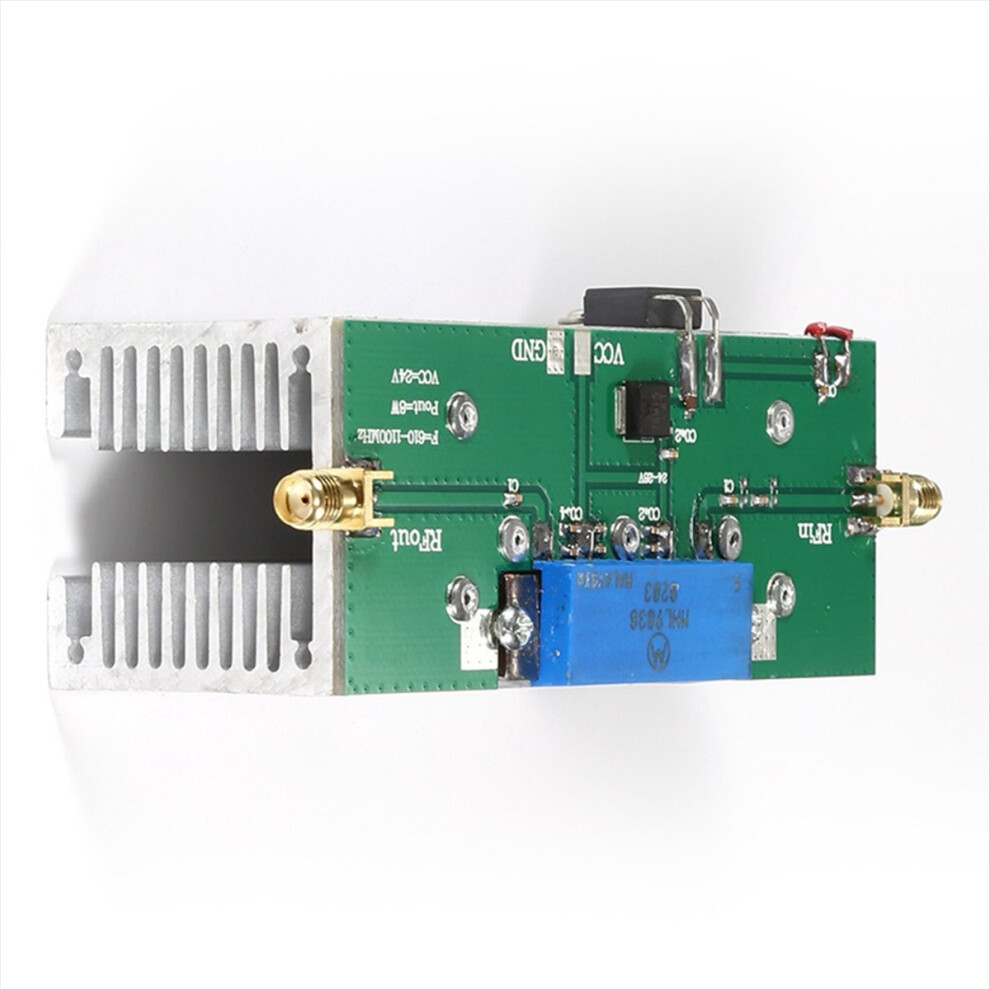

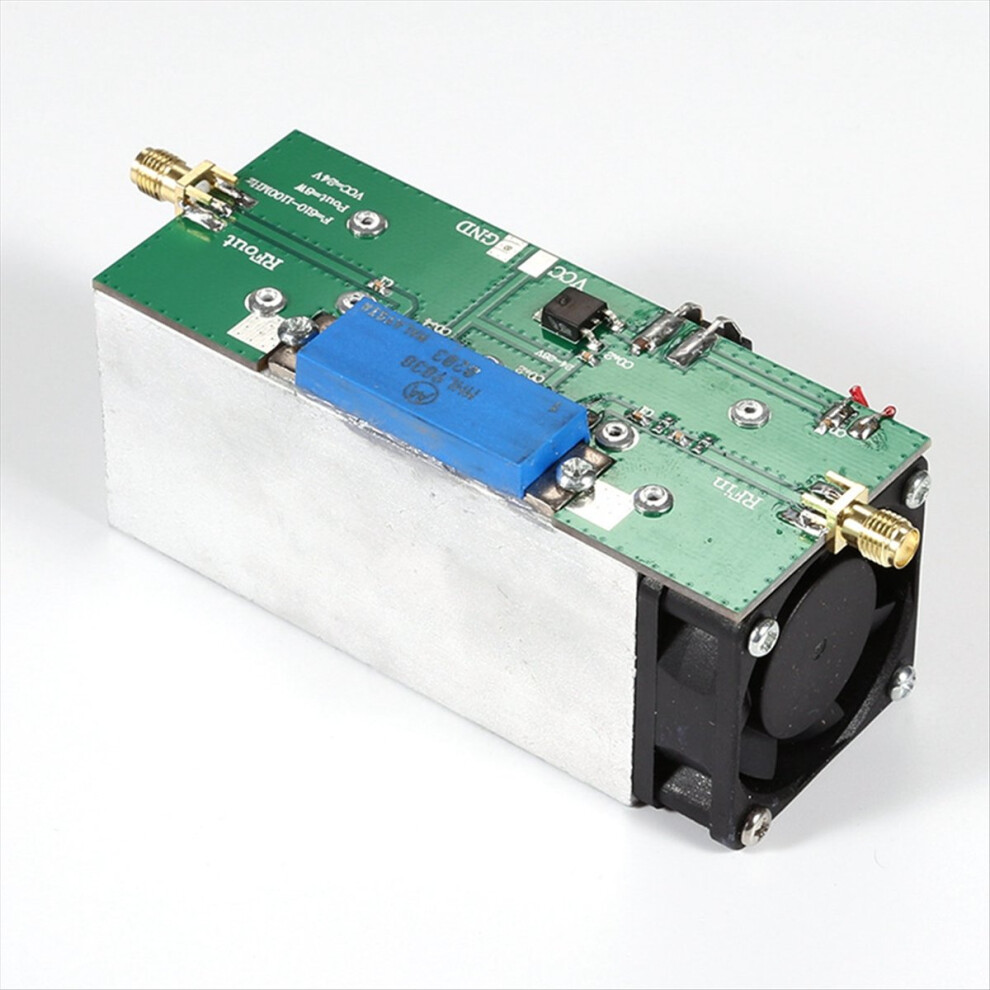

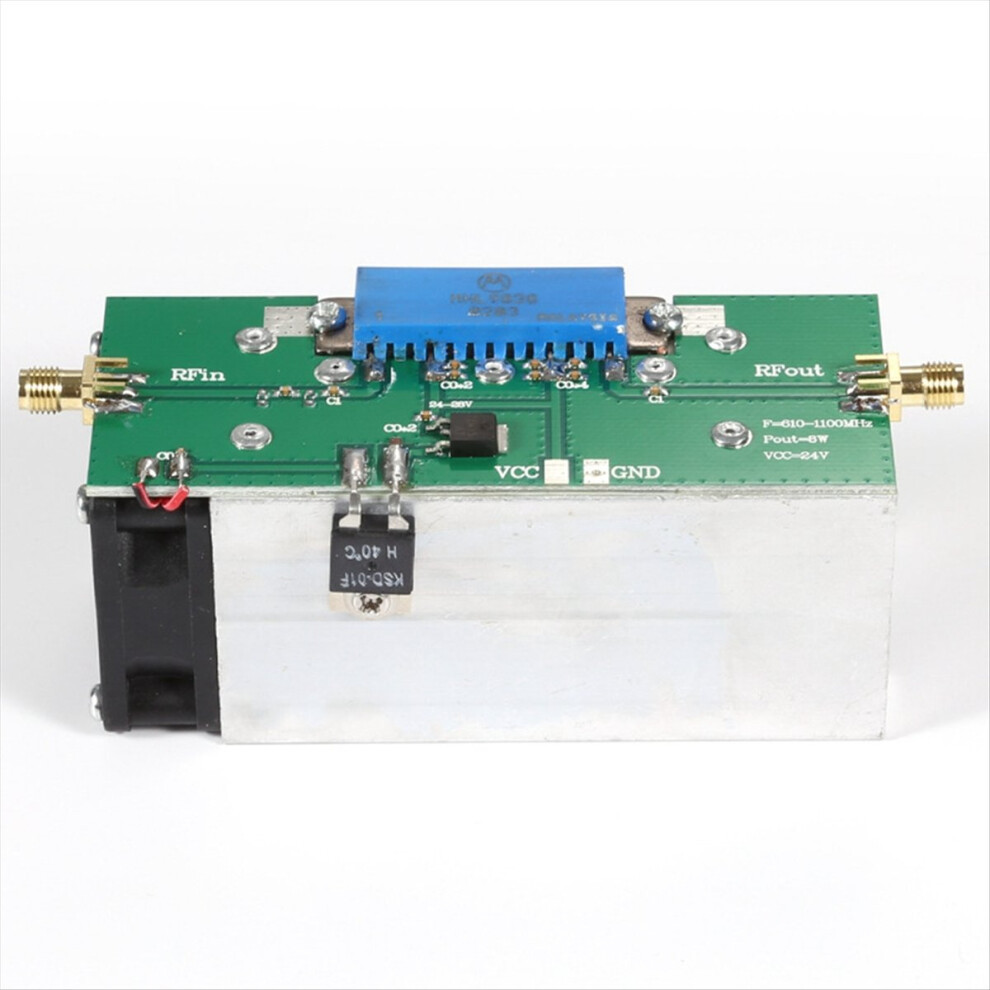

8W Microwave Power Amplifier Image Transmission Mo

8W Microwave Power Amplifier Image Transmission Mo Description

This module is a one-way amplifier, that is, it can only transmit, not receive.
Power supply voltage: 24-28V
Frequency range: 600-1100MHz
Output power: 8W (P1, Pmax)

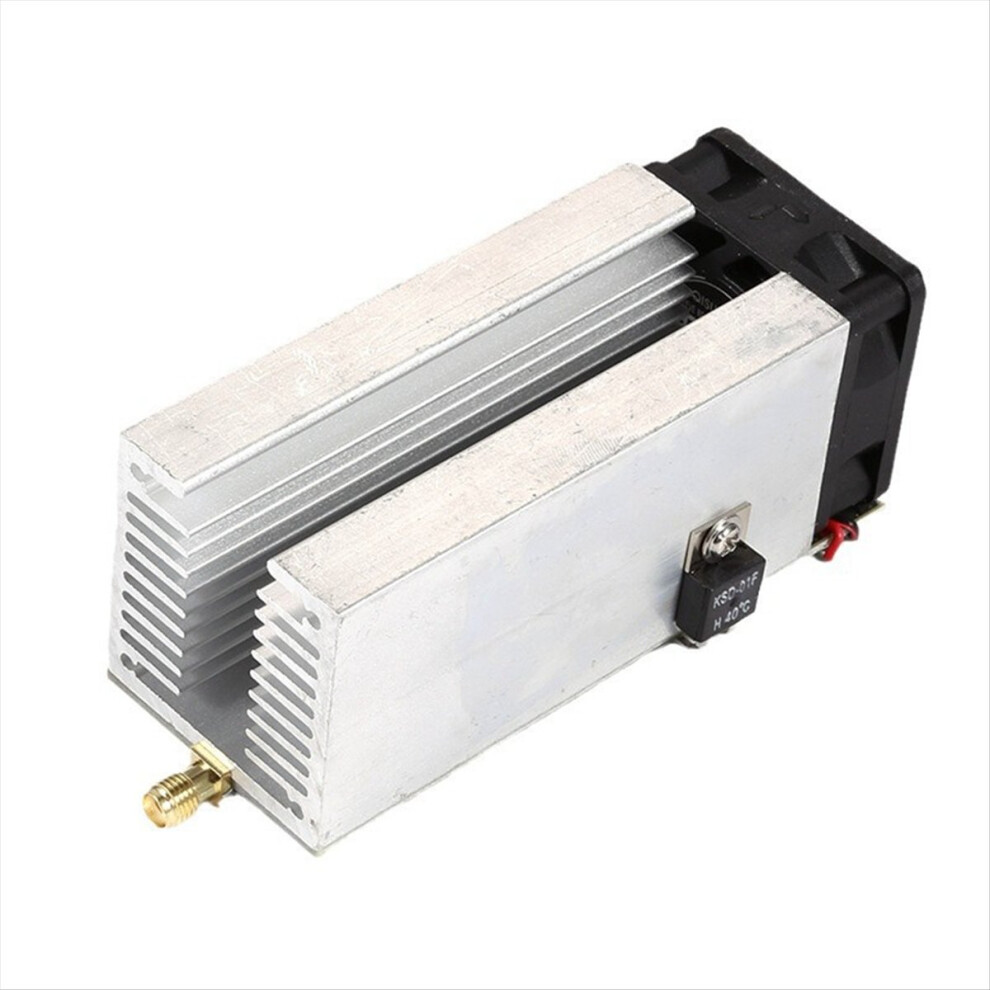

Heat dissipation method: automatic temperature control active cooling

1) Operating frequency: 600-1100MHz
2) Operating voltage: 24-28v
3) Operating current: 800mA
4) Amplification gain: 30dB
5) Output power: 8W (P1, Pmax)
6) System impedance: 50 ohms
7) Maximum input: 20mW (13dBm)
8) Interface form: SMA-K
9) Air cooling method: cooling
Note:Due to different production batches, there are differences in the printing of appearance labels, which not affect the use.
Colour:Green
Material:Plastic

Package Contents:
1 x Amplifier

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
