Ac Motor AC 220-240V -50A Oscillating Synchronous

Ac Motor AC 220-240V -50A Oscillating Synchronous Description

The -50A synchronous micromotor has a shaft length of 17mm. Special reminder, because the same model -50A has different models, please check the parameters and dimensions. Only the same size and parameters can be replaced and installed.

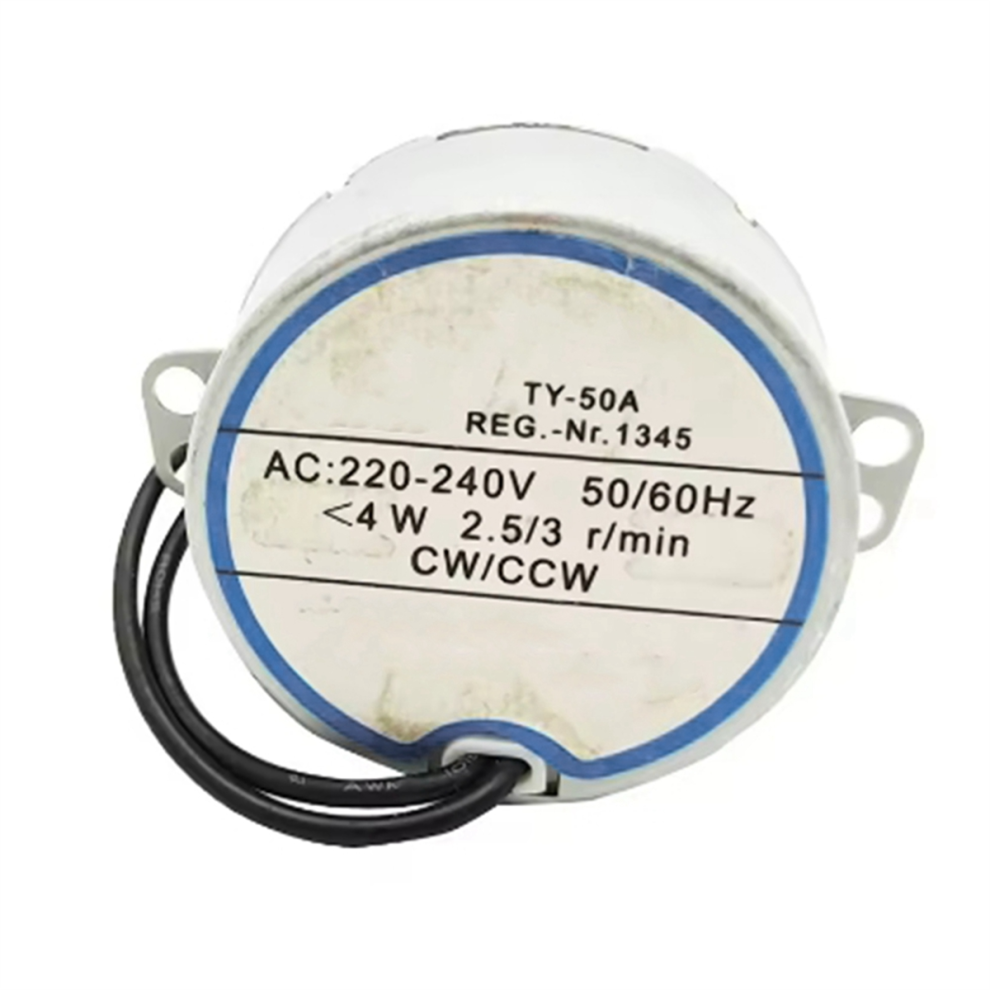

dimensions: AC: 220V-240V 50--60Hz Less than 4W
Speed 2.5-/min (not suitable for replacement and installation on high-speed motors, such as light box turntables are not suitable for installation. )
Direction: CW/CCW (non-directional).
Spindle shape: full round shaft

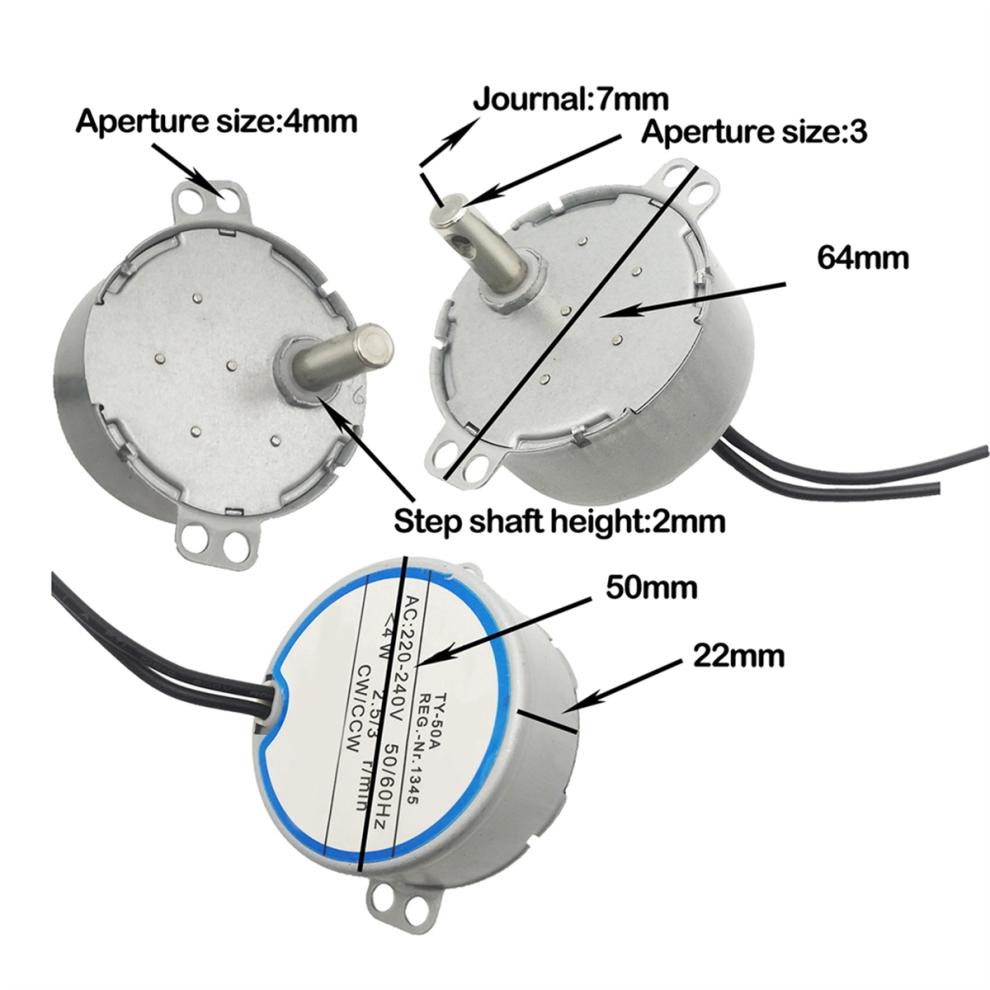

Spindle diameter: 7mm, shaft length; 17 mm,
Spindle opening center to shaft top 5mm hole large diameter 3mm.
Thickness: 21mm, motor diameter 50mm,
Installation fixing screw hole center hole distance is: 55-57mm
Lead length is about 90mm, bottom outlet.
Colour:As Shown
Material:Metal
Note: Installation guide not included, we strongly recommend you professional installation.
Please check as much as possible to make sure the item is what you need.
Due to different batches, there may be differences in product appearance and printed text, which not affect use

Package Contents:

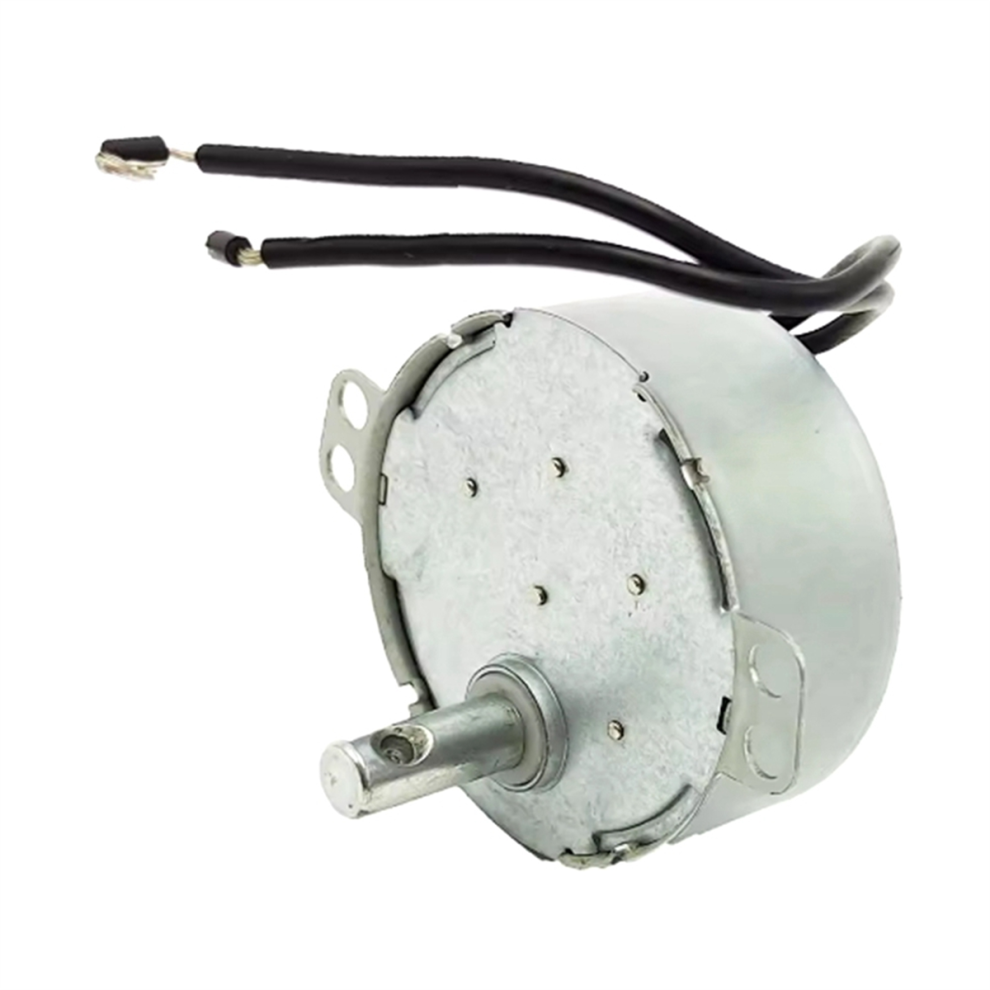

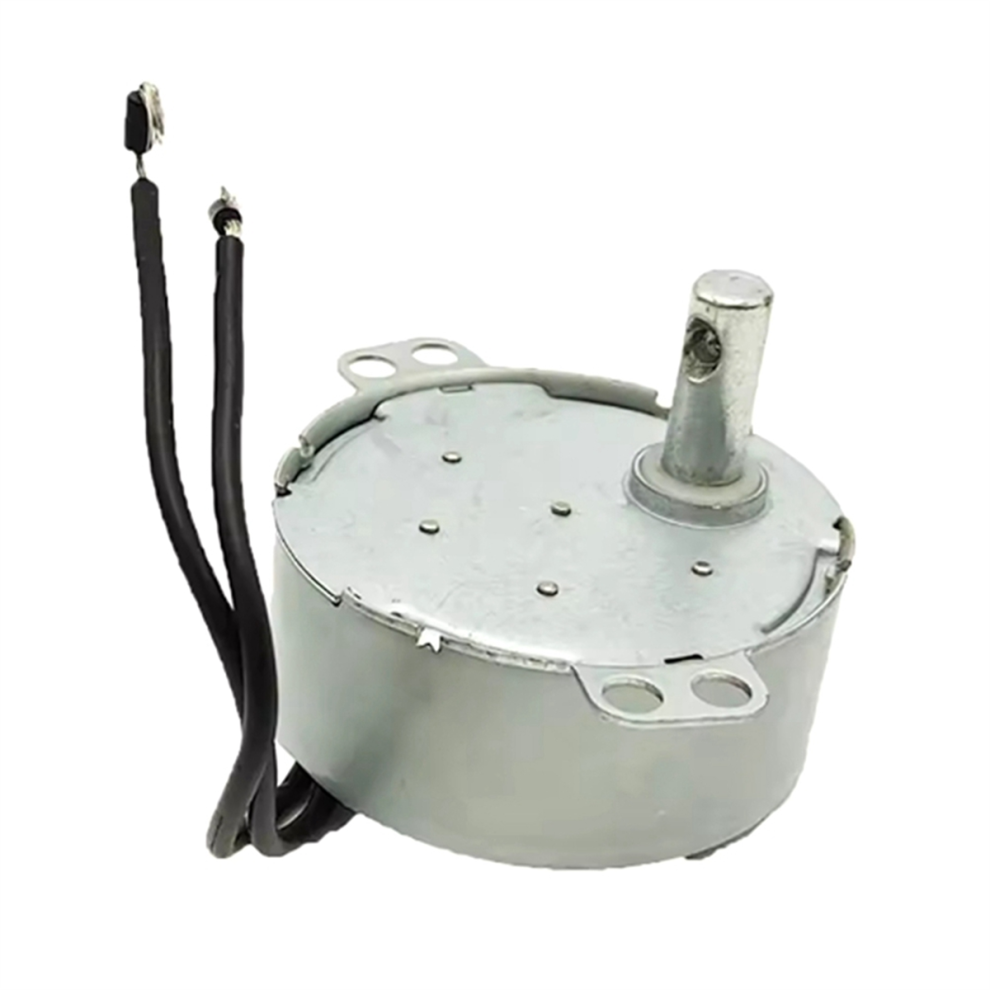

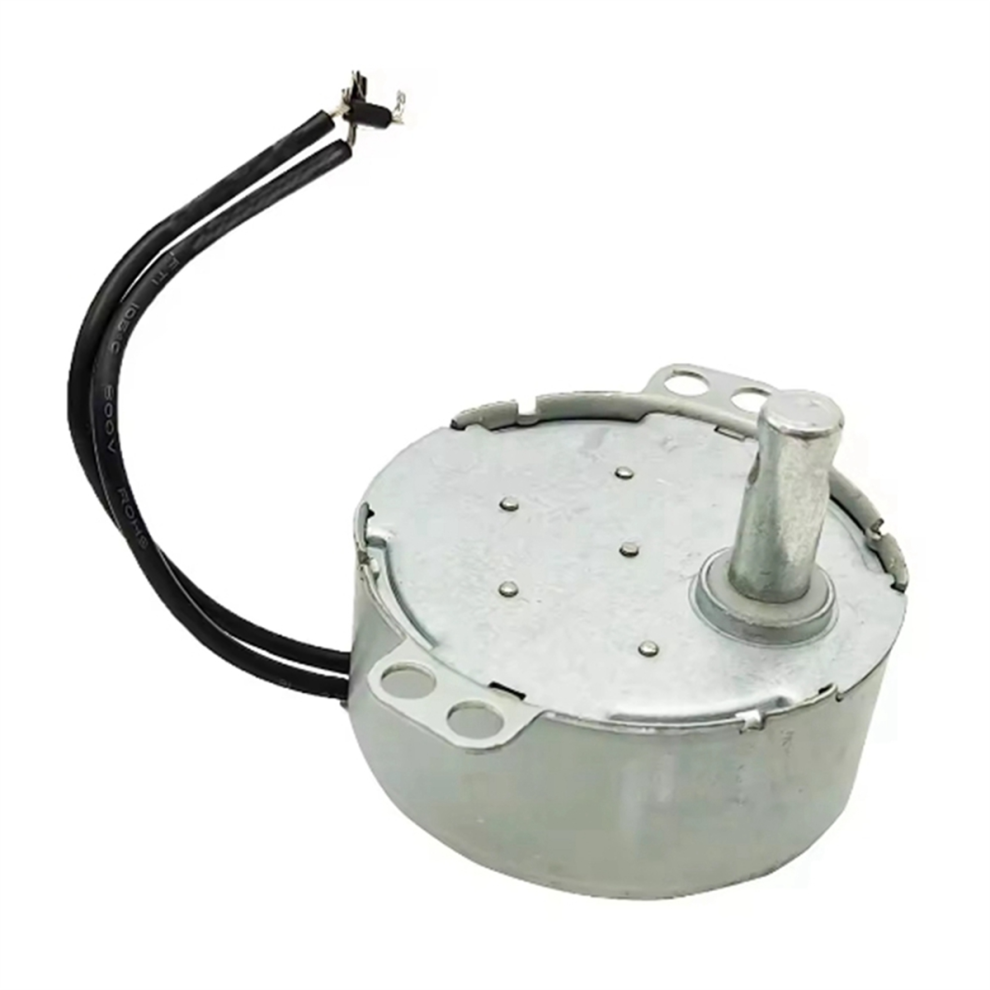

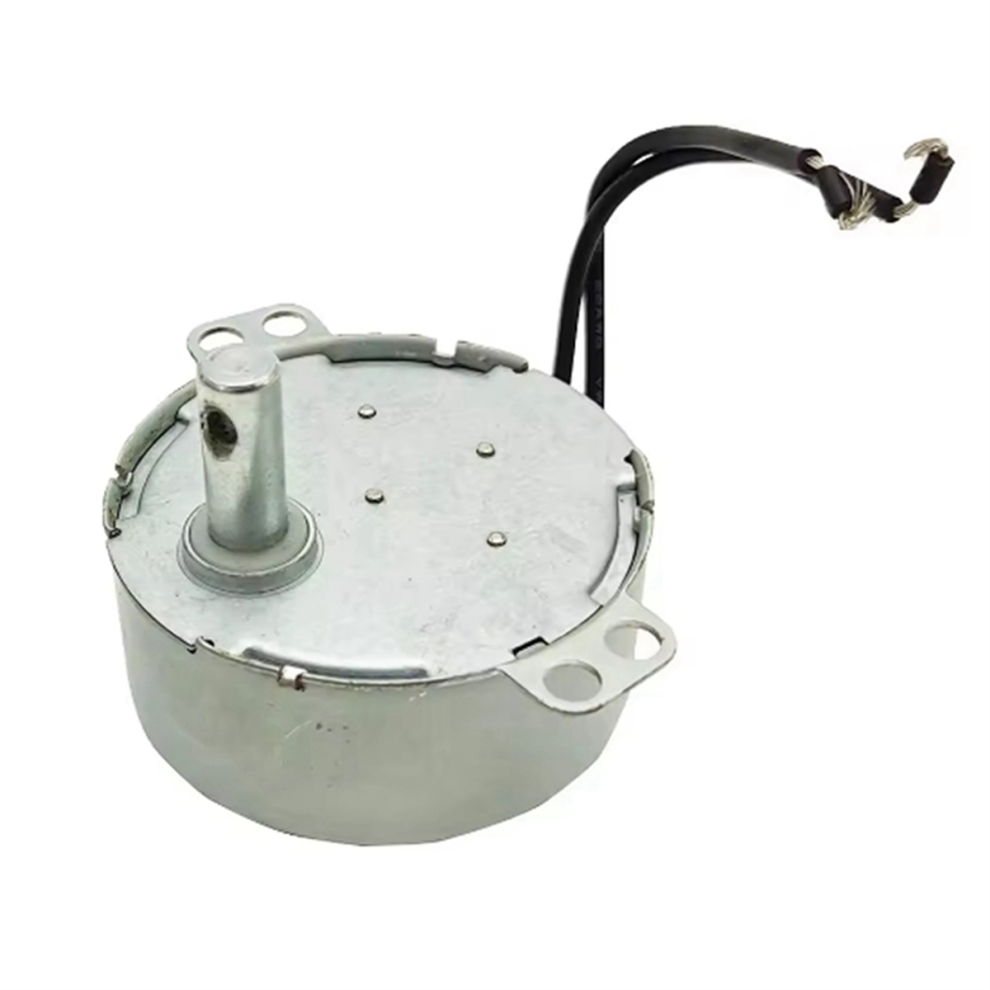

1 * Oscillating synchronous motor

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
