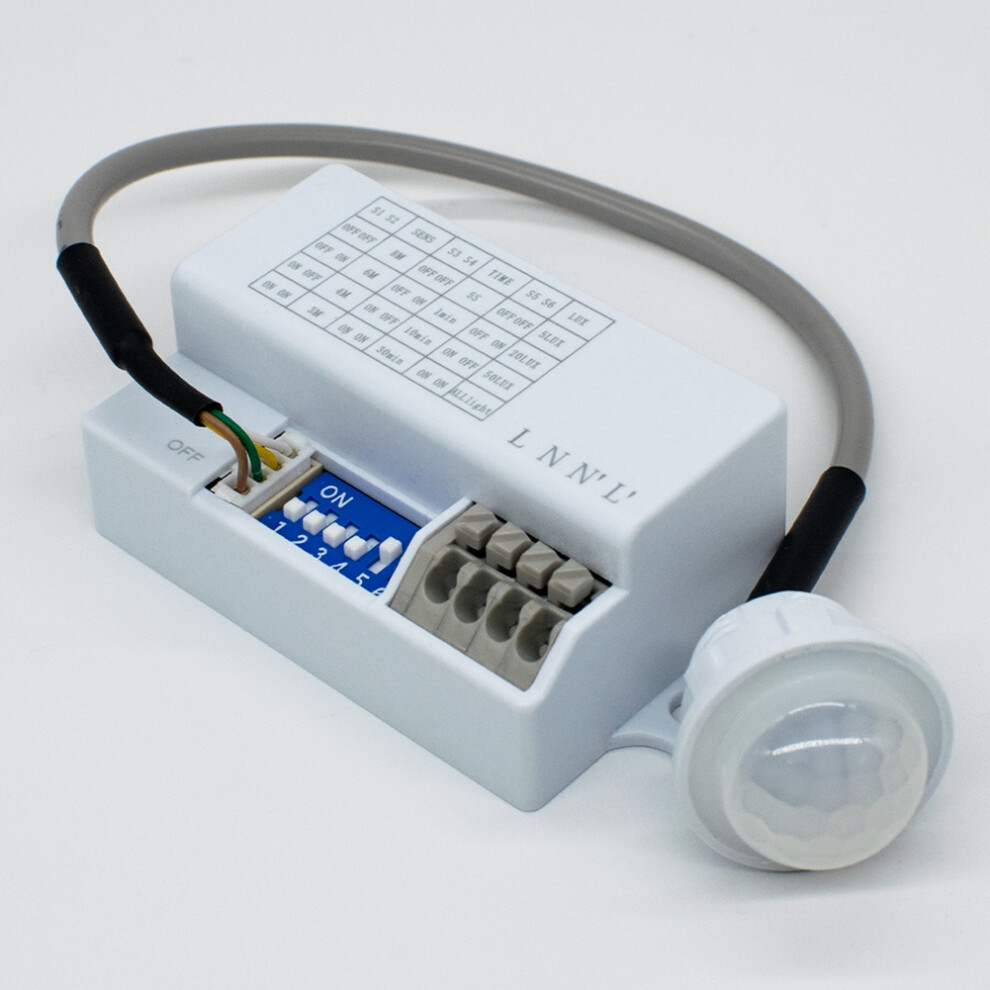

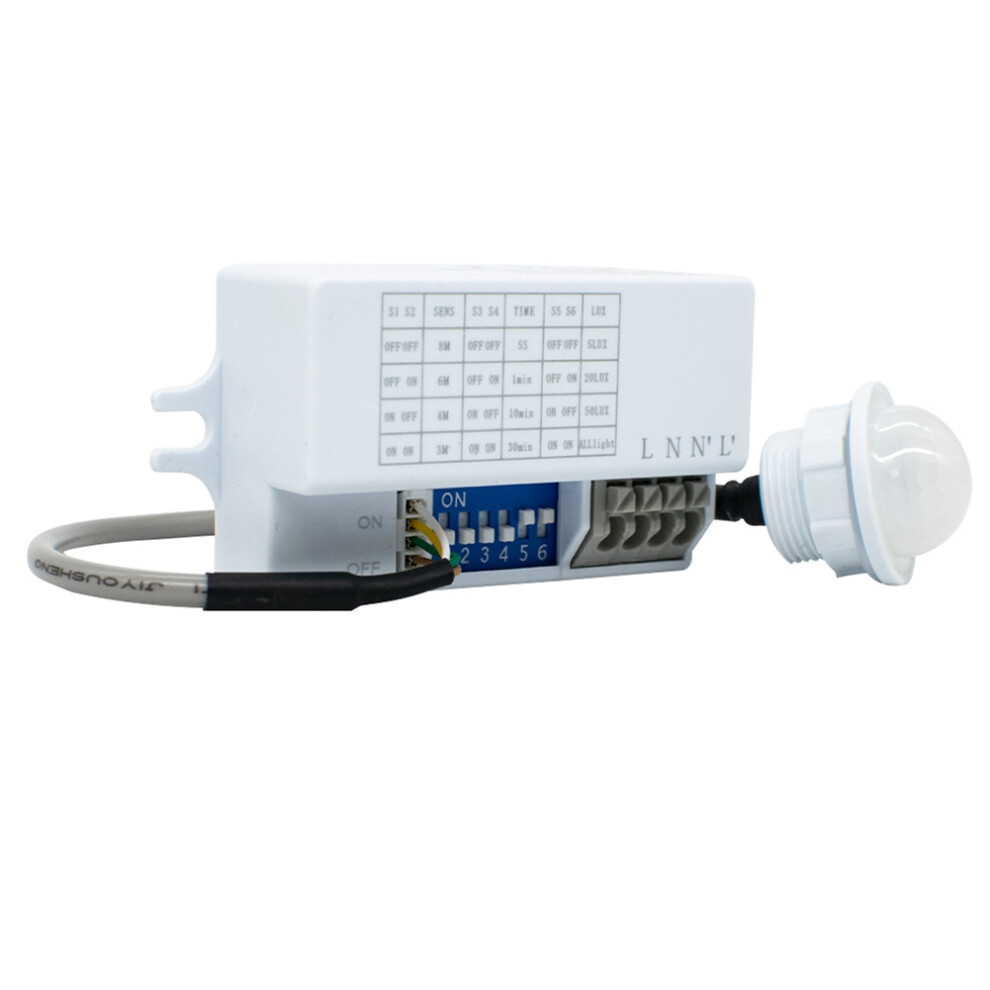

AC/90-265V PIR Infrared Body Motion Sensor Auto LED Lamp Control Delay Timer for Home Lighting

AC/90-265V PIR Infrared Body Motion Sensor Auto LED Lamp Control Delay Timer for Home Lighting Description

The HLD-HW13 is a motion sensor based an X-band chip with a center frequency of 5.8 GHz. This sensor utilizes a fixed-frequency directional transmitting and receiving antenna (1T1R) and integrates intermediate frequency demodulation, signal amplification, and digital processing.
It features adjustable delay, adjustable sensing range, and adjustable light intensity. It exhibits advantages such as wall resistance, anti-interference, compact size, excellent suppression of clutter and higher harmonics, and high stability and consistency.
It features a short initialization and a fast detection mode, making it easy to install in a lighting fixture for testing. This microwave motion sensor utilizes the latest digital technology. It employs digitally precisely calculated zero-crossing detection switching technology, offering robust inrush current handling capabilities that far surpass those of conventional products.
The HLD-HW13 is compatible with a variety of loads and is unaffected by temperature, humidity, oil smoke, and water mist, making it suitable for diverse application scenarios.

Power supply: 90-265VAC 50Hz/60Hz
Standby power: Less than 0.36W
Maximum load: 1200W Max. (220-240VAC)
600W Max. (100-130VAC)
Microwave frequency: 5.8GHZ75MHZ
Microwave power:Less than 2mW
Surge current: 50A/500μS
Detection angle: 110-120
Working temperature: -20C- +80C
Working humidity: 93%RH
Working description:

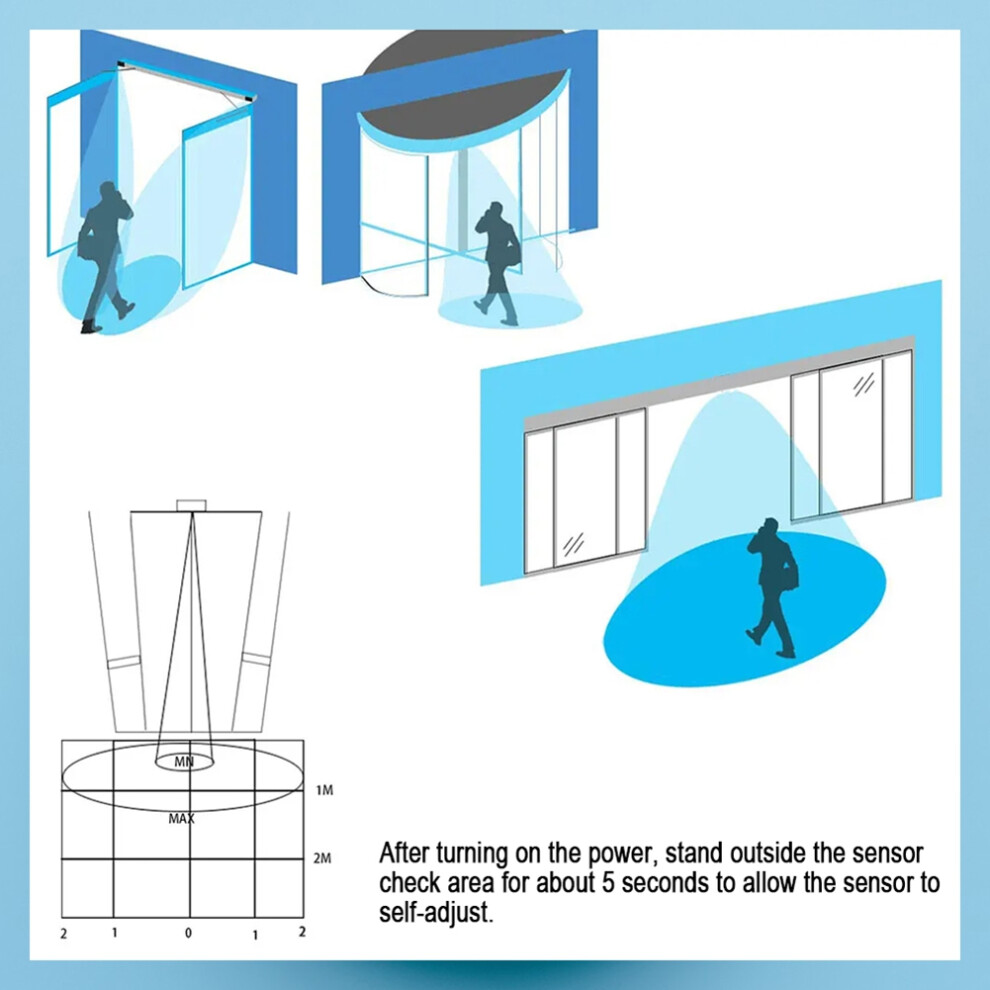

1. After the system self-test learning is completed for 12 seconds after the first power-, the device enters the normal working sensing state.
2. When the sensor receives the motion signal within the sensing range, the micro-relay will .
Color: As Shown
Material: plastic

Package Contents:
1 x PIR Infrared Body Motion Sensor
