AD9851 High Speed DDS Module Function Signal Generator with LCD Send Program Compatible 9850 Scanning Description

32-bit frequency tuner
5-bit phase modulation and migration capability
Ultra-small 28-pin SSOP package
2.7V to 5.25V single power supply
Power saving function: 4MW (2.7V)

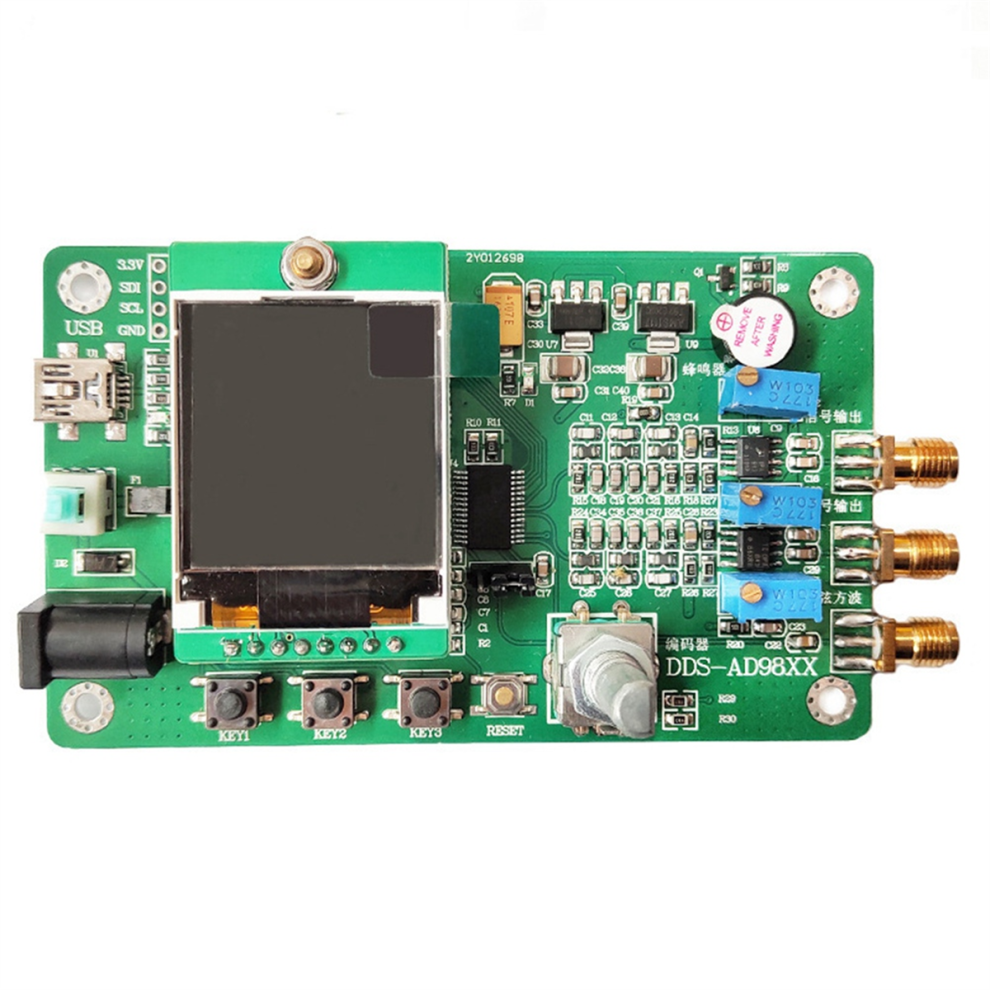

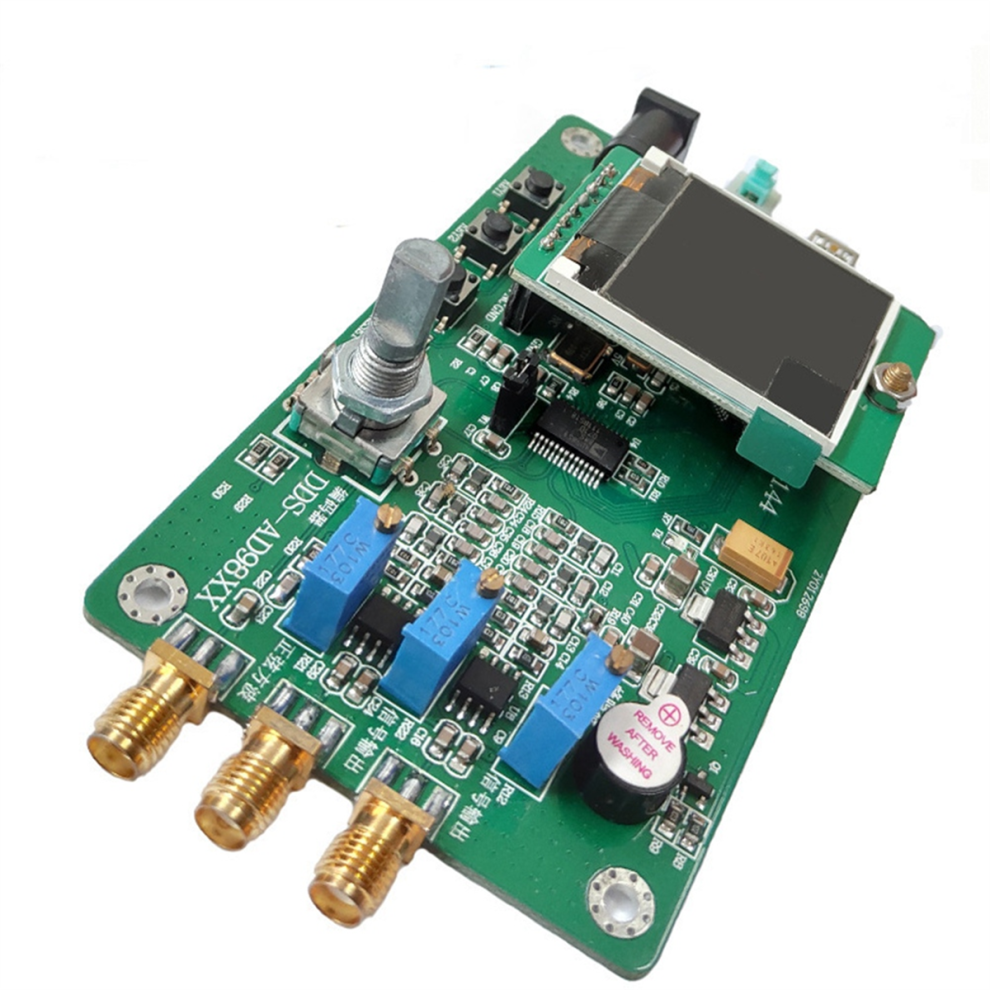

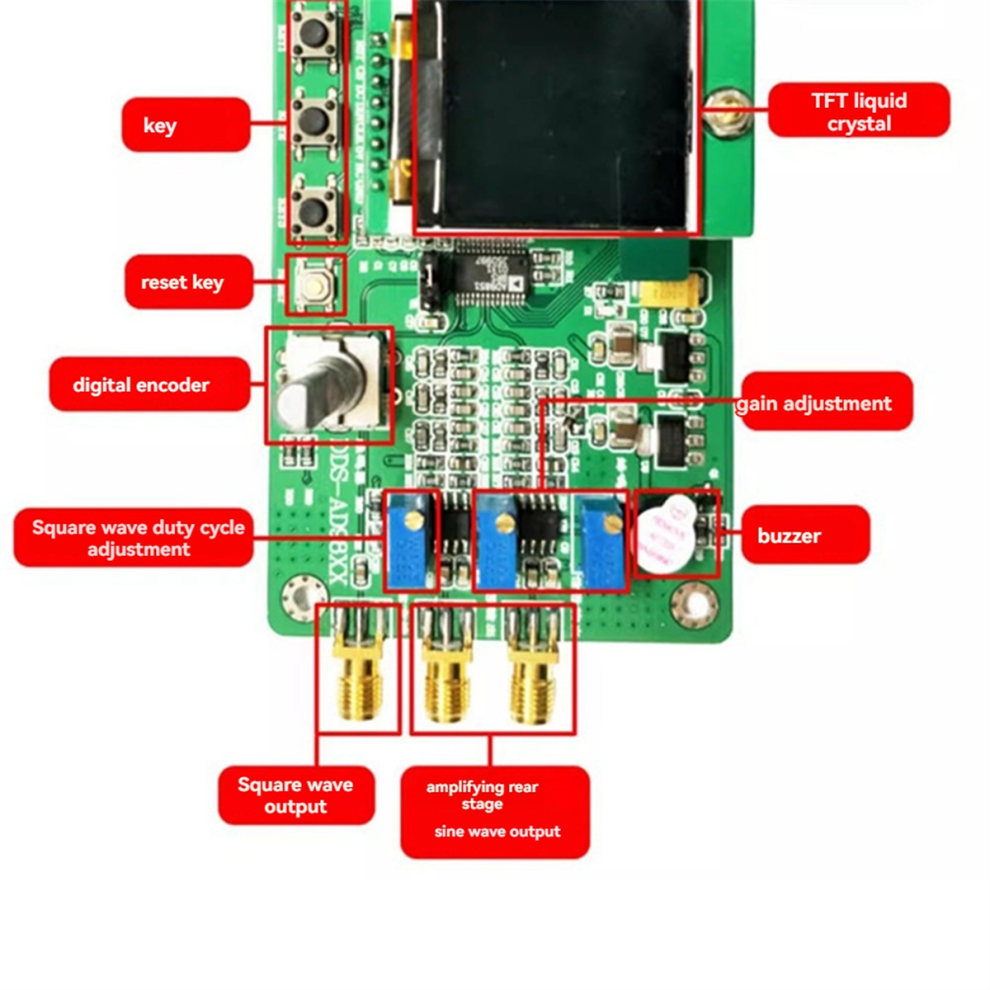

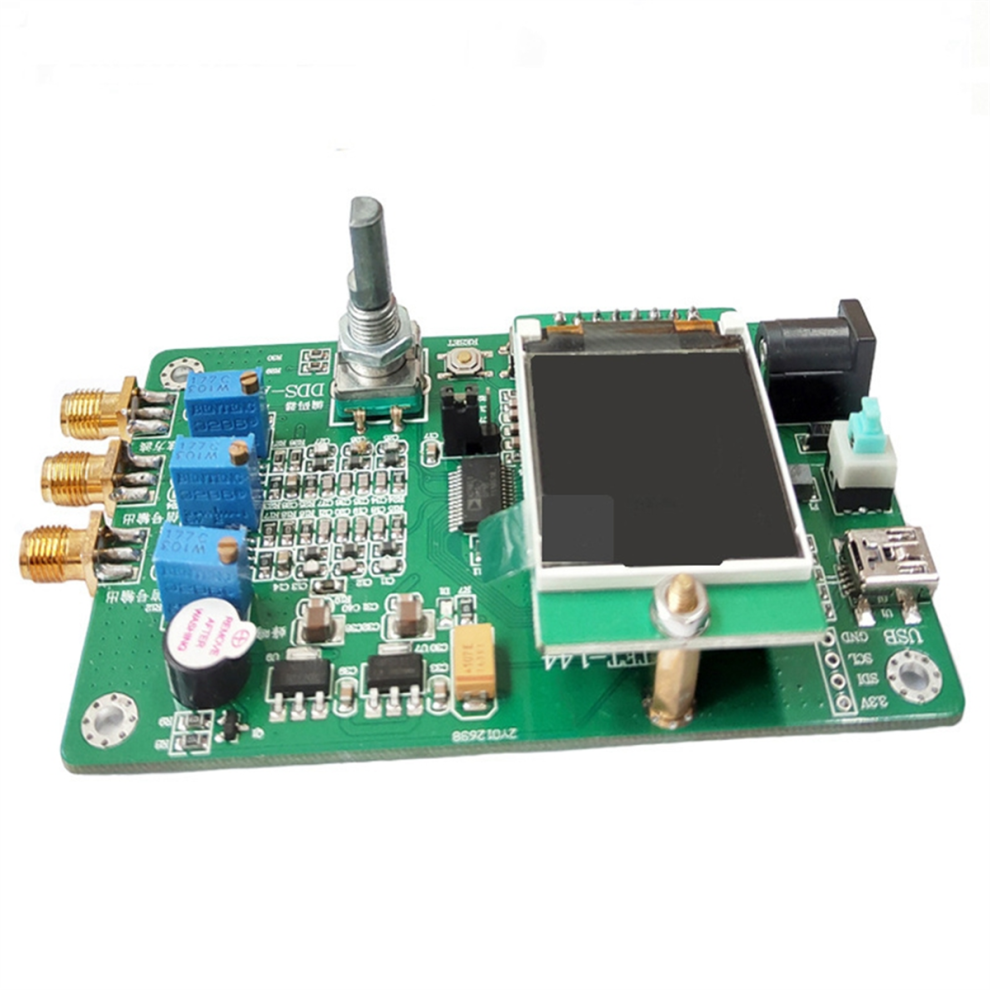

TFT LCD display, with keys, make the interface operation more humane, support sine wave, square wave transmission, square wave adjustable duty cycle, equipped with filter circuit and post-amplifier output port.
180MHZ clock rate, 10-bit with 6X reference clock multiplier and simplified control interface of high-speed comparator with hysteresis characteristics: parallel or serial asynchronous loading format comparator jitter: less than 80PS value (20MHZ)
AD9851 is a highly integrated device, using advanced DDS technology, built-in a high-speed, high-performance digital-to-analog converter and comparator, which together constitute a digital programmable frequency synthesizer and clock generator.
When the precise clock source is used as the reference, AD9851 can produce a frequency stable phase programmable digital analog output sine wave.
The sinusoidal wave can be directly used as a frequency source or internally converted into a square wave suitable for agile clock generator applications.
Low power consumption: 555MW (180MHZ)
SFDR 43 DB (70 MHZ AOUT)
Name: AD9851 High Speed DDS Module
Power Supply: 7-9V(Recommended 7V)
Colour:Green
Material:plastic
Size:100mm x 60mm

Package Contents:
1 x Function signal generator

Only the above package content, other products are not included.
