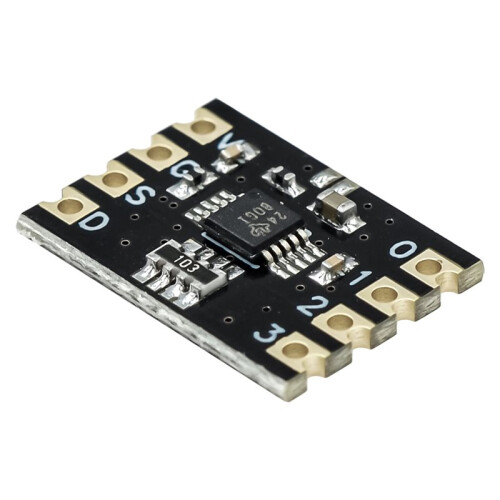

ADS1115 Four 16-Bit ADC Module I2C Communication Module ADC Sampling Channel for Raspberry Pi MCU Sensors Test

ADS1115 Four 16-Bit ADC Module I2C Communication Module ADC Sampling Channel for Raspberry Pi MCU Sensors Test Description

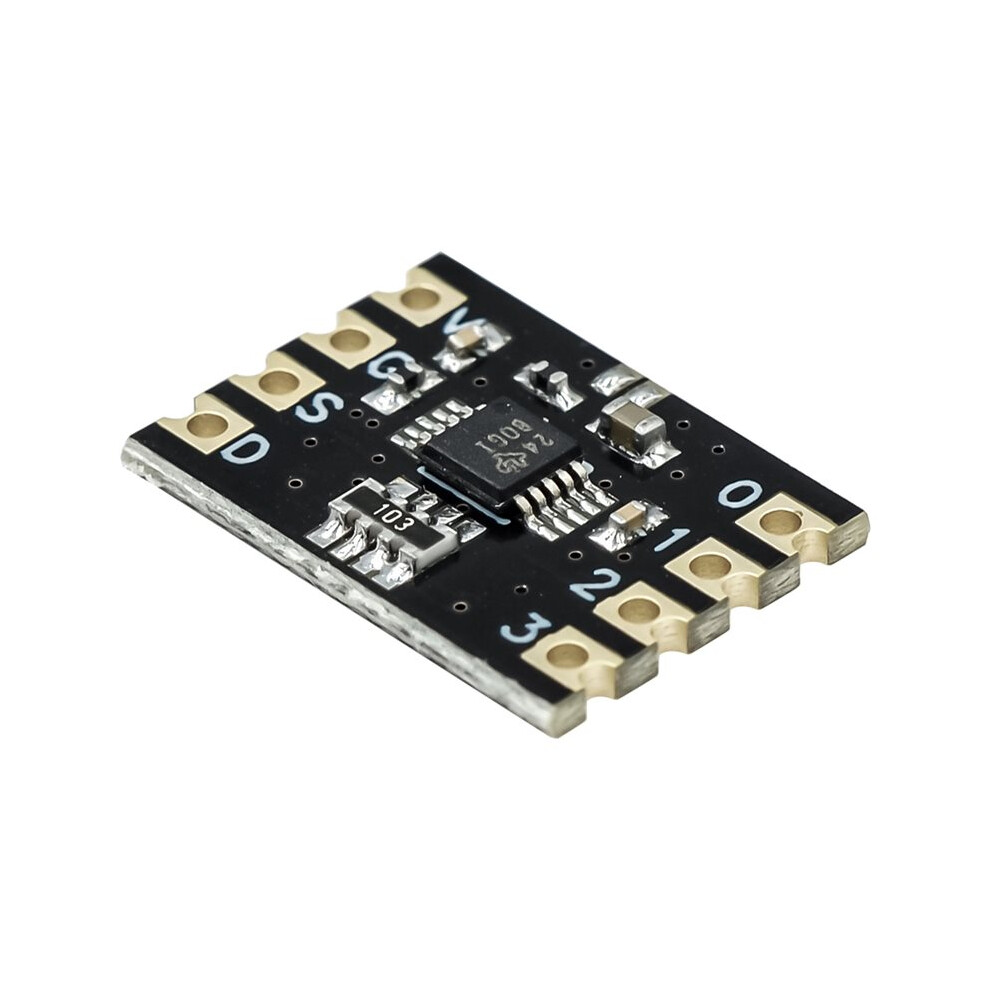

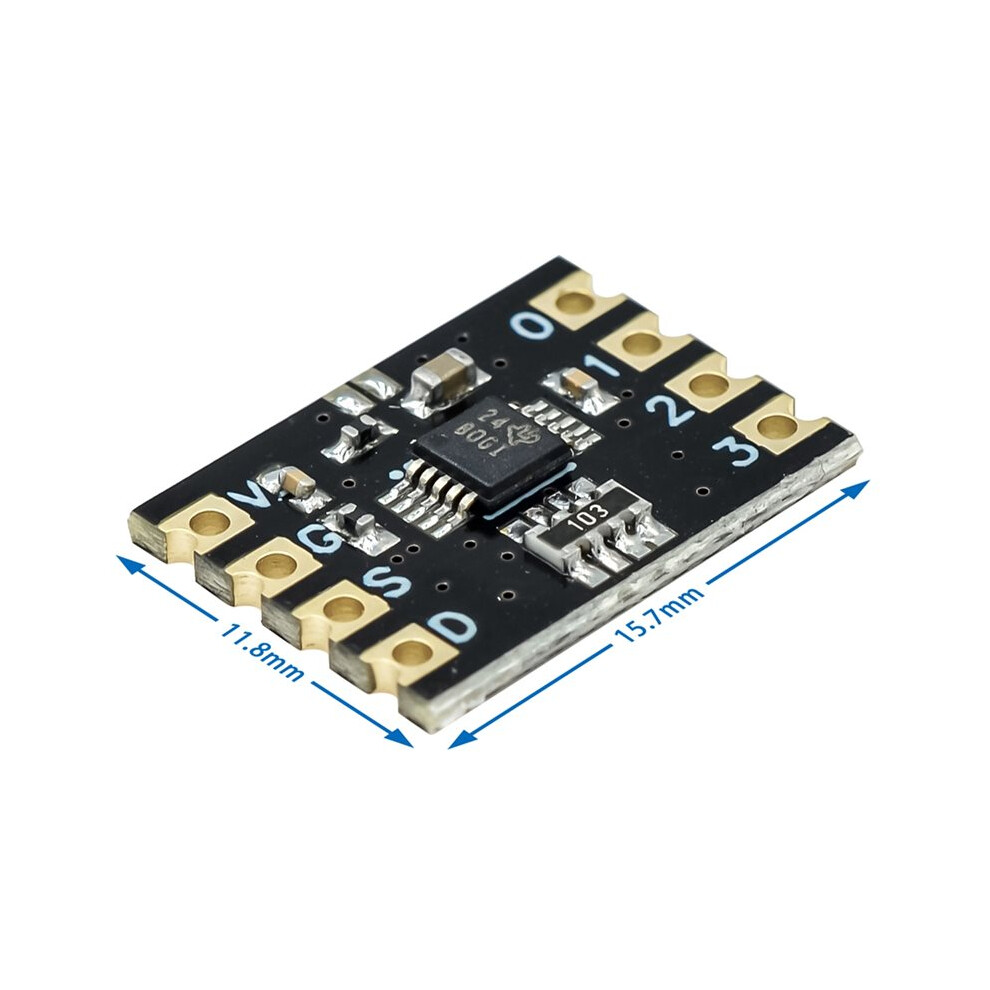

The ADS1115 four-way 16-bit ADc module is based the ADS1115 chip integrated peripheral filter circuit, I2C pull- resistor module, expand the double row of 2.5 DAM spacing gold row pinholes and stamp holes, easy for users to weld and expand,
can also be directly attached to users' products, the module adopts 12c communication, support wide operating voltage. Use braided packing.

Main parameters:
Operating voltage :2.ov~5.5v
Programmable data transfer rate :8SPS to 860SPS
Built-in low temperature reference voltage
I2c interface, device address can be configured
Can be configured for four single-ended inputs or two differential inputs

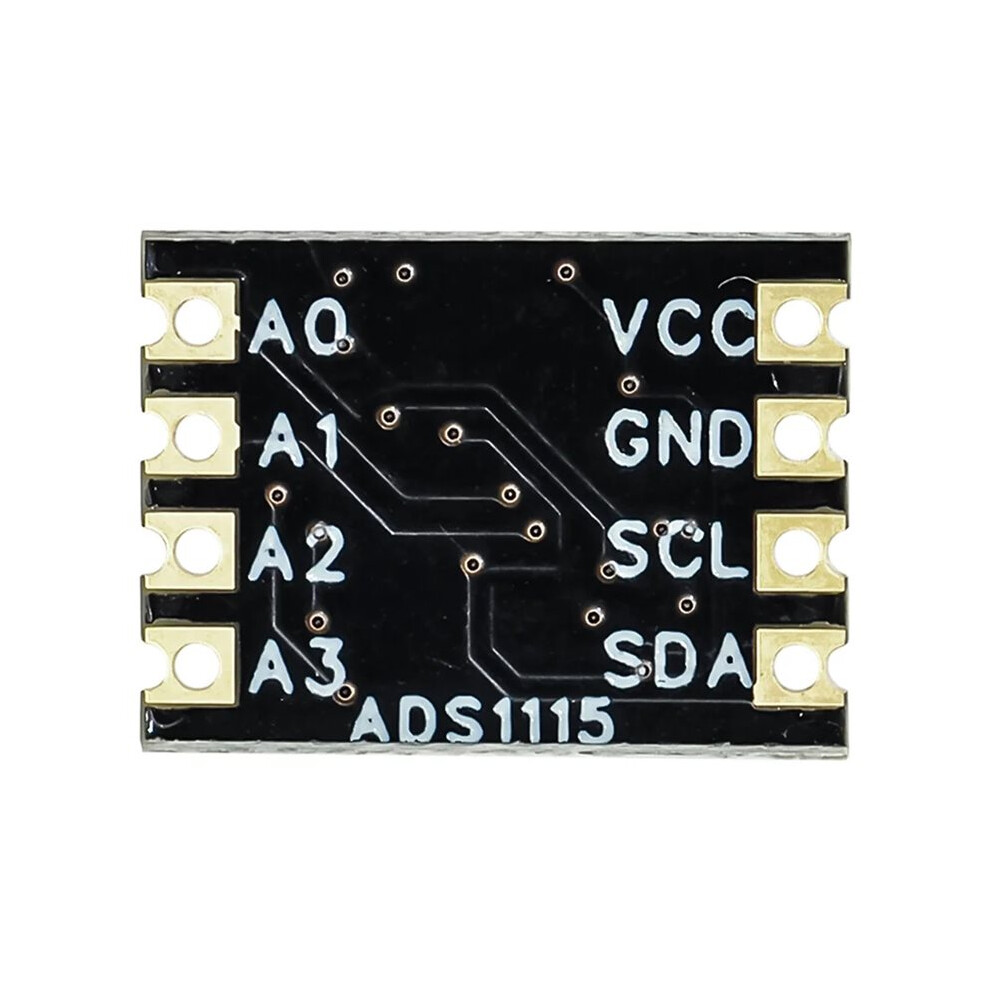

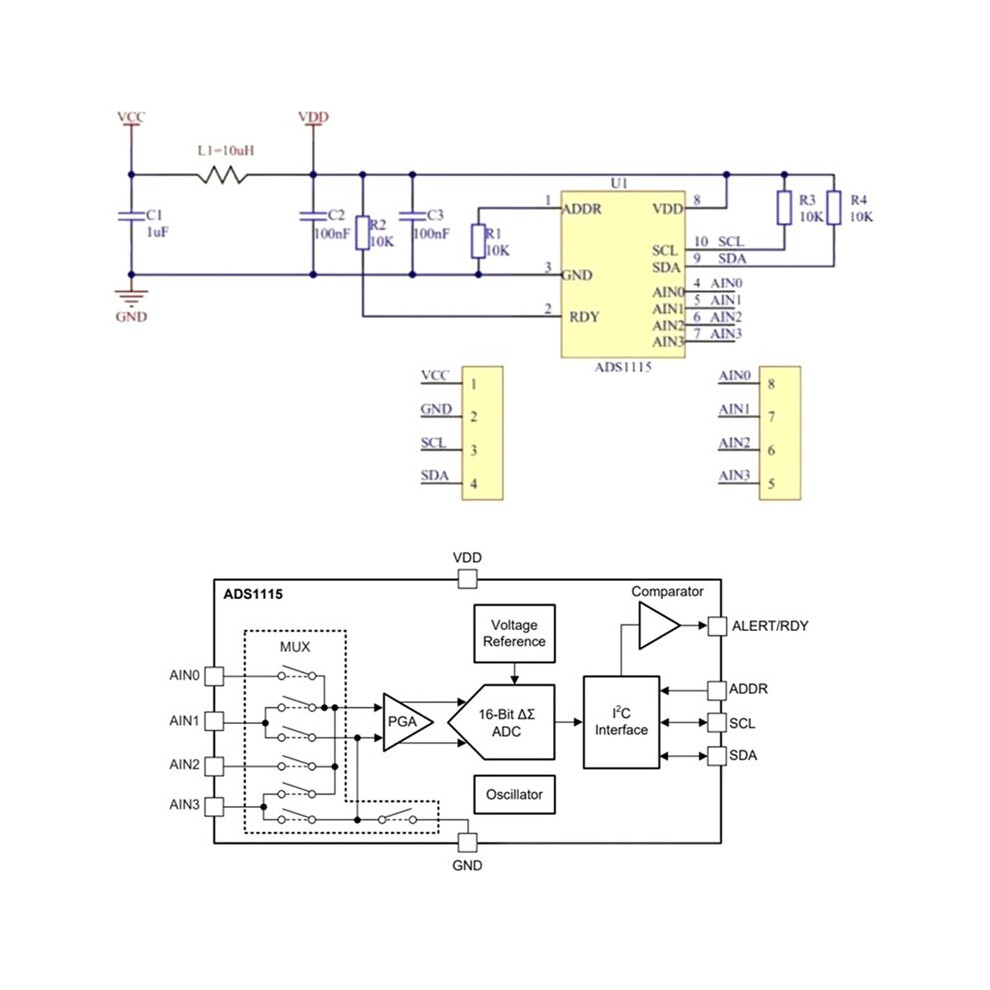

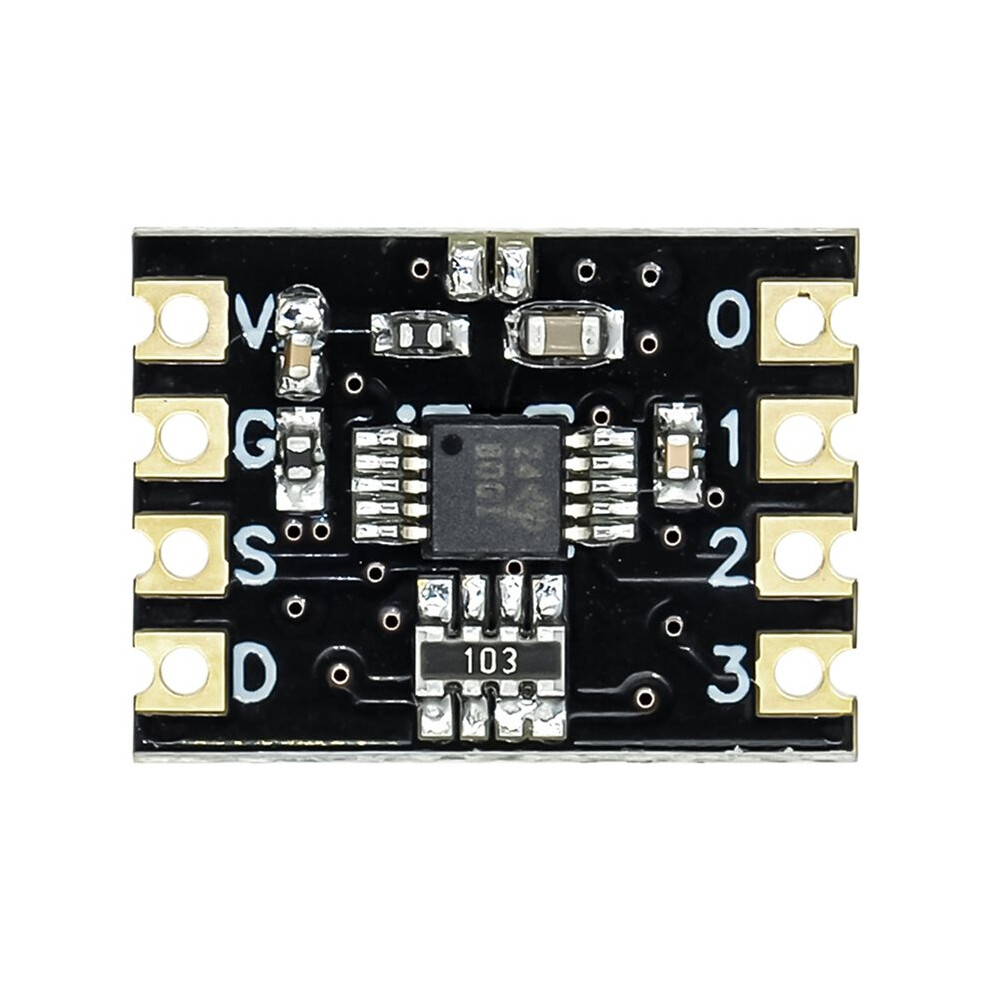

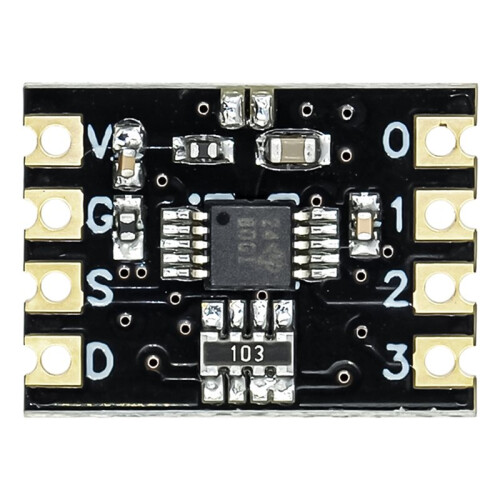

Foot position description:
VCC: power input (2.ov~5.5v>
GND: power source
SCL:I2 clock with built-in 10K pull-
SDA:I2C data, internal 10K pull-
AIN3:ADC sampling channel
AIN2:ADC sampling channel
AIN1:AIC sampling channel
AINO:AI sampling channel

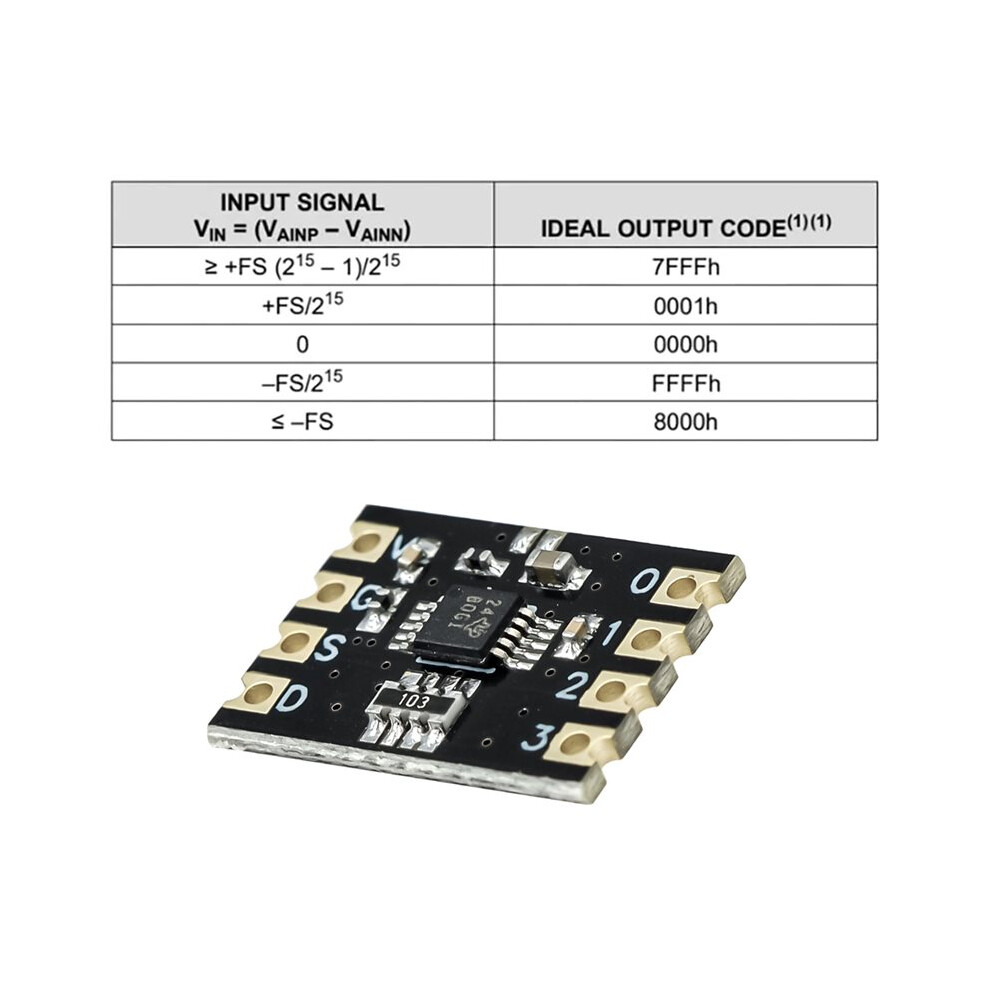

Function introduction:
This module is used for data communication through Iac interface, the default I2c device address is b1001000x, length is 7 bits, x bit is read/write control bit. The write device address is b10010000 (oz90), and the read device address is b10010001 (ox91).

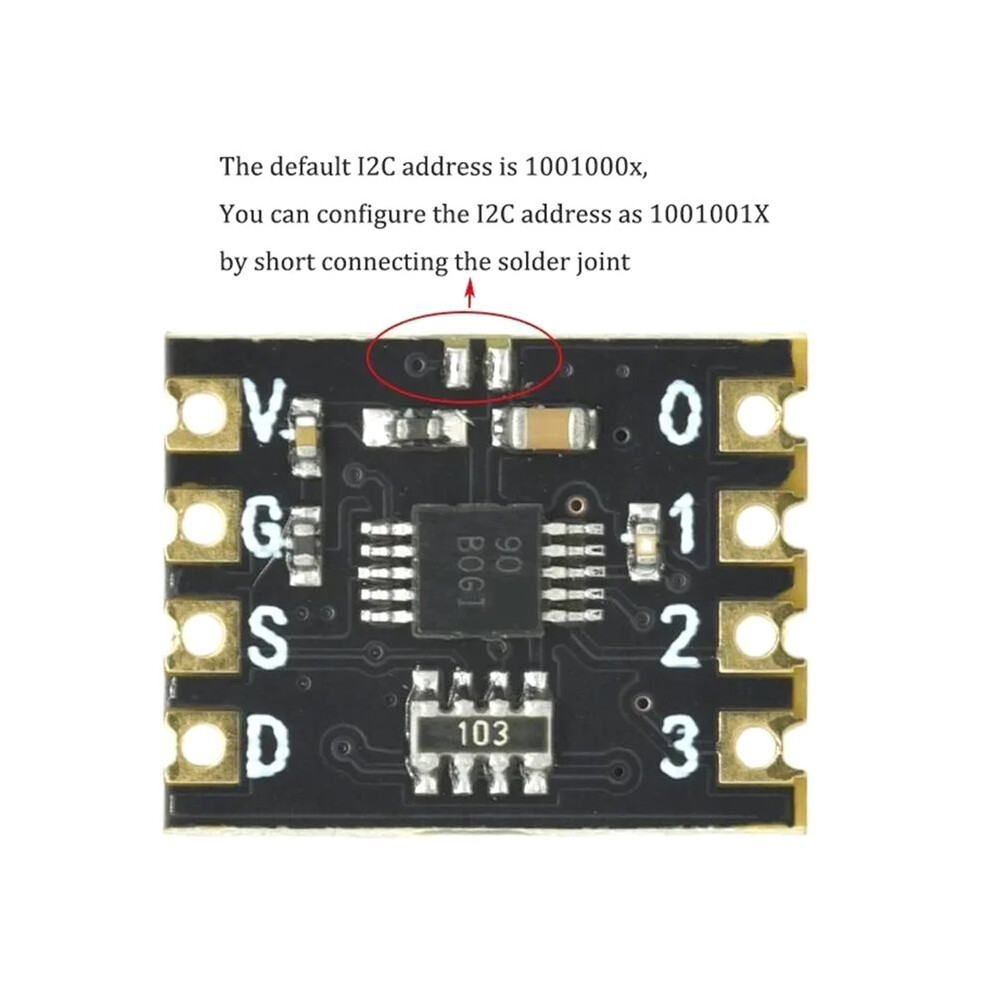

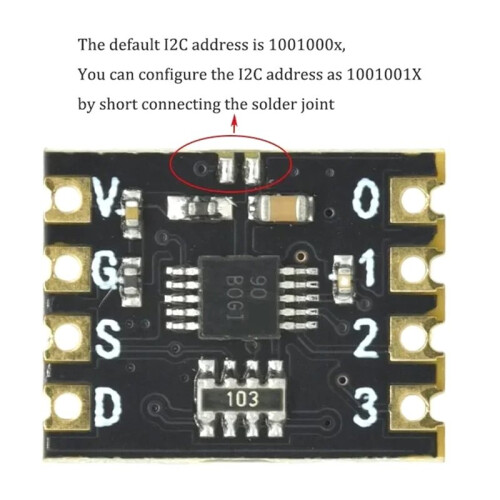

In addition, 2c address can be configured: short welding spot can be b1001001X.
Color: Black
Material: plastic

Package Contents:
1*ADS1115 ADC Module
