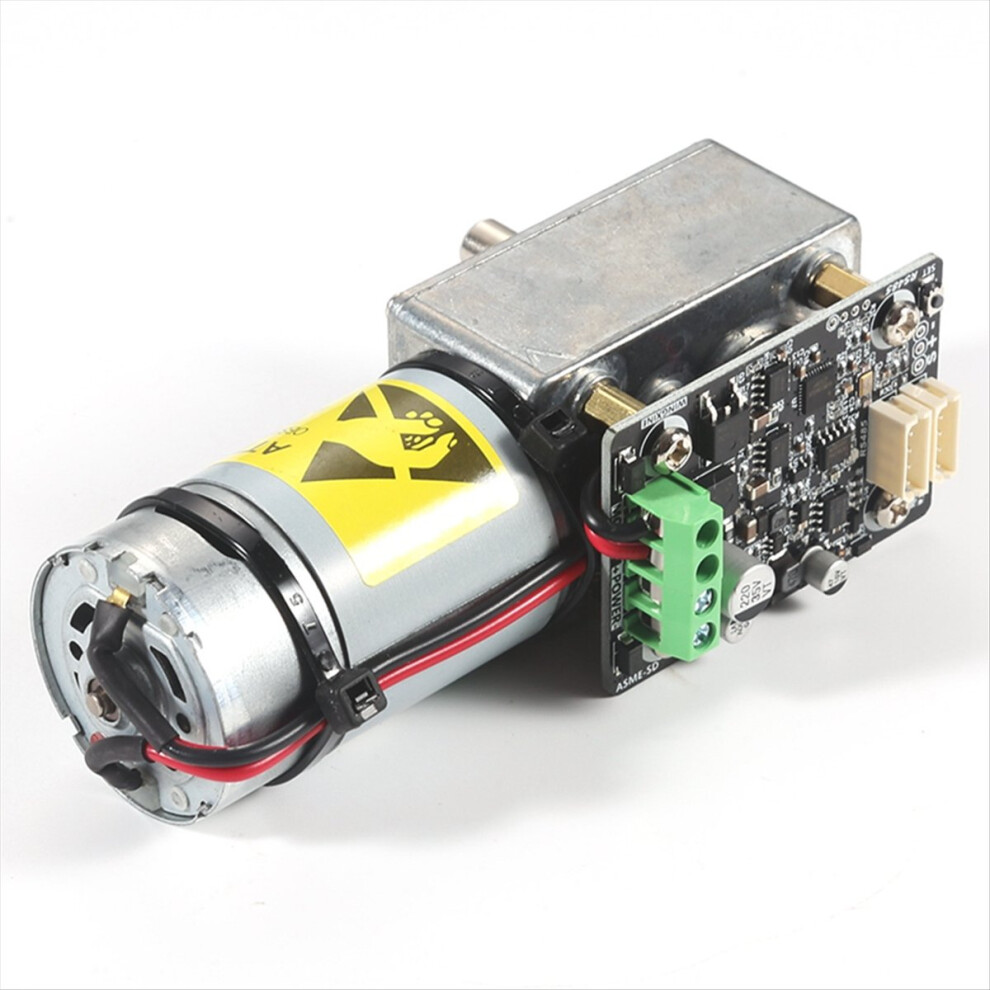

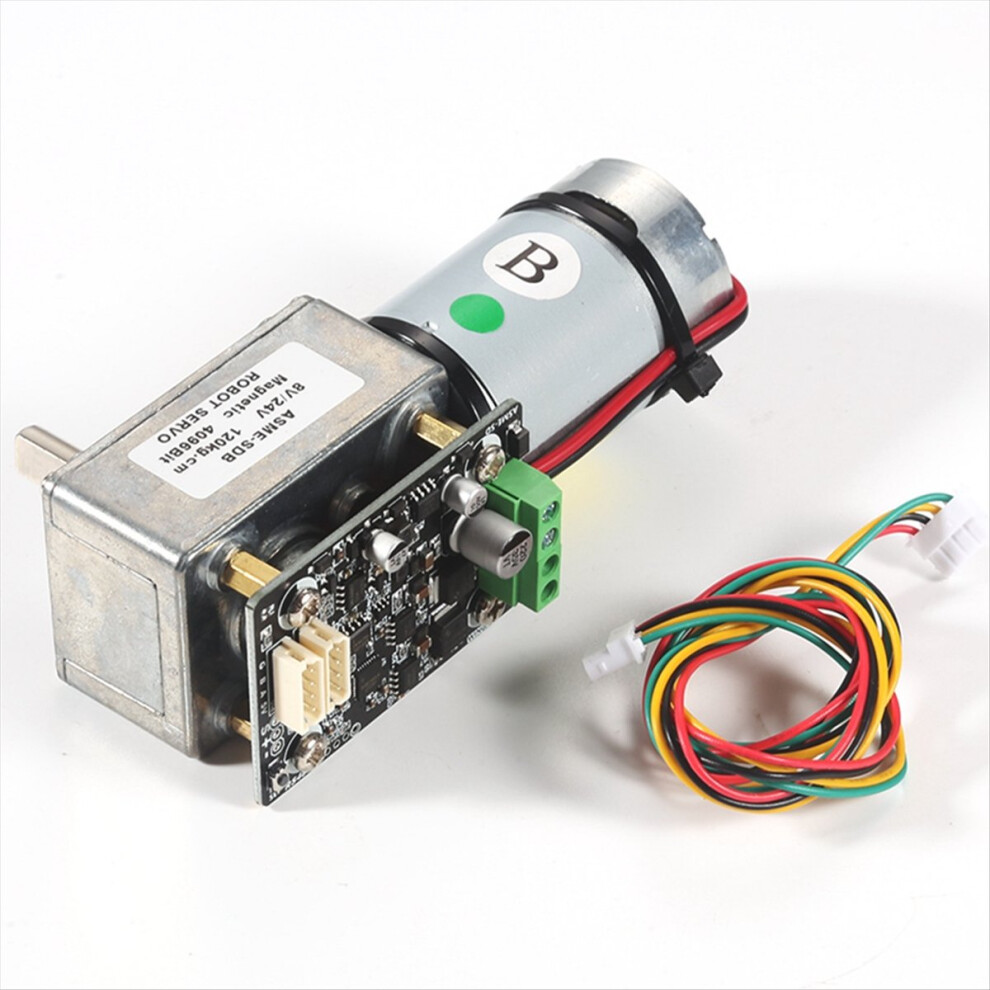

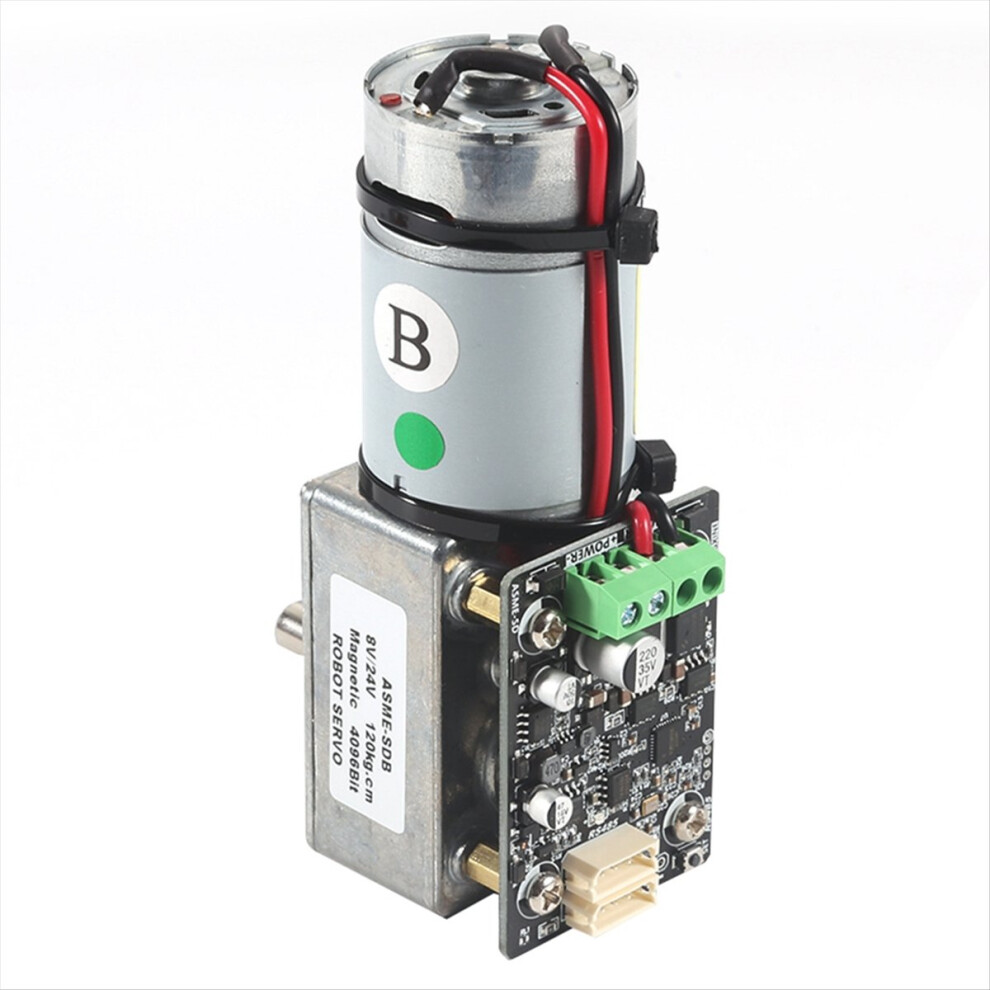

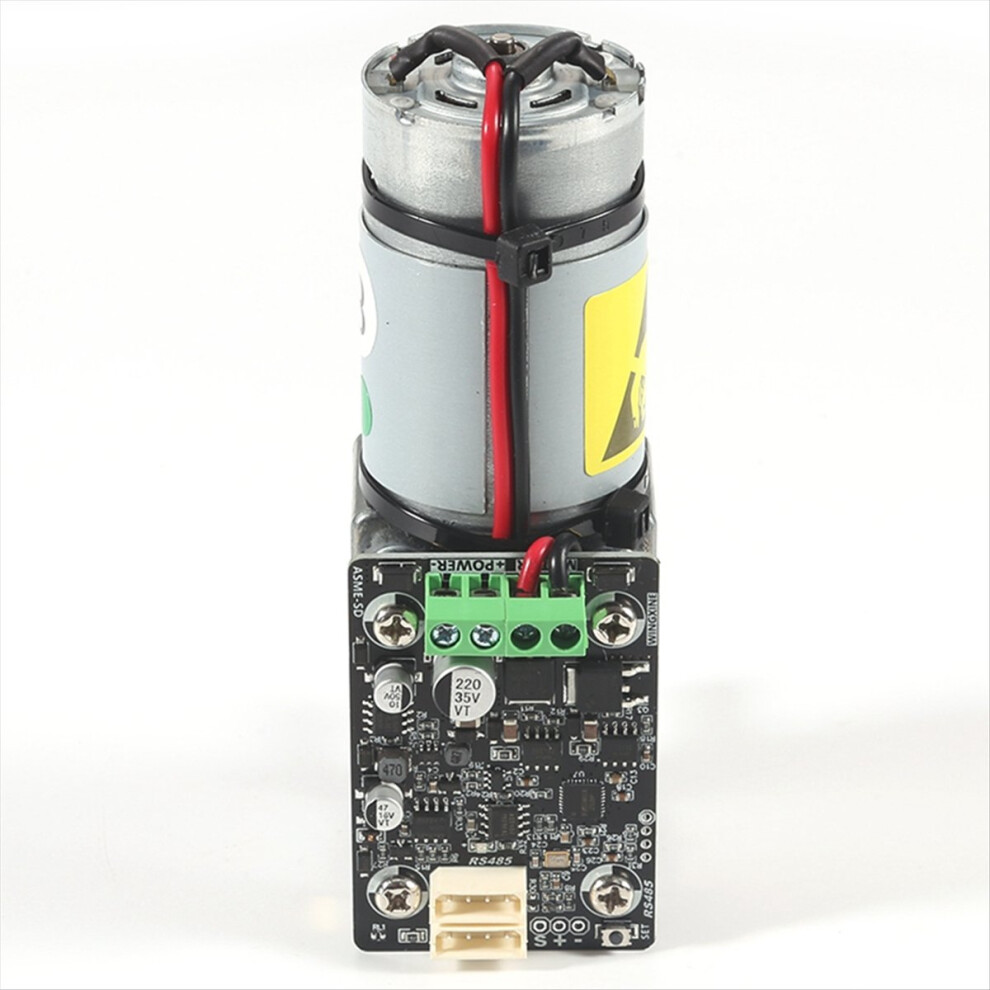

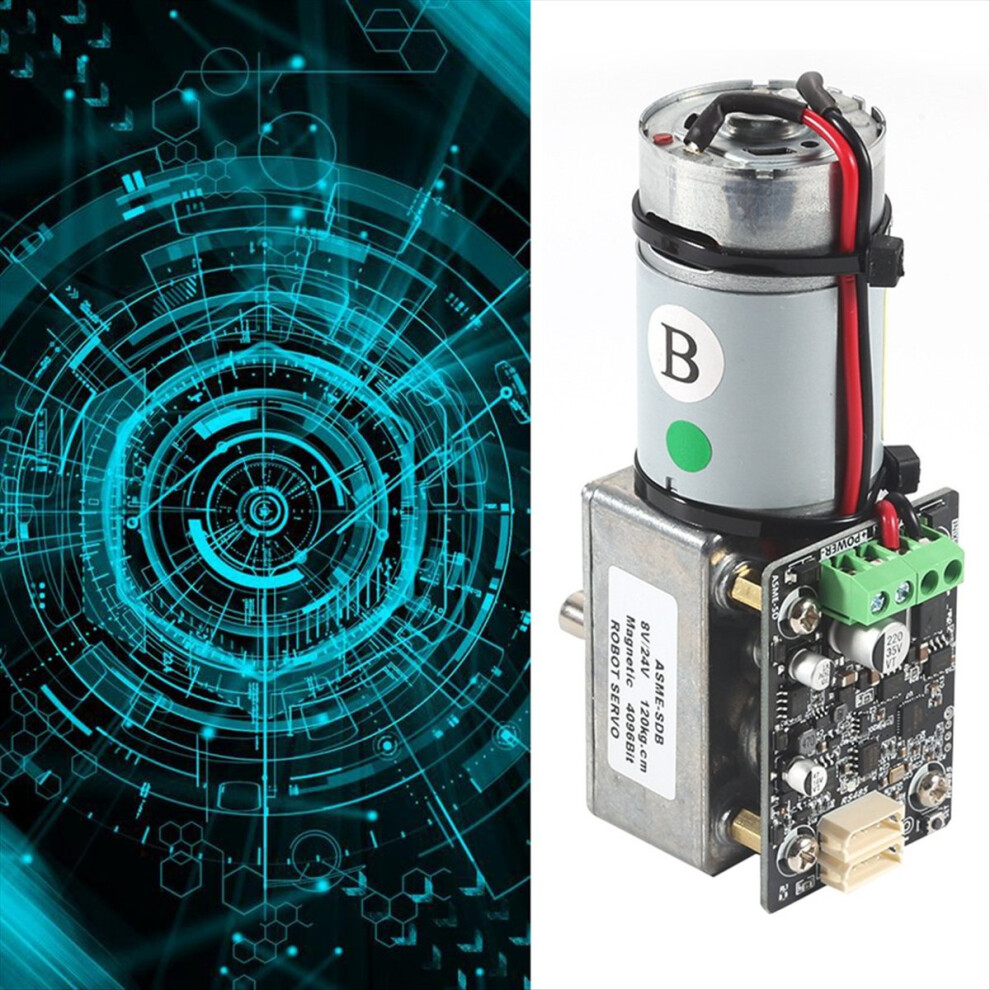

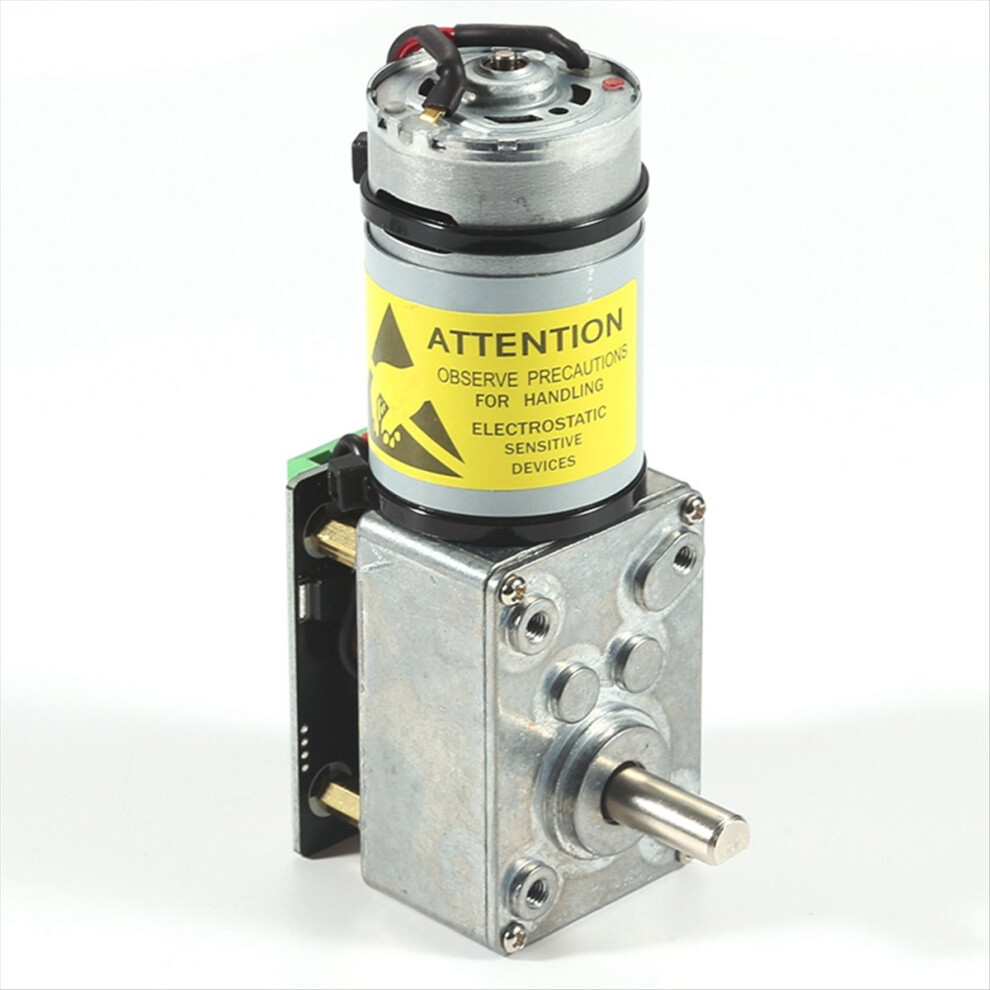

ASME-SD Servo Magnetic Coding RS485-BUS Worm Self-

ASME-SD Servo Magnetic Coding RS485-BUS Worm Self- Description

Suitable for servo controller, wireless remote control of model aircraft and analog voltage control
Alloy gear high power motor high torque output
Aluminum alloy reduction box ultra-light weight
Easy to install, strong and durable
Application range: robots, robotic arms, manipulators, pan/tilt control, valve control, production line robots, camera pan/tilt control, etc.

Rated voltage: 7V-24V/DC (7V/MIN-30V/MAX, limit voltage)
No-load current: Less than 500mA (current limit: 1A, it is recommended to use a switching power supply or battery greater than 5A)
Limit angle: 180 or 0-360 (MAX) The servo has electronic limit adjustment
Control mode: RC mode: 5VTTL customizable protocol RS485 bus mode
1ms pulse mode: 1ms-2ms (pulse width)/50Hz-333Hz (frequency) customizable
Analog voltage mode: 0V-5V input voltage (0V corresponds to 0, 5V corresponds to 360)
Control resolution: 360 corresponds to 12Bit resolution (4096), ARM32-bit MCU, real digital port reads magnetic encoding data
Mechanical life: Greater than 1,000,000 times/full load (conservative value)
Colour:As Shown
Material:alloy steel+Aluminum alloy

Package Contents:
1x Servo
1x Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
