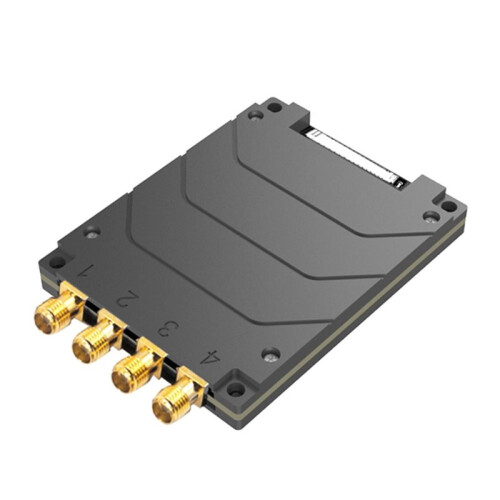

CF-E714 RFID Reader Module 902-928MHz 4 15m Long Range Iso18000-6c for Warehouse and Timing Management
New
€213.62
Similar Products we think you'll like
Would you like us to let you know when it's back?
Description & Details
Summary
- Model: CF-E714
- RFID Card Reader Module
- RFID Card Reader
- RFID Reader
- Reader Module
CF-E714 RFID Reader Module 902-928MHz 4 15m Long Range Iso18000-6c for Warehouse and Timing Management Description
Model: CF-E714
Operating Frequency: 902-928 MHz(US)
Communication Protocol: ISO18000-6C (EPC Gen2)
RF Power: 30 dBm (Adjustable) | Operating Current: 1500 mA
Inventory Speed: 960 tags/second
Operating Mode: Answer Mode / Real- Inventory Mode
Reading Distance: 0-15 meters (depending antenna and tag specifications)
Supply Voltage: 3.7V-5V (Low Power Consumption)
Communication Interface: RS232 (3.3V TTL Level)
Number of Antenna : 4
Antenna Connector Type: SMA
GPIO : 2 Inputs, 2 Outputs
Firmware Upgrade: Supported
Operating Temperature: -20C to +55C
Storage Temperature: -20C to +85C
Dimensions: 76.5 x 51 x 10.1 mm
Color: Gray
Material: Metal
Package Contents:
1* RFID Reader Module
Details
| OPC | PVWF6JH |
|---|---|
| Codes | 4713327016246 (EAN) |
| Product and Safety Information |
Product Data
| Height | 2cm |
|---|---|
| Width | 7cm |
| Length | 8cm |
| Weight | 0.12kg |
| Colour | Gray |
| Material | Metal |
