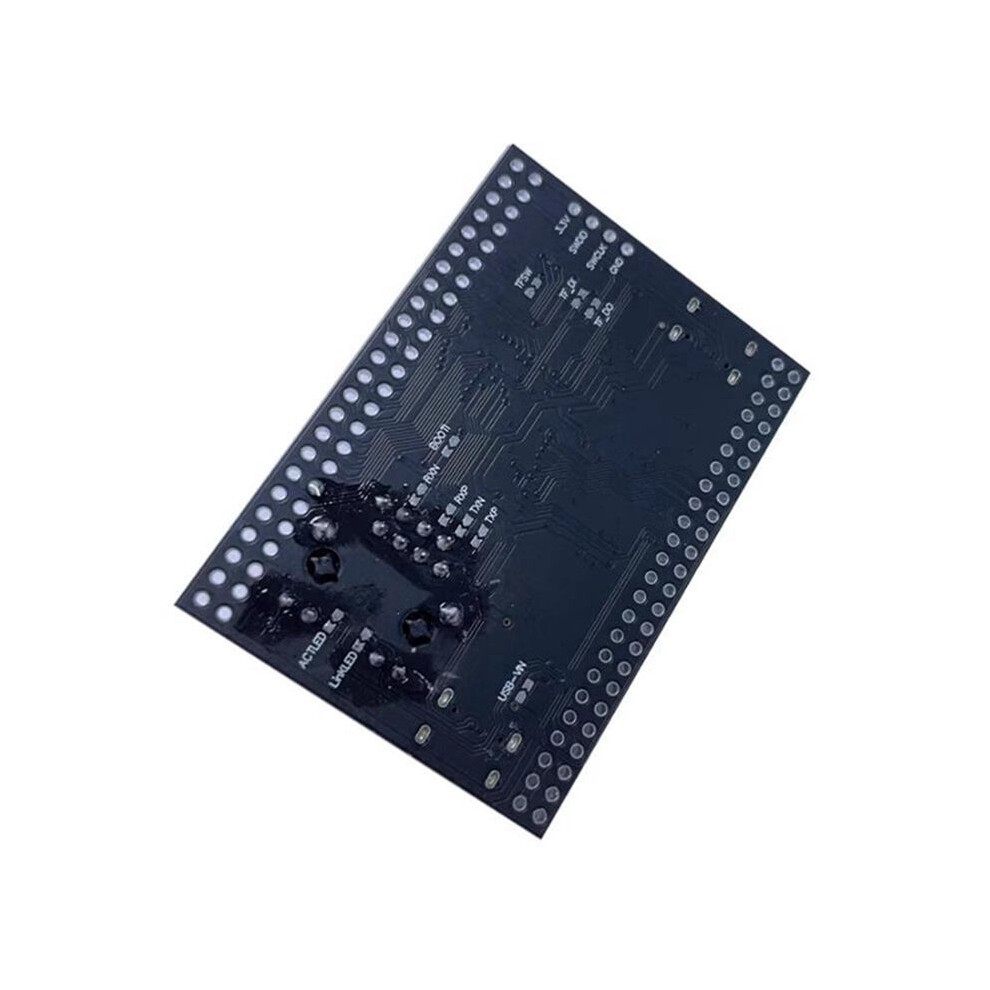

CH32V307VCT6 Core Board Single-Chip Microcomputer Development Board 32-Bit RISCV Controller Supports RT-Thread

CH32V307VCT6 Core Board Single-Chip Microcomputer Development Board 32-Bit RISCV Controller Supports RT-Thread Description

Highland barley V4F processor, the highest system frequency is 144MHz
Support single cycle multiplication and hardware division, support hardware floating point operation (FPU) 64KB , 256KB Flash
Power supply voltage: 2.5/3.3V, independent power supply for GPIO unit Multiple low power consumption modes: sleep, stop, standby
Power-/off reset, programmable voltage detector 2 groups of 18-way general-purpose DMA

4 sets of operational amplifier comparators
1 random number generator TRNG
2 sets of 12-bit DAC conversion
2 units, 16 channels, 12-bit ADC conversion, 16 touch keys, TouchKey, 10 groups of timers
USB2.0 full-speed OTG interface
USB2.0 high-speed host/device interface (480Mbps built-in PHY) 3 USART interfaces and 5 UART interfaces
2 CAN interfaces (2.0B active)
SDI0 interface, FSMC interface, DVP digital image interface
2 groups of 11C interfaces, 3 groups of SPI interfaces, 2 groups of 1IS interfaces Gigabit Ethernet controller ETH (built-in 10M PHY)
80 1/0 , can be mapped to 16 external interrupt CRC calculation units, 96-bit chip unique ID
Serial 2-wire debug interface
Due to different production batches, the appearance and color of the product may be different, which does not affect use.
Colour:As Shown
Material:PCB

Package Contents:
1 * Development board
1 set * pin header
