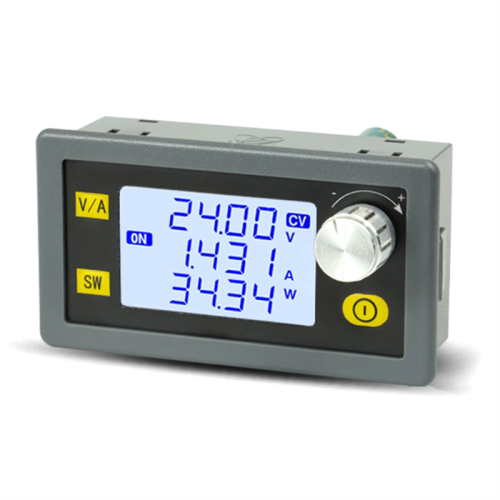

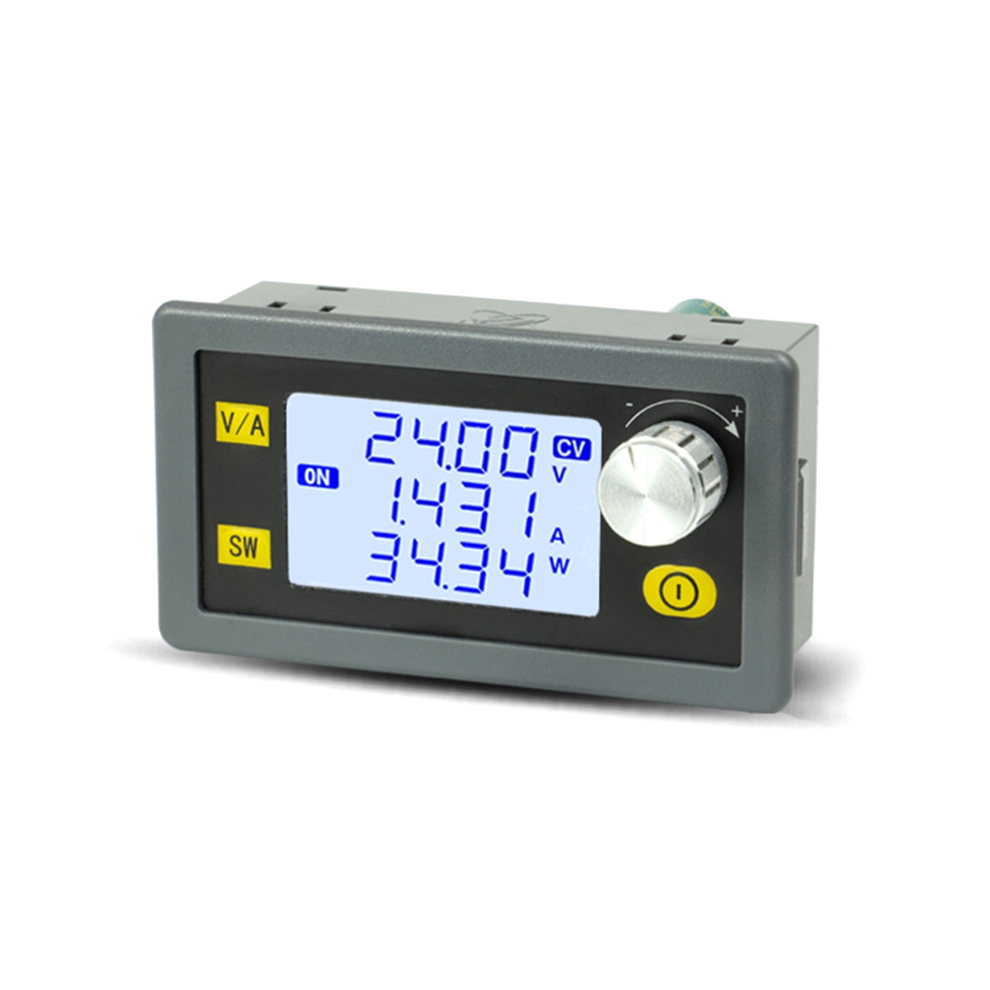

CNC DC Automatic Buck Boost Converter Adjustable Regulated Power Supply Constant Voltage Current 35W Module

CNC DC Automatic Buck Boost Converter Adjustable Regulated Power Supply Constant Voltage Current 35W Module Description

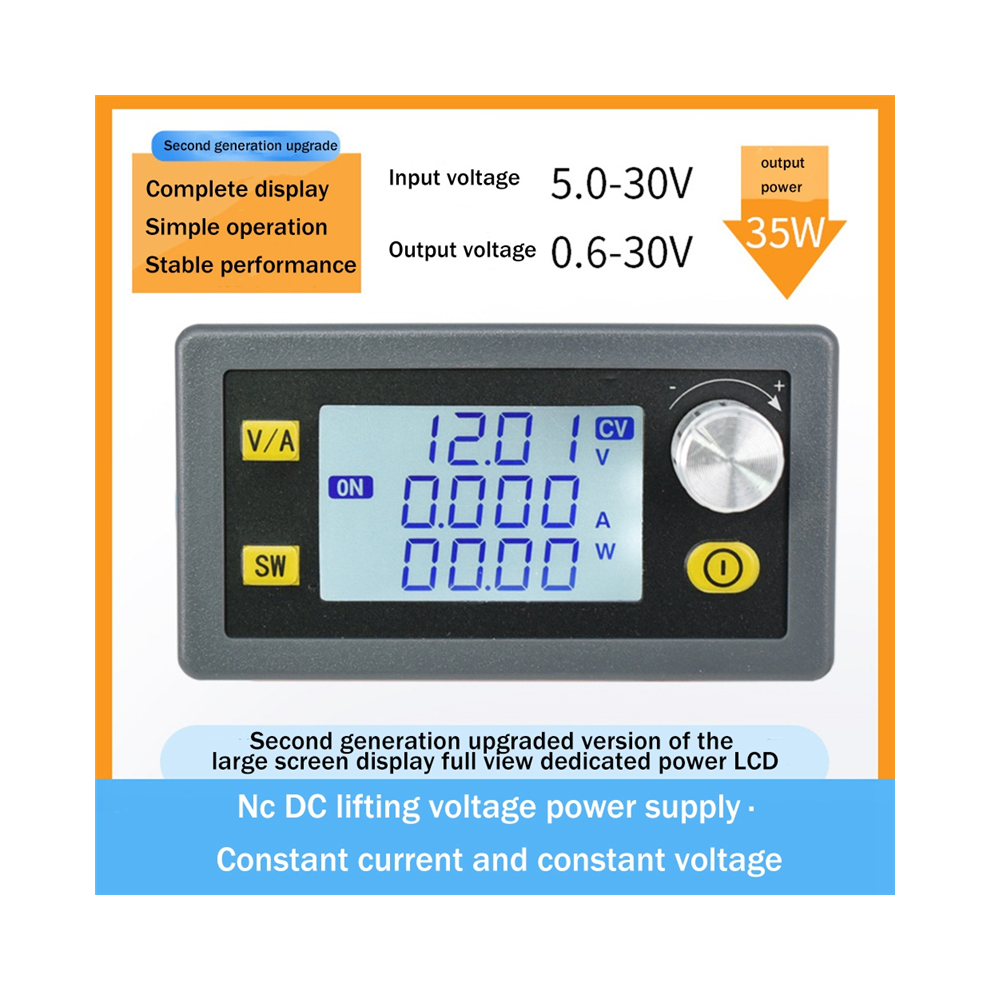

The large screen display shows the status at a glance, simple operation and more smooth experience. Display complete, simple operation, stable performance. Fine workmanship One-piece molding frosted panel High-quality aluminum alloy knob cap Good hand feeling. High-power high-temperature resistant iron-silicon aluminum magnetic ring inductor. Made of high quality materials, . Product parameters Product name: CNC DC voltage boosting power supply Product Model:XY-SK35H Input voltage: 5.0~30V Output voltage: 0.6~30V Output current: 0~4.0A Output power: natural heat dissipation 35W plus air-cooled heat dissipation 50W Voltage resolution: 0.01V Conversion efficiency: 88% or so Voltage accuracy: 0.5% + 1 word Current accuracy: 0.5% + 3 words Current resolution: 0.001A Soft start: Yes Protection mechanism Input anti-reverse connection: Yes Output anti-backflow: Yes Input under-voltage protection: (4.7-30V adjustable, default 4.7V) Output over-voltage protection: (0-32V adjustable, default 32V) Output overcurrent protection: (0-4.2A adjustable, default 4.2A) Output over power protection: (0-51W adjustable, default 36W) Over-temperature protection: Yes, default 95 Timeout protection: (0-100H adjustable, default off) Overcapacity protection: (0~9999AH adjustable, default off) Super energy protection: (0 ~ 9999WH adjustable, default off) Size:79 x 43 x 25MM Material: Plastic colour: black Package Contents: 1 x Voltage Converter Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
