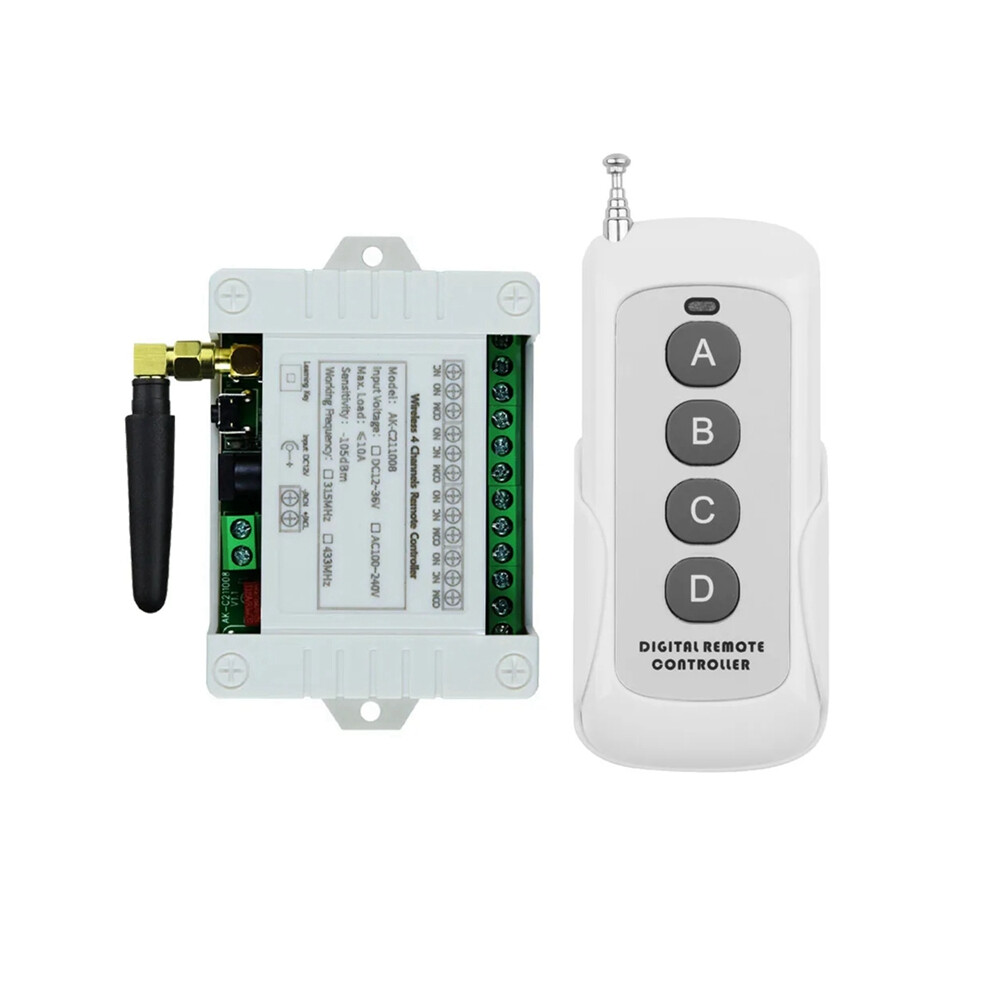

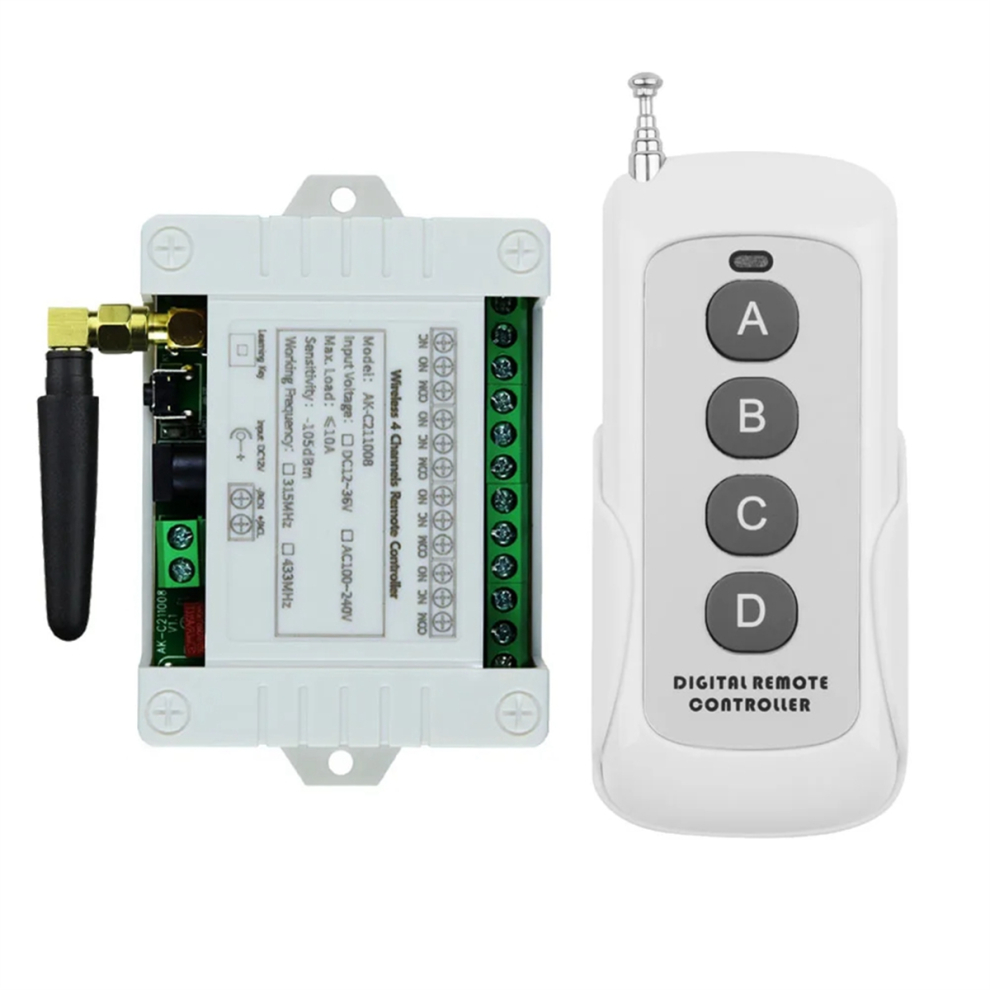

DC 12V 24V 4-Way Remote Control Switch Point-Acting Self-Locking Interlocking Adjustable Access Gate Panel

DC 12V 24V 4-Way Remote Control Switch Point-Acting Self-Locking Interlocking Adjustable Access Gate Panel Description

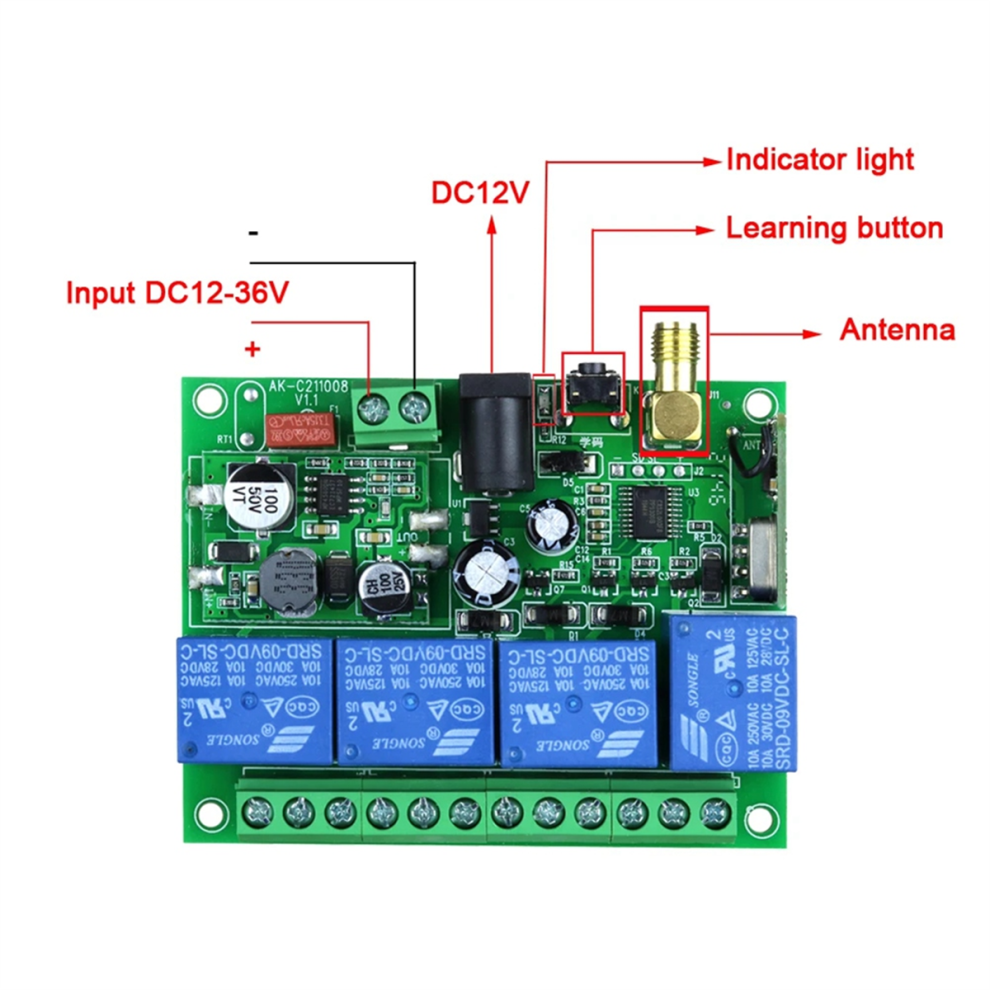

1. Working Voltage:DC12V-36V 2. Current:Standby less than 10mA,Working less than 128mA 3. Working Temperature:-10 - +60 4. Receiver Frequency:315MHz/433.92MHZ 5. Receiving Sensitivity:-105dB Output State:Switching Value Max Load:10A Relay, Resistive load less than 8A,Inductive load less than 3A Encoding Type:Learning Code Add transmitter by the Learning Button on the receiver About Working way: Working way changed by Learning button Momentary: the Learning Button 1 times. Relay: and hold On; Release Off. Toggle: the Learning Button 2times. Relay: On; same button again Off. Latched: the Learning Button 3 times. Relay: On; other button Off. 2channel Momentary+2channel Latched: the Learning Button 4 times. 2channel Momentary+2channel Toggle: the Learning Button 5 times. 2channel Toggle+2channel Latched: the Learning Button 6 times. Colour:White Material:Plastic Size:Case Size:96x80x29mm Package Contents: 1 * Controller 1 * Remote control (delivered without 1 x 12v23A battery) Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
