DC 6-60V 400W BLDC Three-Phase Brushless Motor Controller PWM 12V 24V 48V with Forward/Reverse/Stop/Brake Function

DC 6-60V 400W BLDC Three-Phase Brushless Motor Controller PWM 12V 24V 48V with Forward/Reverse/Stop/Brake Function Description

1. MA MB phase line output connection motor
2. 5V GND motherboard comes with 5V power supply (current does not exceed 30MA)
3. VCC GND motor main power supply (external DC power supply)
4. SC speed pulse signal output
5. positive and negative reversing control interface (also can be connected to the external switch)

VR speed control signal input (onboard with potentiometer speed control can also be connected to 0-5V analog simulation PWM duty cycle to support dual signal input speed regulation).
Ha Hb +5V GND Hall signal Power input, generally with Hall's motor has five corresponding lines.
Full patch process Stable performance with positive/reverse function.

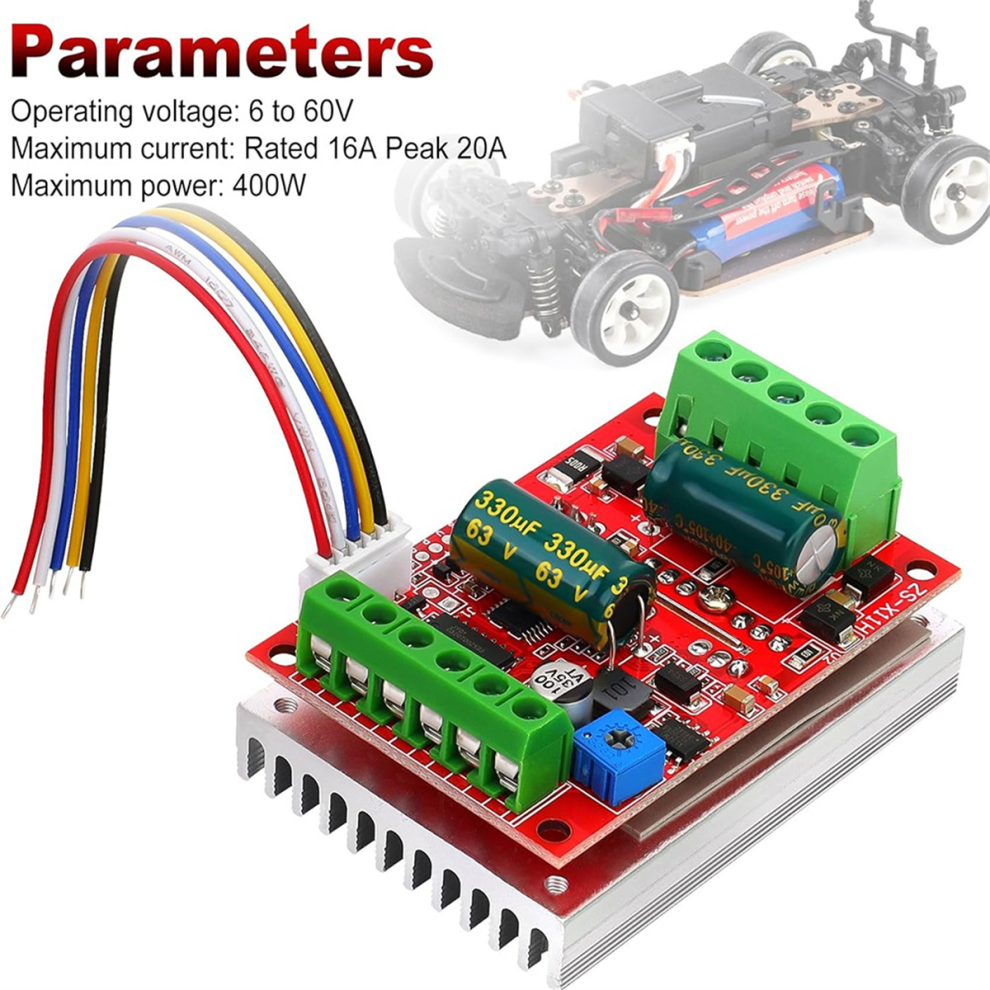

Motherboard specifications:
Product Name:400W Brushless Hall DC Motor Driver
Model Number:ZS-X11D1
Operating voltage:6-60V
Maximum current:rated 16A 20A
power:400W
Overcurrent protection:Yes
Product size:length 63MM x width 45MM x height 31MM
Weight:about73g
Colour:As Shown
Material:Metal

Package Contents:
1 x Motor Controller

Only the above package content, other products are not included.
