DC 7-24V 200W BLDC 3 Phase Brushless Motor Driver Hallless Drive Board Speed Controller Regulator

DC 7-24V 200W BLDC 3 Phase Brushless Motor Driver Hallless Drive Board Speed Controller Regulator Description

BLDC wide voltage 7-24V high-power small-volume potentiometer speed control Brushless and Hallless controller, single-button version supports single-button free switching acceleration and deceleration with power-off memory function potentiometer speed control version supports PLC 0-5V simulation Signal speed.
Instructions for use of potentiometer models:

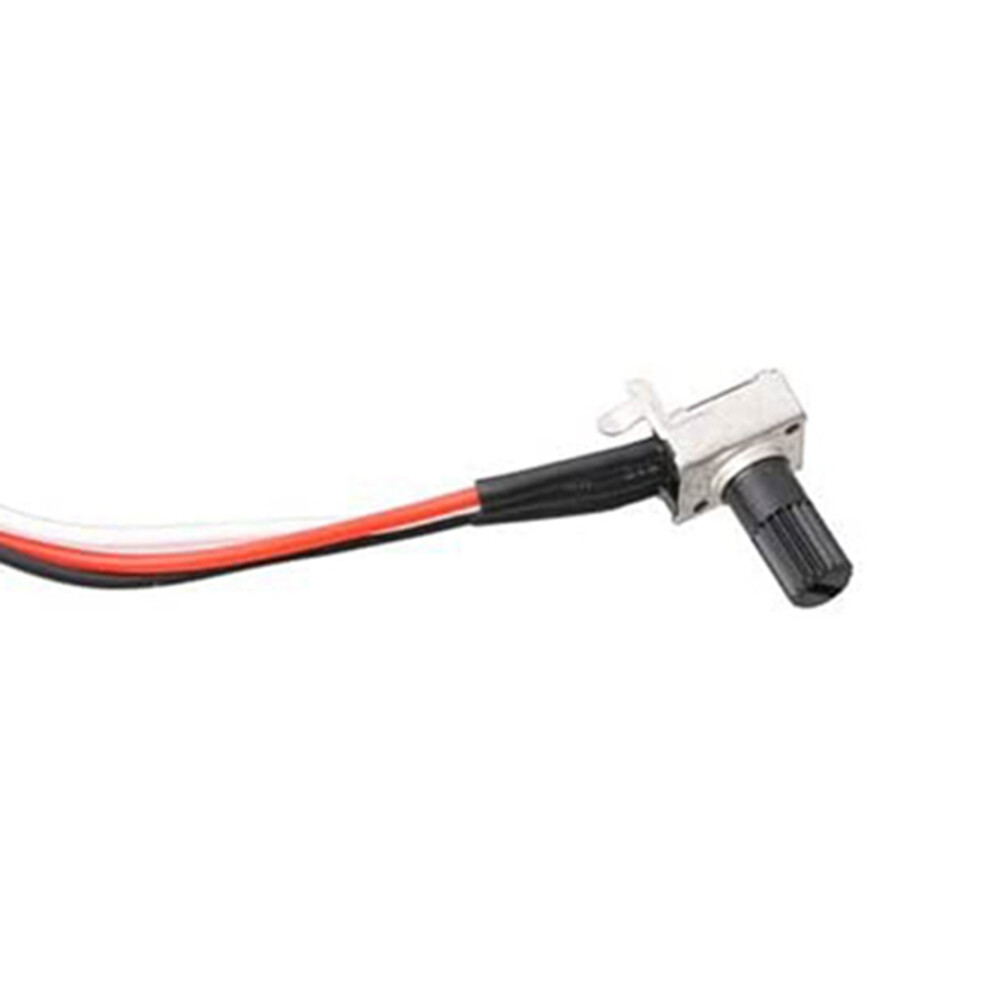

The standard power distribution positioner directly regulates the speed without external control signals. It increases clockwise and decreases counterclockwise.
It is also suitable for external PLC 0-5 analog quantity control. Unplug the potentiometer cable, the external 0-5 analog quantity control signal and ground wire are respectively connected to the input signal terminal of the brushless driver board, as long as two wires are OK.

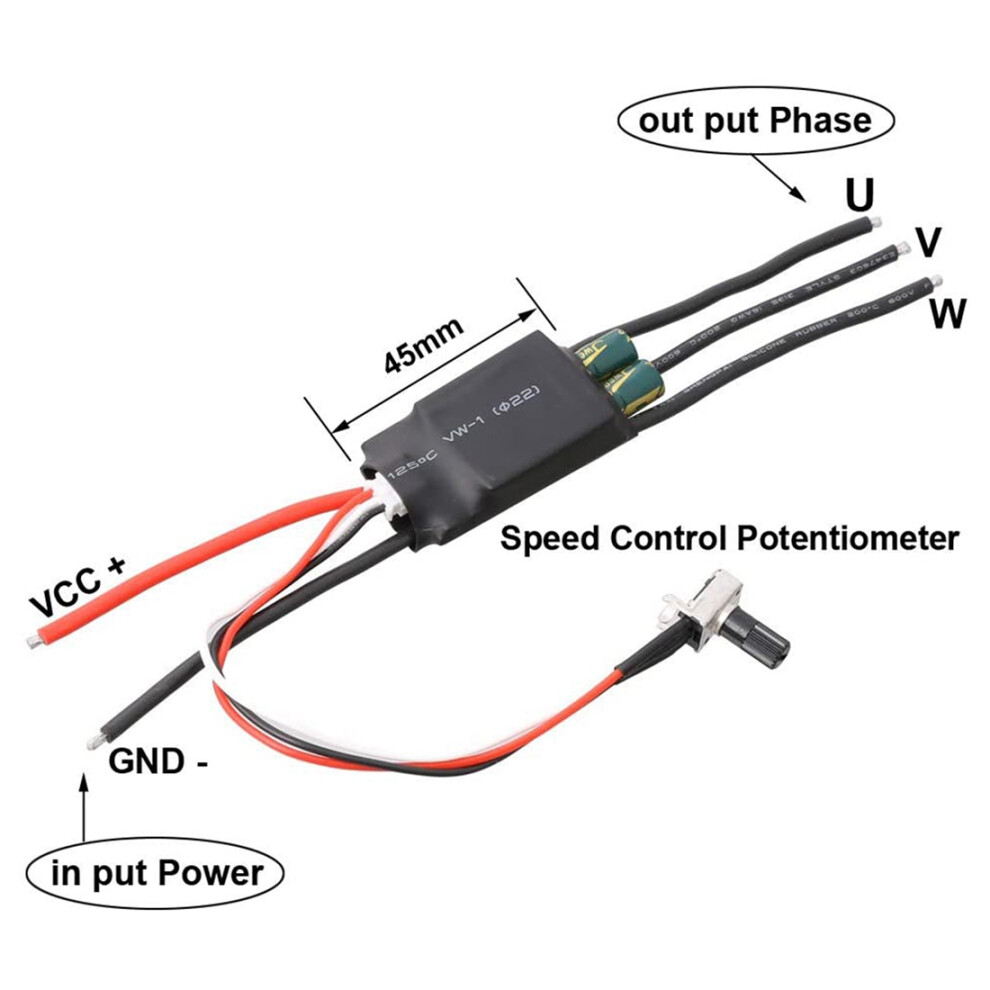

Interface Description:
1. U V W phase line output is connected to the motor
2. VCC GND main power supply (external DC power supply)
Product parameters:
Product name: Potentiometer three-phase DC brushless and Hallless drive
Model: X30A (potentiometer)
Working voltage: 7-24V
Drive current: rated 15A plus fan cooling 20A
Maximum speed: 224000 RPM (2 pole motor), 74000 RPM (6 pole motor), 40000 RPM (12 pole motor), 35000 RPM (14 pole motor).
Product size: length 45MM x width 26MM x height 12MM (excluding wires and protruding capacitors)
Colour: as shown
Material: Plastic+metal
Please note: Due to different product batches, the appearance may be different, but the function is the same

Package Contents:

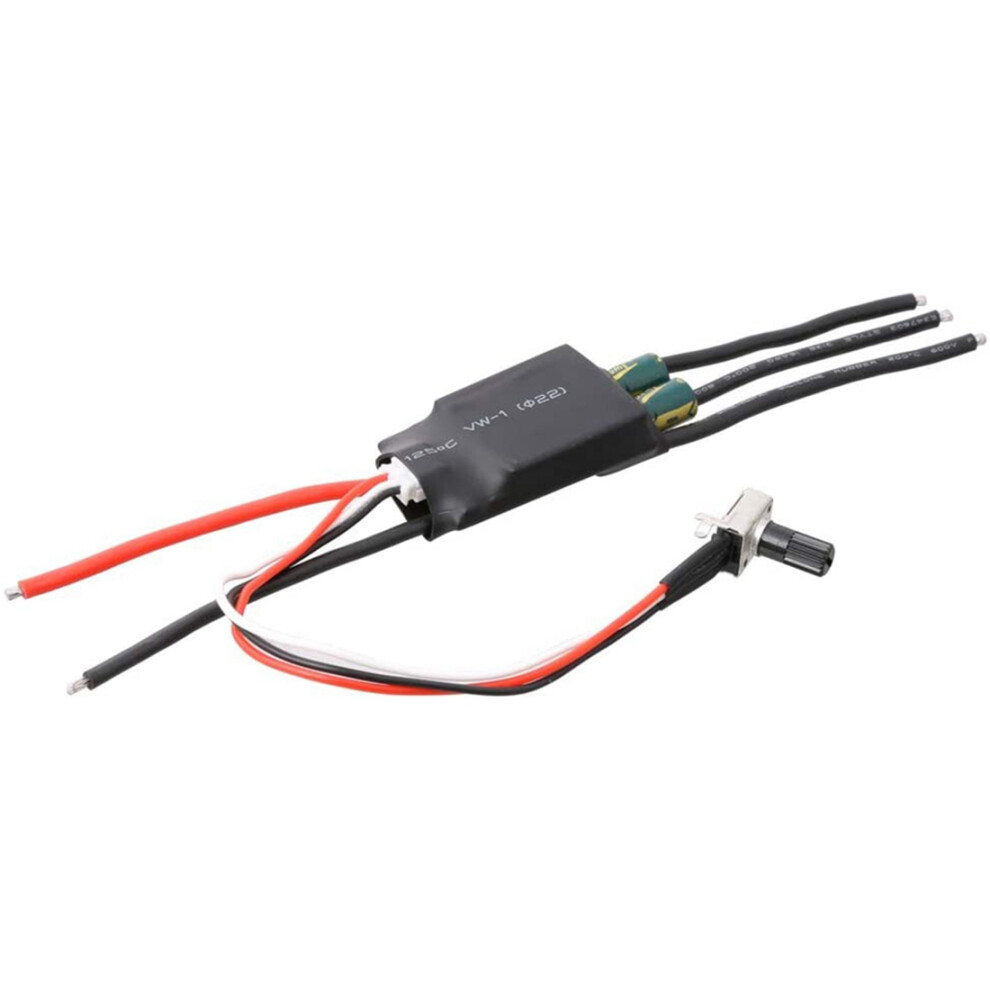

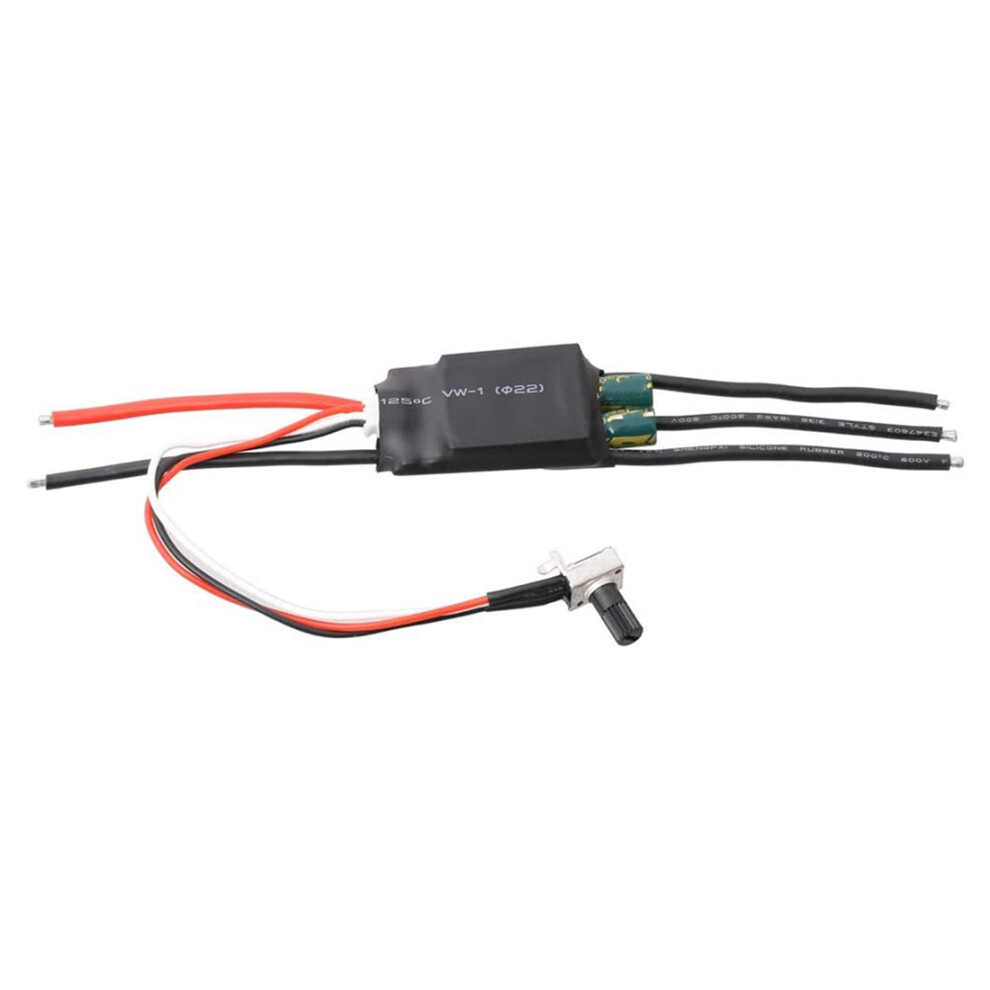

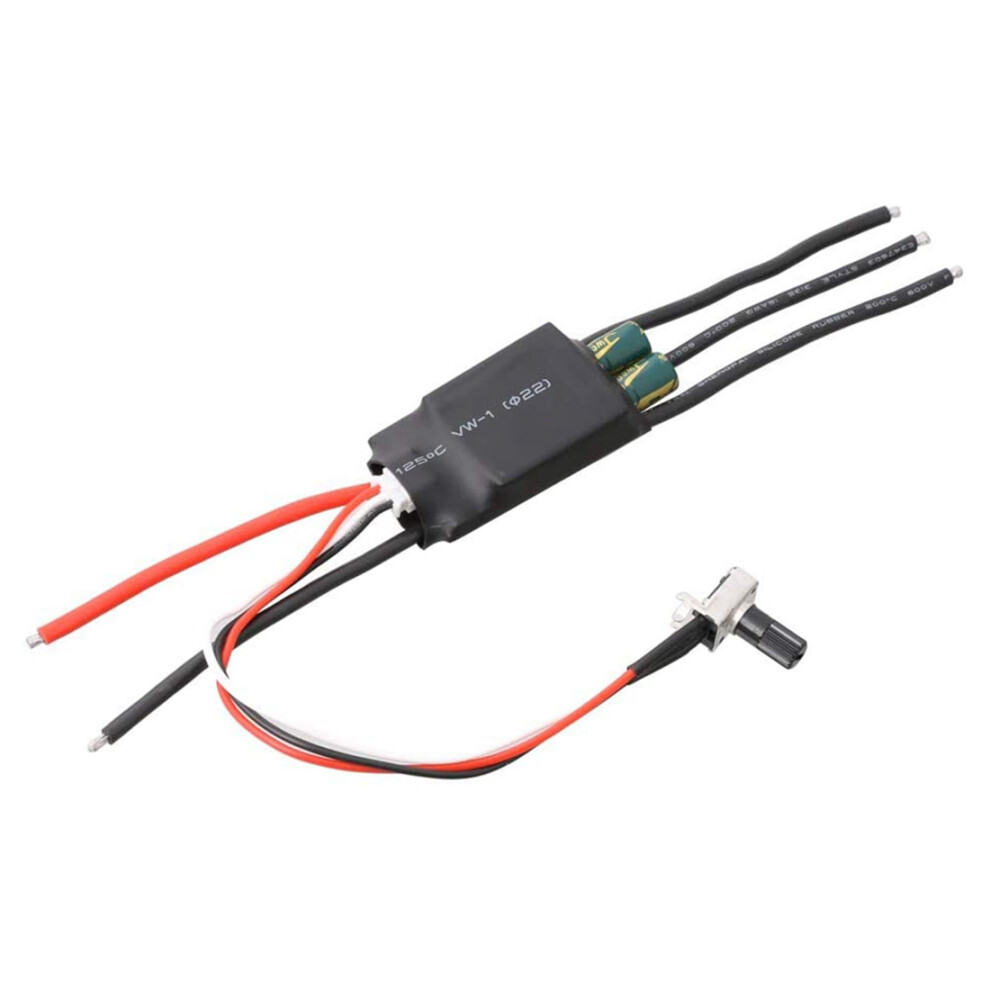

1 * DC 7-24V 200W BLDC 3-Phase Brushless Motor Driver

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
