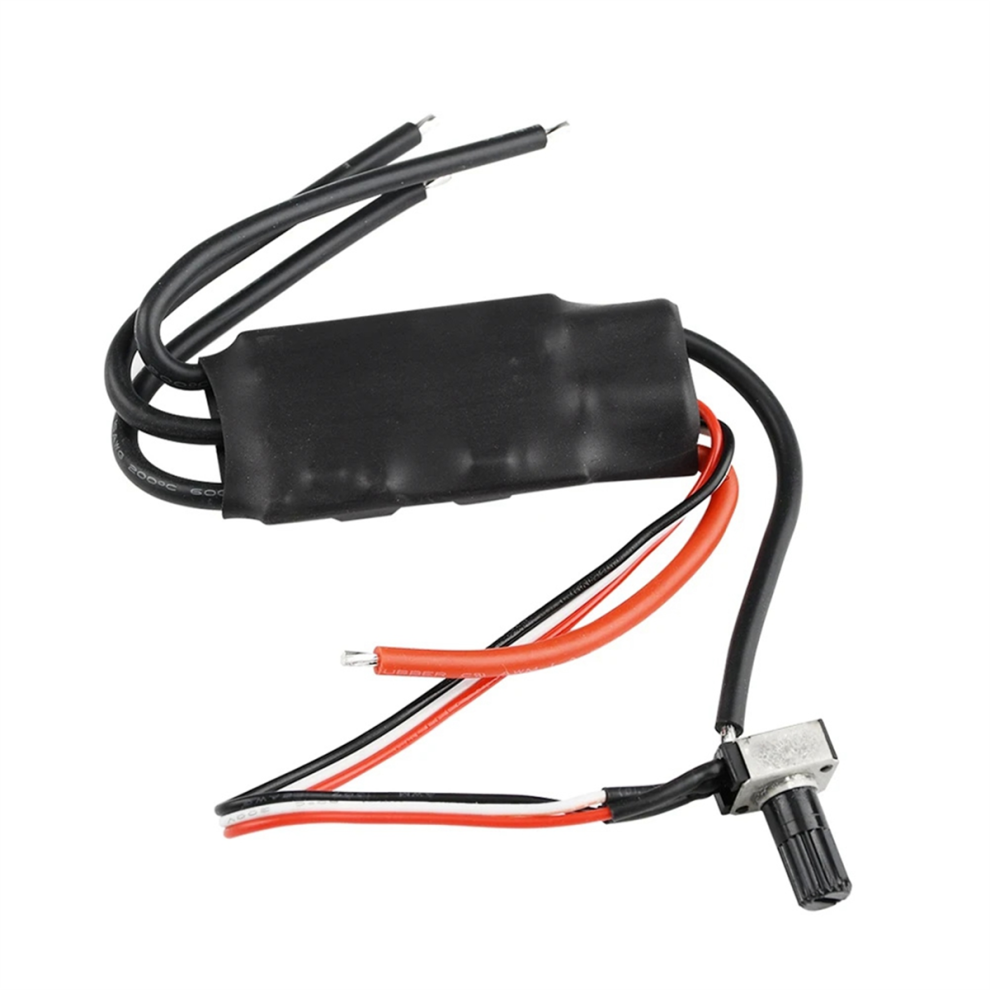

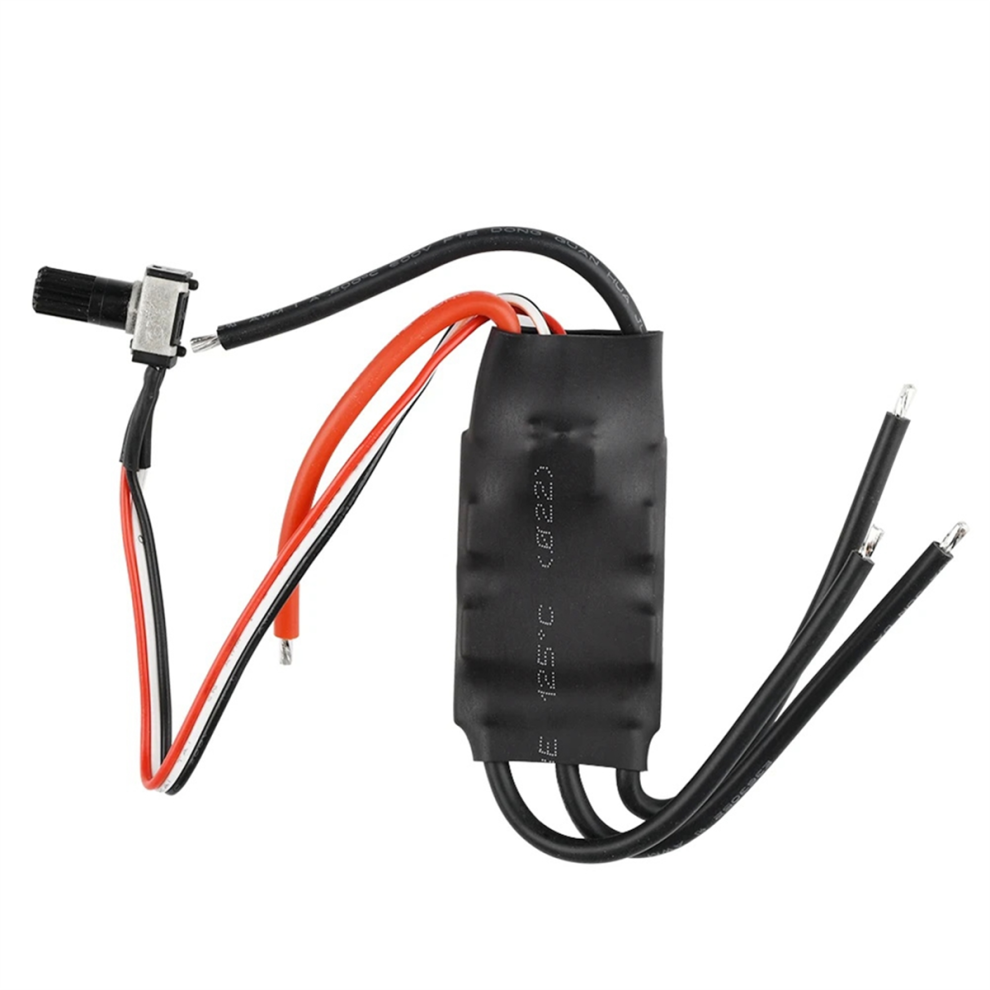

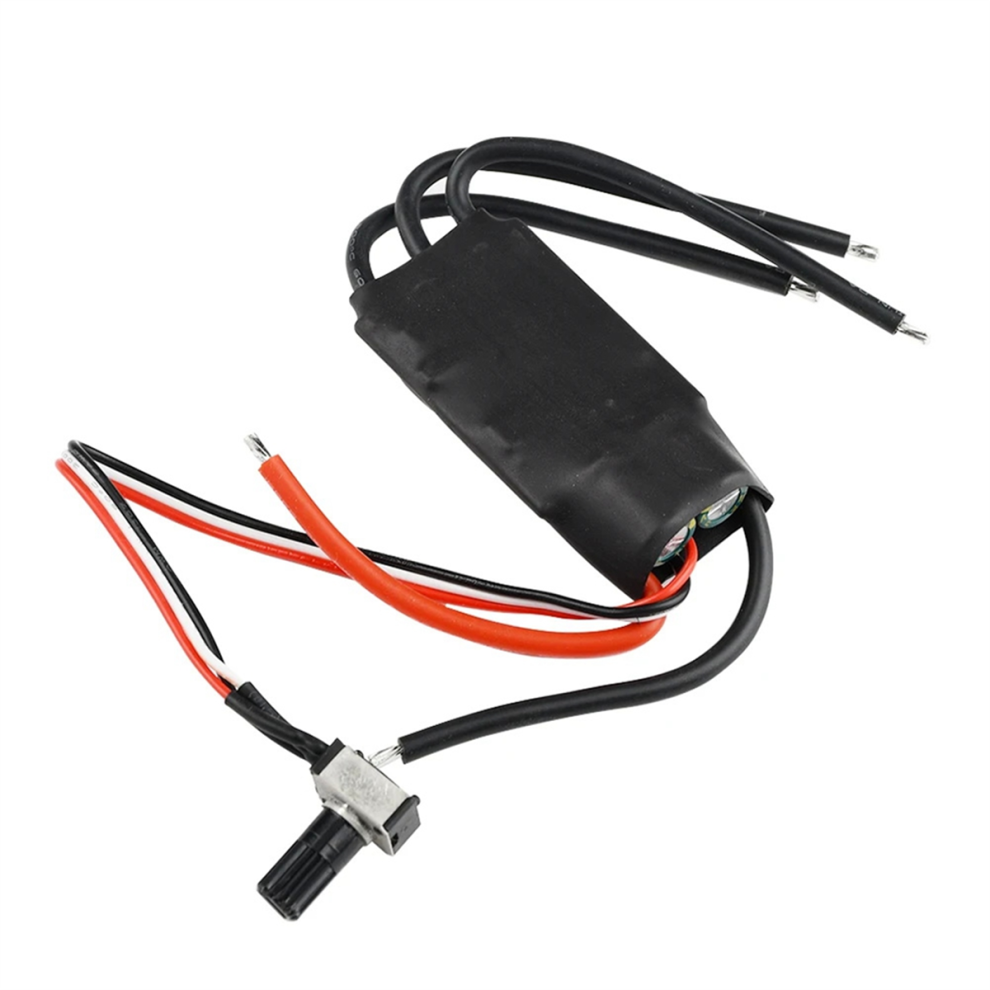

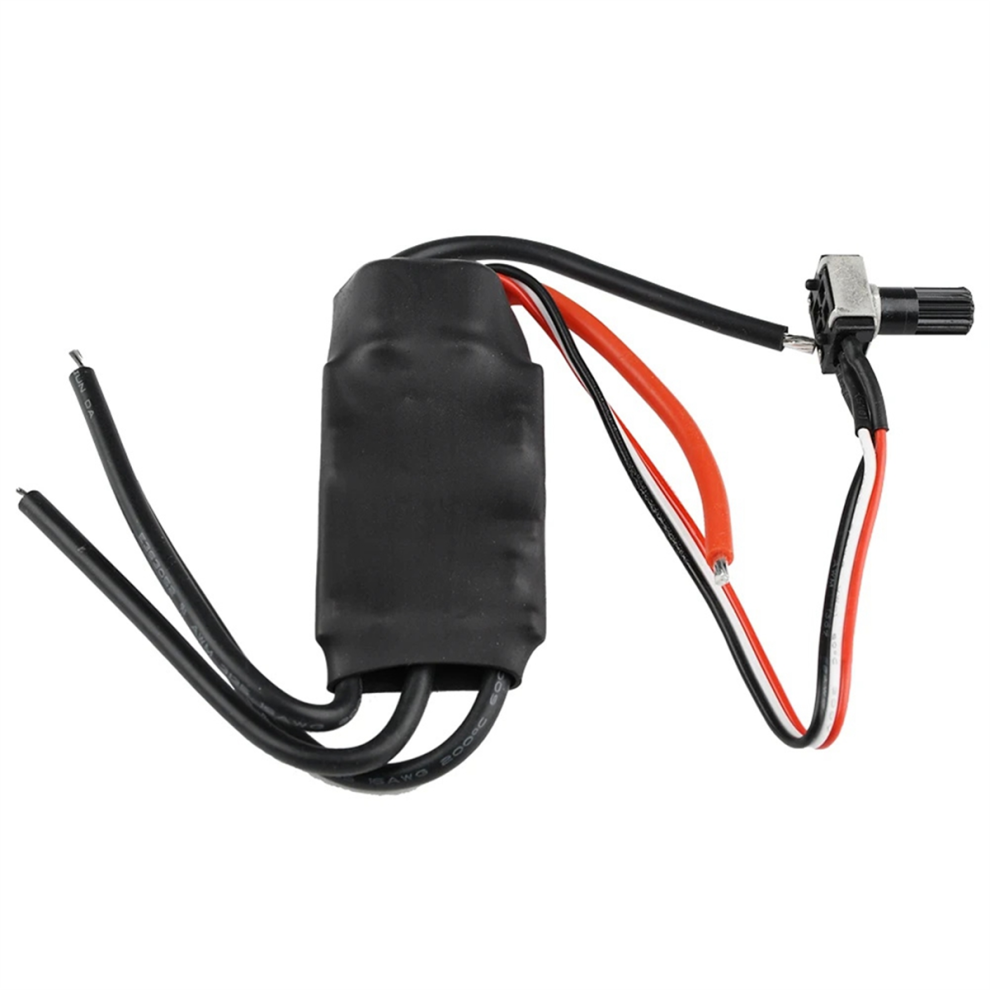

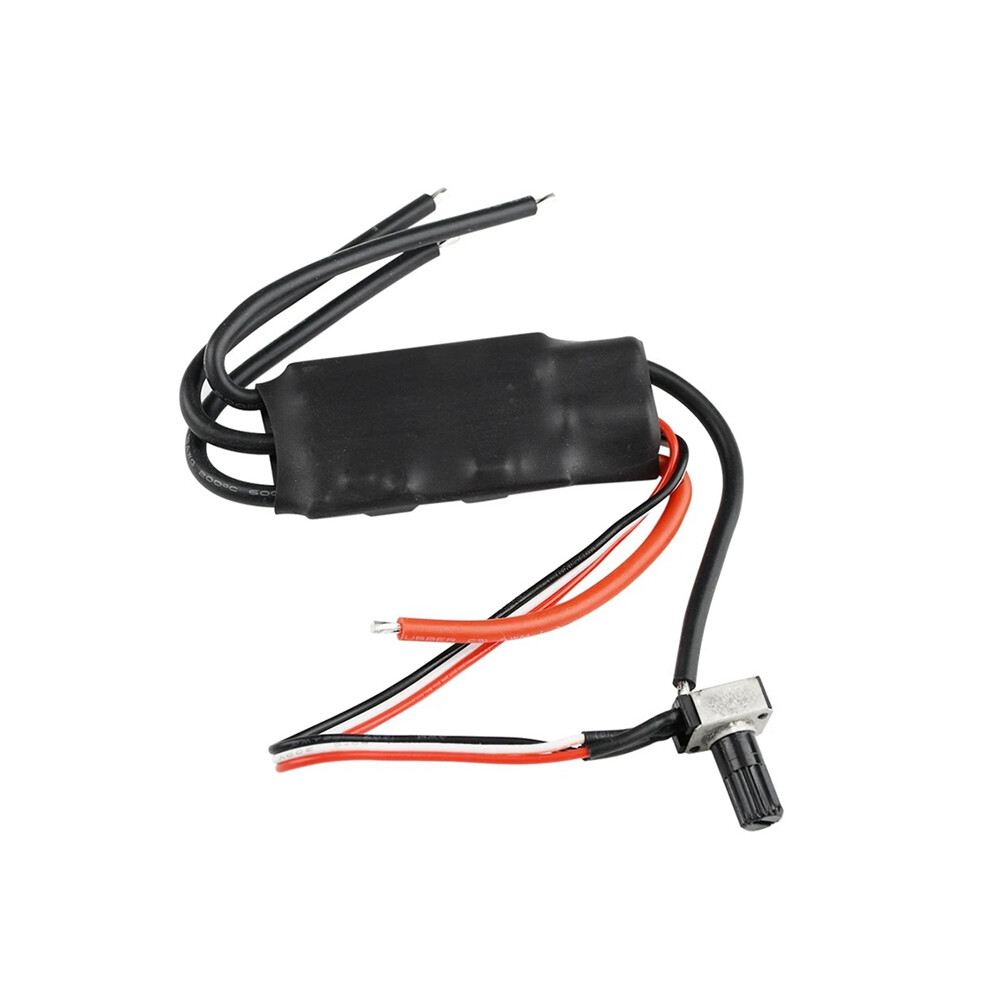

DC 7-24V 200W BLDC 3-Phase Brushless Motor Driver Hallless Drive Board Speed Controller with Potentiometer

DC 7-24V 200W BLDC 3-Phase Brushless Motor Driver Hallless Drive Board Speed Controller with Potentiometer Description

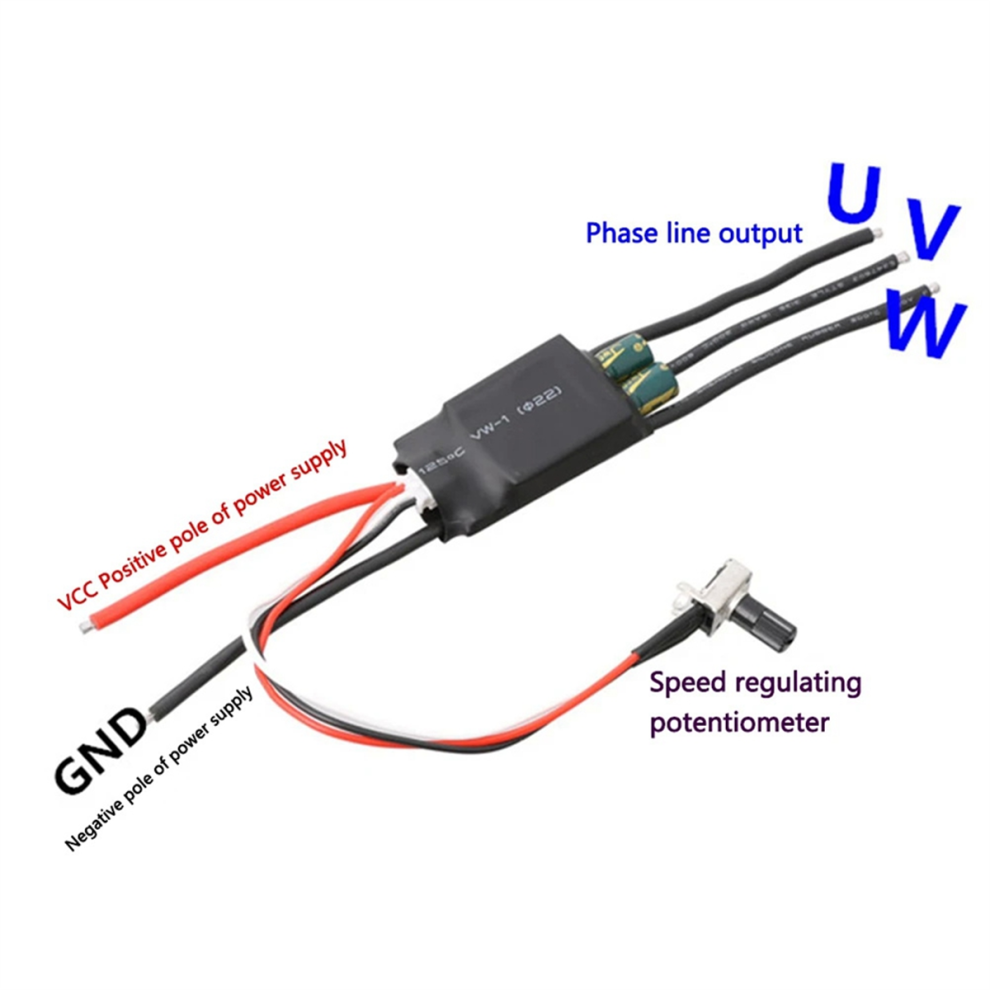

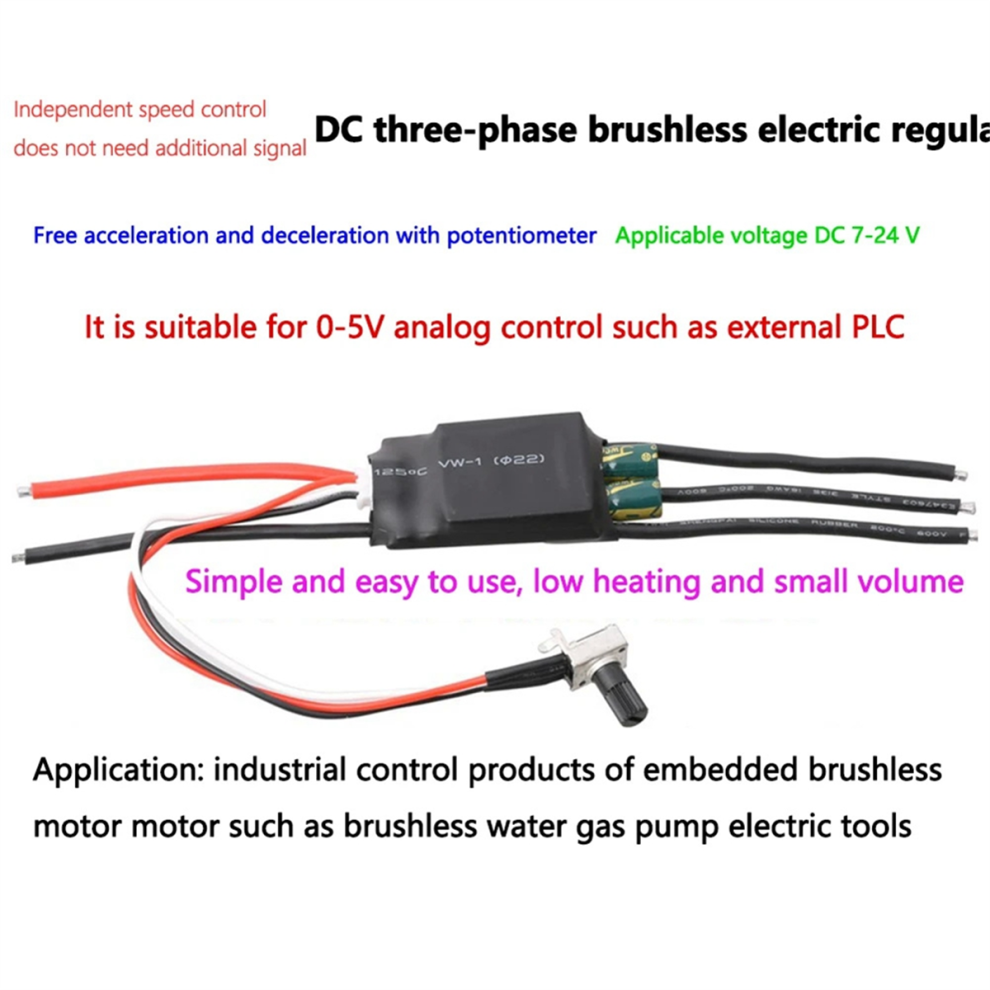

Features: Electric regulator is specially designed for various industrial control electric tools such as air pumps, water pumps, oil pumps, fans, etc. that use DC three-phase brushless motors. By default, the medium inlet angle works for a long time with high current, and the fan cooling system has overheating protection. When the external heat dissipation conditions of the electric regulator are poor, causing the temperature to exceed 100 degrees, the power be automatically reduced, and the temperature return to normal when it drops to 100 degrees. Interface Description: 1. U V W phase line output connected to motor 2. VCC GND main power supply (external DC power supply) Product parameters: Product name: potentiometer three-phase DC brushless and hall free drive Model: X30A (potentiometer) Working voltage: 7-24V Drive current: rated 15A with fan cooling capacity of 20A Maximum speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole motor), 40000 RPM (12-pole motor), 35000 RPM (14-pole motor). note: with potentiometer Motor driver board Material: plastic+metal colour: Black Package Contents: 1 x DC 7-24V 200W BLDC 3-Phase Brushless Motor Driver Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
