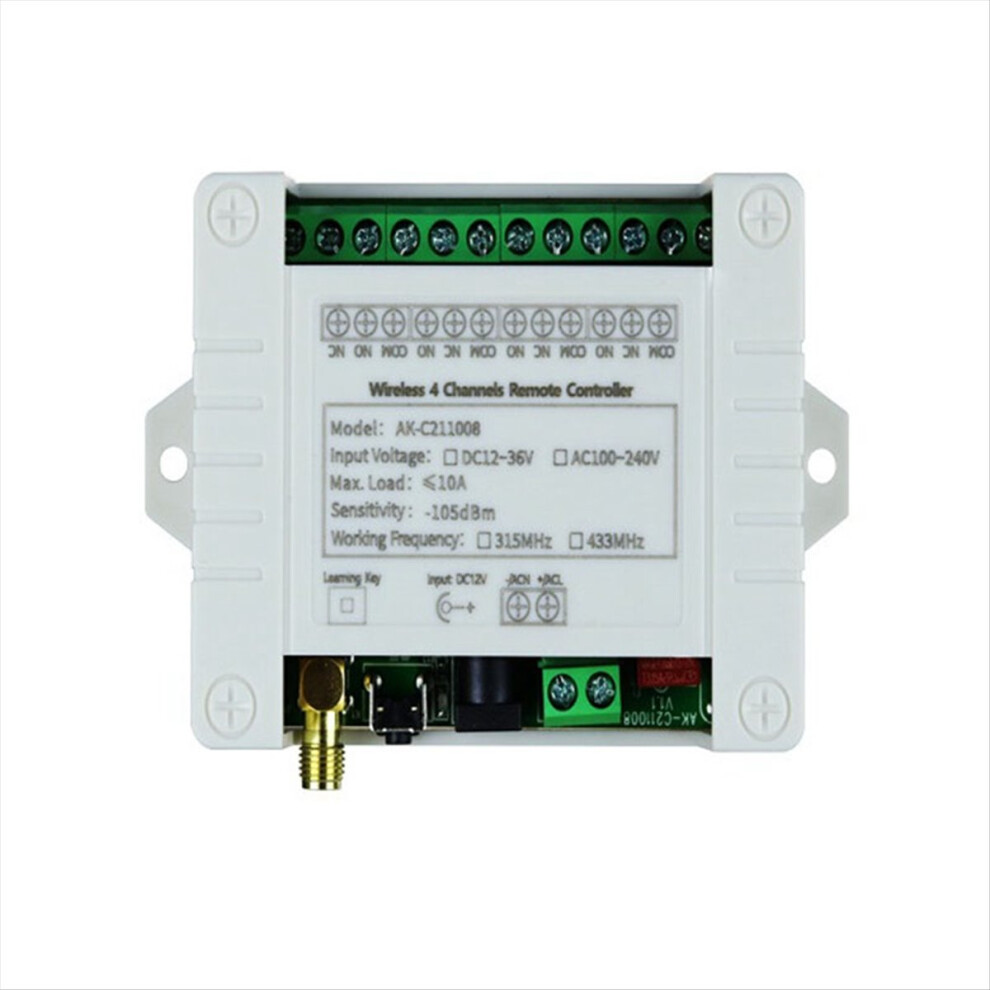

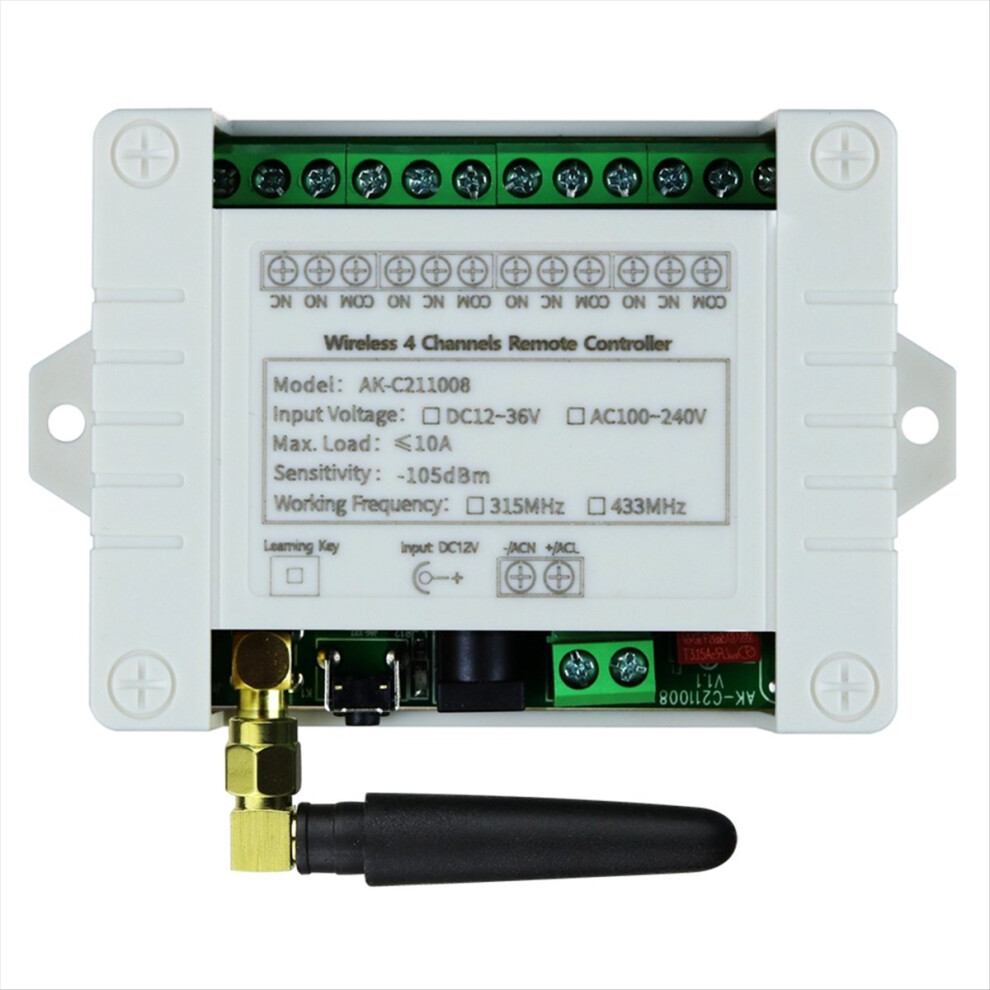

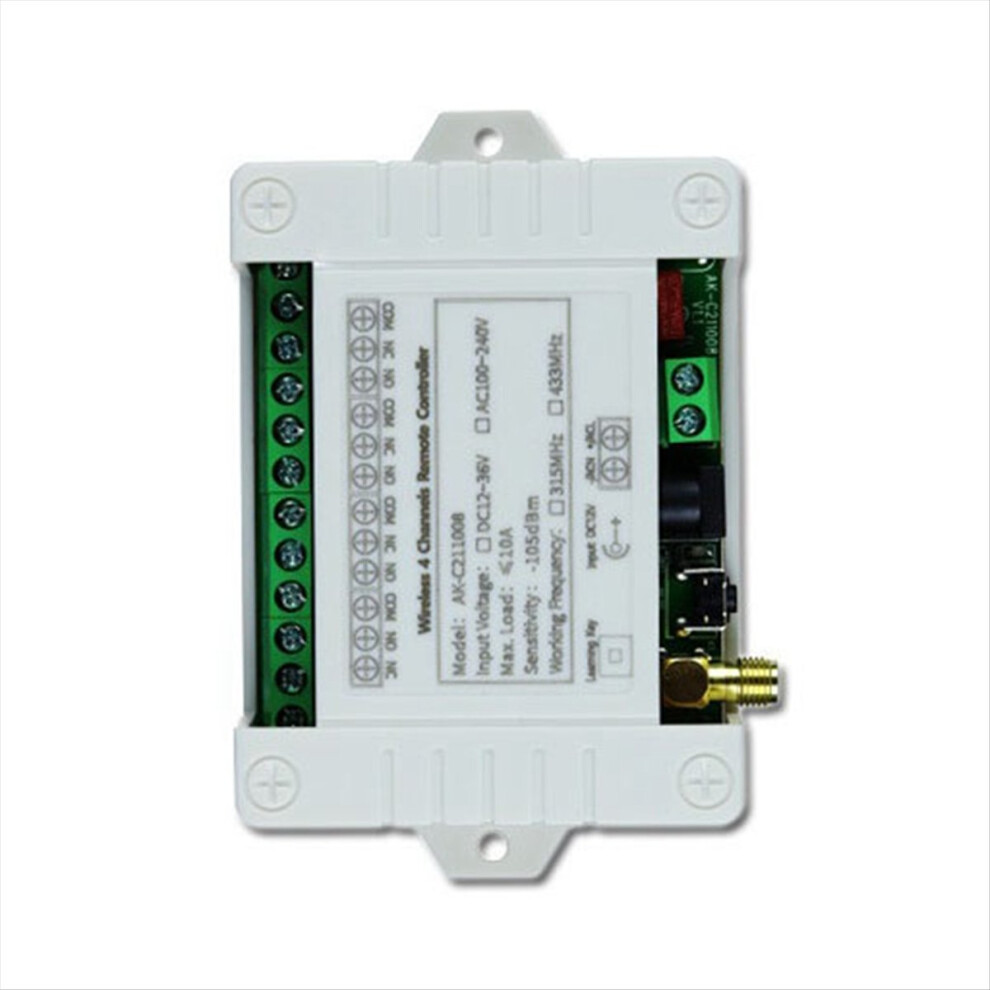

DC12-36V Wireless 4CH Remote Controller LED Light

DC12-36V Wireless 4CH Remote Controller LED Light Description

Learning: learning button, the indicator flashes and OFF, loosen finger, any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.(how many times the learning button according to the working way you need)
Clearning: Hold learning button about 8 seconds,indicator light flashes several times and off, then remote ,Relay not Respond ,it means clearning code successful.

About Receiver:
Model No: -C211008
Quiescent condition: Less than 6mA
Working temperature: -40 - + 80
Receiver sensitivity: more than -105dBm
Working frequency: 433mhz
Output voltage: Contact output and Voltage output
Max load current: 10A
About Working way:
Working way changed by Learning button
Momentary: the Learning Button 1 times.
Relay: and hold On; Release Off
Toggle: the Learning Button 2 times.
Relay: On; same button again Off
Latched: the Learning Button 3 times.
Relay: On; other button Off.
2 channel Momentary + 2channel Latched: the Learning Button 4 times.
2 channel Momentary + 2channel Toggle: the Learning Button 5 times.
2 channel Toggle + 2channel Latched: the Learning Button 6 times.
Working voltage:DC12V-36V
Colour:White
Material:Plastic

Package Contents:
1 * Remote Controller

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
