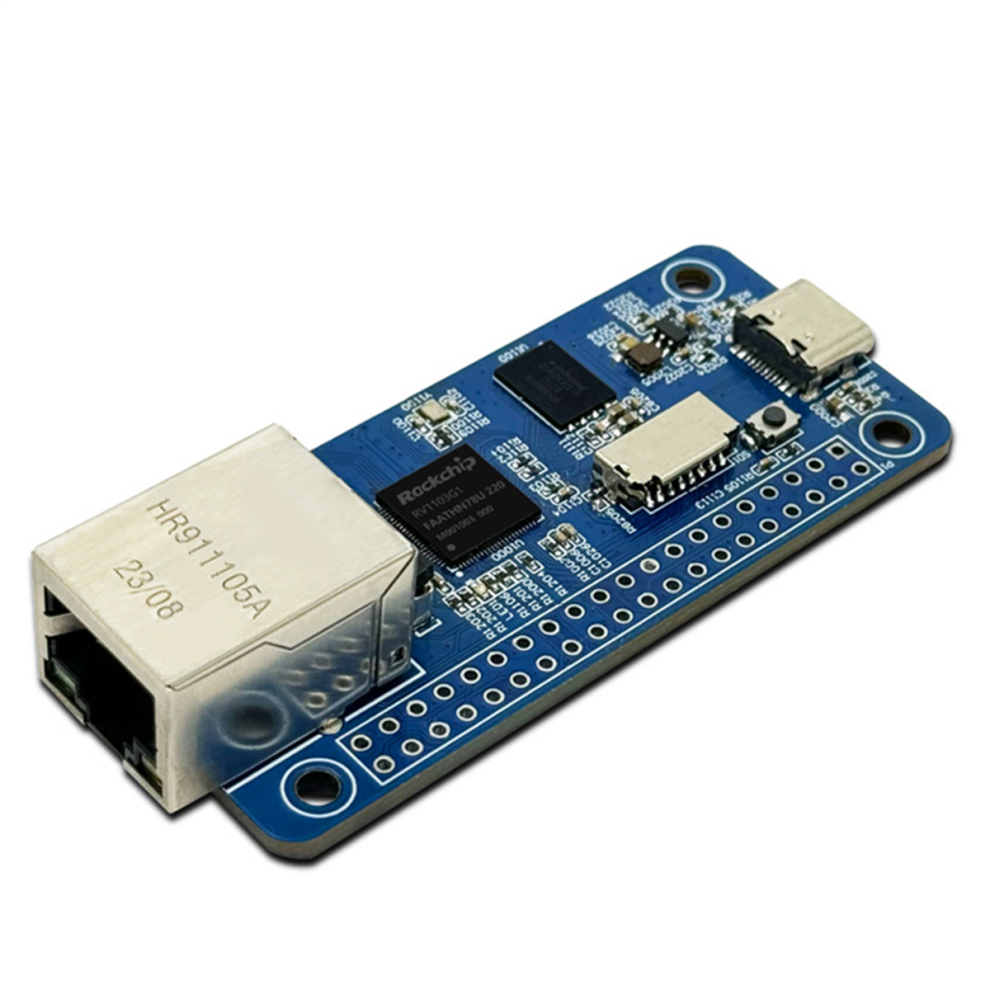

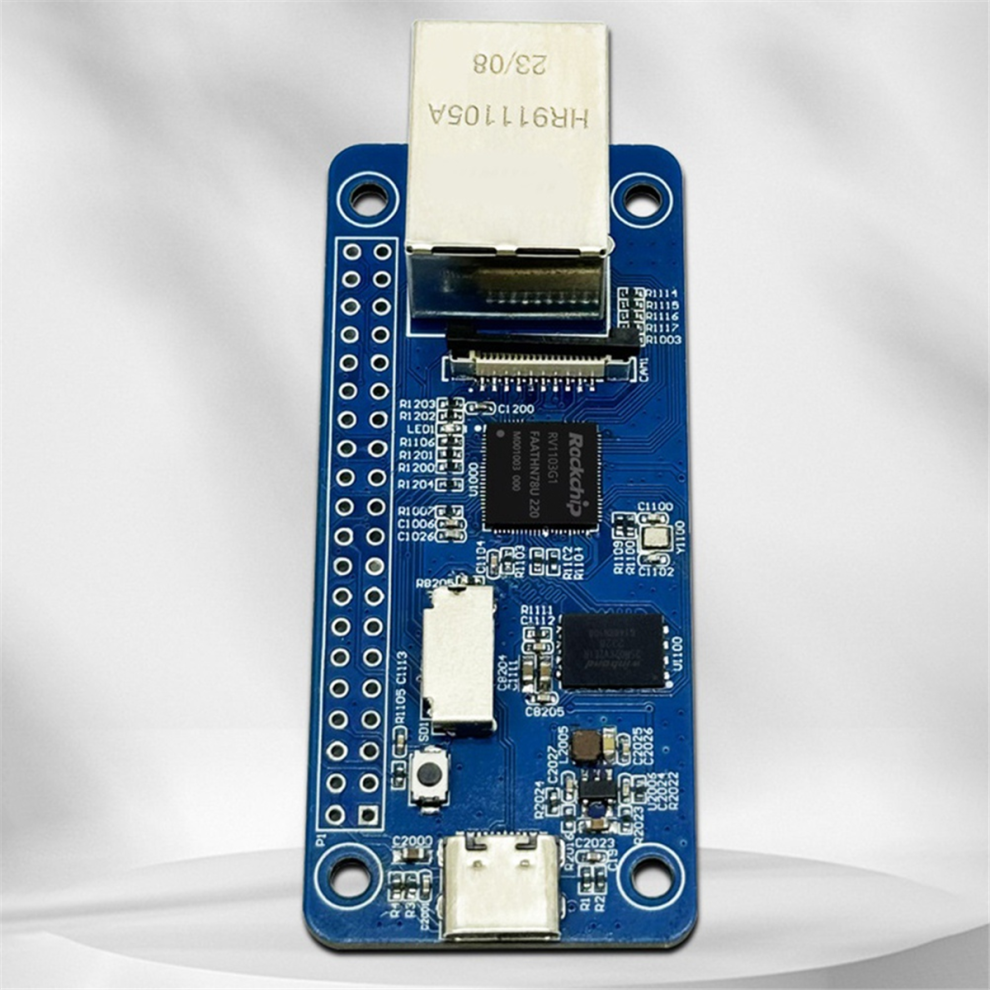

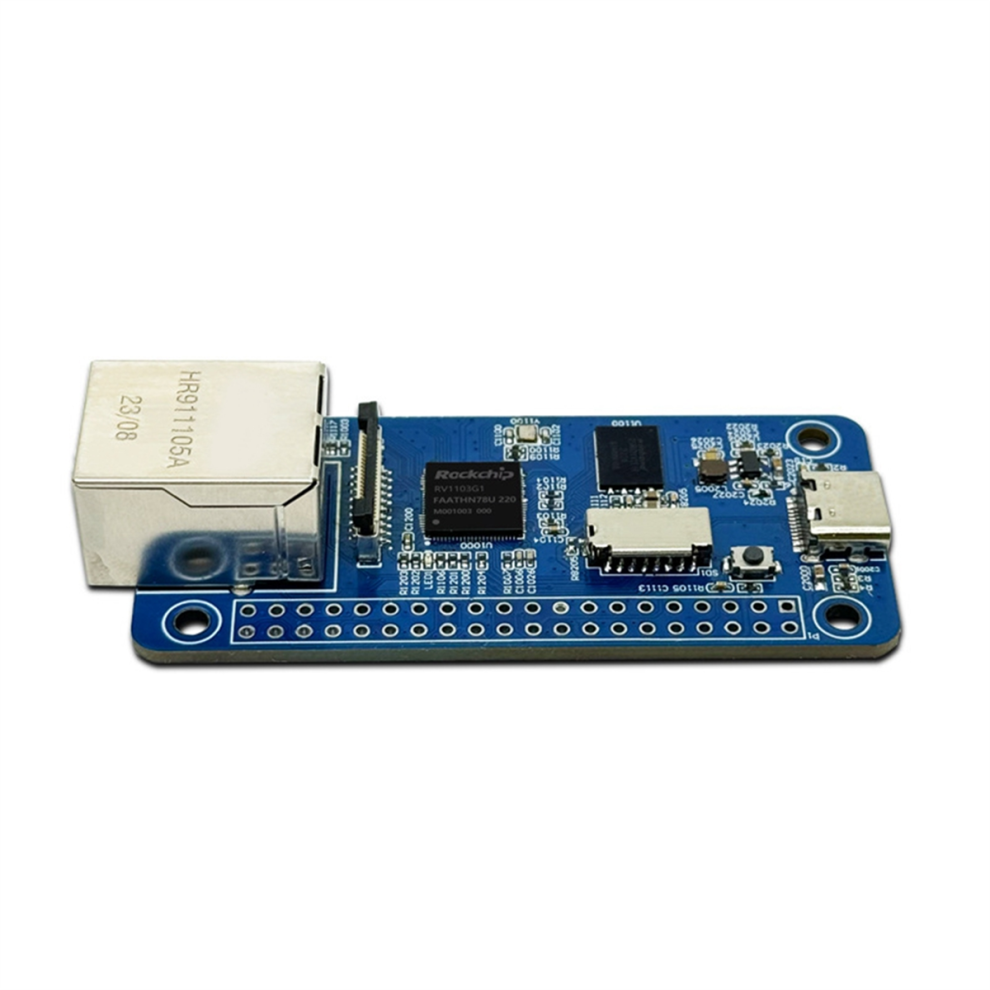

Development Board Module RV1103 Micro-Linux RISC-V Vision Artificial Intelligence with Network Port

Development Board Module RV1103 Micro-Linux RISC-V Vision Artificial Intelligence with Network Port Description

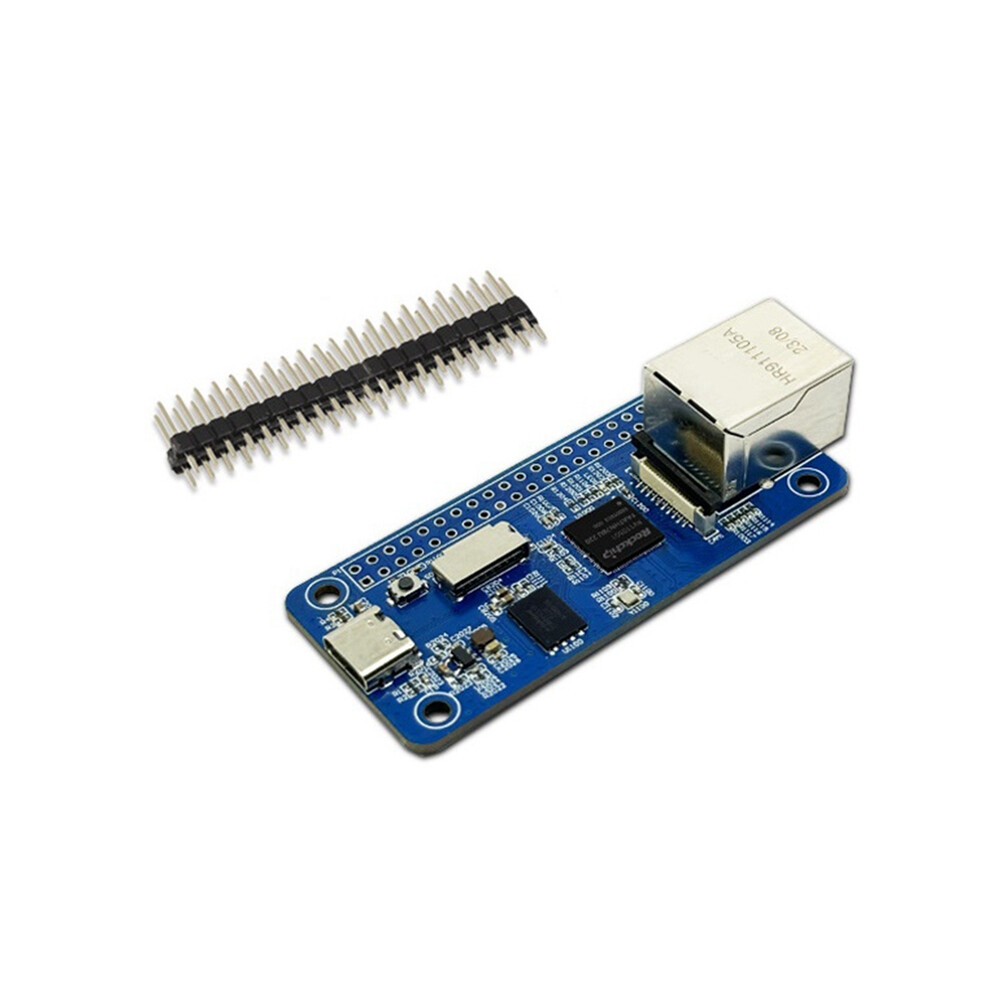

1. Single-core ARMCortex-A732-bit core, integrating NEON and FPU 2. Built-in Rockchip's self-developed 4th generation NPU, with high computing accuracy, supports int4, in8, and int16 mixed quantization. The int8 computing power is 0.5TOPS, and the int4 computing power can reach 1. OTOPS supports C, C++, Micro-Python, for and other development environments 3. Supports multiple interfaces such as GPIO, UART, SPI, I2C, USB, etc. to facilitate development and debugging. 4. The design of the built-in RISC-V MCU supports low-power fast startup, supports 250ms fast snapshot, and loads the Al model library at the same time, enabling face recognition to be completed "within 1 second". 5. Integrated built-in POR, audio codec and MACPHY. Description: Product Name:Development Boards Modules Board Size: About 30 x 68.5mm Material: PCB colour: As shown Package Contents: 1 x Development Board Module 1 x 20pin Double Row Pin Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
