Digital DIY Oscilloscope Kit STC8K8A Microcontroller Electronic Component Soldering Practice Loose Parts

Digital DIY Oscilloscope Kit STC8K8A Microcontroller Electronic Component Soldering Practice Loose Parts Description

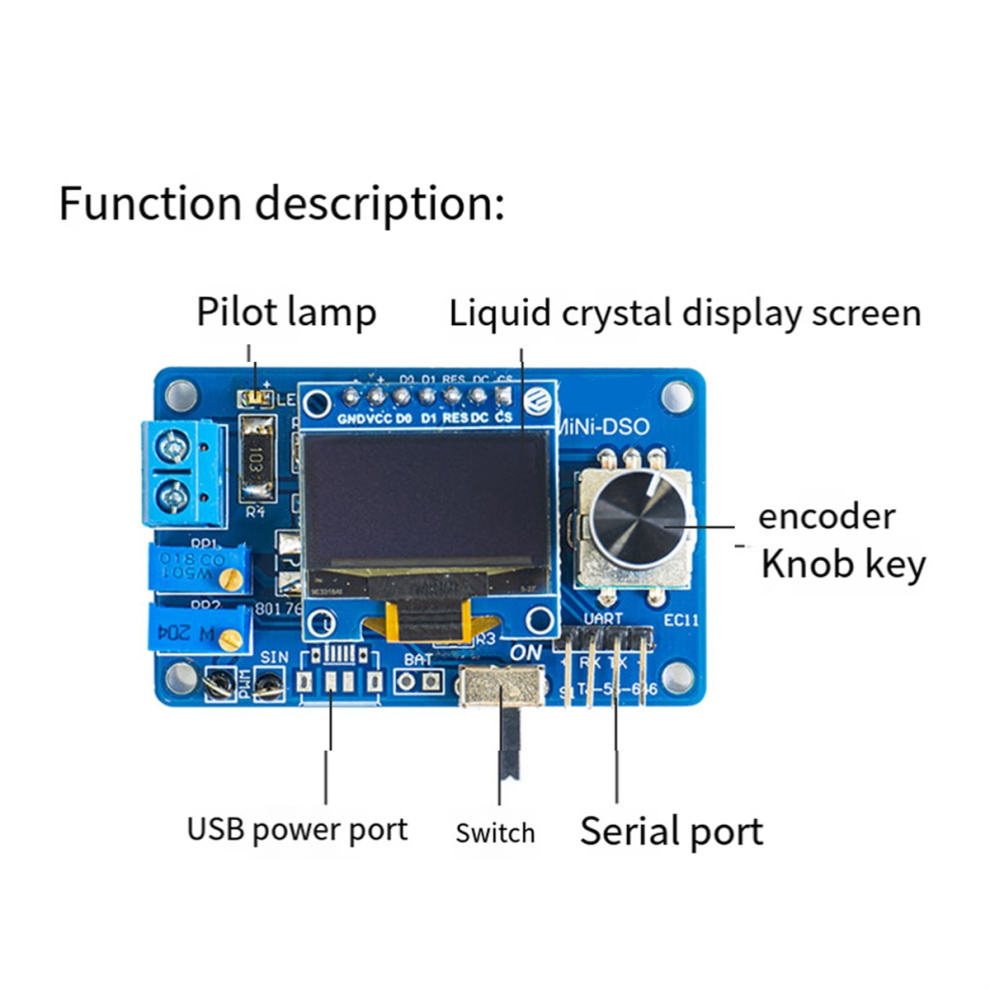

1. Indicator light: Usually the indicator light is on to indicate that sampling is running
2. There are three trigger modes: automatic mode, normal mode, and single mode
3. Trigger slope: The trigger slope determines whether the is on the rising or falling edge of the signal
4. Trigger level: For repetitive signals, the trigger level can display stably. For single-shot signals, the trigger level can capture
5. Save settings: When exiting the setting interface, all parameters of the setting interface and the main interface be saved in the EEPROM

6. Waveform generator: PWM (PWM generator) and SIN (sine wave generator), adjust RP1 and RP2 to change the amplitude respectively
Product parameters:
Power supply voltage: DC 5V (Micro-usb)
Voltage range: 0-30V (LSB needs to be adjusted)
Level sampling: 10kHz@100us/
Sec/: 500ms, 200ms, 100ms, 50ms, 20ms,
10ms, 5ms, 2ms, 1ms, 500us, 200us, 100us
Circuit board size: 57x35mm

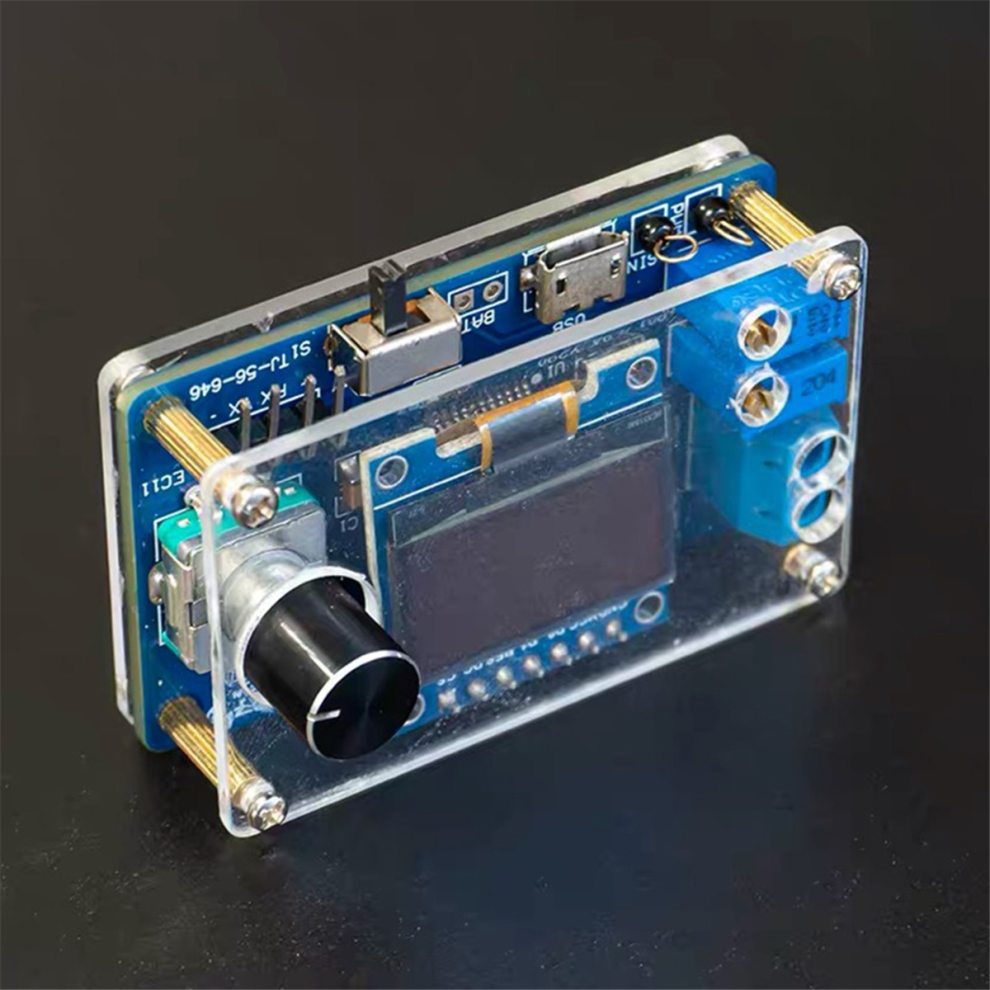

Finished product size: 57x35x30mm
Colour:As Shown
Material:Metal + Plastic
Due to different batches, there may be differences in product appearance and printed text, which not affect use

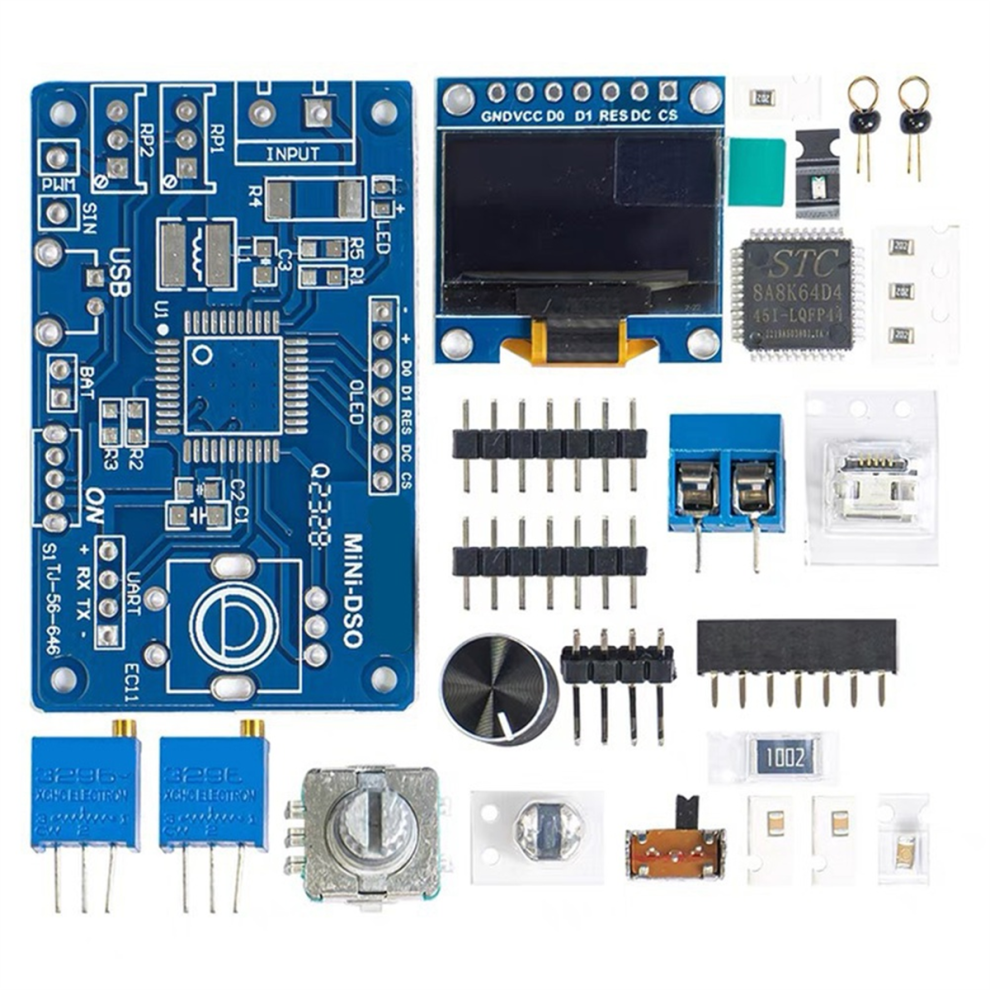

Package Contents:
1 * Digital DIY Oscilloscope Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
