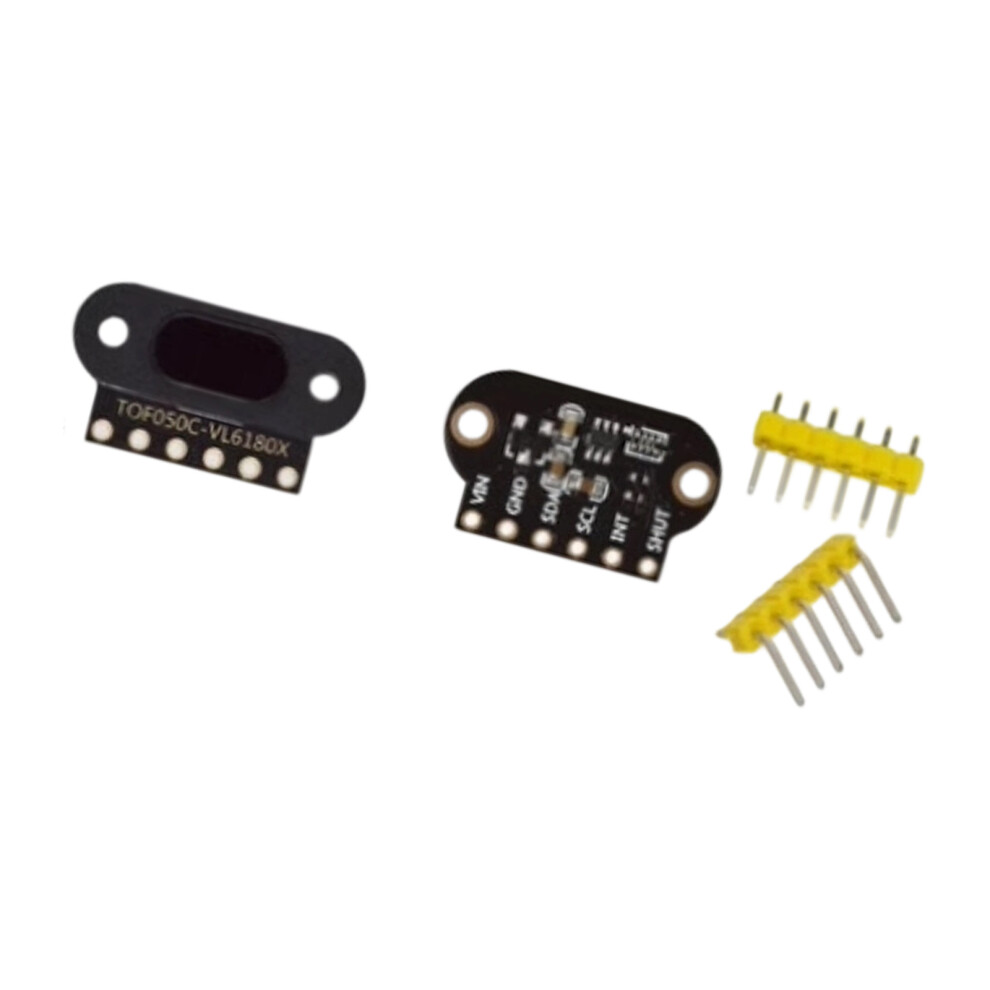

Distance Sensors Module IIC Communication Protocol-TOF050C

Distance Sensors Module IIC Communication Protocol-TOF050C Description

Features:
Features three variants TOF050C (0.5m), TOF200C (2m), and TOF400C employing Time of Flight technology for correct distance calculation..
Utilizes standard I2C connection for uniform data transmission, functions with common development boards. Contains pre made sample programs for robotic, intelligent device applications.
25 27 field of view with exclusive lens protect that provides dust prevention and enhanced data filtering..
Operates at DC3V-5V power input with greatest 40mA current draw, functioning dependably from 20 to 70.
Easy Installation ABS housing with built in attachment points for rapid setup. Needs little calibration, prepared for direct implementation in UAVs, automated setups,.

Specifications:
Component: ABS.
Dimensions: 20x11mm./0.78x0.43in
Weight: 10g.
Model: TOF050C (50cm), TOF200C (2m), TOF400C .
Working voltages: DC30V-5V .
Operating current: 40mA.
Working temperature: -20~70.
Storage temperature: -20~80.
Mounting holes: immersed gold mounting holes.
Emission wavelengths: TOF050C (850nm), TOF200C (940nm), TOF400C (940nm).

Package Includes:
2PCS Sensoring module
4PCS pin header

note:
Please allow 0-1cm error due to manual measurement, make sure you do not mind before you order.
Please allow slight chromatic aberrations due to different display resolutions.
