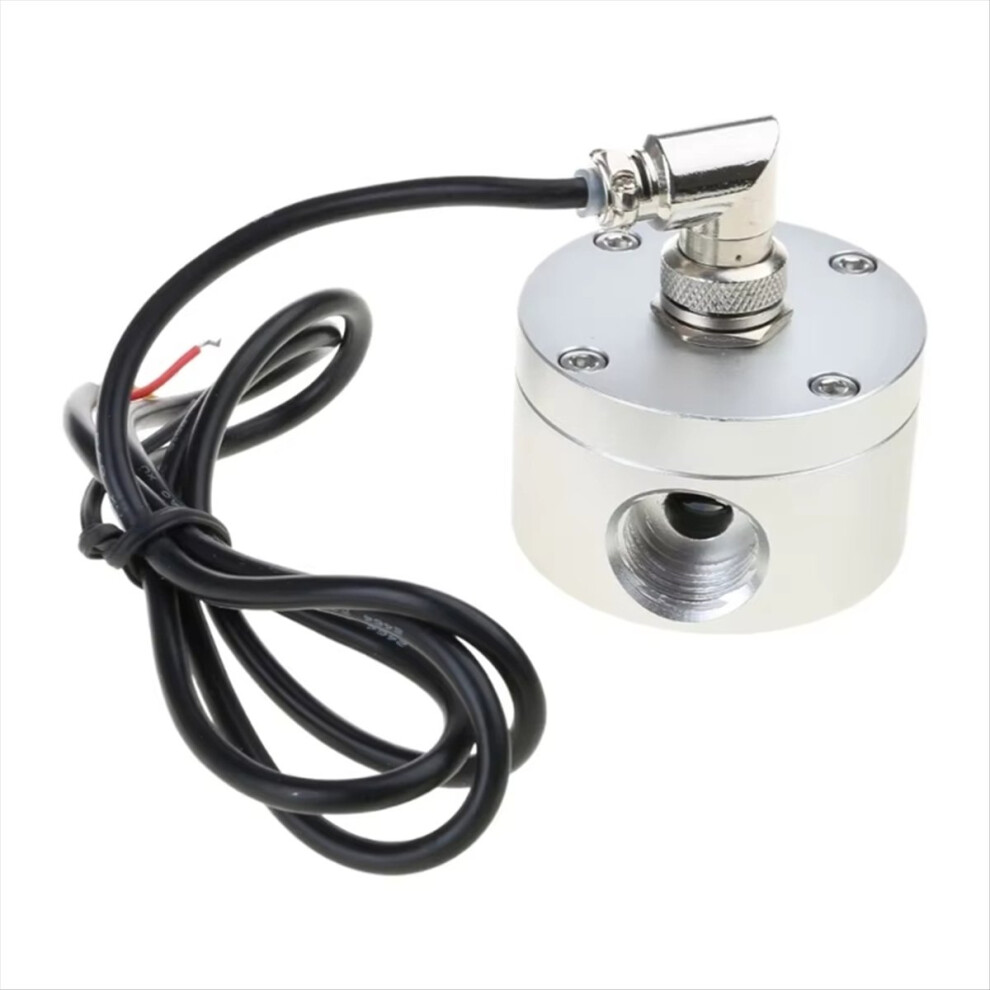

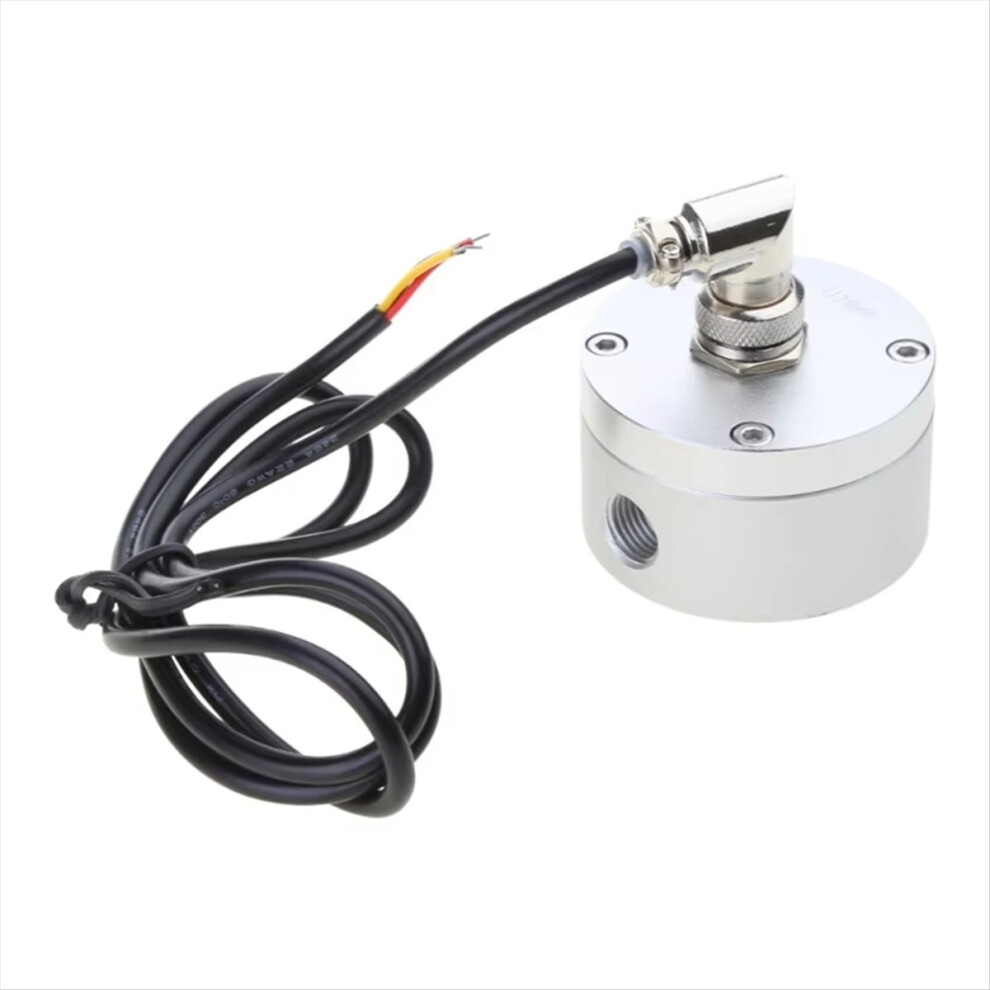

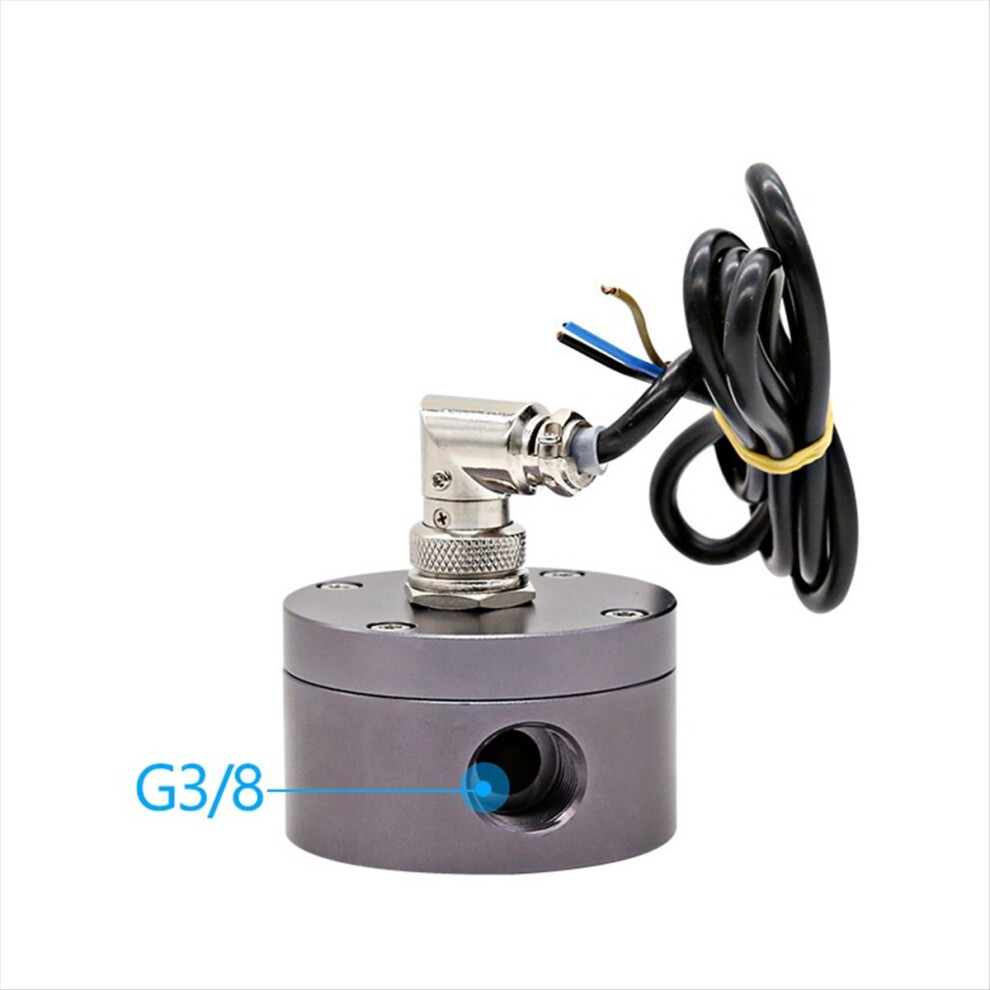

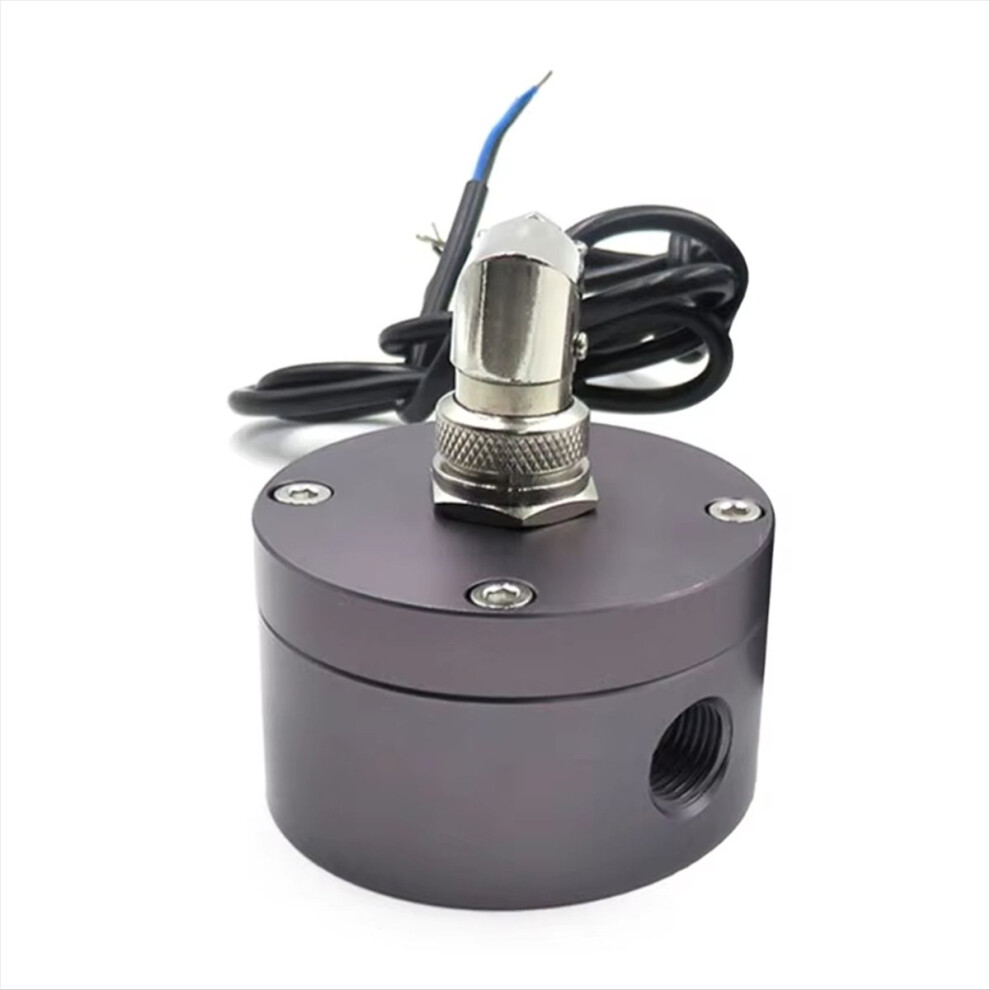

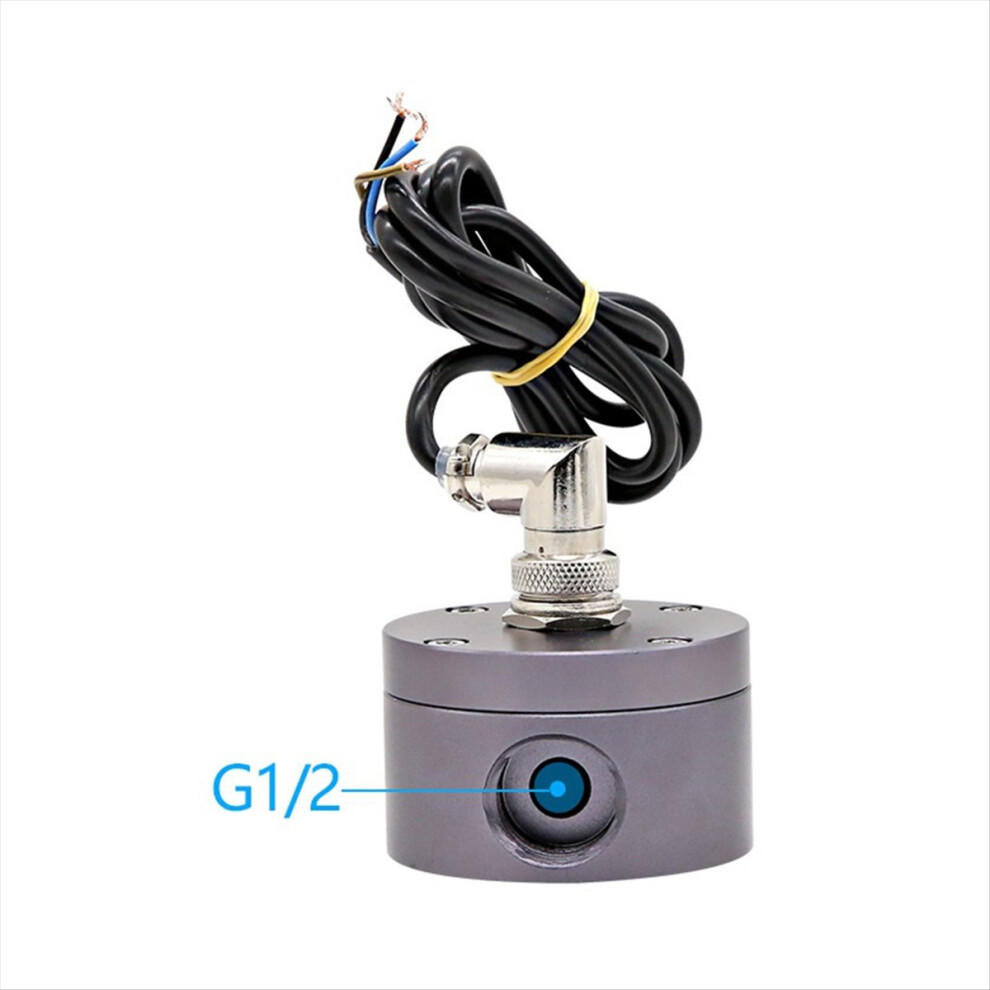

DN8 Flowmeter Gear Oil Flow Meter Flow Sensor Liquid Flowmeter

DN8 Flowmeter Gear Oil Flow Meter Flow Sensor Liquid Flowmeter Description

Features: 3 types to select, choose different type according to your needs.
Stable performances, large flow, high precisions and fast response.
Made from quality material, leakproof, wear , high sensitivity.
The product is mainly used for testing oil, the cover is made from aluminum alloy material.
Good pressure resistance, can bear pressure up to 30kg.

Specifications:
Interface: DN8
Voltage: DC3.5-24V
Inner Diameter: 11.75mm
Thread Length: 12.4mm
Flow Range: 30-300L/H1%(Liquid is Water)
Water Pressure Resistance: 1.0MPA
Pulse Frequency: Hz=[1.5xQ]1%
High Level Output Pulse: Large Than DC4.5V(Input DC5V)
Output Pulse Duty Ratio: 5010%
Working Current: 15mA(DC5V)
Colour: Random colors, no specified colors accepted
Material: Aluminum alloy +

Package Contents:
1 x Fluidmeter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
