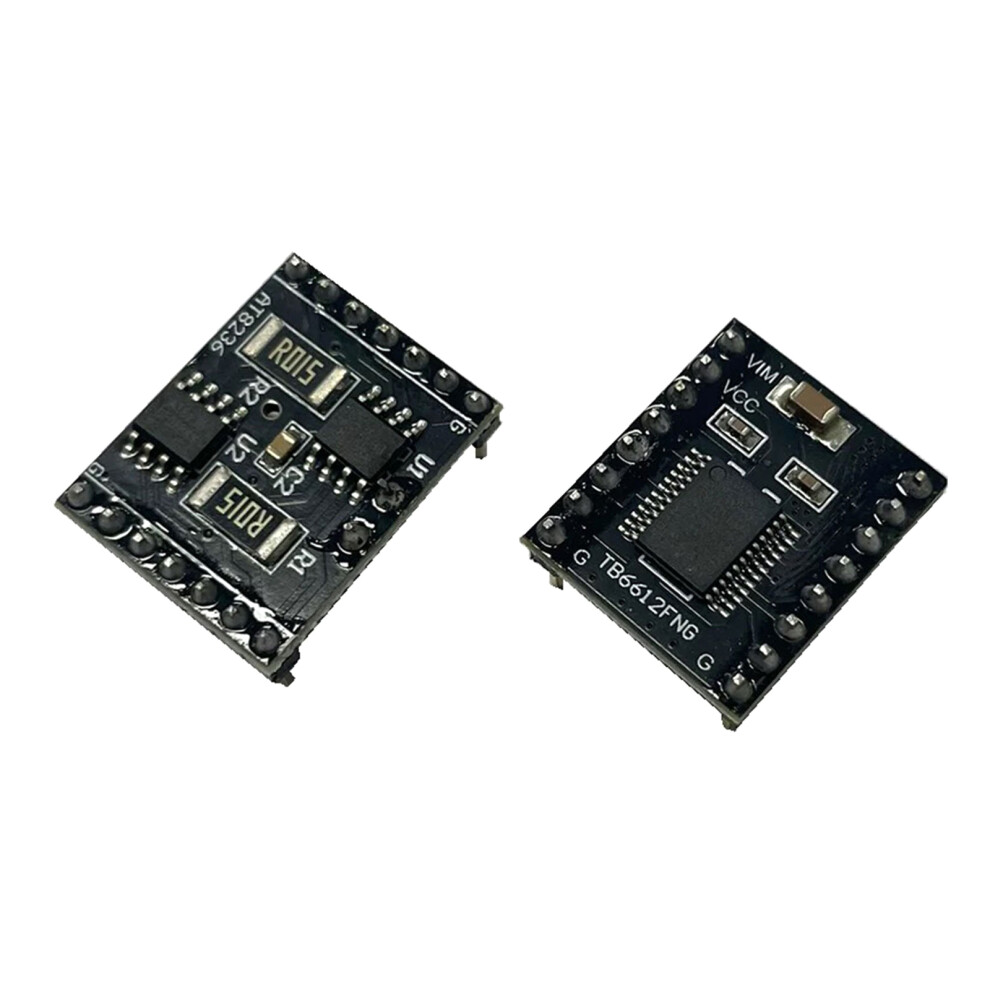

Double Motor Control Board TB6612/AT8236 For Balancing-AT8236

Double Motor Control Board TB6612/AT8236 For Balancing-AT8236 Description

Features:

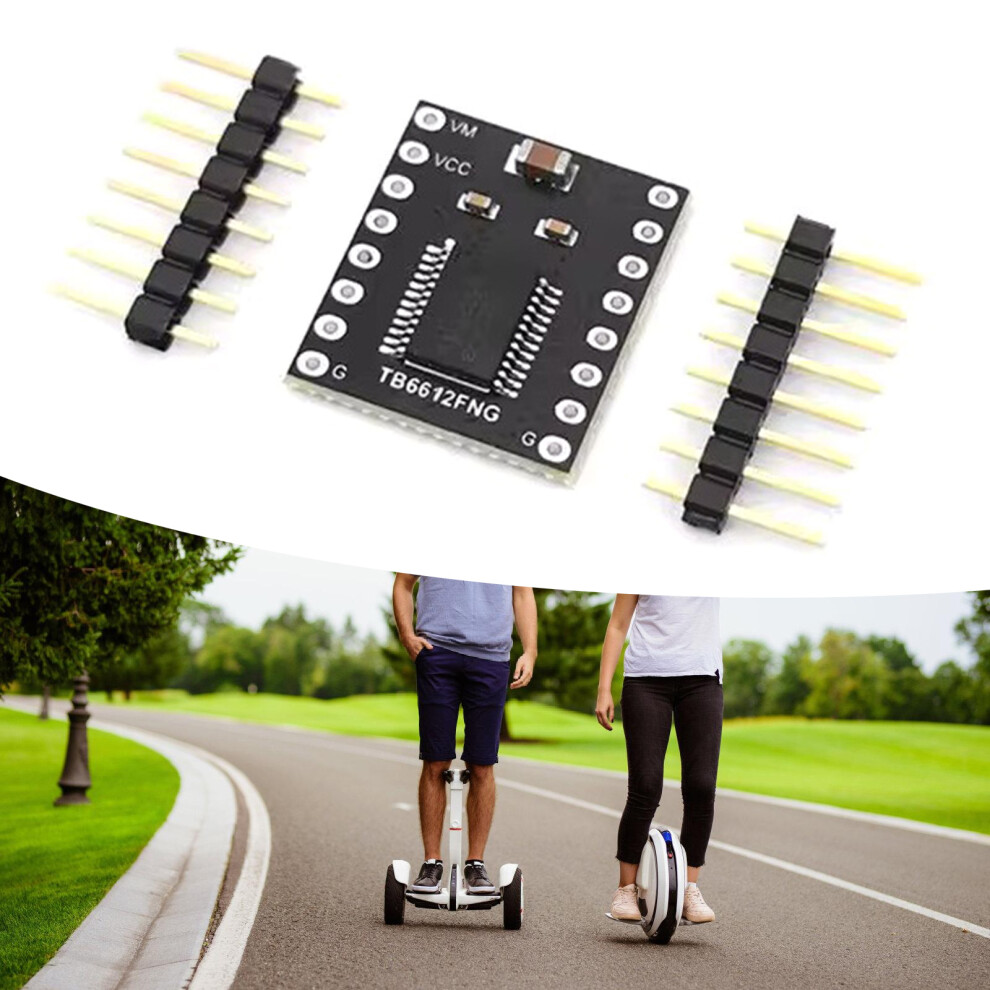

【Precision Motor Control】Dual-channel motor drive ensures exceptionally stability during operating of the balancing vehicle.
【Integrated Circuit Optimisation】Highly performances integrated circuit design enhances motor drive efficiency and response speed.
【Robust PCB Construction】Premium PCB materials deliver outstanding durability and electrical conductivity.
【Module Design】Module structure supports multiple expansion interfaces, facilitating functional upgrades according to user requirements.
【Simplified Installation】Quick assembly without complex tools, saving users assembly time.

Specifications:

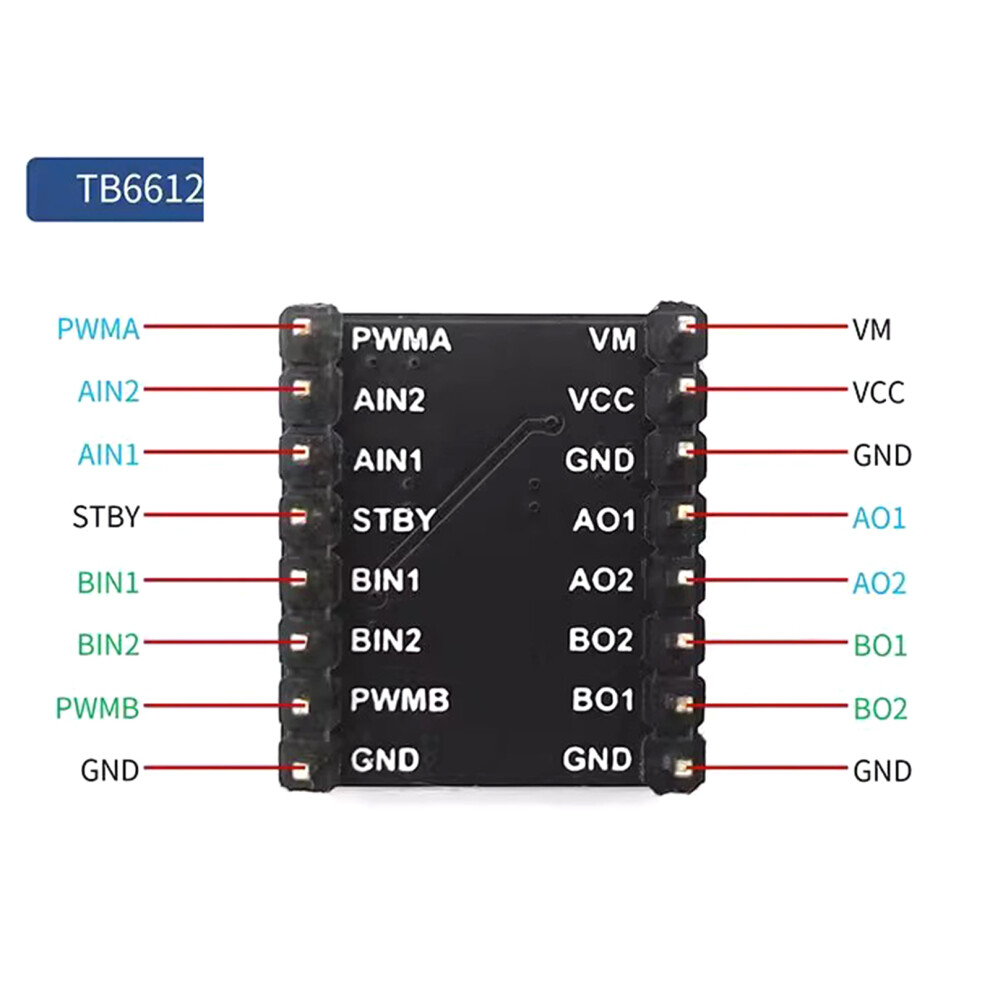

TB6612 module parameters:
Used chip: TB6612FNG
Supply voltages: 2.5V-15V
Single-channel output continuous drive current: 1.2A
Current: to 2A
Frequency of input: to 100khz

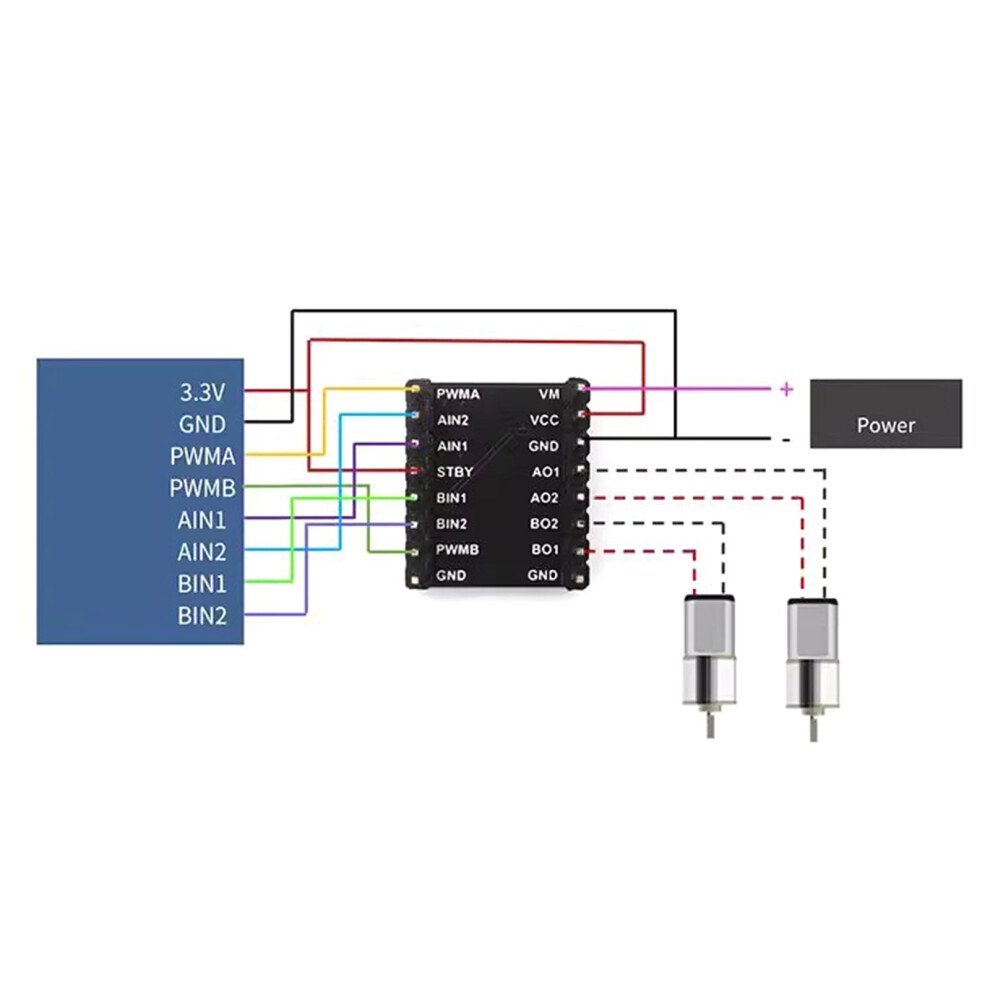

Output channel: 2 channels (can drive two motors)

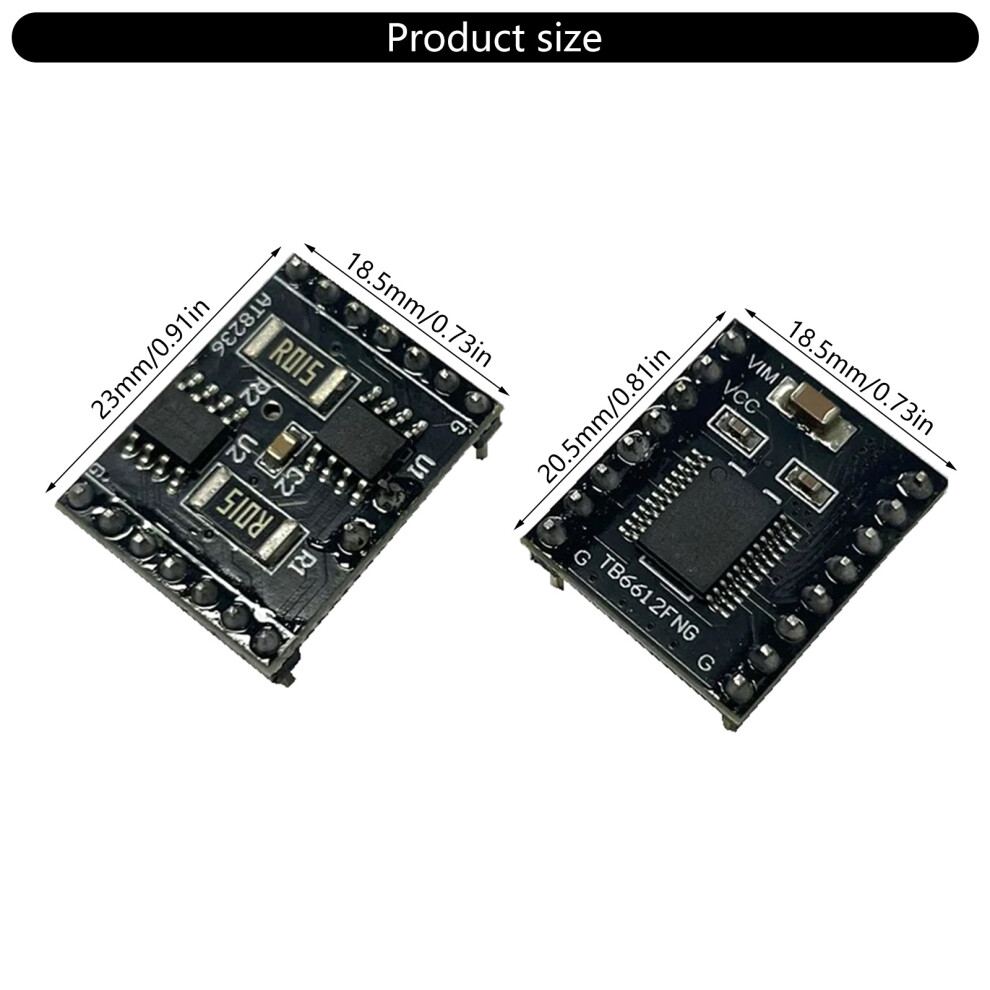

Product size: about 20.5x18.5mm/0.81X0.73in

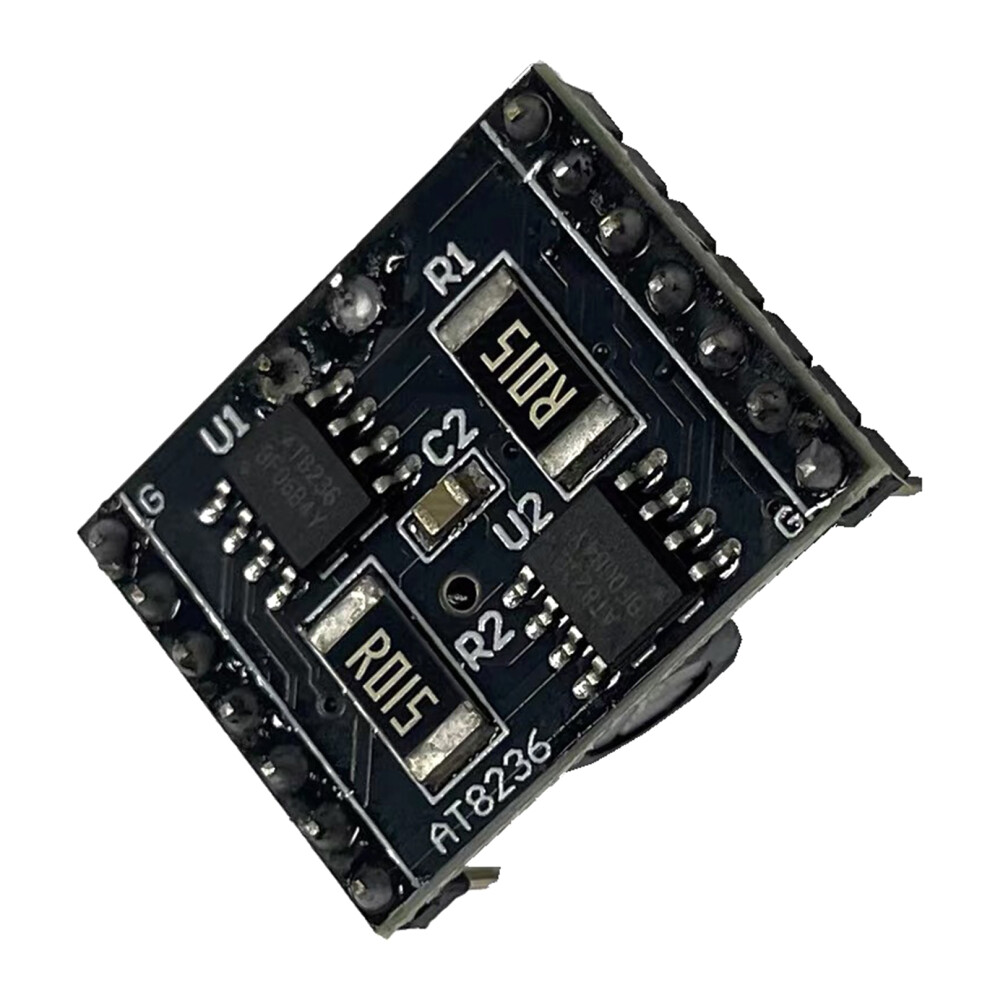

AT8236 module parameters:
Used chip: AT8236
Single-channel drive current: ЗA
Input frequency: 0-100khz
Power supply ranges: 5V-17V
Current for single channel: 6Ahm
Input voltages: 0-5.25V
Function: Can drive two motors at the same time
Product size: about 23x18.5mm/0.91X0.73in

Package Includes:
1 set of TB6612/AT8236 motor drive module Optionalspu基本信息

note:
Please allow 1-2cm errors due to manual measurement,please make sure that do not mind before order.
Due to difference between different monitors, the picture may not reflect the actual color the item.
