Durable Xr2206 High Precision Function Diy Kit Sine Triangle

Durable Xr2206 High Precision Function Diy Kit Sine Triangle Description

Description

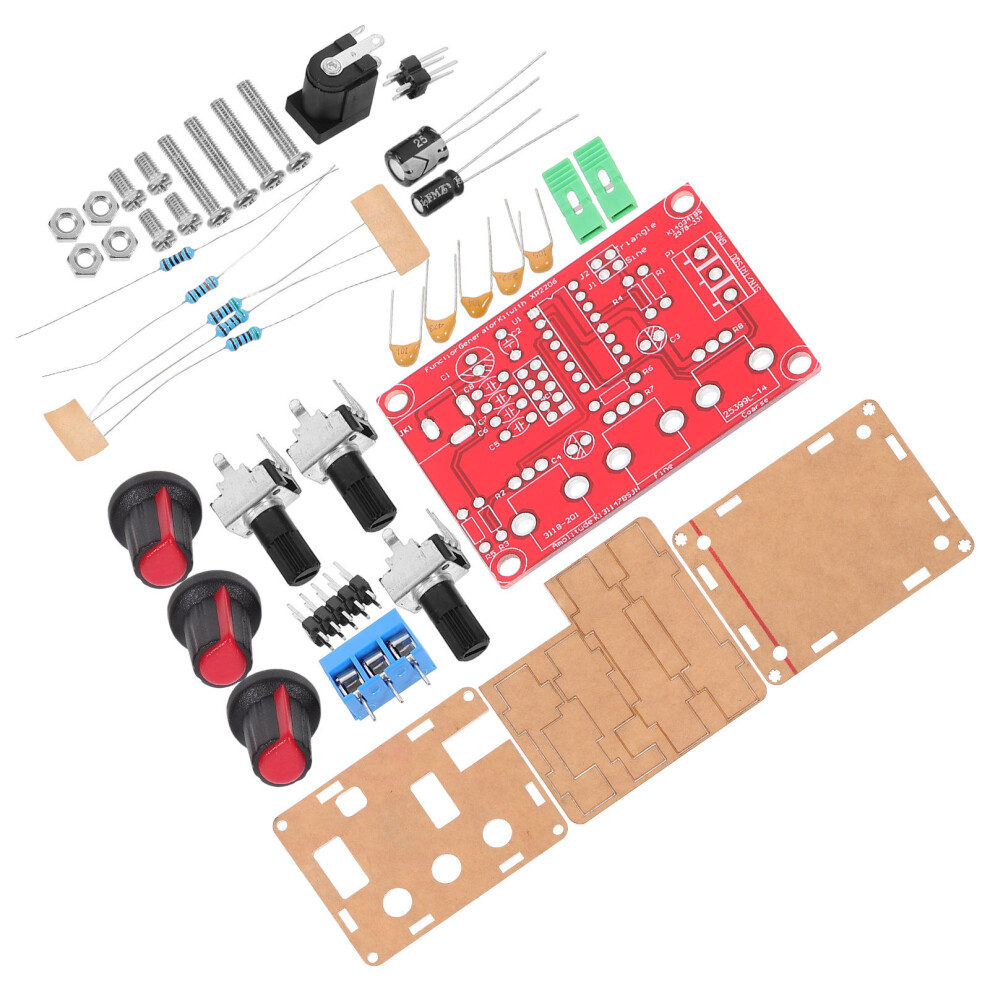

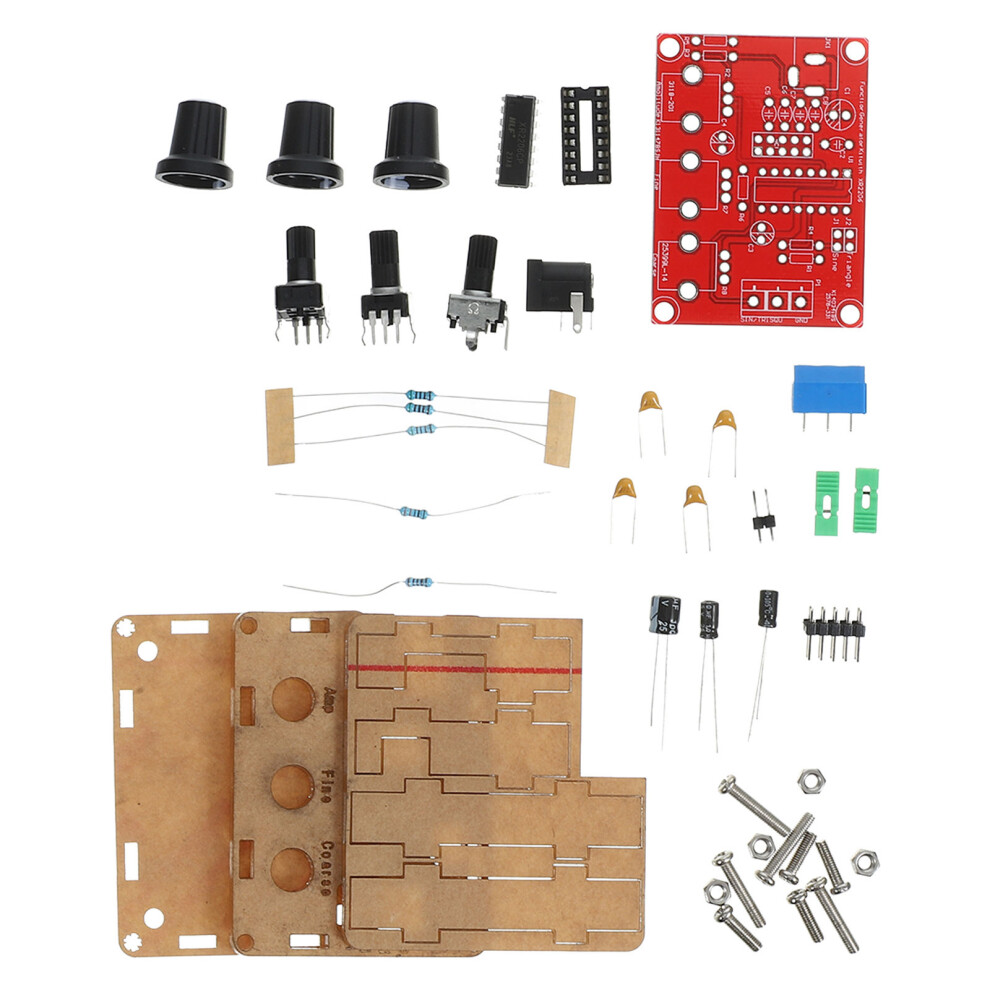

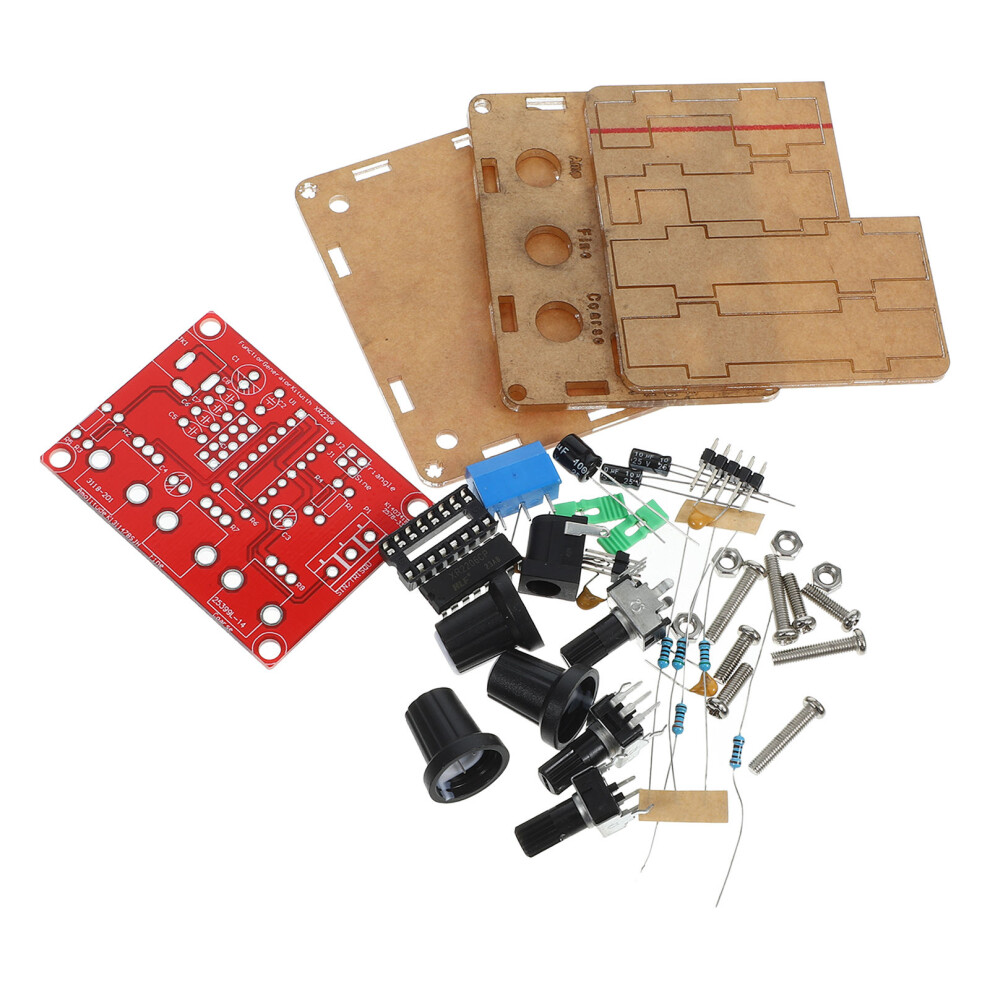

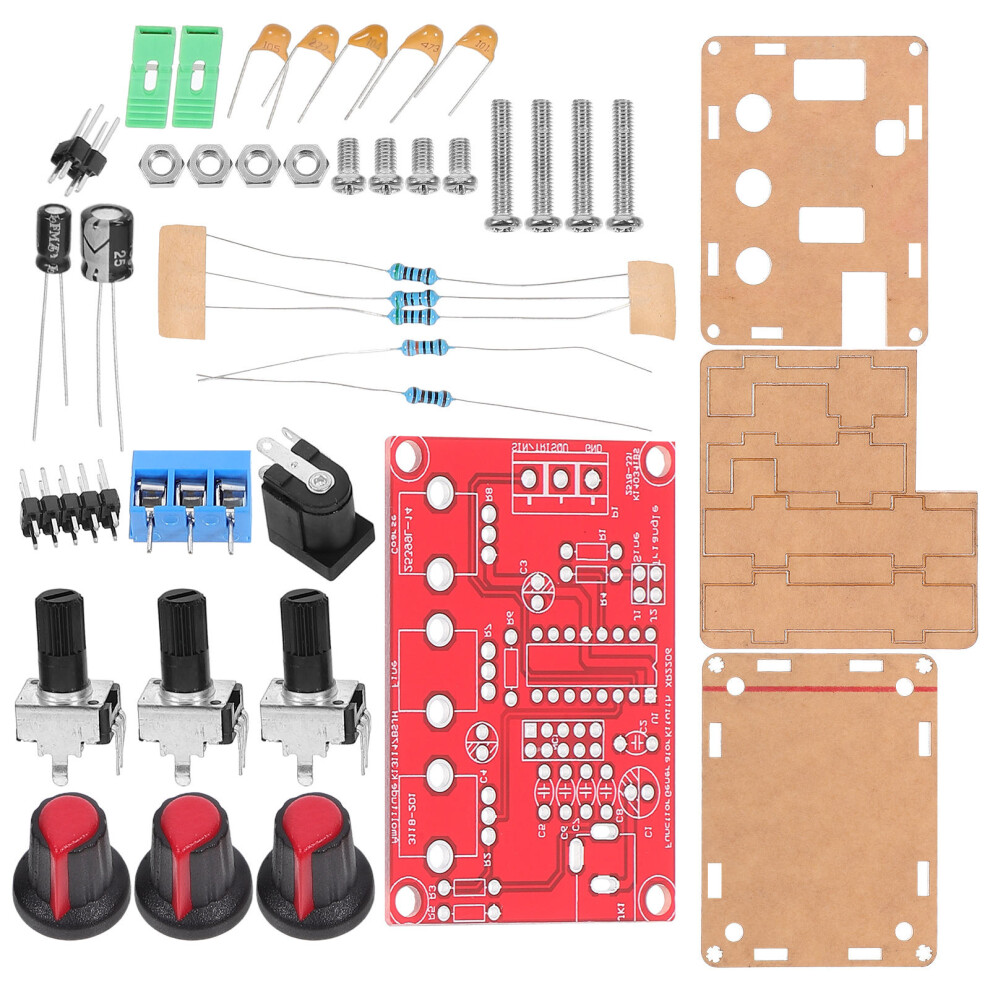

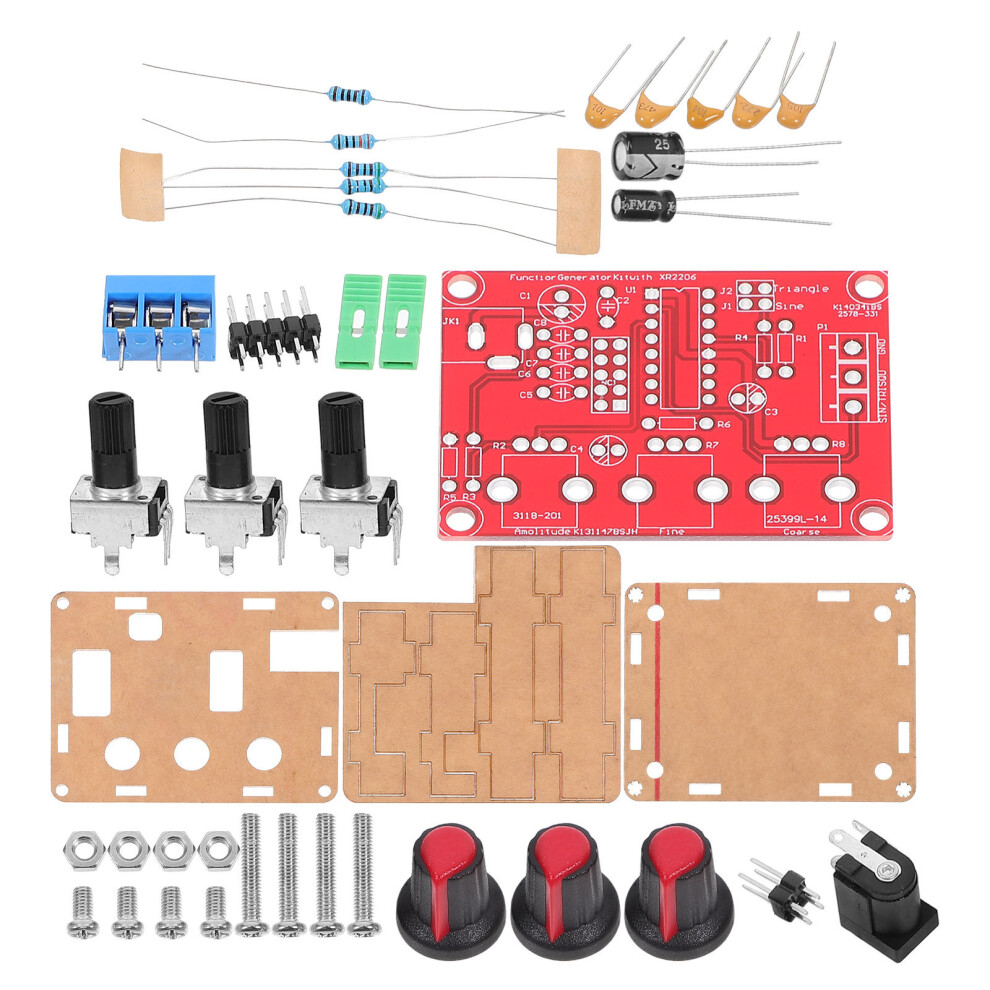

This DIY kit is professional product to generate sine / triangle / . It's a DIY kit for you to weld and install. Wide power supply range, use 9-12V external power or 9V battery(NOT Included). All are through hole components, easy for installation.

Features

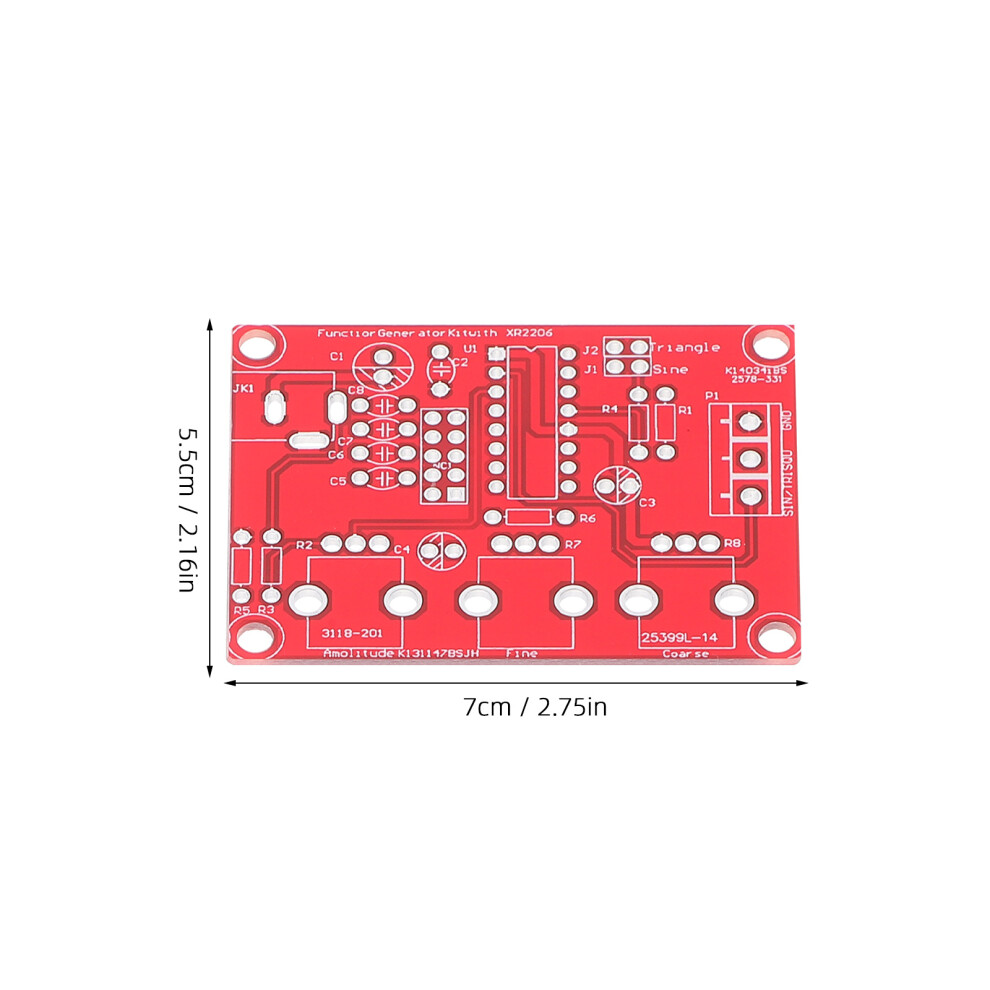

- ColorAssorted Color - Material: Metal and plastic - Size: Approx. 8x6x2cm - Voltage Supply: 9-12V DC Input - Waveforms: Square, Sine & Triangle - Impedance: 600 Ohm + 10% - Frequency: 1Hz-1MHz - - Amplitude: 0-3V at 9V DC Input - Distortion: Less than 1% (at 1KHz) - Flatness: +0.05dB 1Hz - 100kHz - - Amplitude: 8V (no load) at 9V DC Input - Rise Time: Less than 50ns (at 1KHz) - Fall Time: Less than (at 1KHz) - Symmetry: Less than 5% (at 1KHz) - TRIANGLE WAVE - Amplitude: 0-3V at 9V DC Input - : Less than 1% (up to 100KHz) 10mA

Packing list:

1 set of DIY Kit
