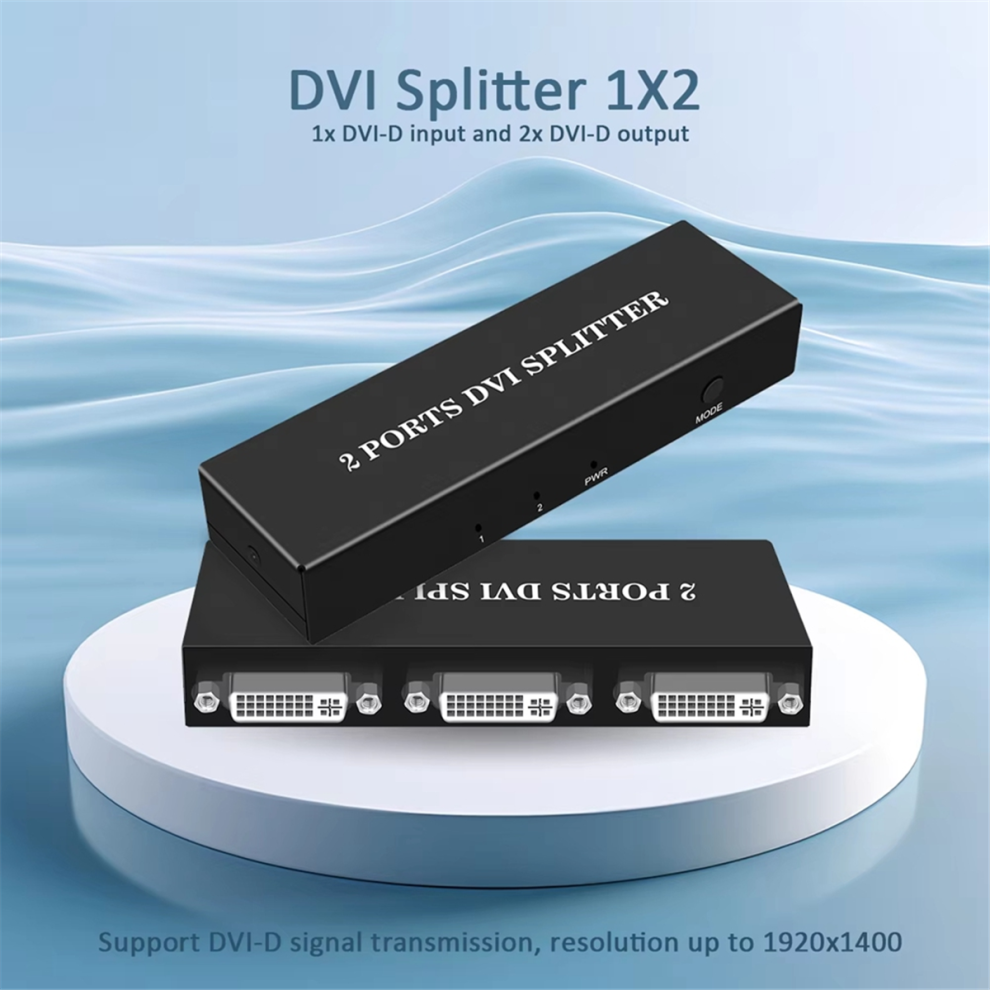

DVI Splitter 1X2 Switch Switcher Extender Adapter

DVI Splitter 1X2 Switch Switcher Extender Adapter Description

1. 1x DVI-D input and 2x DVI-D output (DVI Splitter 1x2)
2. Support DVI-D signal transmission, resolution up to 1920x1400
3. Support for long distance signal transmission
4. Installs in minutes, No loss of quality
5. Supports wide range voltage DC input (DC5V)

OPERATIONG AND CONNECTION:

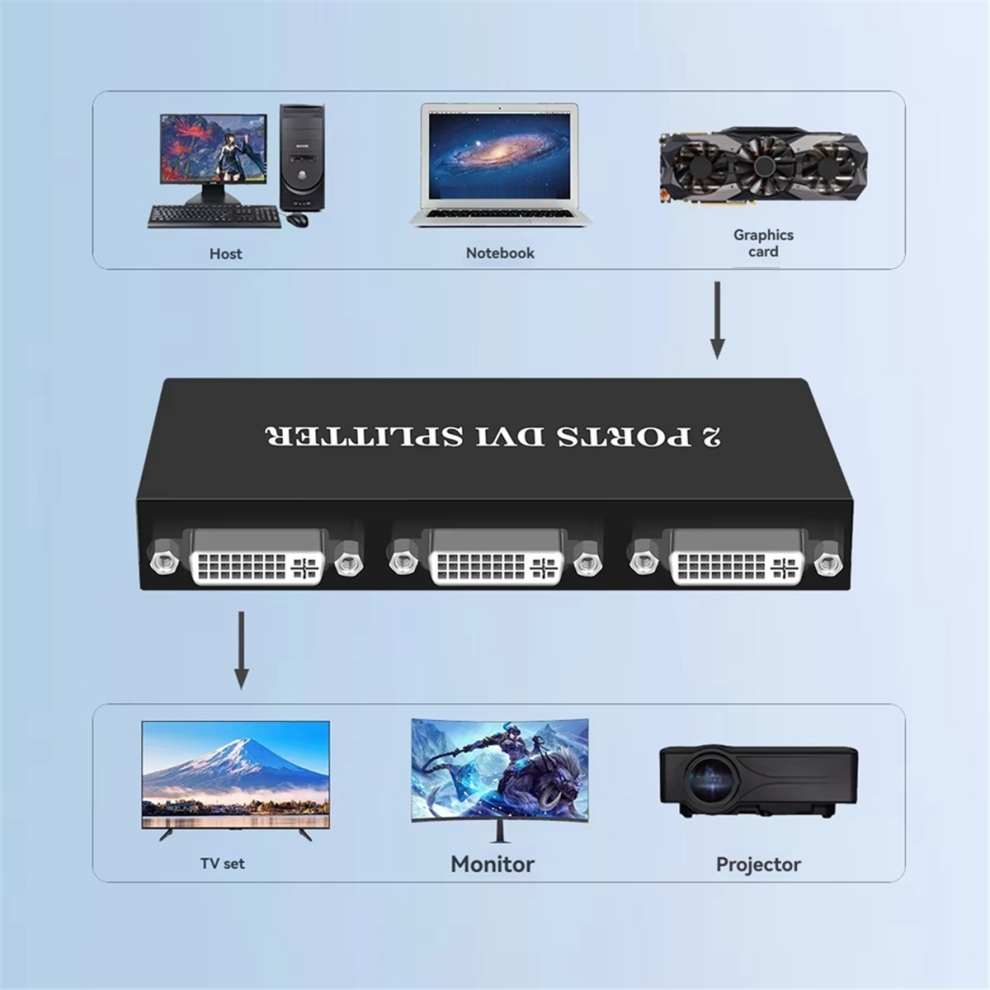

1. Connect one DVI-D cable from a DVI signal source into the input port of splitter.
2. Connect DVI-D cables from TV/Monitor into the DVI output ports of splitter.
3. Connect DC plug of AC adapter to DC jack and inserted into the power socket.
Specifications:
1. DVI interface type :Dual link DVI-D
2. Support signal format :up to 2048x1536
3. Maxsignal bandwidth:340MHz
4. Max baud rate:3.4Gbps Serial Link
5. Input/Output TMDS signal :0.5~1.5Volts p-p(TTL)
6. Input/Output DDC signal :5Volts p-p (TTL)
7. DVI input cable distance :10m 20276 DVI standard cable
8. DVI output cable distance:10m 20276 DVI standard cable
9. Max working current:0.8A/5V
10. Power adapter:AC 100V-240V 50HZ/60Hz, DC5V/2A(DVISP002M1/DVISP004M1)
11. Operating Temperature range :-5 to +45
Colour: Black
Material: Aluminum Alloy

Package Contents:
1 x DVI Splitter
1 x Wiring

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
