Ebike for BBS01 BBS02 Mid-Drive Front and Rear Lights, Support Horn/Turning/B Raking Light

Ebike for BBS01 BBS02 Mid-Drive Front and Rear Lights, Support Horn/Turning/B Raking Light Description

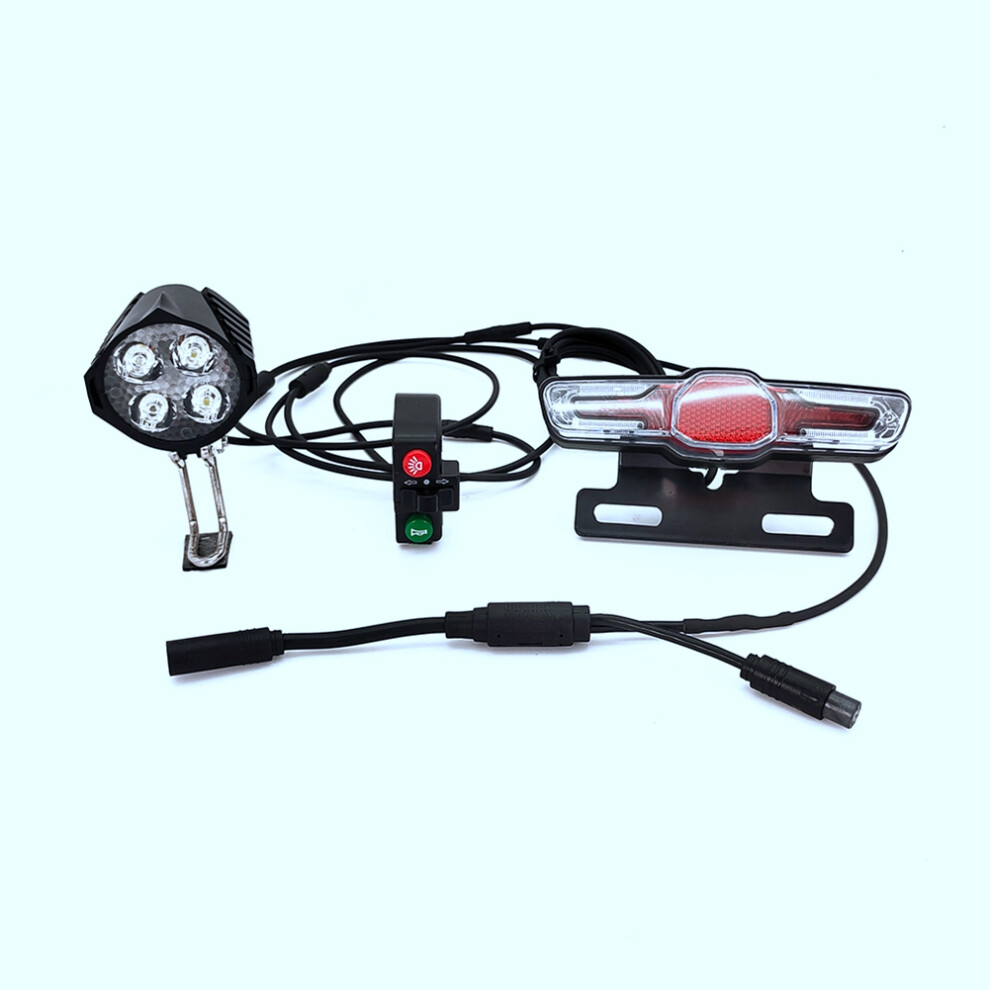

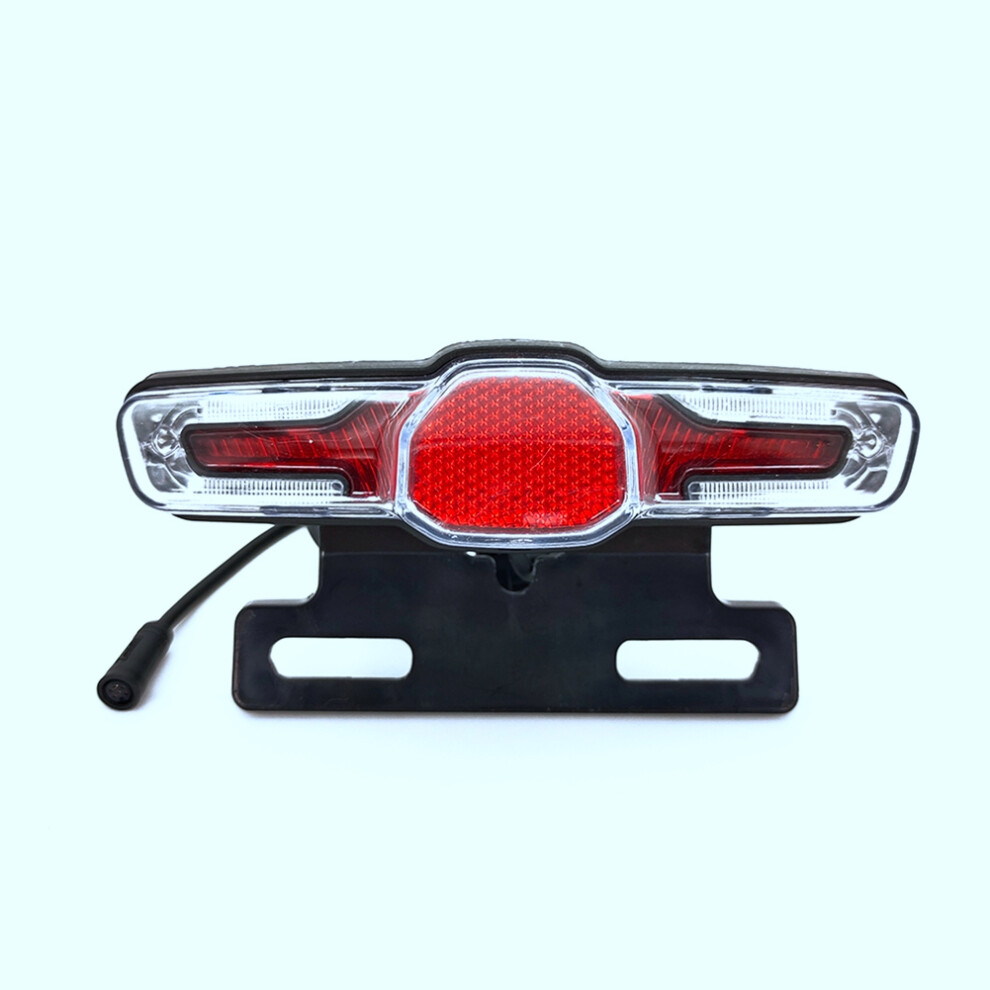

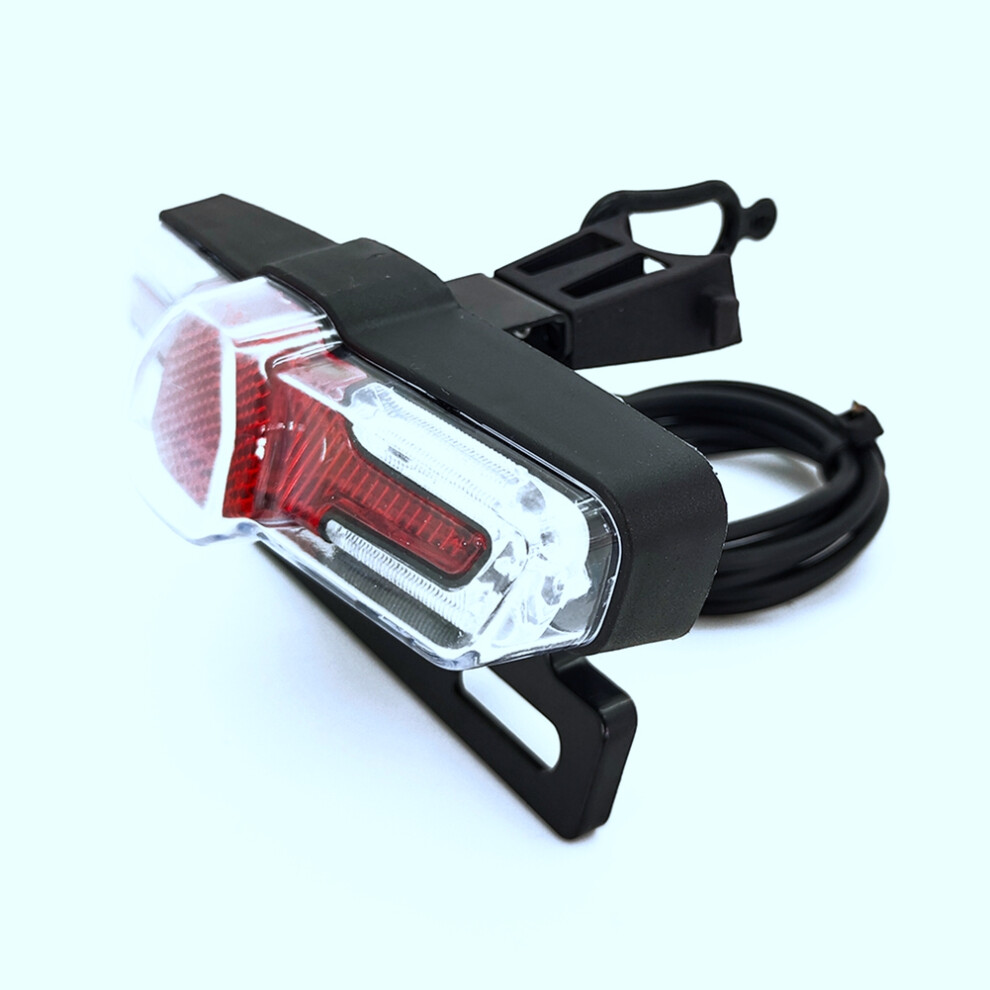

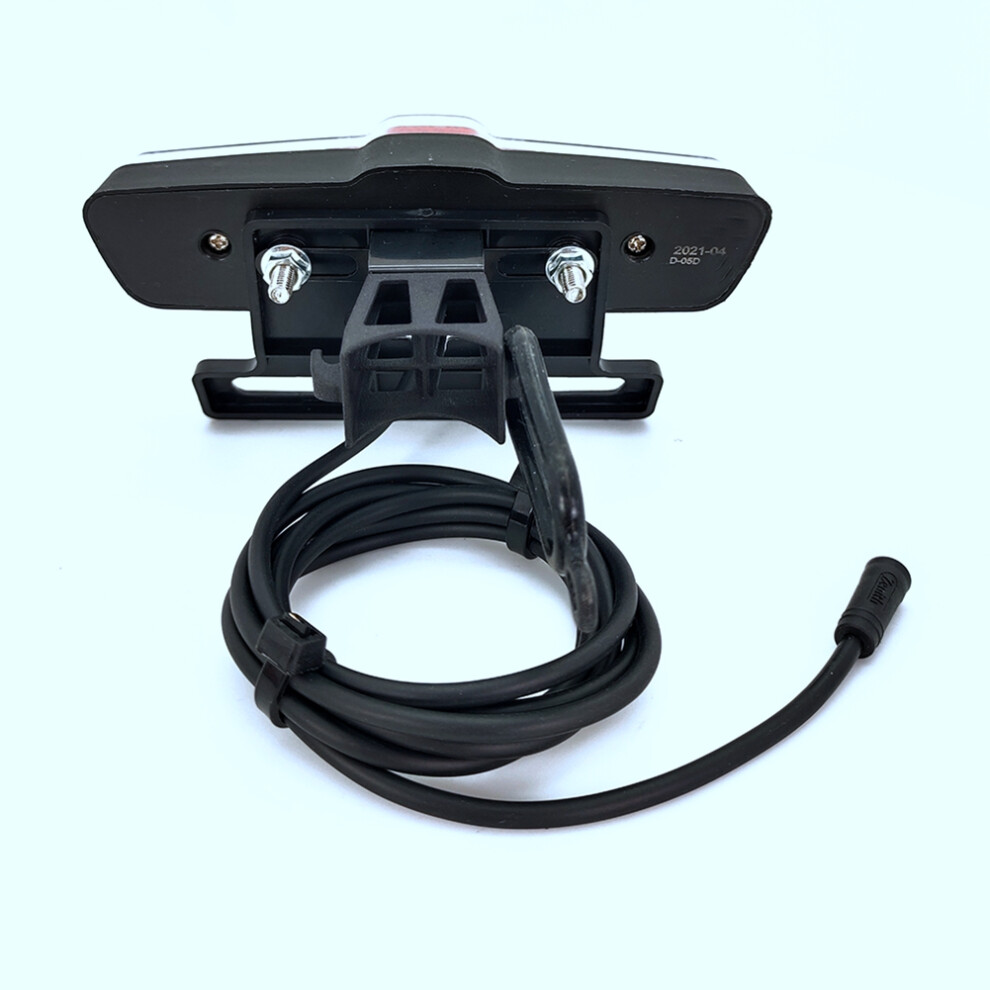

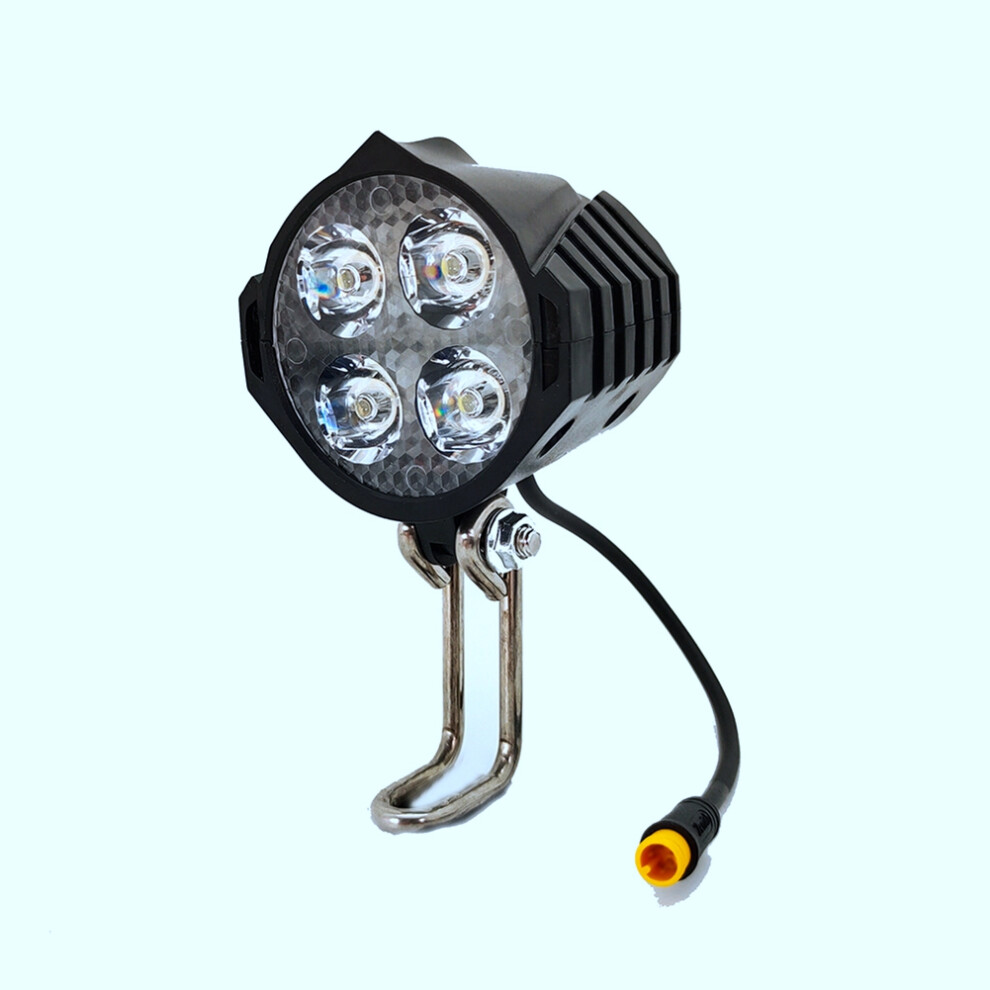

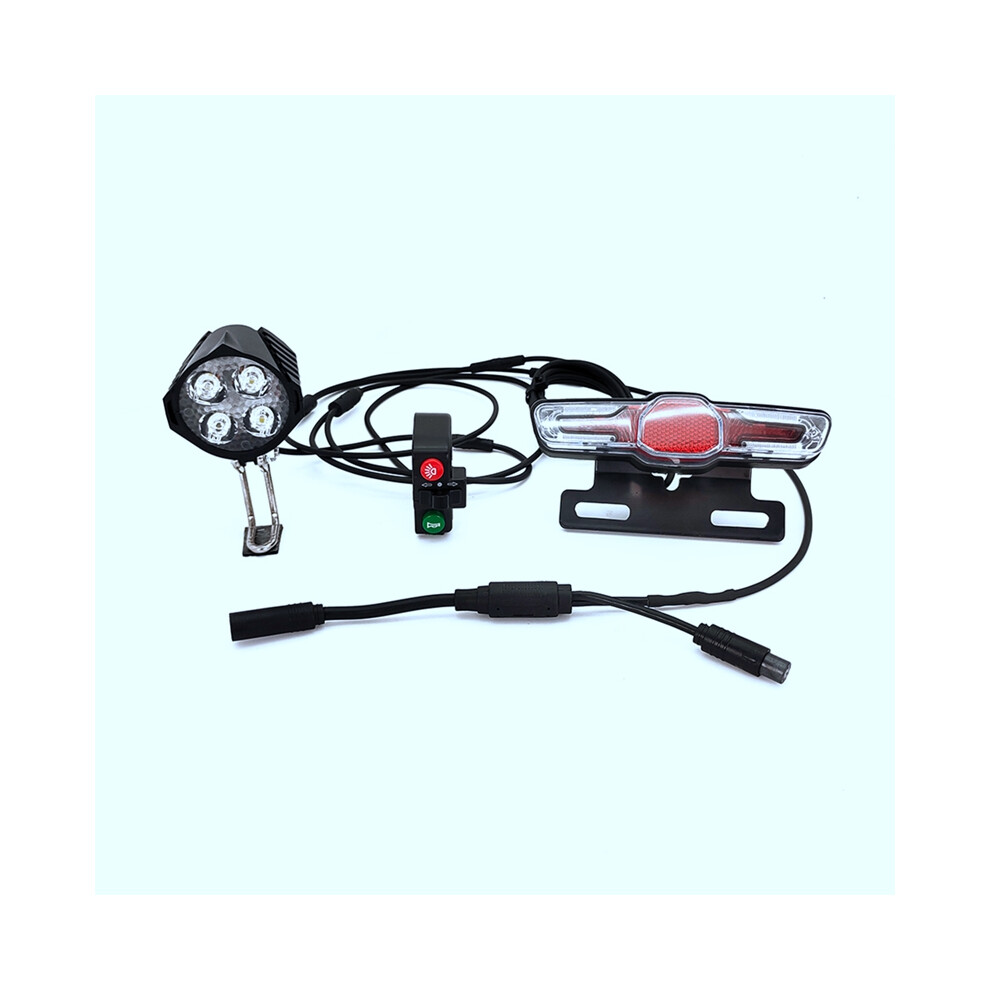

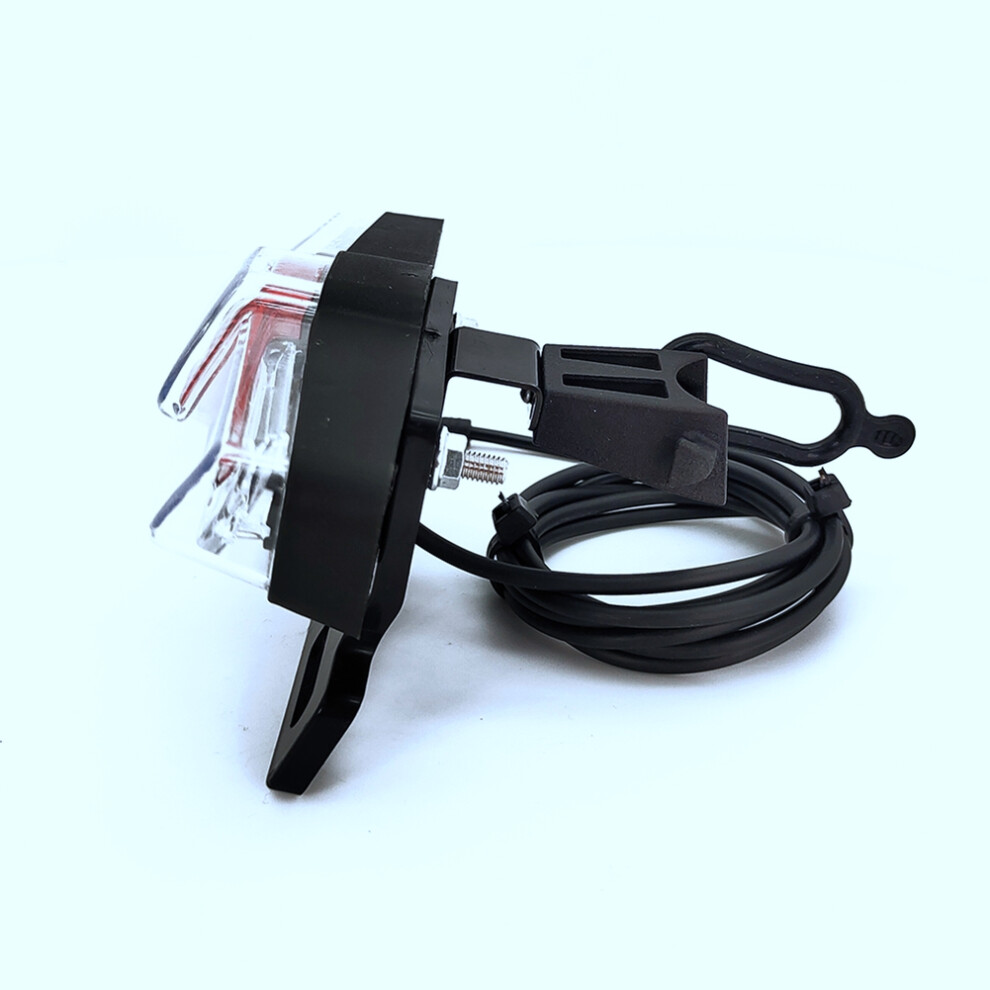

Application: For Mid-drive Motor BBS01 BBS02 BBS03/HD Driving lights: When the switch of driving lights is turned on, the headlights and tail lights are on Horn: When the horn button is pressed, the horn starts to work, release it to cancel Brake light: When the brake signal line and the controller brake low voltage signal are connected normally, the brake light light up while , and the brake light go out when the brake is cancelled Turn signal: When the turn switch of the designated direction is toggled, the turn signal of the corresponding direction starts to work and flashes, the flashing frequency is about 800ms each time Headlight: 1. Applicable voltage range: 6V 2. Power: 59mA/2.8W 3. Luminous flux: 180-220LM 4. Horn Power: 44mA/2.1W 5. Horn Volume: 80-100dB 6. Product size: 62x50x70mm 7. Cable length: about 1.5M Tail Light: 1. Applicable voltage range: 12-80V 2. Power: 1.5W 3. Number of light sources: 14 4. Luminous flux: 15LM 5. Product size: 132x65x40mm 6. Cable length: about 1.5M Switch: 1. Product size: 26x53x61mm 2. Cable length: about 1.5M colour: black Material: plastic Package Contents: 1 x Front Light with built-in horn 1 x Switch (horn/ front+Rear light switch/turning light switch) 1 x Rear Light (include turning light/brake light) 1 x Waterproof Quick release harness (connect between Controller and 1 To 4 E-bus harness) Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
