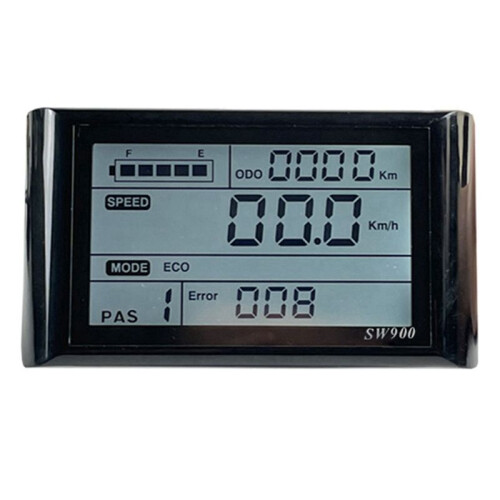

Ebike SW900 LCD Display Control Electric Bicycle Speed Meter SM Plug

Ebike SW900 LCD Display Control Electric Bicycle Speed Meter SM Plug Description

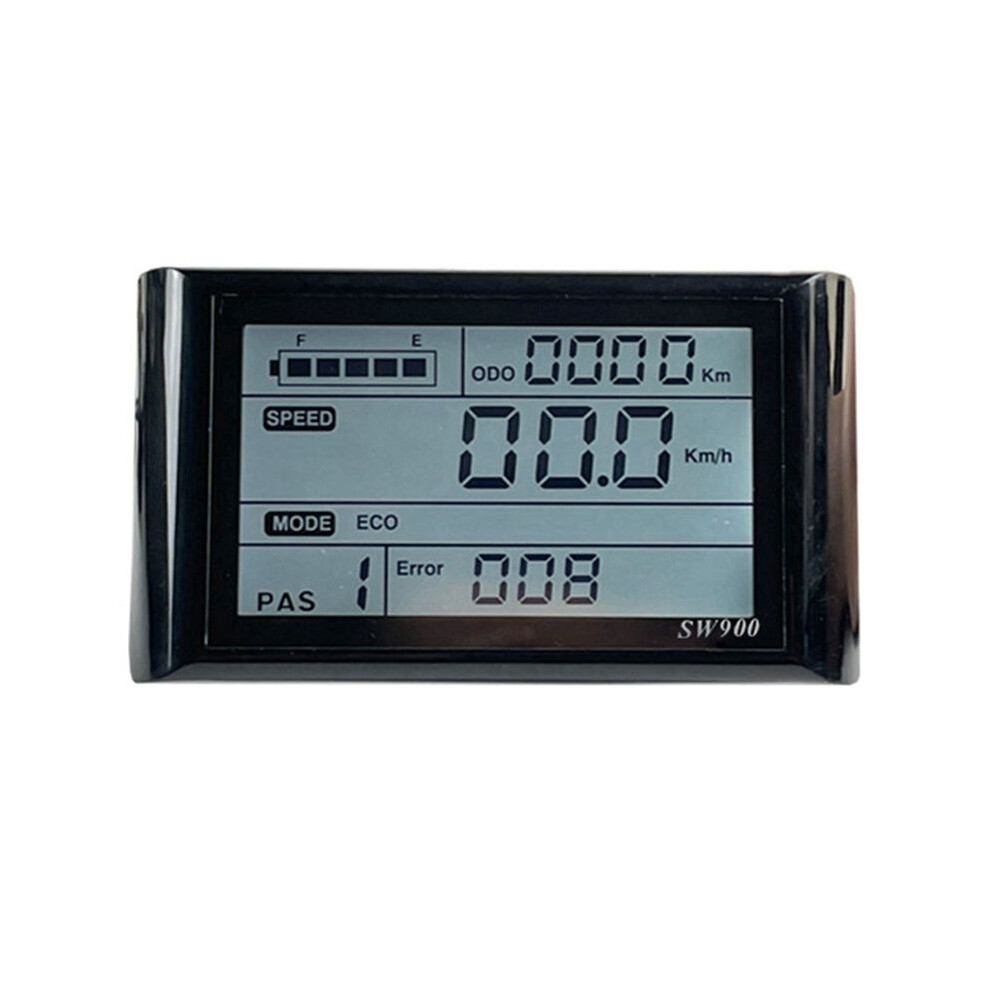

Features: (1) Display Function: Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function: Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

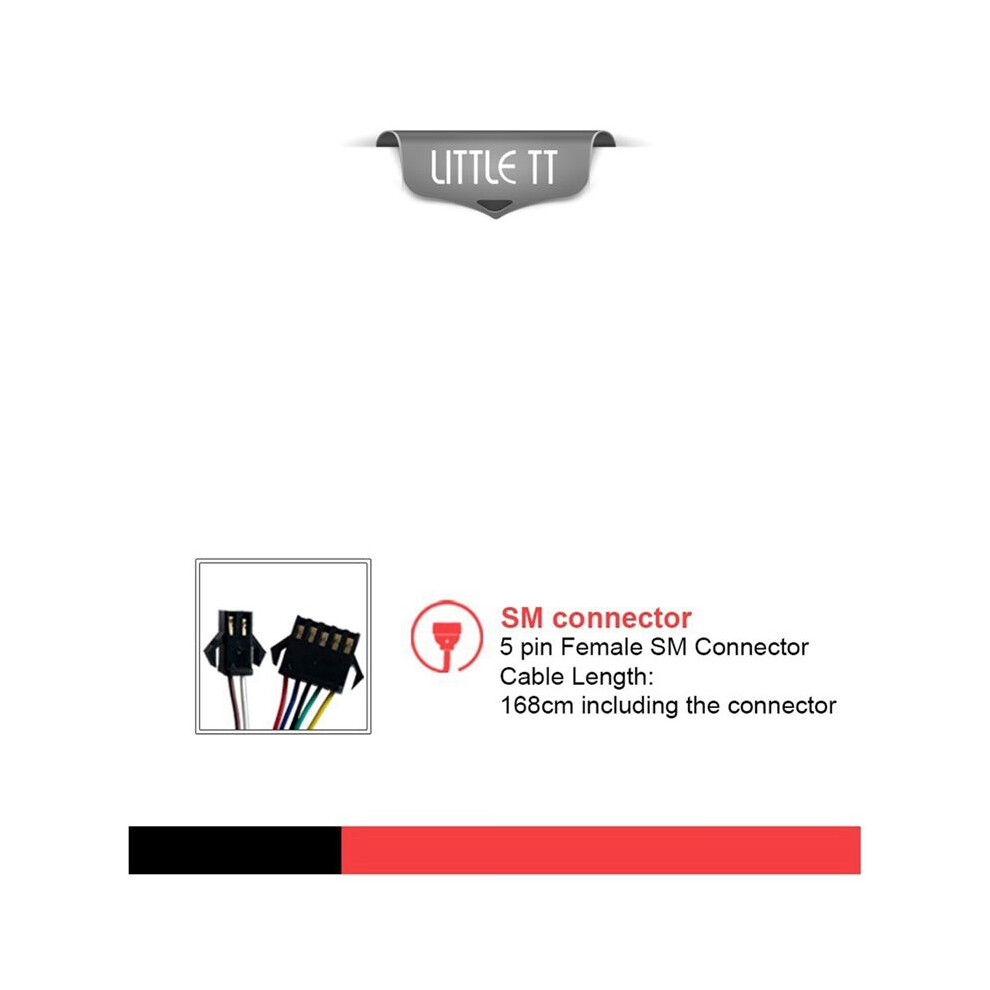

(3) Harness Description: Red (P+) meter power cord; Blue (VCC) electric door lock wire; Black (GND) negative wire; Green (RX) Meter data receiving; Yellow (TX) Meter data transmission
(4) Meter Setting Function: ①Long the up and down buttons of the meter to enter the meter settings.

P01: Backlight brightness, level 1 is the darkest, level 3 is the brightest.
P02: Mileage unit, 0: KM; 1: MILE.
P03: Voltage level: 24V, 36V, 48V.
P04: : 0, no sleep; other numbers are , range: 1-60; unit minutes.
P05: Power assist gear 1-9
P06: Wheel diameter: unit, inch; : 0.1.
P07: Number of speed magnets: range: 1-100.
P08: Speed limit: speed percentage range 0-100%, 100 means speed 100%.
P09: Zero , non-zero setting, 0: zero ; 1: non-zero .
P10: Drive mode setting 0: power-assisted drive (the handle is invalid).
1: Electric drive (by turning the handle to drive, the is invalid at this time).
2: Power-assisted drive and electric drive coexist at the same time.
P11: Assist sensitivity setting range: 1-24.
P12: Assist intensity setting range: 0-5.
P13: Power-assisted magnet type setting There are three types of 5, 8, and 12 magnets, of which 5 and 8 are single Hall power-assisted sensors.
②Setting 12 is used for dual Hall assist sensors.
P14: This function is yet.
P15: This function is yet.
P16: ODO reset setting, Long the up button for 5 seconds ODO reset
Special Features: For Ebike
Placement on Vehicle: Handle
color:Black
Material:plastic

Package Contents:
1 x display

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
