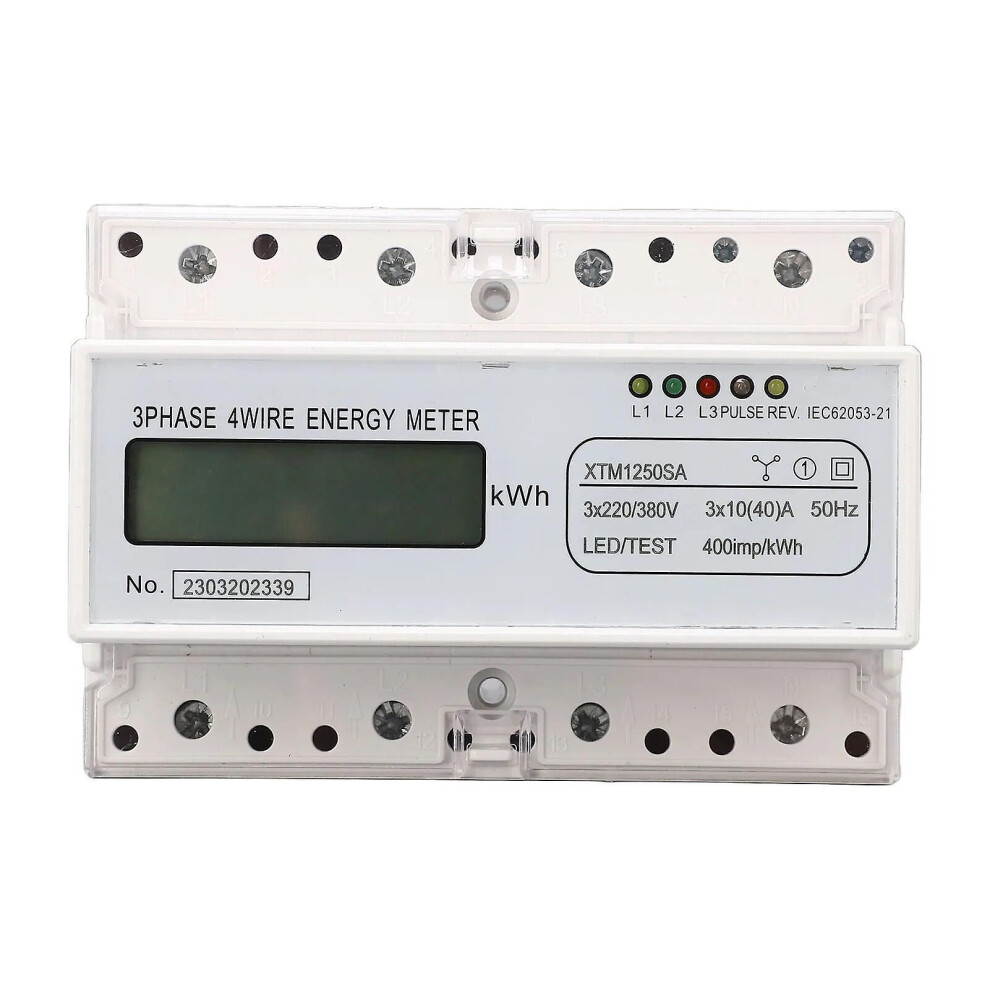

Energy Power Meter 4 Wires Class 1 Accuracy 3x220V 380V Reference Current Supply Voltage Meter 7 Digit

Energy Power Meter 4 Wires Class 1 Accuracy 3x220V 380V Reference Current Supply Voltage Meter 7 Digit Description

3-phase 4-wire energy meter 7-digit LCD display supply voltage voltmeter ammeter 3x220V 380V 1. Constants and validation bits modifiable: the electricity voltage monitor meter accurately measures the active power, and the meter address, baud rate, constants and validation bits can be modified , so you can use it conveniently. 2. Pulse constant: the pulse constant of the electricity voltage and current meter is 400imp or 1600imp, and the data storage time is more than 20 years. Many functions are integrated, you deserve it. 3. 3 Phase 4 Wire: The electricity meter adopts 3 phase 4 wire connection method, 35mm rail mounting, and the accuracy can be 1. With RS485 remote meter reading function, you don't have to worry about the trouble anymore. 4. Display contents: electricity voltage and current meter can be turned off, can be backlit, with switch output, can display total power, current, voltage, power, power factor, frequency, CTC can accurately measure active energy. 5. Large LCD Display: Our Electricity Power Meter is a power meter with a large 7 digit LCD display, which can protect your eyes from fatigue. Specification: Item Type: Rail Mounted Energy Meter Material: Plastic Model: XTM1250SA Humidity relative: 95% Ambient temperature: -35-65 Accuracy: Class 1 Voltage specification: 3x220V or 380V 50Hz Current specification: 3x10(40)A Pay attention to the current specification: reference current (maximum current) Insulation performance: AC voltage 4KV, 1min, 1.2/50us wave shock voltage 6KV Data display: using 7-digit LCD display Installation method: rail mounted How to use: 1. The meter should be connected according to the wiring diagram in the user manual after installation. 2. The meter should be installed in a dry and stable place, can be installed indoors, avoid direct sunlight, avoid moisture, heat, mold, smoke, dust, sand and corrosive gas. 3. The test seal can be installed and used, not sealed or stored for too long, then the test meter will be reinstalled. 4. Only an experienced electrician or professional technician can install the meter, please read the instructions. 5. It must be mounted on a fireproof wall which will not shake easily. 6. It is recommended to use copper input wire when wiring to avoid weak u to burn the meter. 7. The indicator light will be on when the meter is correct, the meter's load capacity is from 0.05 lb to lmaximum, and the capacity above will cause burnout. Package List: 1 x Energy Meter 1 x User Manual Note:
