ESP32 C3 Development Board Modules Mini Wifi BT Bl

ESP32 C3 Development Board Modules Mini Wifi BT Bl Description

ESP32C3SuperMini is an IoT mini development board based on the EspressifESP32-C3 WiFi/Bluetooth dual-mode chip. ESP32-C3 is a 32-bit RISC-VCPU, including FPU (Floating Point Unit), which can perform 32-bit single- operations: it has powerful computing capabilities.
It has excellent performance supporting IEEE 802.11 b/g WiFi and Bluetooth 5 (LE) protocols. The board comes with an external antenna to enhance signal strength for wireless applications.
It also features a small, sophisticated form factor combined with a single-sided mount design.
It is equipped with rich interfaces, with 11 digital I/0s that can be used as PWM pins and 4 analog 1/0s that can be used as ADC pins. It supports four serial interfaces including UART, 12C and SPI. There's also a small reset button and a bootloader mode button on the board.
Powerful CPU: ESP32-C3, 32-bit RISC-V single-core processor running at up to 160MHz

WiFi: 802.11b/g protocol, 2.4GhHz
Bluetooth:Bluetooth 5.0
Ultra-low power consumption: Deep sleep power consumption is about 43μA
Rich board resources: 400KBSRAM, 384KBROM
Built-in 4Mflash
Chip model: ESP32C3FN4
Classic extra small size: as small as thumb
Form factor for wearables and small projects

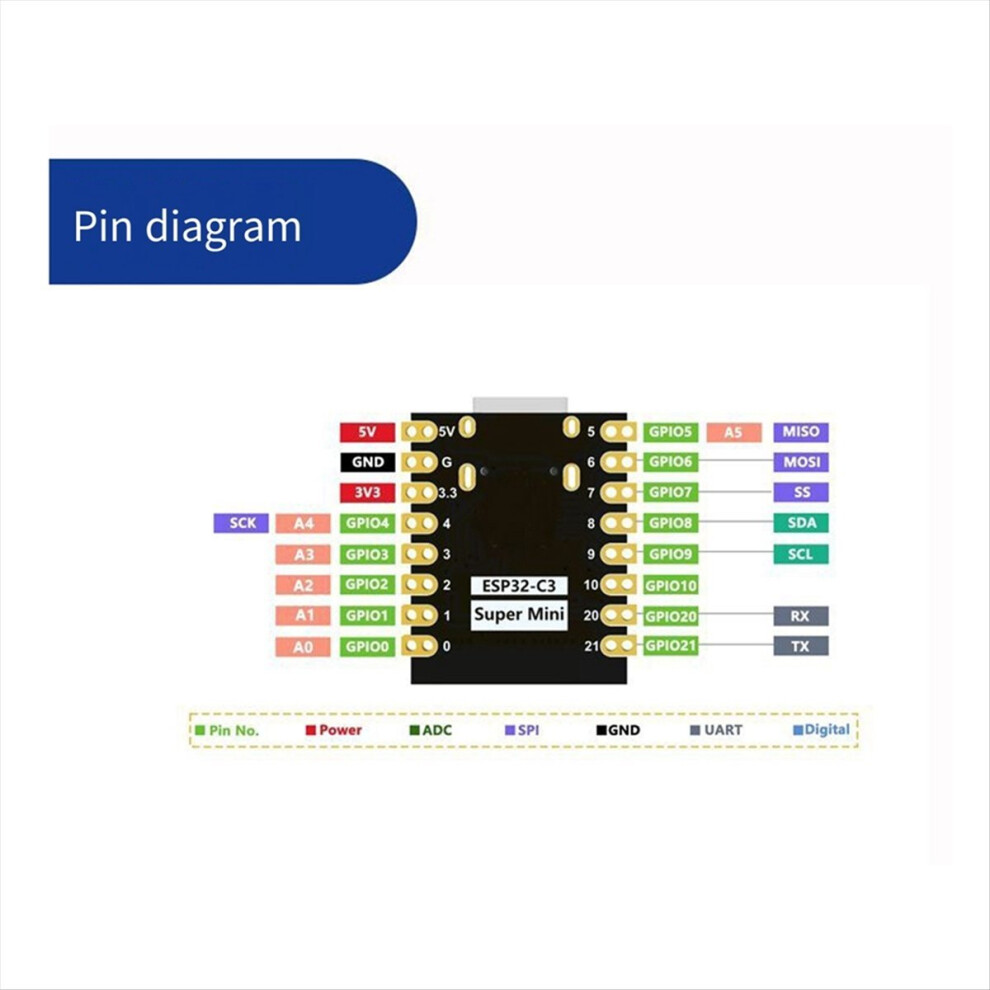

Rich interfaces: 1x12C, 1xSPI, 2xUART, 11xGPI0(PWM), 4xADC
Single-sided component, mount design
Onboard LED blue light: GPI08 pin
Colour:As Shown
Material:plastic

Package Contents:

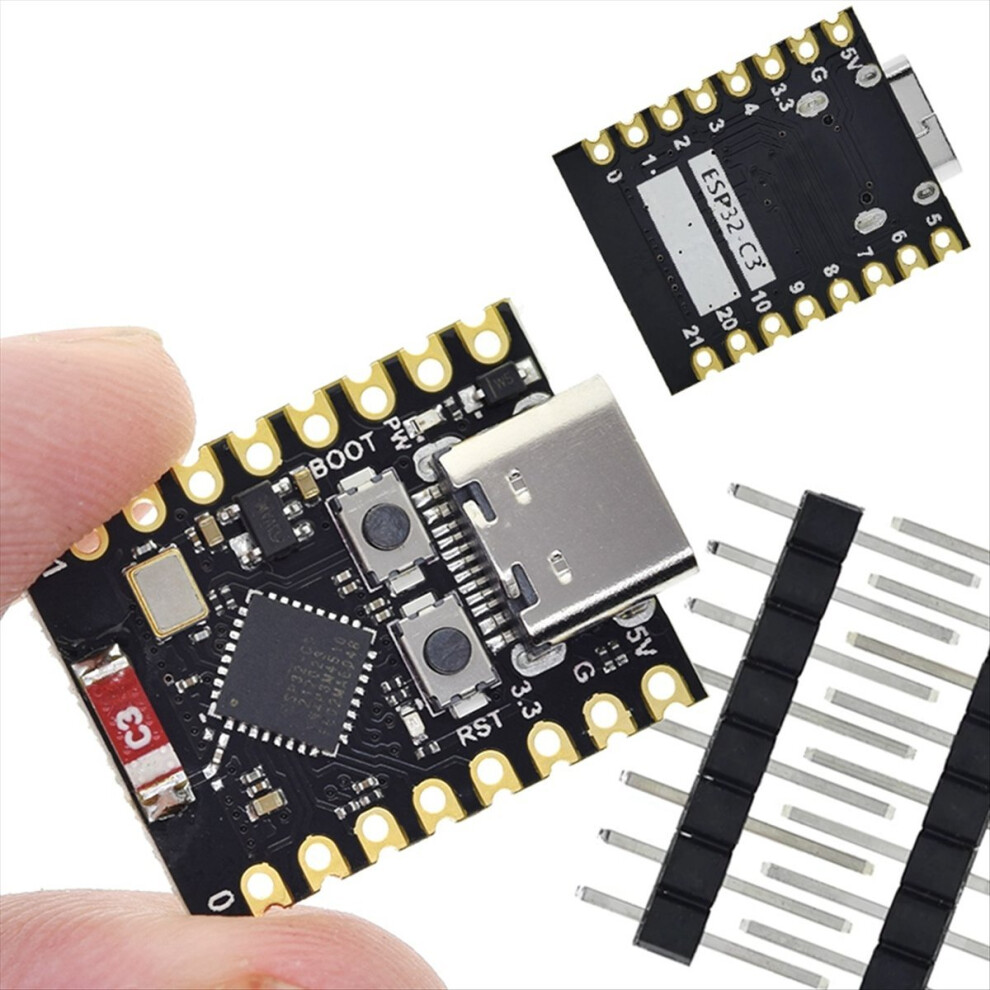

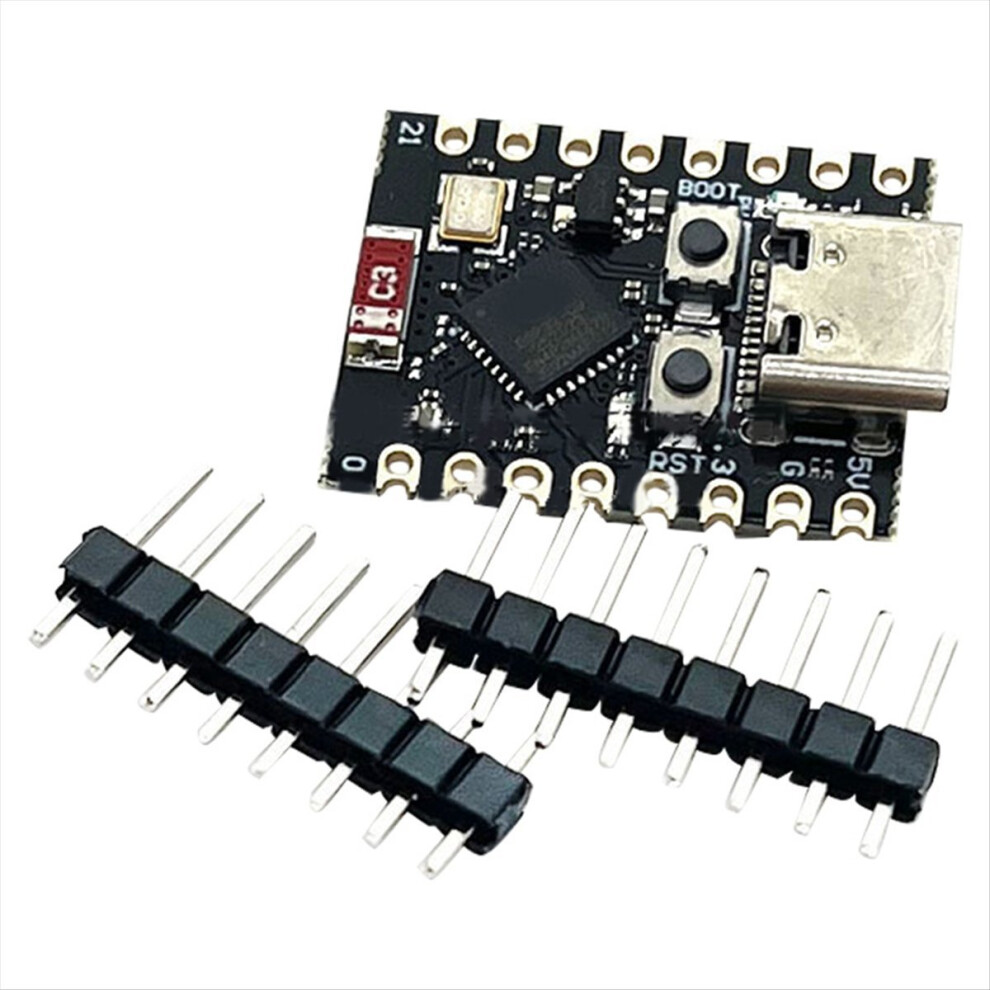

1 x ESP32-C3 development board(pin header not soldered)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
