ESP32-C6 1.47inch LCD Development Board Support WiFi6

ESP32-C6 1.47inch LCD Development Board Support WiFi6 Description

Equipped with a high-performance RISC-V 32-bit processor and a low-power RISC-V 32-bit processor, the high-performance processor clock is up to 160MHz, and the low-power processor clock can reach 20MHz.

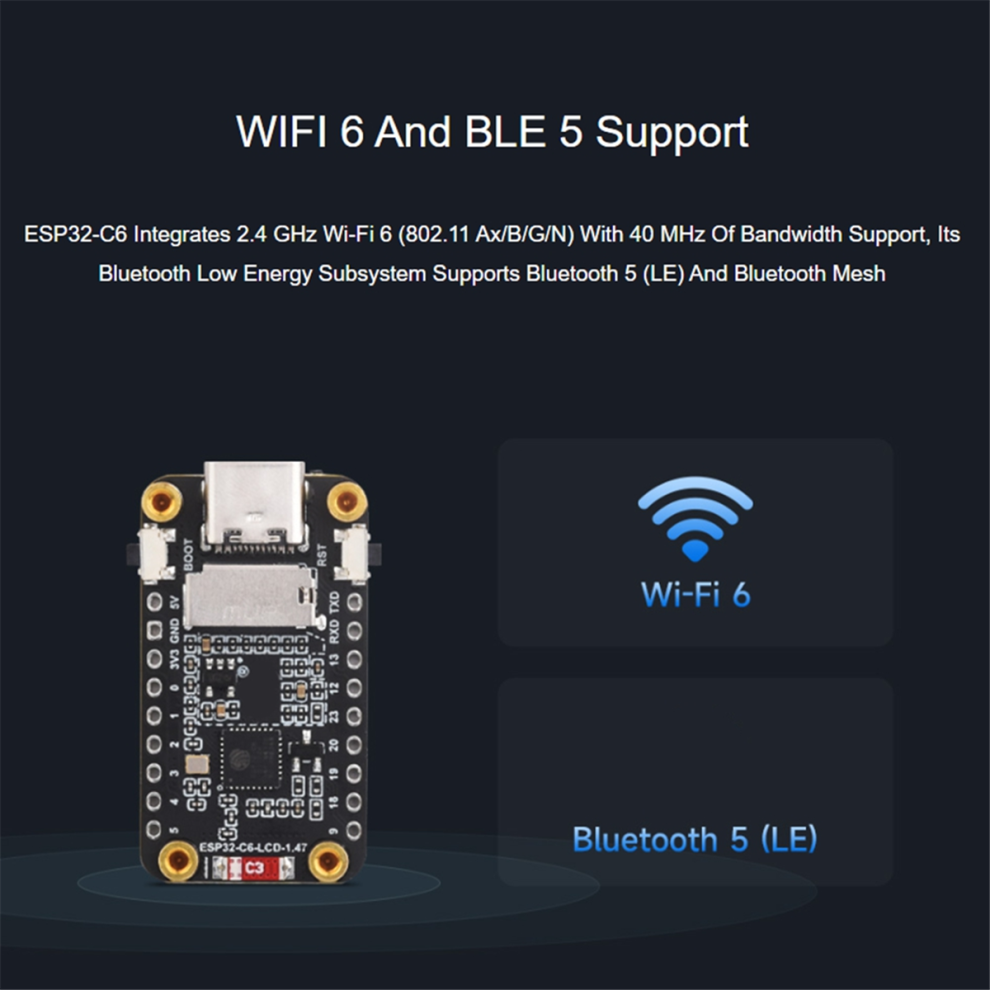

Supports 2.4GHz Wi-Fi6 (802.11 ax/b/g) and Bluetooth 5 (LE), with onboard antenna.
Onboard 320KB ROM, 512KB , 16KB LP and 4MB Onboard 1.47-inch LCD screen, 172x320 resolution, 262K color.

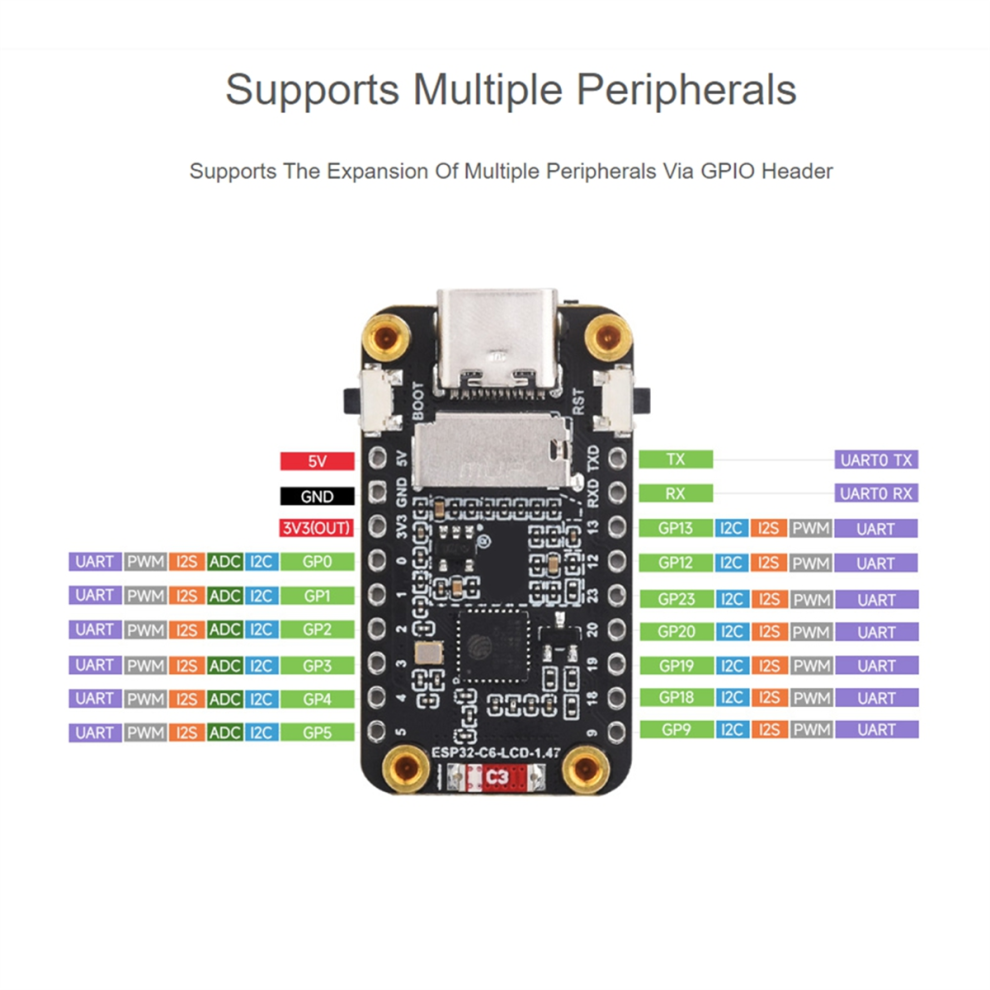

Lead out most GPIO, integrated full-speed USB serial port.Onboard Micro-SD card holder, can be connected to an external SD card to store pictures or files.
Supports flexible clock, multiple power modes and other accurate control, to achieve multi-scenario low power mode.

Onboard RGB color lamp beads, with transparent acrylic interlayer can achieve cool lighting effects.
This product is a microcontroller development board that supports 2.4GHz Wi-Fi6 and Bluetooth BLE 5. It has 4MB Flash and a 1.47-inch LCD screen on board, which can smoothly run GUI interface programs such as LVGL; combined with a variety of peripheral interfaces, it can quickly develop applications such as HMI of ESP32-C6.
The silk screen/appearance may be different due to different batches, but it not affect the use; the actual product may have color difference due to different light or display
Colour:Black
Material:PCB+electronic components

Package Contents:

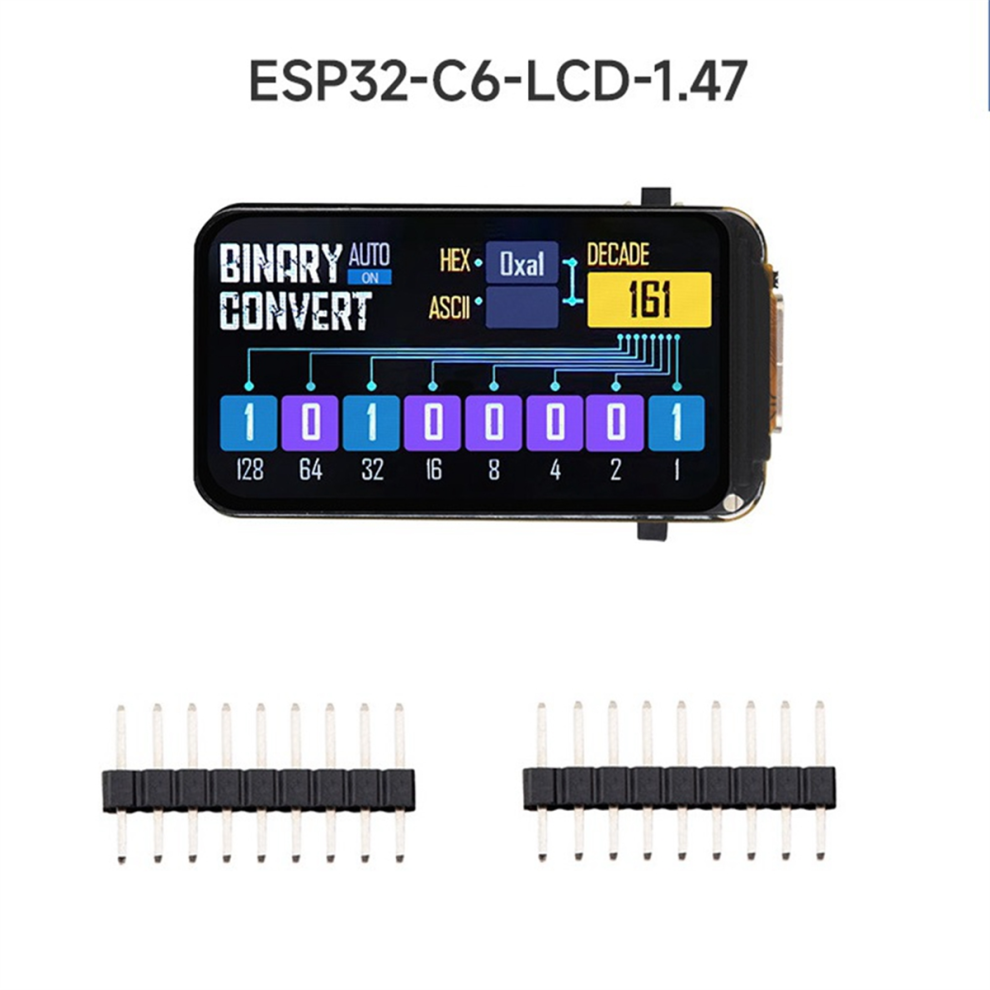

1 x ESP32-C6-LCD-1.47 Development Board
2 x pin

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
