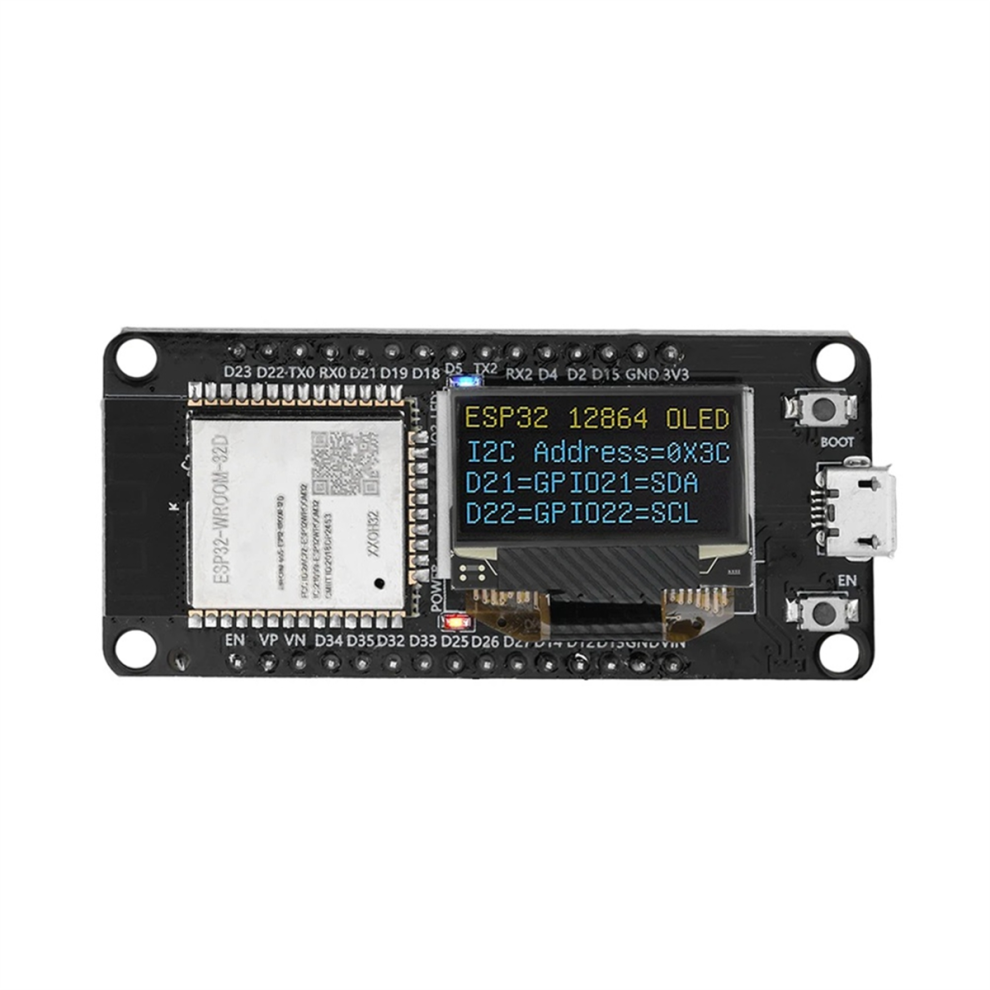

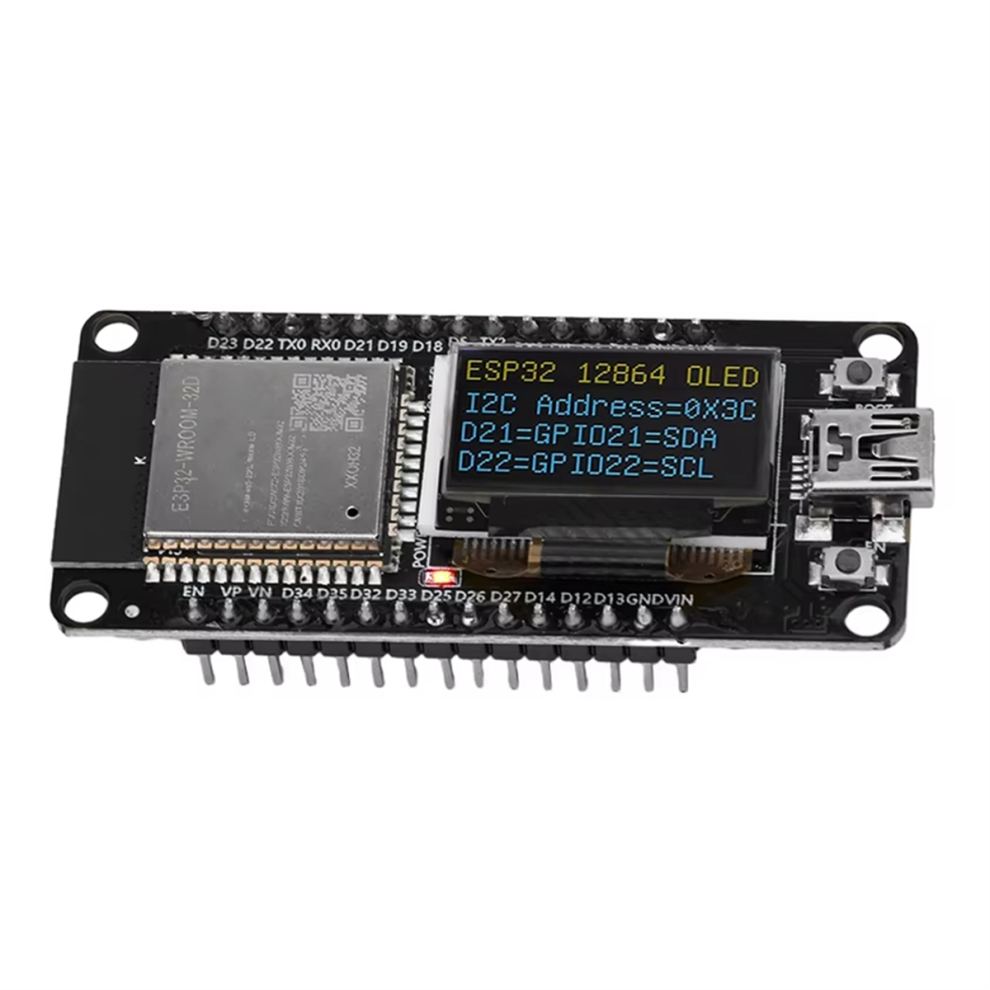

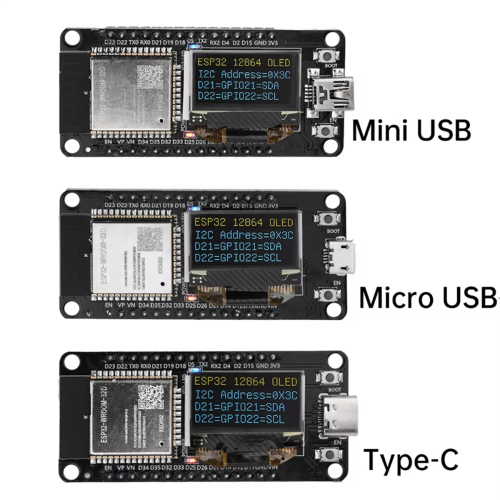

ESP32 ESP-WROOM-32D WIFI Bluetooth Development Board CH340 with 0.96 OLED Screen Yellow Blue Display Micro-USB

ESP32 ESP-WROOM-32D WIFI Bluetooth Development Board CH340 with 0.96 OLED Screen Yellow Blue Display Micro-USB Description

Adopting 802.11b/g/WiFi+BT module; Low power dual core 32-bit CPU, can be used as an application processor; The main frequency can reach up to 240MHz, and the computing power can reach up to 600DMIPS; Built in 520KBSRAM; Support UART/SPI/I2C/PWM//ADC and other interfaces; Support openOCD debugging interface; Supports multiple sleep modes, with a current as low as 6.5uA during deep sleep; Embedded LWip and FreeRTOS; Support STA/AP/STA+AP mode; Support Smart Config/AirKiss one click network configuration; Universal AT commands, easy to learn; Support local serial port upgrade and remote upgrade (FOTA). Product name: ESP32 WiFi+BT dual-mode development board SPI Flash: default 32Mbit Bluetooth: Bluetooth 4.2BR/ and BLE standards Wi-Fi:802.11b/g/ Supported interfaces: UART SPI,SDIO,I2C,PWM,I2S,IR,ADC, On chip sensors: Hall sensors, temperature sensors, capacitive touch sensors IO ports: 22 Serial port speed: default 115200bps Spectrum range: 2412-2484MHz Antenna form: onboard PCB antenna with a gain of 2dBi Transmission power: 802.11b: 17 2dBm (11Mbps) 802.11g: 14 2dBm (54Mbps) 802.11n: 13 2dBm (MCS7) Receiving sensitivity: ,1Mbps:-90dBm ,11Mbps:-85dBm 6Mbps (1/2BPSK): -88dBm 54Mbps (3/464-QAM): -70dBm MCS7 (65Mbps, 72.2Mbps): -67dBm Power consumption: 300mA 3.3V Security: WPA/WPA2/WPA2 Enterprise/WPS Power supply range: USB power supply: 5V Vin pin power supply: 6.0V-12V specification:Micro-USB Colour:Black Material:PCB Package Contents: 1 x Development Board Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
