ESP32 Game Console Mp3 Player Plug Play Multifunctional Convenient Por

ESP32 Game Console Mp3 Player Plug Play Multifunctional Convenient Por Description

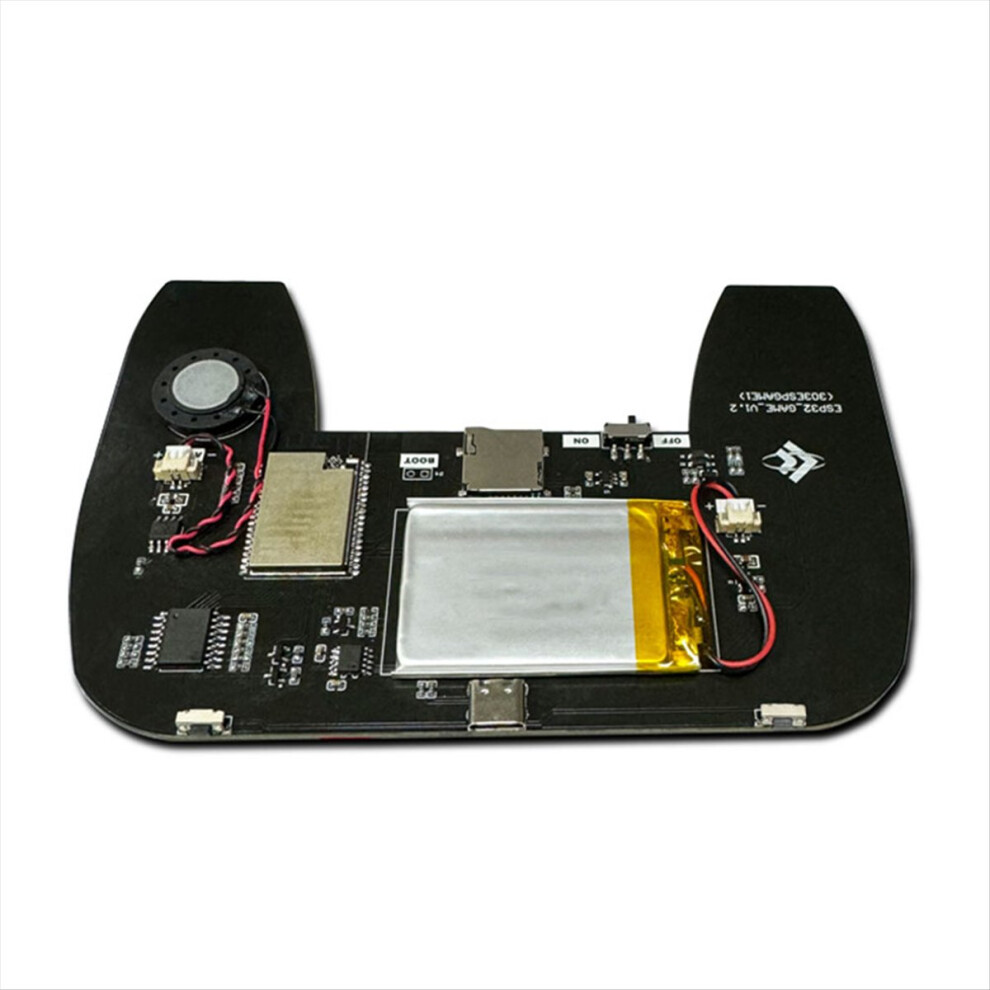

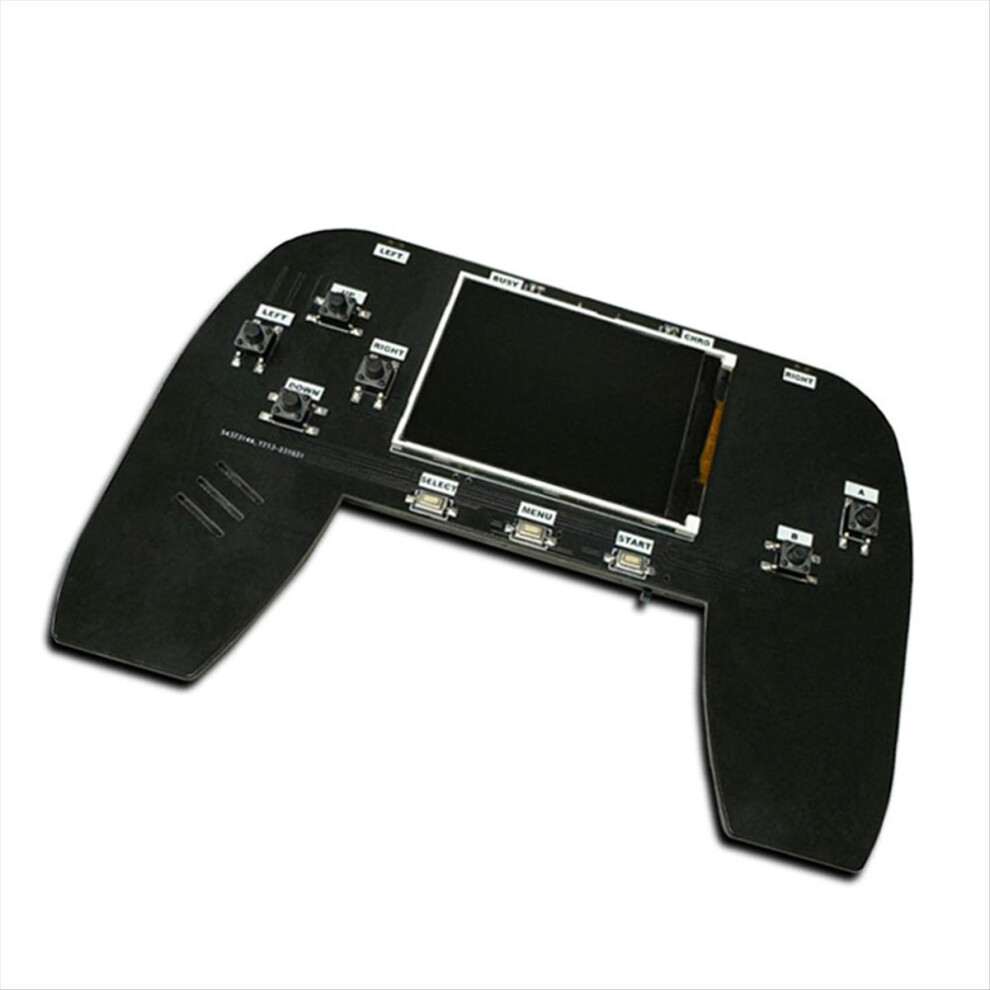

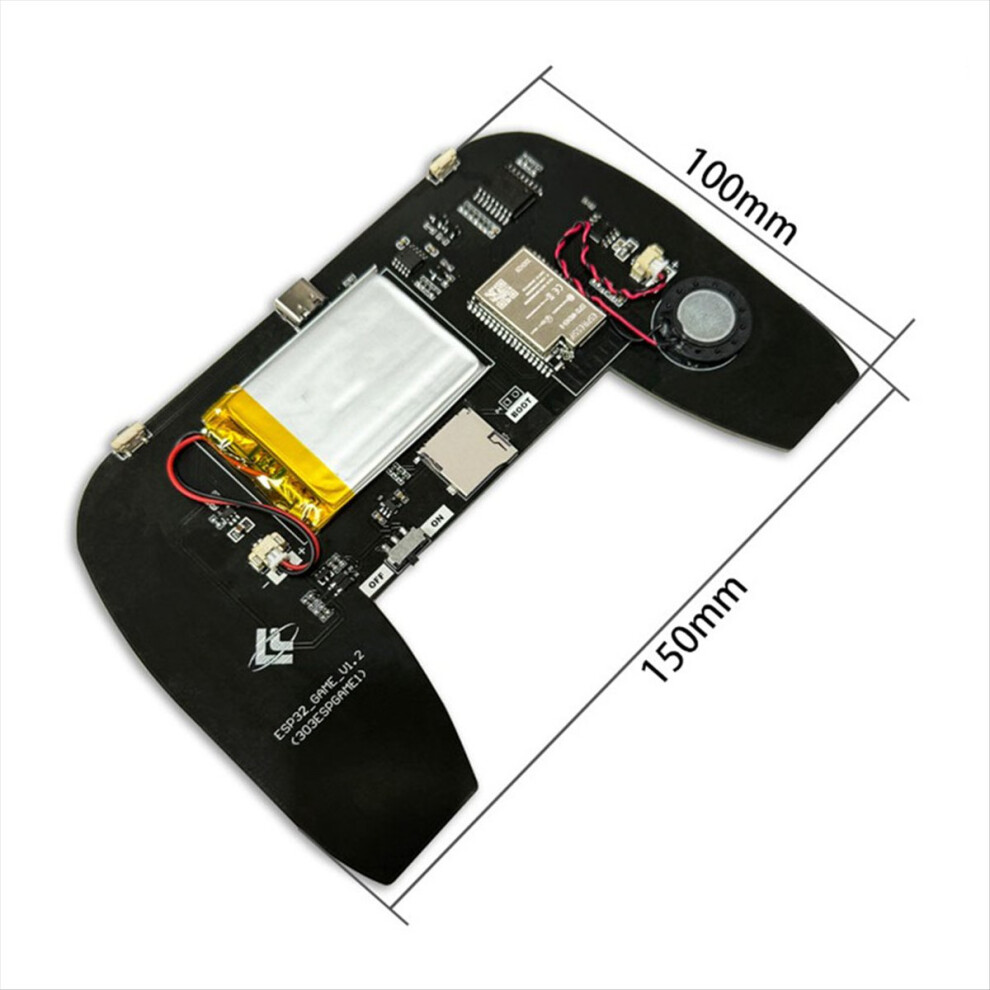

The Esp32 Game Console Is Designed Based On Open Source Projects, Uses Tf Cards To Store Games, Can Play Mp3 Audio Through Speakers, And Is Equipped With A 2.4-Inch Tft Display. Enjoy Childhood Games And Get Back The Fun Of Childhood.
600mah Large Battery, 3 To 4 Hours Of Battery Life
Support Tf Card To Store More Games
Support Mp3 Audio Playback
Type-C Interface Supports Charging And Firmware Programming

1. Firmware Burning
Unzip And Run Flash_download_tool_3.9.4.Exe. Select Esp32 And Click Ok;
Open The Firmware Path And Check It, And Fill In 0 For The Burning Address. Short The Boot Jumper Of Console, Insert The Type-C Cable, And Flip The Power Switch. Select The Correct Com Port And Click To Burning Firmware. (This Step Has Already Been Completed At The Factory And Does Not Need To Be Burned Again)
2.Tf Card Burning
Prepare A Tf Card And Format It In Fat32 Format. As Shown In The Picture: Copy All Contents Under The (Copy To Tf Card) Folder To The Tf Card Audio: Used To Store Mp3 Files Esplay: Used To Store Game Data, Archive Records, Etc. Roms: Used To Store Game Files, You Can Increase.

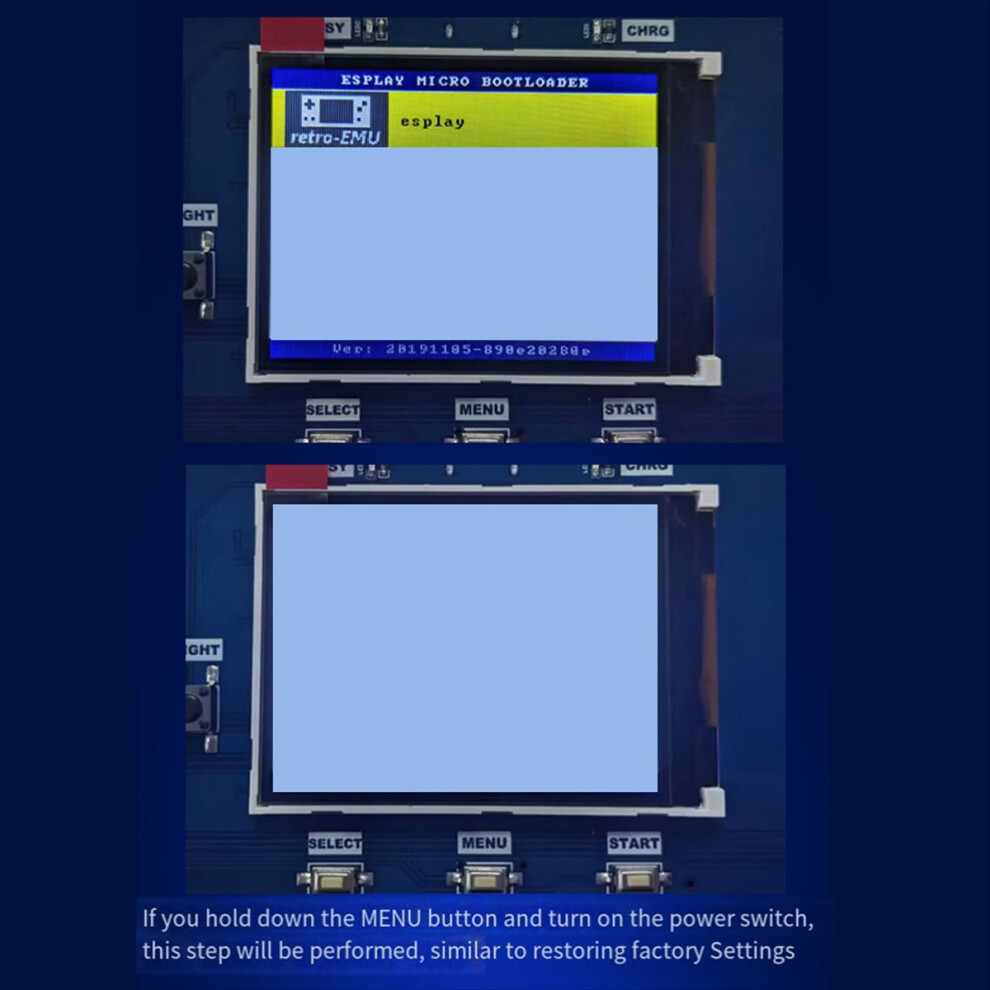

3. Flash The Firmware
Insert The Tf Card With Copied Files, Insert The Lithium Battery, And Plug In The Type-C Power Cord. Turn On The Power Switch. The Screen Appear As Shown In The Figure, The A Key, And Then The Key. The Contents Of The Tf Card Be Written To The Esp32

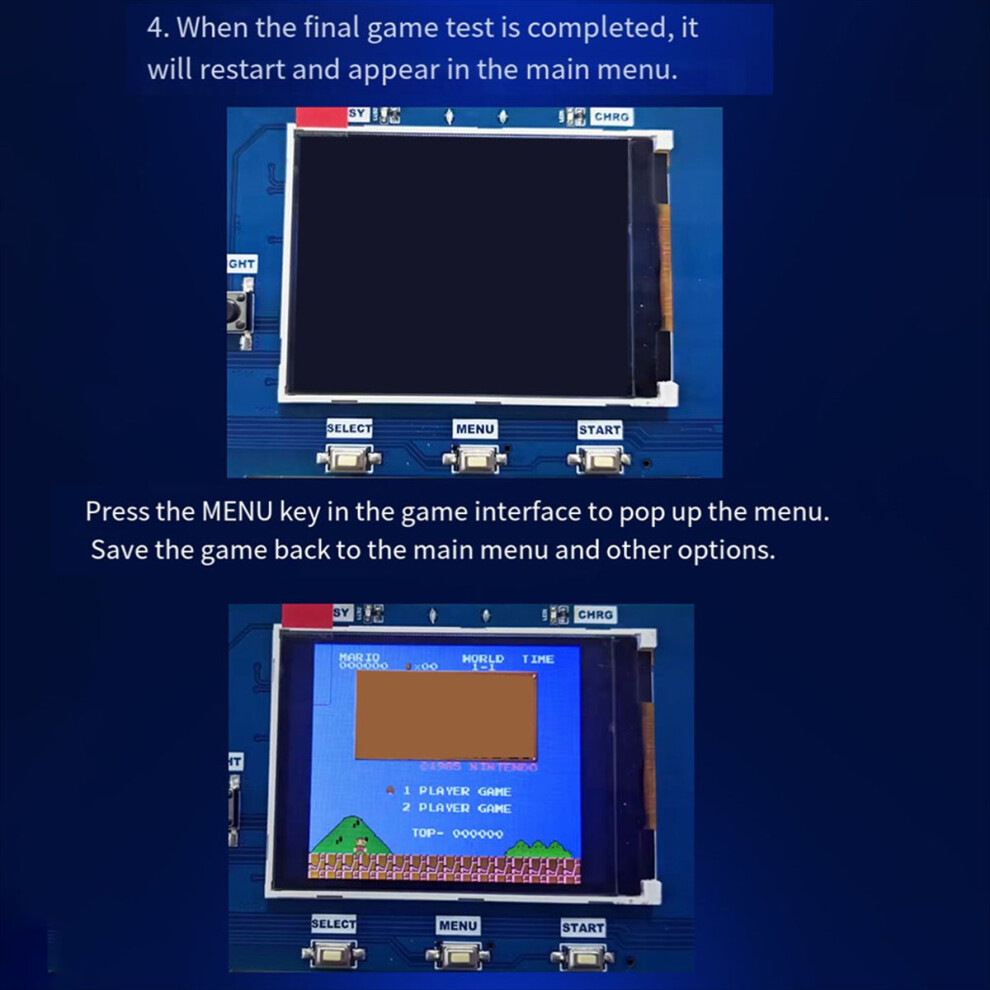

4. Game Testing
When The Programming Is Completed, It Restart And Appear In The Main Menu. The Menu Key In Interface To -Up The Menu. Save Game And Return To The Main Menu And Other Options.
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
Colour:black
Material:plastic

Package Contents:
1 x ESP32 Game Console

Only the above packagecontent, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
