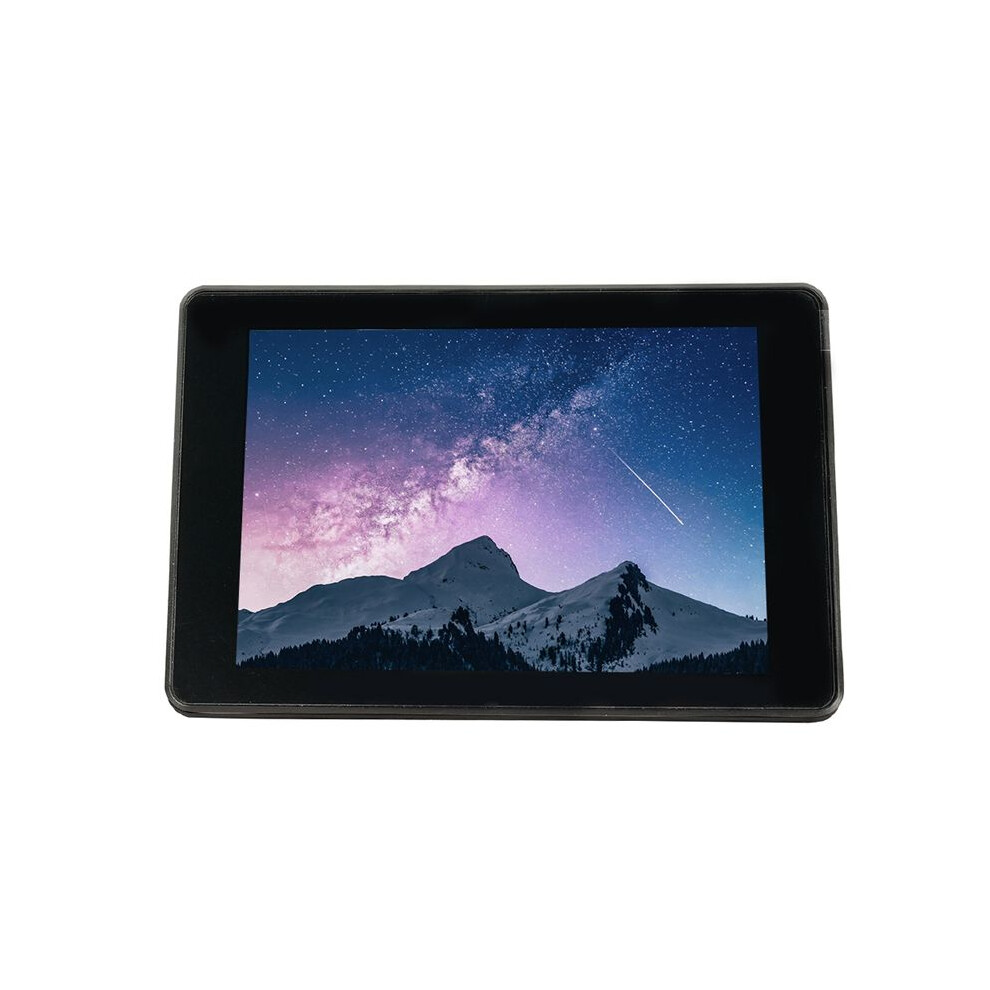

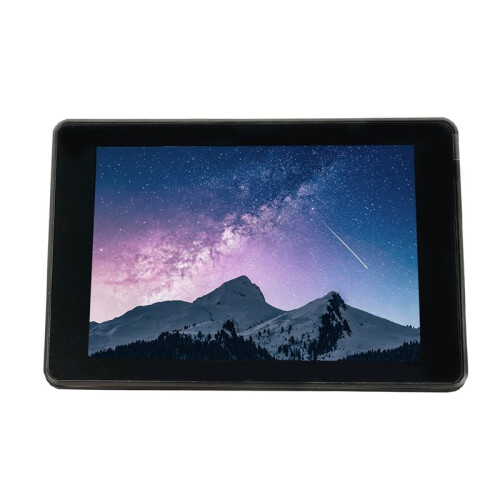

ESP32-S3 3.5Inch Capacitive Touch Display IPS TFT 8M PSRAM 16M FLASH 320x480 WiFi BT Module for ESP LVGL

ESP32-S3 3.5Inch Capacitive Touch Display IPS TFT 8M PSRAM 16M FLASH 320x480 WiFi BT Module for ESP LVGL Description

3.5-inch color screen, support 16 BIT RGB 65K color display, display rich colors. 320x480 resolution
The sample program has been programmed in the factory and can be plugged in
With TF card slot for easy expansion storage
Provide library functions and sample programs to facilitate rapid secondary development
Lithium battery charging and discharging circuit with overcharging and discharging protection

Product description:This LCD module uses ESP32-S3-WROOM-1 module as the main control, the main control is a dual-core MCU, integrated WI-FI and functions, the main frequency can reach 240MHz, 512KB , 384KB ROM, 8M PSRAM, Flash size is 16MB, The display resolution is 320x480, Capacitive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit. Reserve the TF card interface, to 12 IO available, this module supports development in for IDE, ESP IDE, for Micropython and for Guition.
to 12 IOs can be used separately by customers
Support one-click download program
Military-grade process standards, long-term stable work
Display color: RGB 65K color
SKU: Capacitive touch:JC3248W535C_I_Y
Size: 3.5 inch
Type: TFT
Driver chip: AXS15231B
Resolution: 320x480(Pixel)
Effective display area: 73.4x49.0(mm)
Module size: 94.5x62.0(mm)
View: IPS
Operating temperature: -20-70
storage temperature: -30-80
Operating Voltage: 5V
Power consumption: About 150mA
Product weight: About 80g
Color:Black
Material:plastic

Package Contents:
1 * ESP32-S3 3.5Inch Capacitive Touch Display
