ESP32-S3 4.3 Inch Capacitive Touch Display Development Board 800X480 Support WIFI Bluetooth Onboard CAN RS485 I2C Port

ESP32-S3 4.3 Inch Capacitive Touch Display Development Board 800X480 Support WIFI Bluetooth Onboard CAN RS485 I2C Port Description

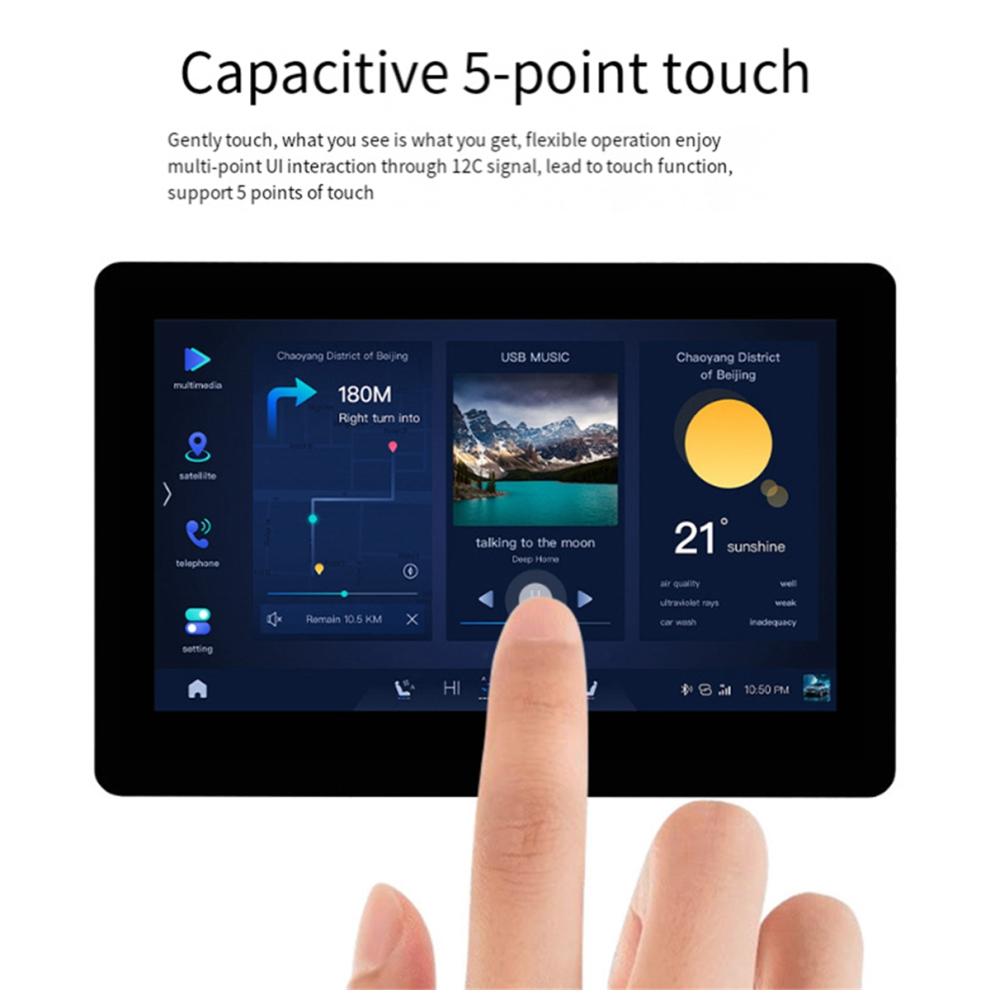

IPS display panel High-quality display performance, viewing angle of 160; Capacitive 5-point touch Touch lightly, WYSIWYG, flexible operation and enjoy multi-point UI interaction Through l2C signal, the touch function is brought out, and 5-point touch is supported
Supports expansion of multiple peripherals More expansion devices can be connected through interfaces such as CAN, RS485, I2C and isolated IO

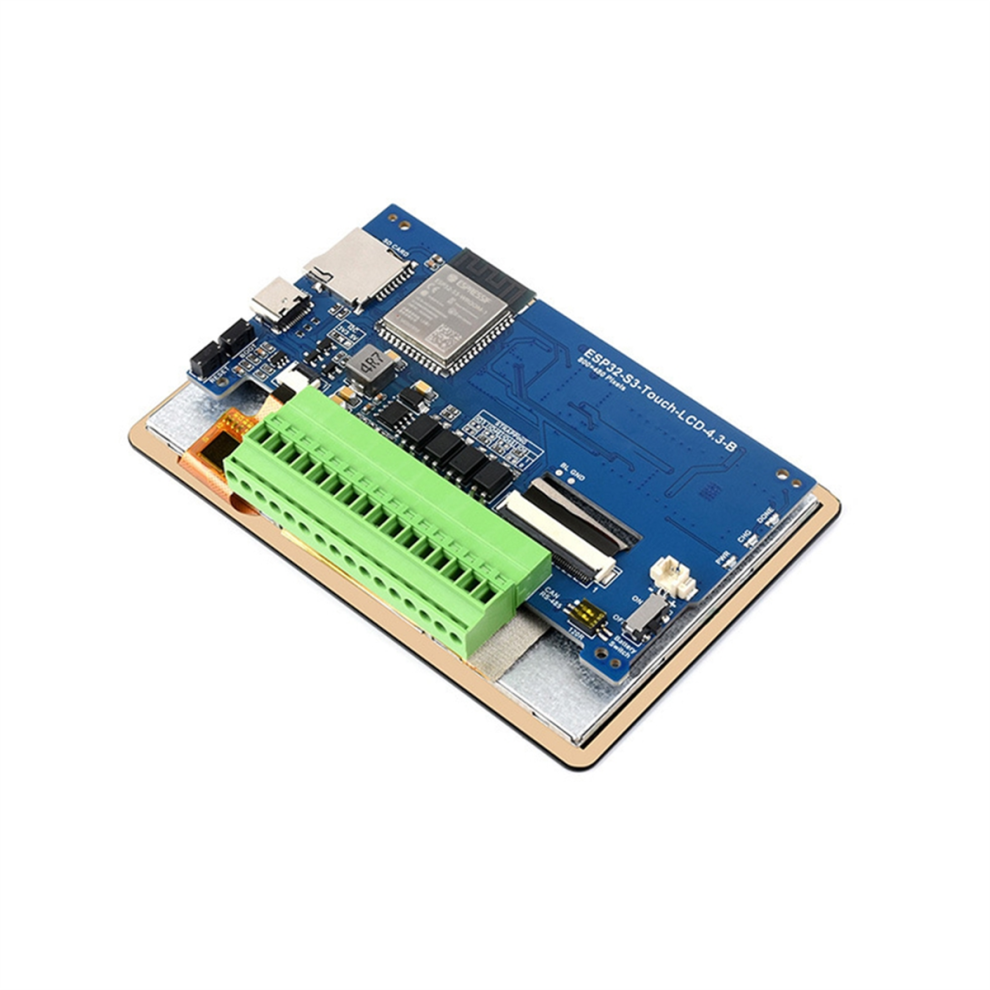

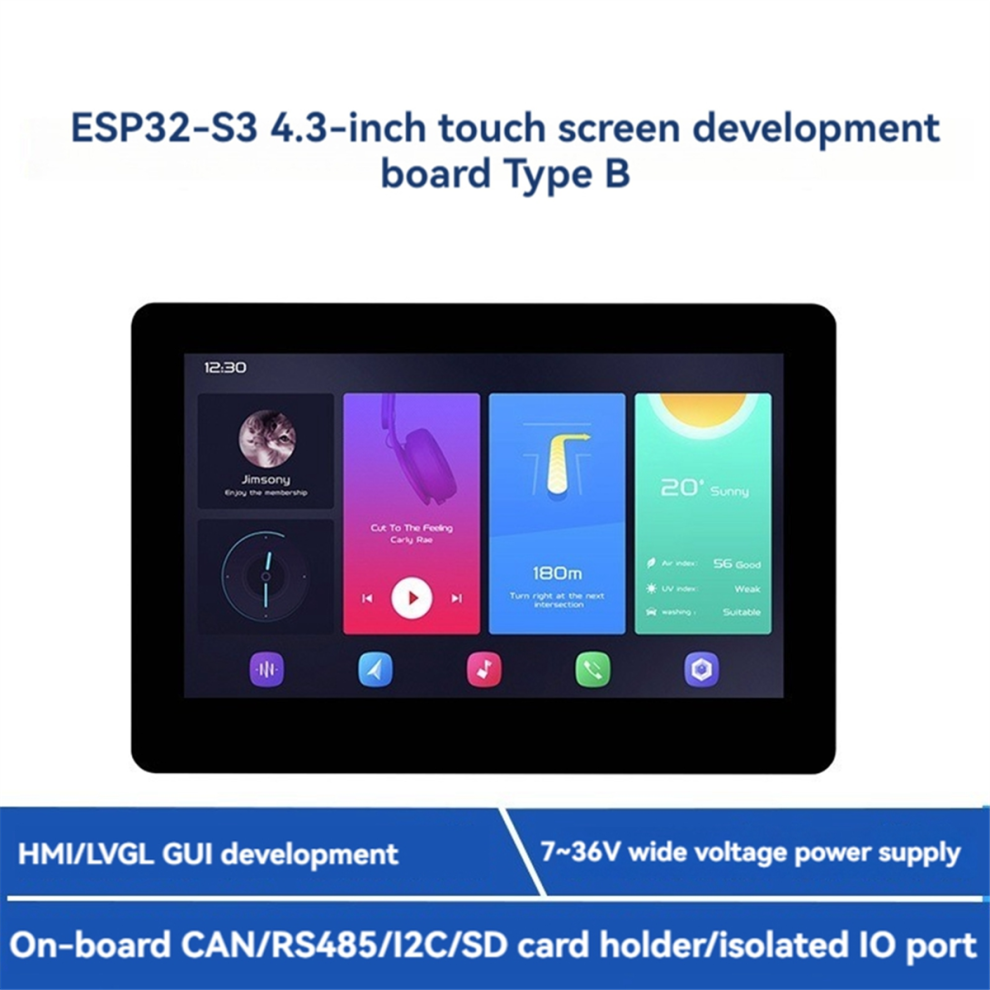

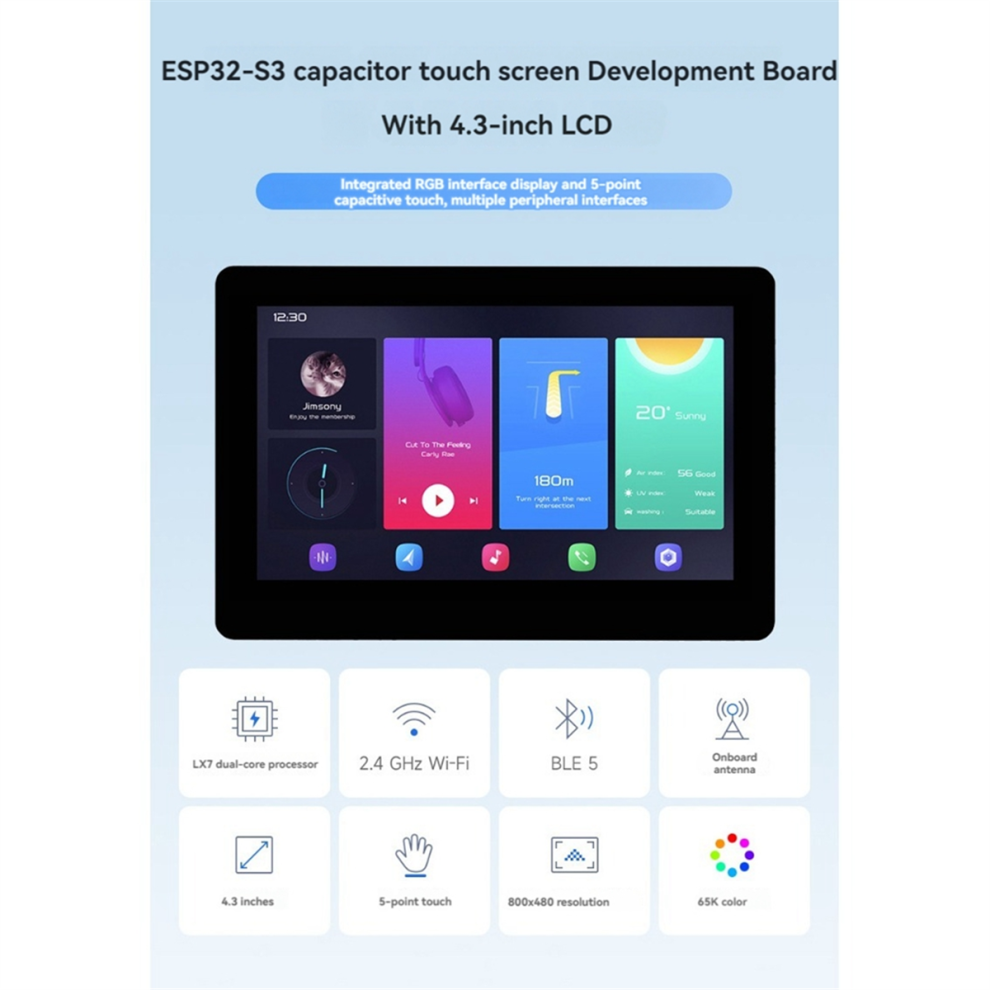

ESP32-S3-Touch-LCD-4.3B is a microcontroller development board that supports 2.4GHz WiFi and BLE 5. It integrates large-capacity Flash and PSRAM, and has an onboard 4.3-inch LCD wide capacitive touch screen, which can smoothly run GUI interface programs such as LVGL; combined with a variety of peripheral interfaces, quickly develop ESP32-S3 HMI and other applications

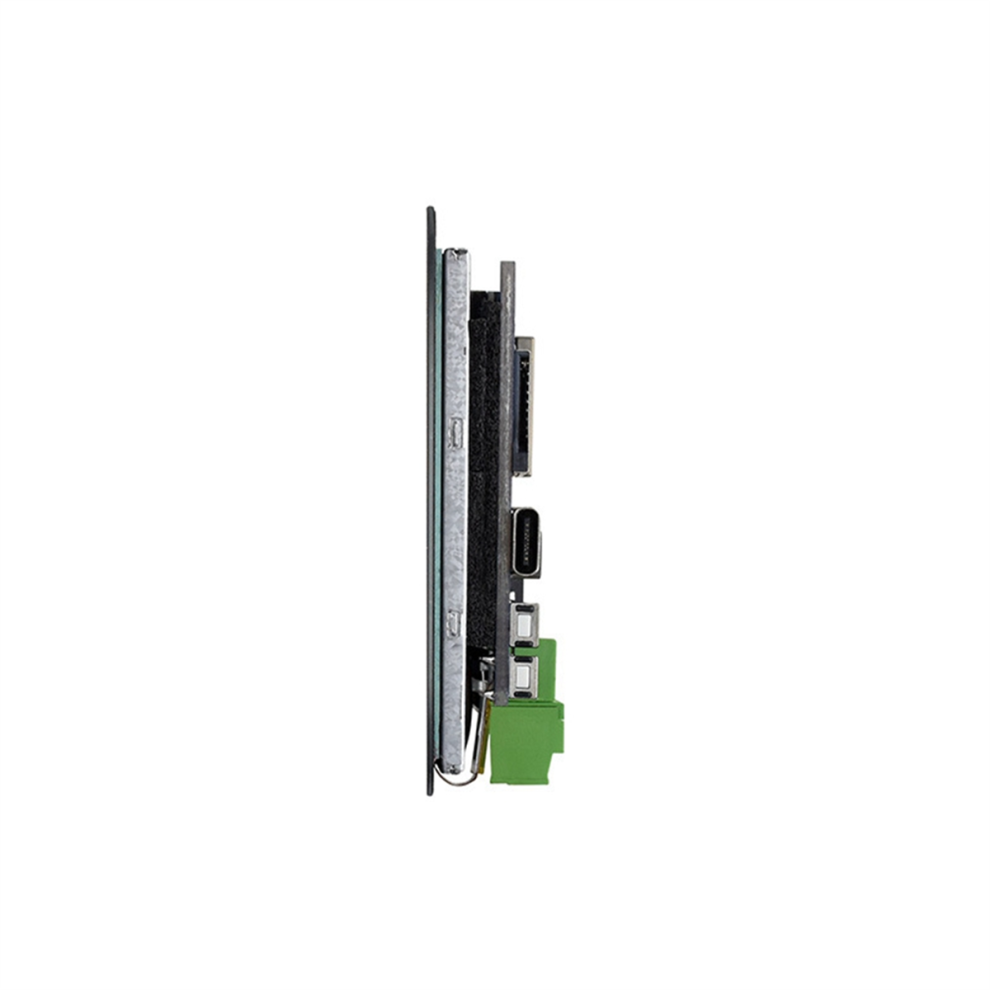

Flexible wiring at the bottom or back Equipped with two wiring terminals, you can choose to plug in from the bottom or the back, which is convenient for integration into application scenarios such as guide rails or embedded; Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240MHz
Support 2.4 GHz Wi-Fi (802.11 b/g) and Bluetooth 5 (LE), onboard antenna

Built-in 512KB and 384KB ROM, stacked 16MB Flash and 8MB PSRAM

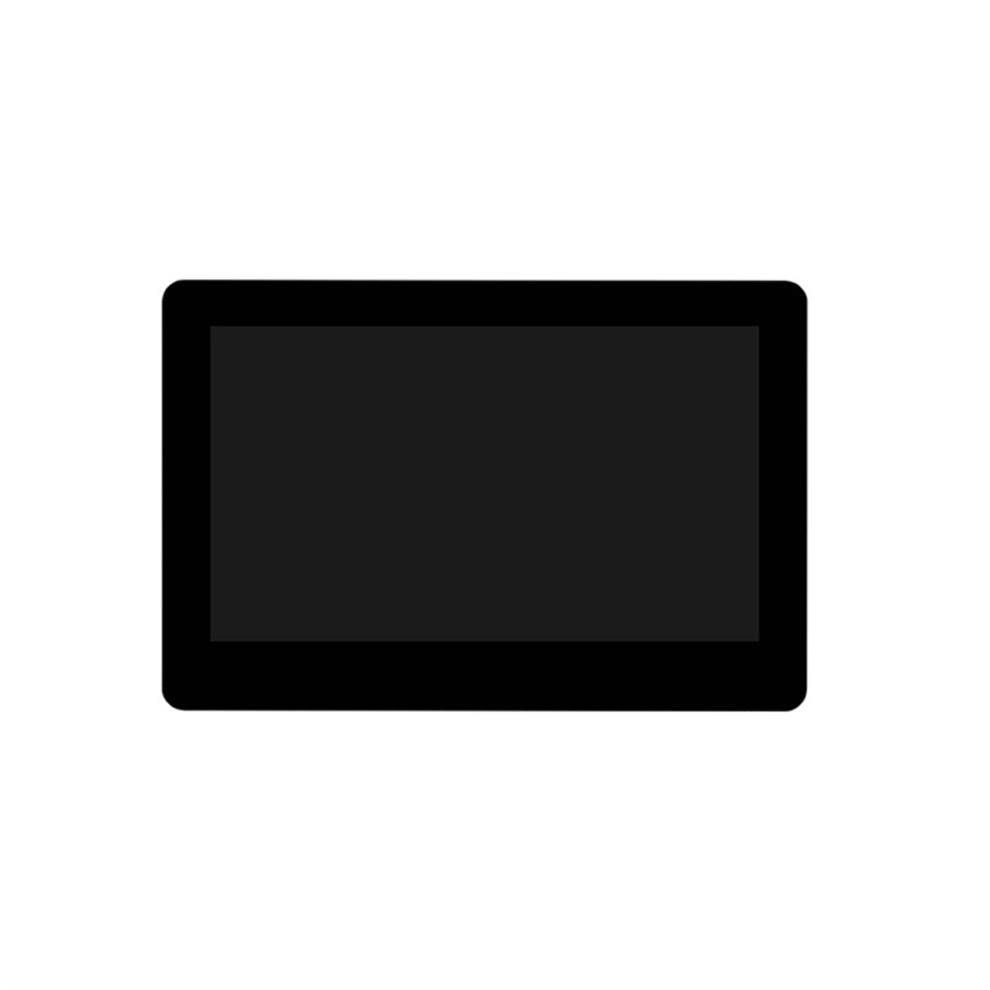

Onboard 4.3-inch LCD wide capacitive touch screen, 800x480 resolution, 65K color
Support I2C interface to control capacitive touch, 5-point touch, support interruption
Onboard voltage regulator chip, support 7~36V wide voltage power supply
Onboard RTC chip and rechargeable battery to achieve power-off time without loss

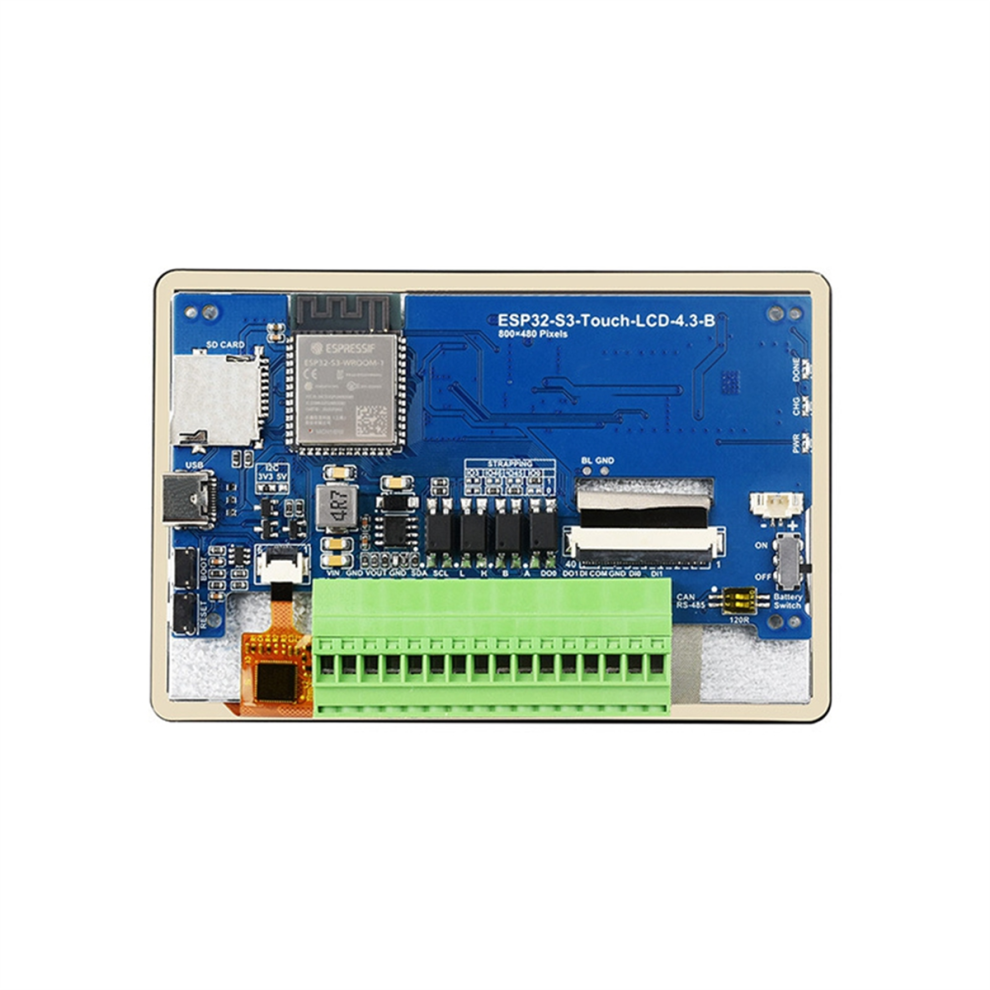

Onboard CAN, RS485, I2C interface, Micro-SD card holder, GH1.252P battery interface and digital quantity isolation type I0 and other resources
The input has bidirectional optocoupler isolation, supports passive and active switch input, and supports positive and negative voltages
The output has optocoupler isolation, with stronger driving capability and sink current up to 450mA (MAX)
The external LED indicator makes it easy to check the power and battery charging status
Supports flexible clock, module power supply individual setting and other precise control to achieve multi-scenario low power consumption mode
(Due to different batches, the printed words on the product be different, which does not affect use)
Colour:As Shown
Material:PCB

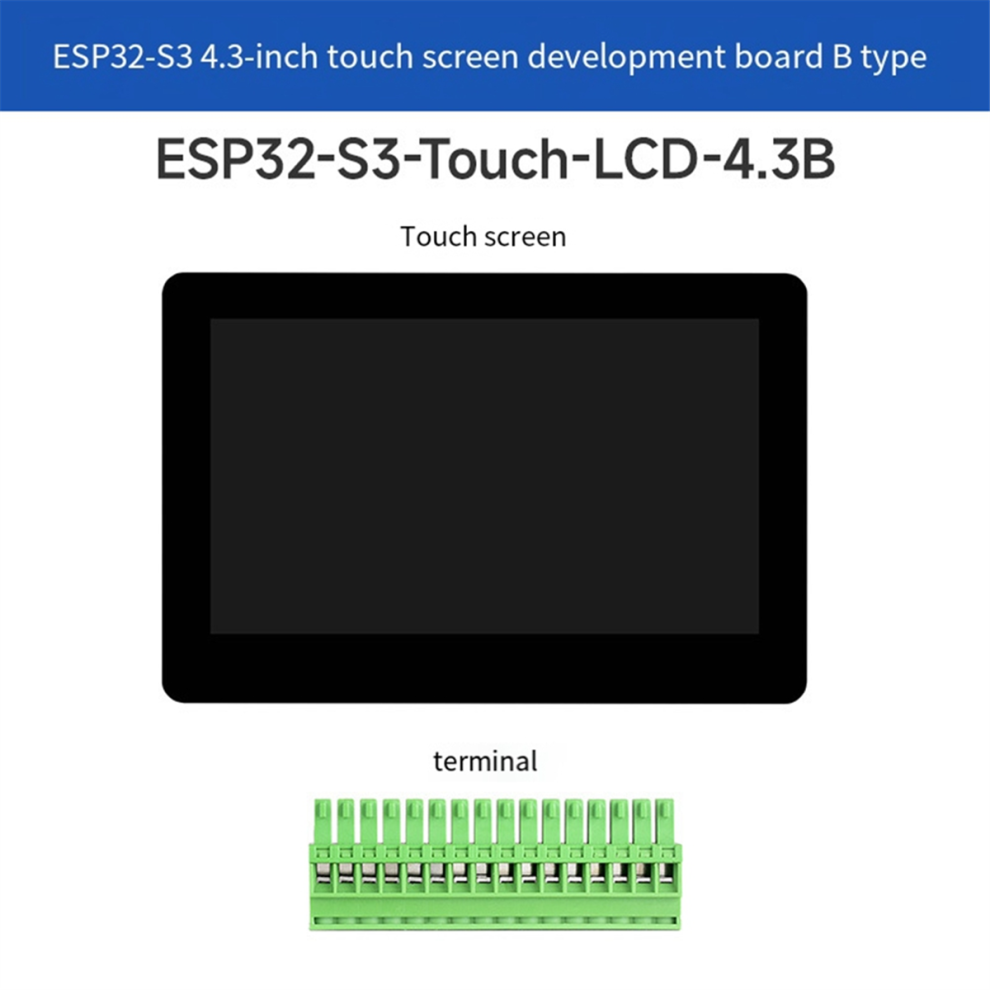

Package Contents:
1 x Touch Screen Development Board Main Body (Including 16p Back Terminals)
1 x 16p Bottom Terminal Block

Only the above package content, other products are not included.
