ESP32-S3 4.3inch LCD 800x480Pixels Captive Touch Screen Development Board WIFI BTLE5.0 65K-RGB with Sensor/CAN/I2C/RS485

ESP32-S3 4.3inch LCD 800x480Pixels Captive Touch Screen Development Board WIFI BTLE5.0 65K-RGB with Sensor/CAN/I2C/RS485 Description

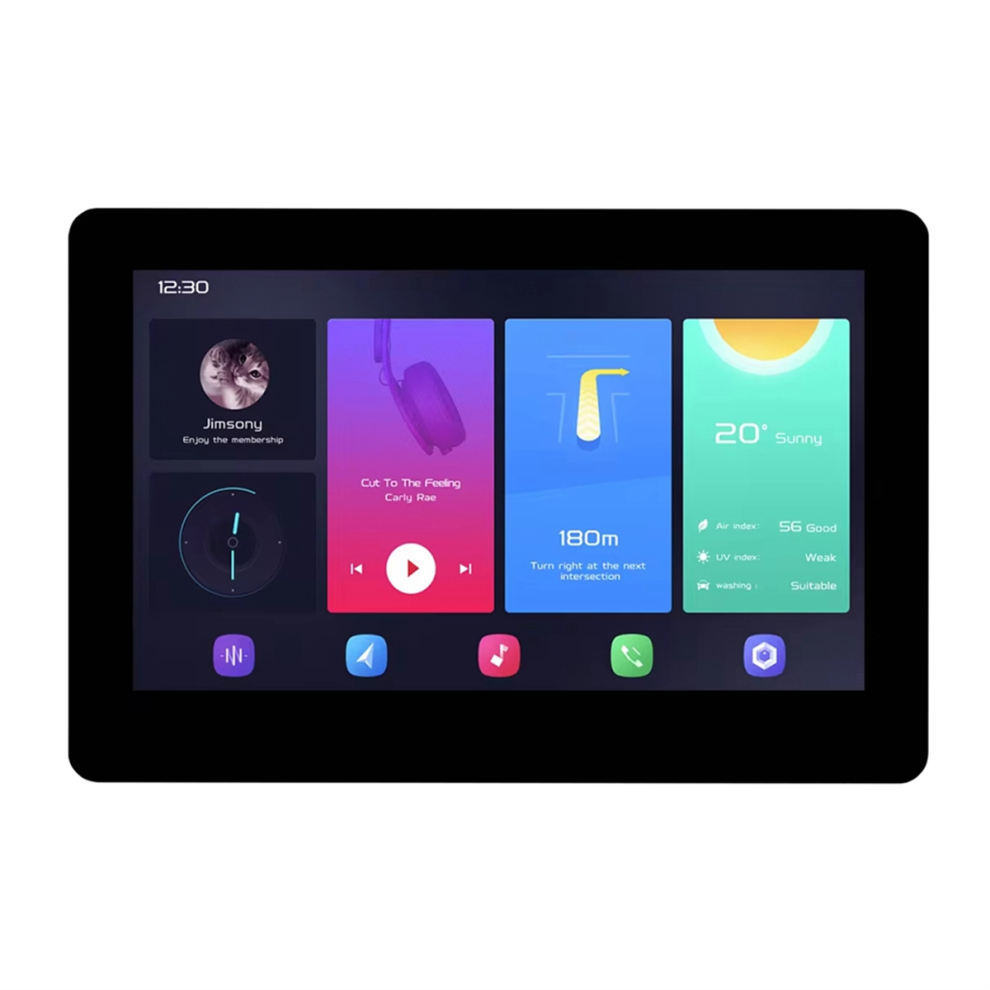

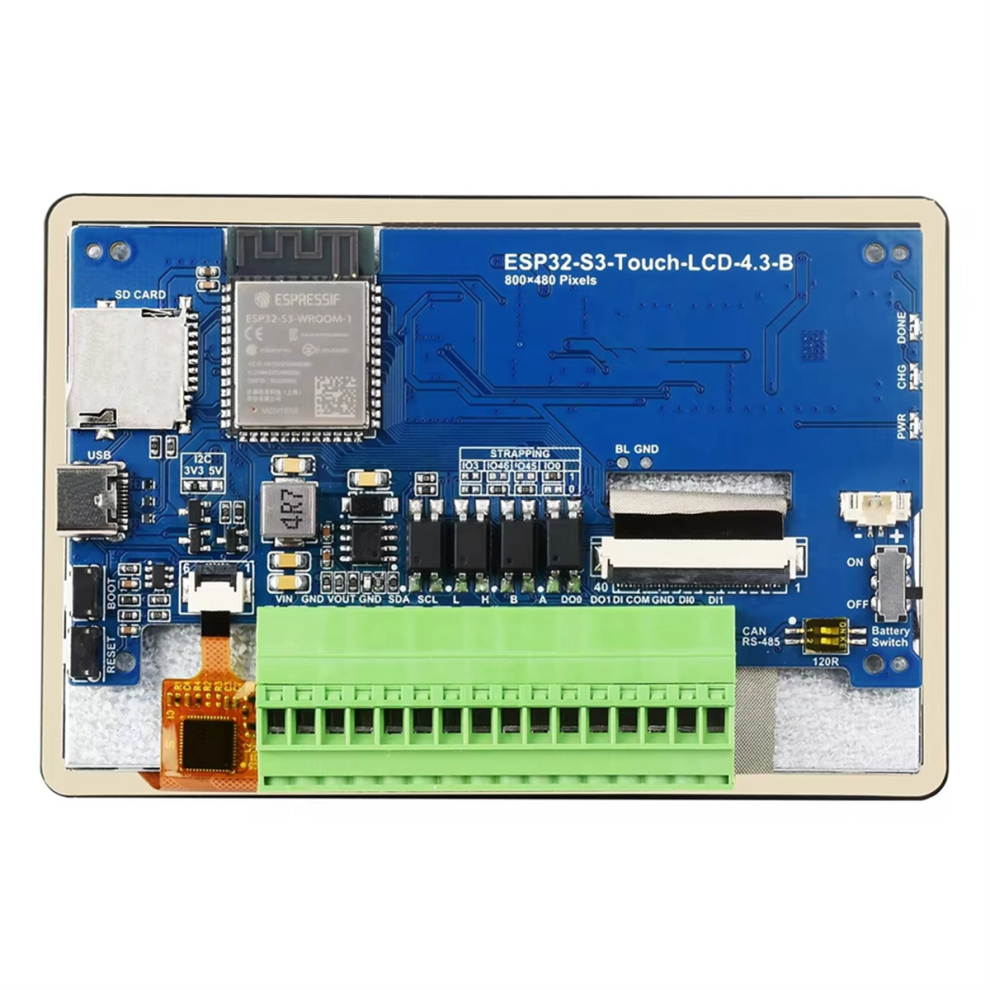

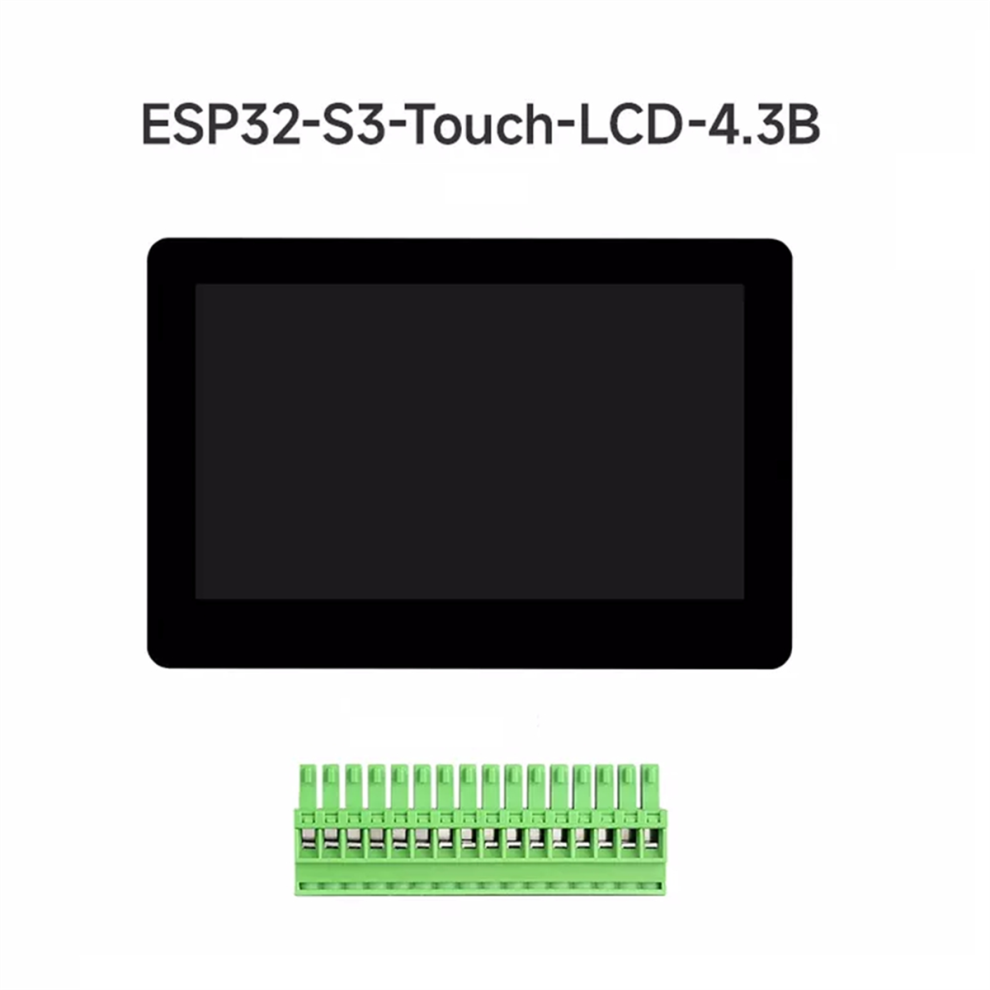

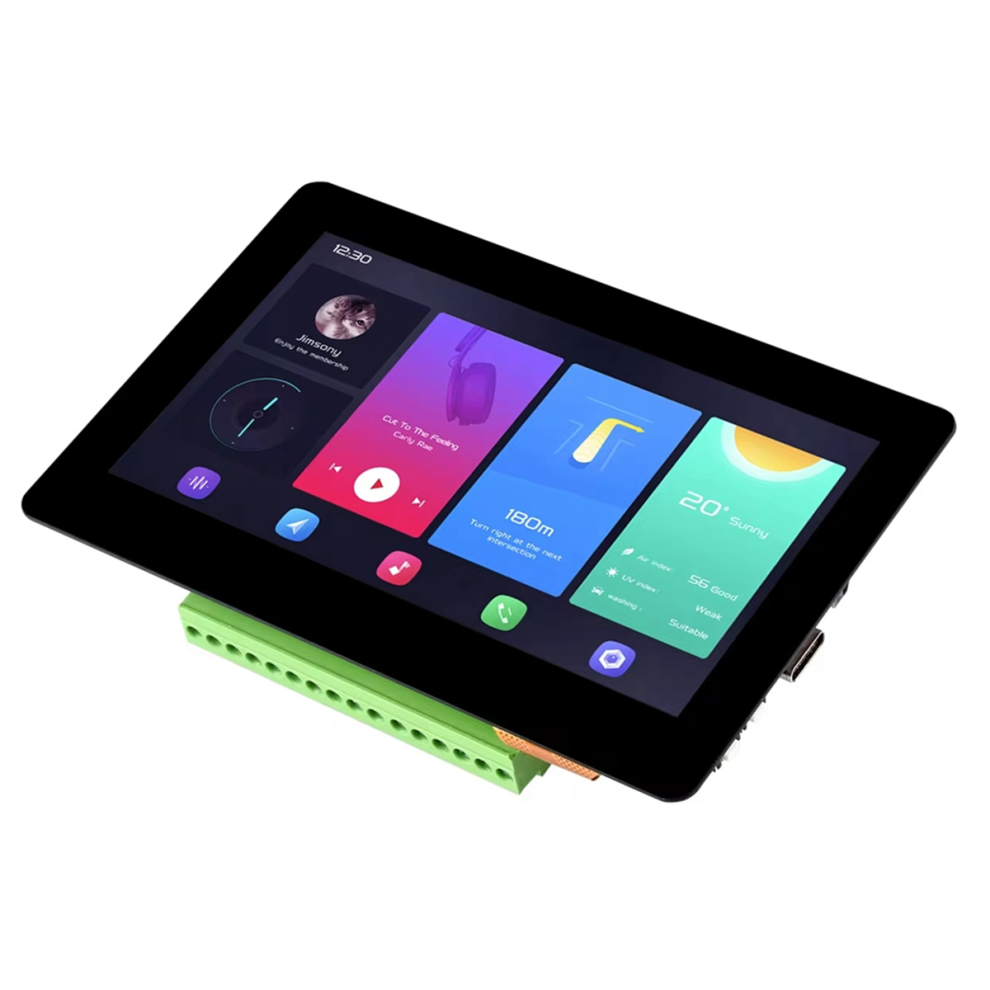

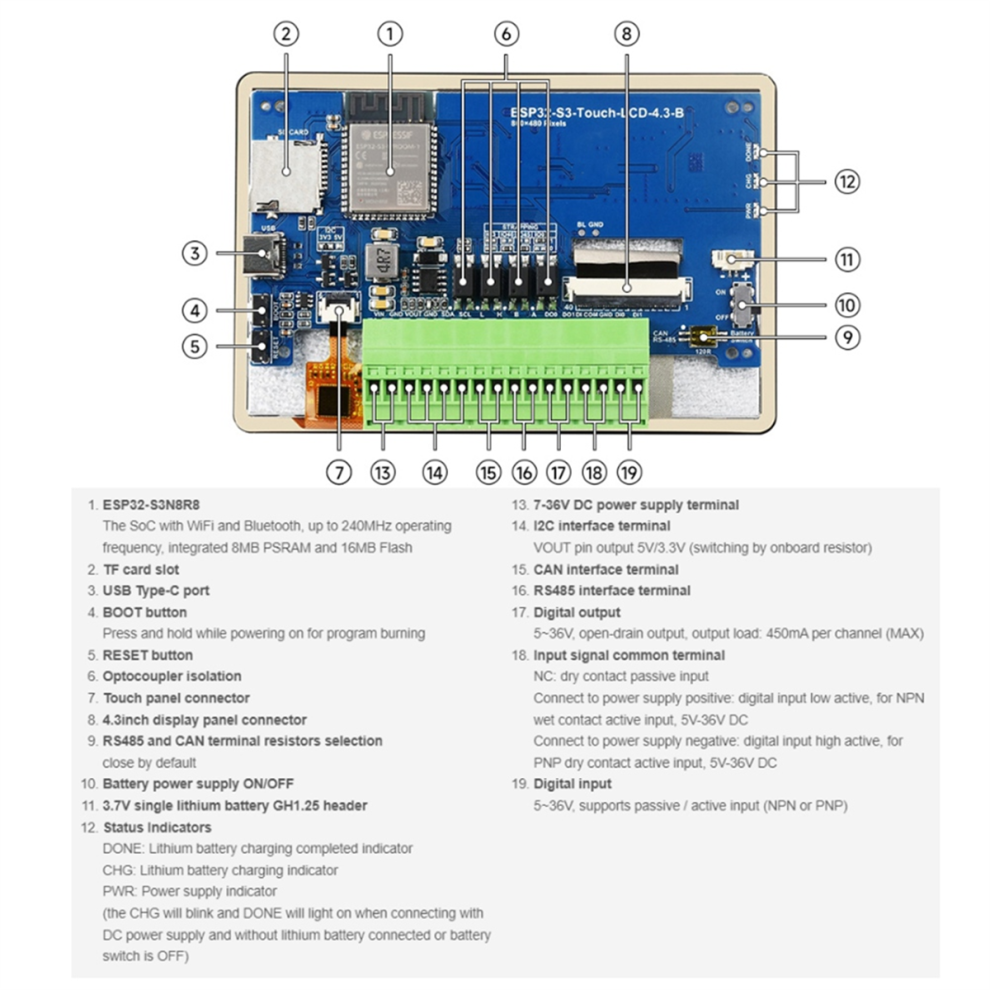

Features: ESP32-S3 capacitive touch screen development board, with 4.3-inch LCD, integrated RGB interface display and 5-point capacitive touch, and multiple peripheral interfaces. ESP32-S3-Touch-LCD-4.3B is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications. Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Onboard 4.3inch capacitive touch display, 800x480 resolution, 65K color. Supports capacitive touch control via I2C interface, 5-point touch with interrupt support. Onboard voltage regulator, supports 7~36V wide range power supply. Onboard RTC chip and rechargeable battery to time data is not lost when power loss. Onboard CAN, RS485, I2C interface and TF card slot, GH1.25 2P battery header and digital isolated IO interfaces, etc. Supports passive and active digital input, with bi-directional optocoupler isolation. Supports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking current. Onboard LED indicators for indicating the power and battery recharging status. Supports flexible clock, module power supply setting and other controls to realize low power consumption in different scenarios. Material: PCB+ plastic+components colour: black Package Contents: 1 x ESP32-S3 development board 1 x Terminals Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
