ESP32-S3 N16R8 Artificial Intelligence AI Voice Motherboard with Data

ESP32-S3 N16R8 Artificial Intelligence AI Voice Motherboard with Data Description

ESP32-S3 N16R8 Artificial Intelligence AI Voice Motherboard with Data Description

Support for AI acceleration: the ESP32-S3 MCU adds vector instructions for accelerating neural network computation, signal processing, etc. Al developers can use these vector instructions through the ESP- and ESPNN libraries to enable high-performance applications such as image recognition, voice wake-up and recognition, etc. The ESP-WHO and ESP-Skainet also support this feature. ESP-WHO and ESP-Skainet also support this feature.
Perfect Security Mechanism: ESP32-S3 provides IoT devices with perfect security mechanisms and protection against all kinds of malicious attacks and threats. It supports flash encryption based on the -XTS algorithm, secure boot based on the algorithm, digital signatures, and HMAC. ESP32-S3 also adds a Controller module, which provides two non-interfering execution environments, enabling trusted execution environments or privilege separation mechanisms.
Wi-Fi + Bluetooth 5 (LE): The ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g) with 40 MHz bandwidth: its low-power Bluetooth sub-system supports Bluetooth 5 (LE) and Bluetooth Mesh, which enables long-distance communication with broadcast extensions via Coded PHY. It also supports 2 Mbps PHY for higher transmission speed and data throughput.The ESP32-S3 has excellent Wi-Fi and Bluetooth LE performance, and can work stably under high temperature.
Rich 10 Interfaces: The ESP32-S3 has 45 programmable GPIOs as well as common peripheral interfaces such as SPI, I2S, , PWM, , ADC, UART, SD/MMC host controller and TWAITM controller. Fourteen of the GPIOs can be configured as capacitive touch inputs for HMI interaction. In addition, the ESP32-S3 is equipped with an ultra-low-power co-processor (ULP), which supports a variety of low-power modes and is suitable for a wide range of low-power applications.
software support: ESP32-S3 follows Loxin's IoT development framework, ESP-IDF. ESP-IDF has successfully empowered hundreds of millions of IoT devices, undergone rigorous testing and release cycles, and has a clear and effective support strategy. Based on its software architecture, developers easier to build applications or migrate legacy applications to the ESP32S3 platform by leveraging their familiarity with the tools and .

Power supply voltage: 5V
Power supply current: 100mA
Processor: ESP32-S3
Colour:As shown
Material:PCB
Interface:TYPE-C
Note: Accessories free welding, this package are welded delivery, received that use.
Due to different batches, there may be differences in product appearance and printed text, which not affect use

Package Contents:

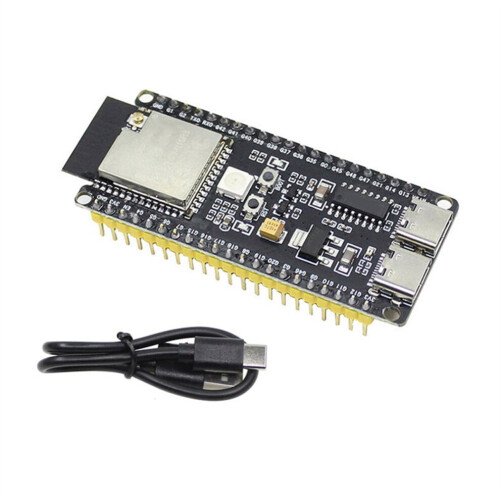

1 * ESP32-S3-N16R8 Development Board
1 * Data Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
