ESP32-S3 Wireless Stick V3 863-928MHz LoRa WIFI Bluetooth Development

ESP32-S3 Wireless Stick V3 863-928MHz LoRa WIFI Bluetooth Development Description

ESP32-S3 Wireless Stick V3 863-928MHz LoRa WIFI Bluetooth Development Description

1. The upgraded model has a built-in SX1262 + ESP32 chip and fully supports the IoT development kit of the standard LoRaWAN protocol.
2. Products can be programmed through standard libraries and concise development languages to quickly complete solution verification and product development.
3. Three major wireless communication protocols, ESP32 chip, supports WIFI, BLE, and LoRa wireless communication functions.
4. With shielding cover, strong anti-interference, the shielding cover is installed on the module, which greatly improves the product's anti-interference ability.
5. The Type-C USB interface has complete voltage regulator, ESD protection, short circuit protection, radio frequency shielding and other protection measures.

Applicable to various intelligent scenarios, it can be used as a gateway for IoT products and as a driver for terminal products.
MCU chip:ESP32-S3FN8 (Xtensa 32-bit lx7 dual-core processor)
Main frequency:240 MHz maximum
LORA chip:SX1262
USB to serial port chip:CP2102
Maximum receiving sensitivity:-139dBmLORA
Maximum output power:211dBm
Hardware resources:7xADC1; 9xADC2; 8xTouch; 3xUART; 2xI2C; 2xSPI
FLASH:8MB
Wi-Fi:802.11 b/g/n, up to 150Mbps
Interface:Type-C; battery interface; LORA antenna interface;
OLED screen:0.49 inches
Battery type:supports 3.7v lithium battery charging and discharging
Sleep current:Less than 10 uA
Working temperature:-20-70
Due to different product batches, the appearance may be different, which does not affect use.
Frequency:863-928MHz
Colour:Black
Material:PC+Metal
Size:58.08x22.6x8.2mm

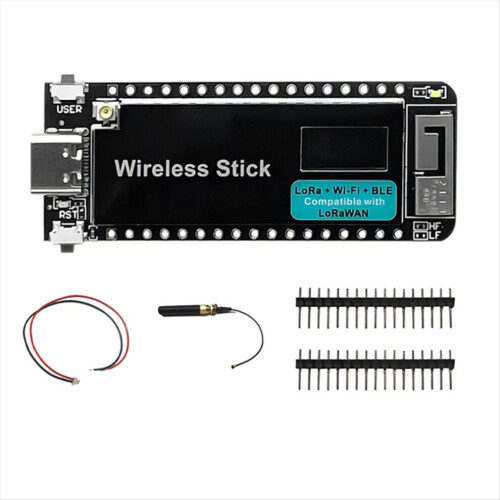

Package Contents:
1 x development board
1 x antenna
1 x battery cable
2 x pin header

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
