EY3 EYE Display for Electric Scooter Accessories,holder,

EY3 EYE Display for Electric Scooter Accessories,holder, Description

LCD EY3 EYE Display for Electric Scooter 72V Dualtron Thunder DT3 DT2 ultra ni DTX SPEEDWAY EYE Throttle speedmeter odometer
LCD Display for Electric Scooter Dualtron Thunder DT3 DT2 ultra DTX SPEEDWAY EYE Throttle speedmeter odometer
Since Dec 2018, all speedway series and DT2, Ultra also start to use EYE thottle with new program, so you can also use EYE throttle on the scooter which use new program, you can order this product to use it on your own scooter.
As long as the original LCD has battery percent show % and green color, which indiacte it is new programe since 2018, it can be on your scooter to upgrade your LCD if you like this.
But note that, if your original scooter dont have % and blue color background, you cant apply this EYE throttle on your scooter as the controller is different.
Also even you use this throttle on other dualtron model like DT2, Ultra and speedway, who has green background color, you dont have the Pd function workable.
Pd is for ABS, other model except DT thunder and Dt3, dont have the ABS programe. So the Pd will not work in old scooter.
Also you need reset the P value according to your old scooter parameter when you receive the new Eye throttle to replace original one, as the setting is varies according to different model.
Also if you use this EYE throttle, you can add finger print original from nimotors as well.
Note: The LCD is original one from nimotors factory is workable for the scooter models we stated here. But when the client get the LCD he needs to check the inner setting P value is right or not, if the LCD cant work as normal. The client should adjust the value according to his own scooter model, as the original LCD may has random Initial value pre-setted. Inquire us if you has any doubt when you receive it.
Default value for Dualtron series and speedway 5.
DT-II: 60V version 【P0:10; P1:60; P2:10; P3:0; P4:0; P5:0; P6:0; P7:2; P8:100; P9:2; PA:1; PB:3】
DT-ULTRA: 60V version【P0:11; P1:60; P2:15; P3:0; P4:0; P5:0; P6:0; P7:2; P8:100; P9:2; PA:1; PB:3】
DT-RAPTOR: 60V version【P0:8; P1:60; P2:15; P3:0; P4:0; P5:0; P6:0; P7:2; P8:100; P9:2; PA:1; PB:3】
DT-III: 60V version【P0:10; P1:60; P2:15; P3:0; P4:0; P5:0; P6:0; P7:2; P8:100; P9:2; PA:1; PB:3;PC:5;PD:0】
DT-THUNDER: 60V verison【P0:11; P1:60; P2:15; P3:0; P4:0; P5:0; P6:0; P7:2; P8:100; P9:2; PA:1; PB:3;PC:5;PD:0】
DT-SPIDER：60V version【P0:10; P1:60; P2:10; P3:0; P4:0; P5:0; P6:0; P7:2; P8:100; P9:2; PA:1;PB:3;PC:5;PD:0】
Speedway 5: 60V version【P0:10; P1:60; P2:15; P3:0; P4:0; P5:0; P6:0; P7:2; P8:100; P9:2; PA:1;PB:3;PC:5;PD:0】
speedway ni4 pro 13Ah and 16Ah version
【P0:8; P1:48; P2:15; P3:0; P4:0; P5:0; P6:0; P7:2; P8:100; P9:2; PA:1;PB:3;PC:5】
The display is same,only different at the wire lingth,usually the DT3TC wire line is longest
DT3TC use for:DT3,THUNDER,COMPACT,DT ni,and others
DT2SUR use for:DT2,SPIDER,ULTRA,NEW DUALTRON

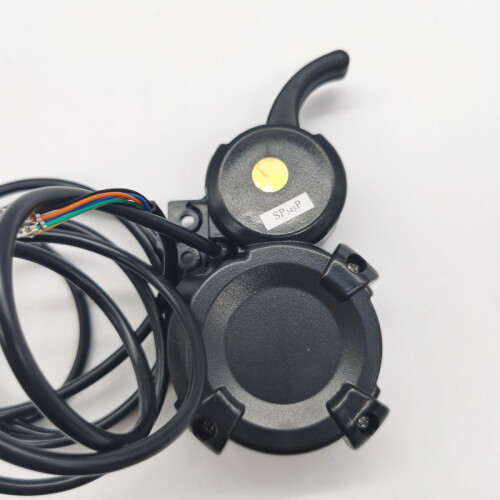

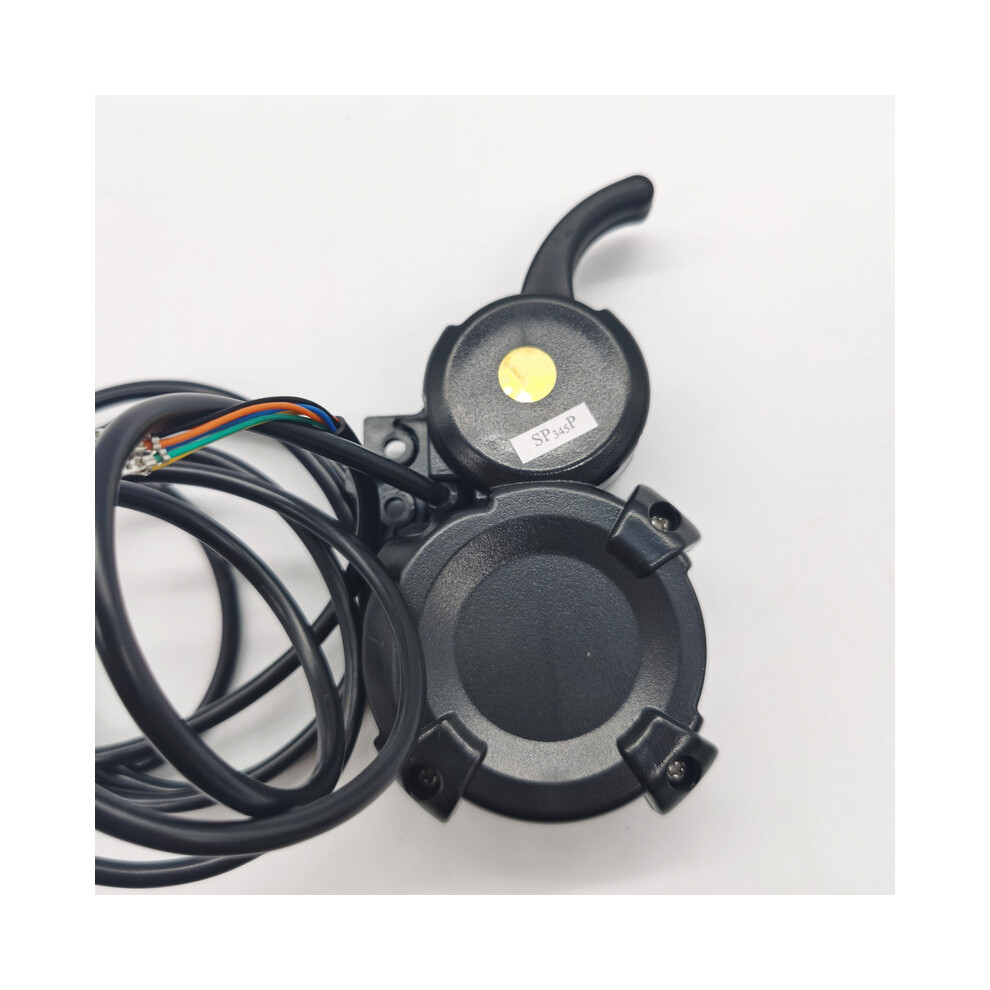

SP345P use for:SPW3,SPW4,SPW5,SPW ni 4 and pro(if your original display have a green screen,and have a %about the electric,you can change it)
DTem use for DUALTRON NI,EAGLE PRO,wire line length is about 145cm
