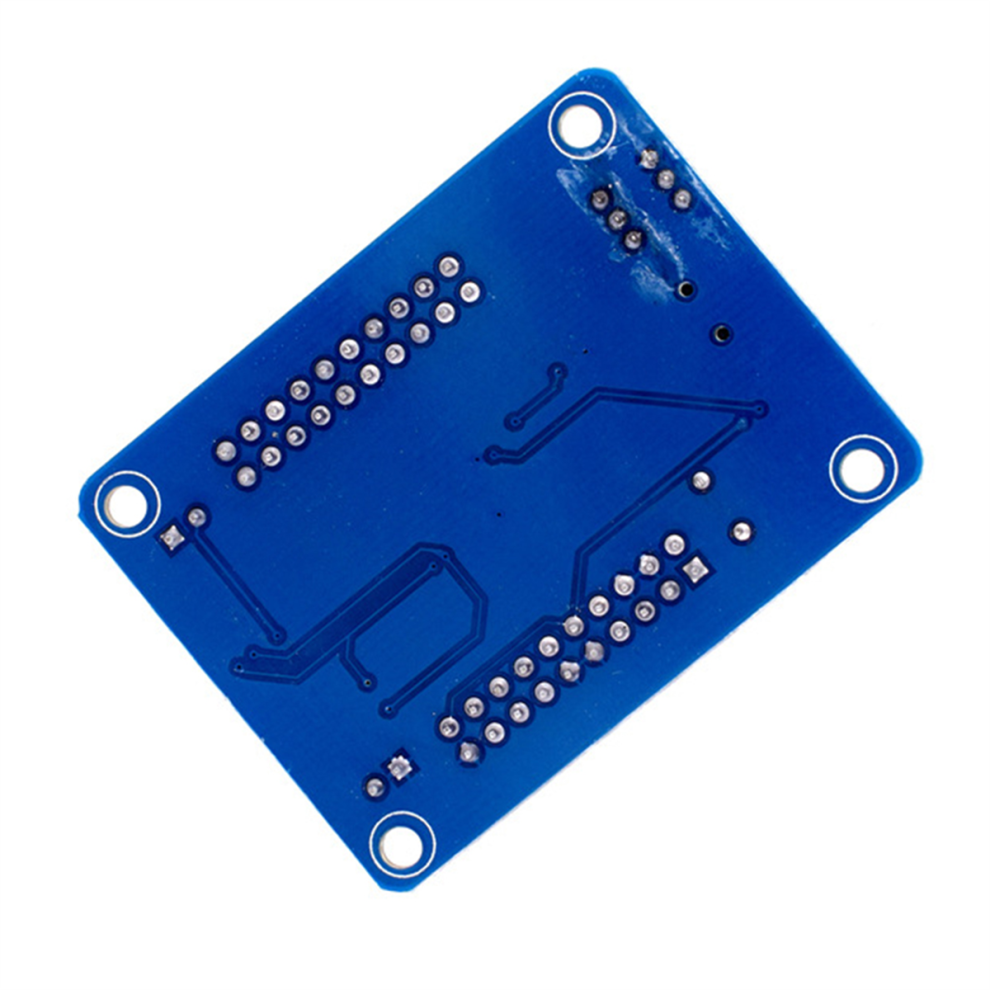

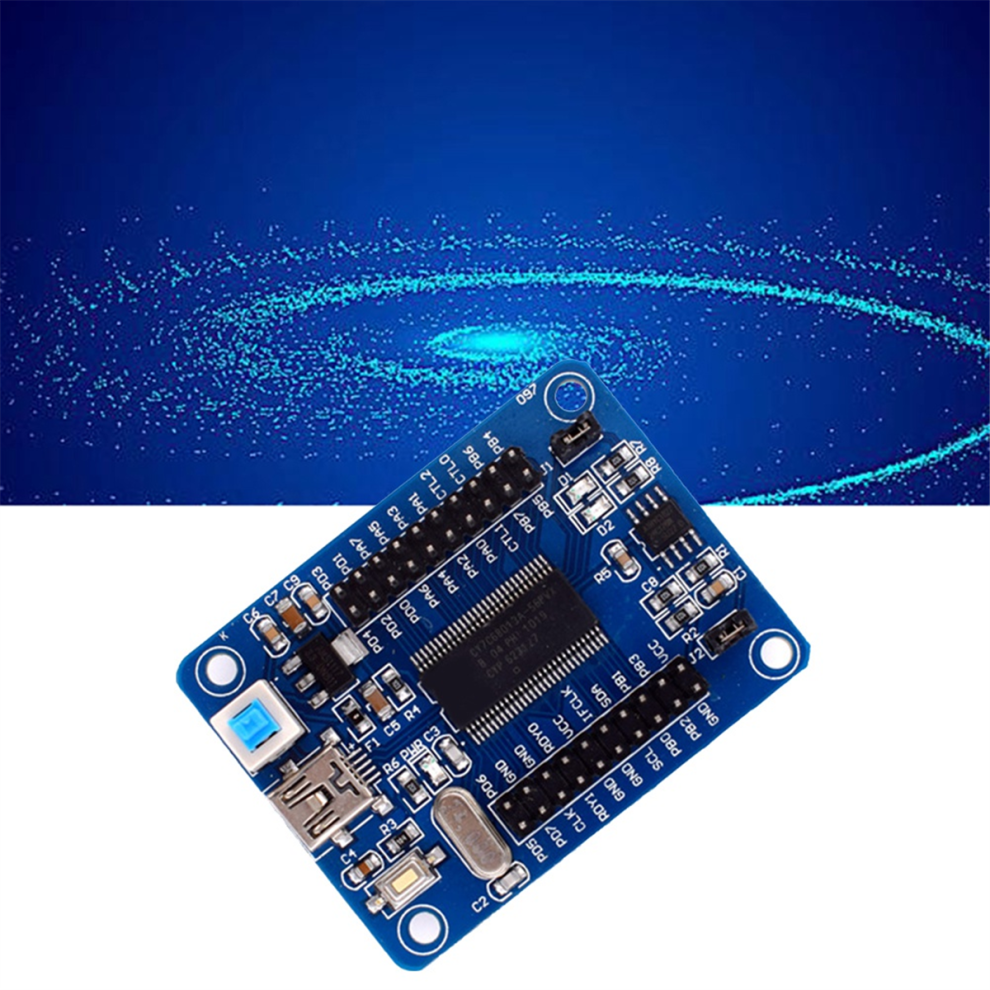

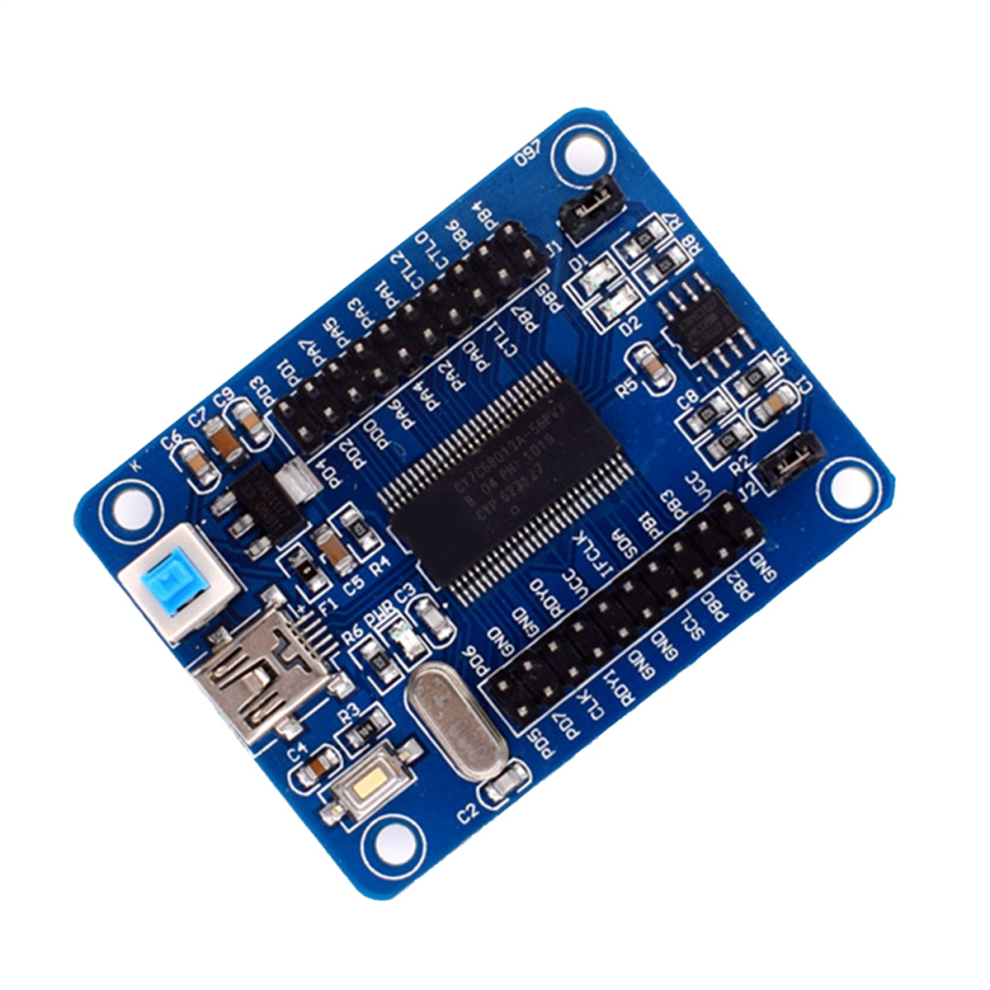

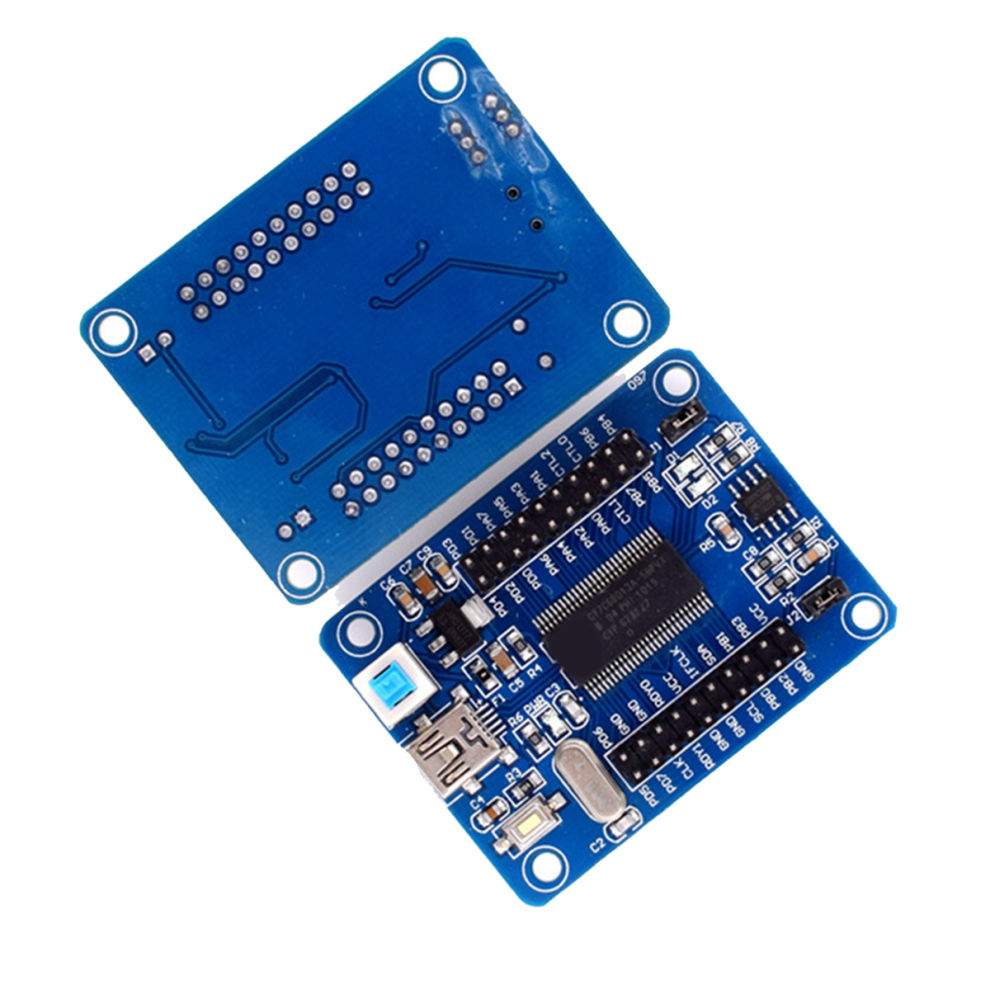

EZ-USB FX2LP CY7C68013A USB Core Board Development Logic Analyzer Multifunction Convenience Module

EZ-USB FX2LP CY7C68013A USB Core Board Development Logic Analyzer Multifunction Convenience Module Description

Features: 1. Using CY7c68013A-56 Chip: Low-Power Version, Enhanced 51 Cores, 16KB Program Data Area, Main Frequency 48Mhz, 480Mbps High-Speed Transmission Protocol Standard, Compliant With USB2.0 Specification, And Backward Compatible With Usb1.1. 2. Firmware Eeprom: A Complete In-System Programming Solution. Download The Firmware Program Directly With A Usb Cable. The Onboard Provides 16k (24lc128) Large-Capacity Program Memory (Eeprom), Which Is Used To Store Vid/Pid And Usb Firmware To Meet The Program Space Of CY7C68013A. Need. 3. All Gpios Are Led Out Through 2.54mm Standard Pin Headers, Which Greatly Facilitates Learners To Expand Their Designs By Themselves. 4. With The Corresponding Firmware, The Functions Of The Logic Analyzer Can Be Realized Through This Core Board. 5. Provide Schematic Diagrams And Related Source Code In Pdf Format Description: 1. Model: CY7C68013A Core Board Material: PCB colour: As shown Package Contents: 1 x Core Development Board Module Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
