FG-100 DDS Function Signal Generator Frequency Counter Module Sine

FG-100 DDS Function Signal Generator Frequency Counter Module Sine Description

Product Description

Small size, multiple functions, simple operation, easy to carry.

ith an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequenc

Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope swe

With an oscilloscope, which can be used in electronic circuit experiment and debugging, the frequency characteristics of audio amplifier and pulse response of test and measurement.

Due to the good precision of DDS and frequency stability, is also very suitable for oscilloscope sweep time calibration factor. Square wave output

Also suit for oscilloscope attenuator and probe pulse adjustment, etc

The main output waveform : sine wave and square-wave, Triangular wave, wave.

Maximum output amplitude : +\/- 10Vpp (no-load)

Output impedance : 50Ohm+\/-10%

Dc bias : +\/- 10V (no-load)

Display : LCD1602

Resolution : 1 Hz

Power supply : DC 3. 5-10V

Output frequency range :

Sine wave : 1Hz-500KHz

Square-wave : 1 Hz - 20kHz (the valid range)

Triangular wave : 1 Hz - 20KHz (the valid range)

wave : 1 Hz - 20kHz (the valid range)

Note: Due to different production batches, there may be slight differences in products.

Colour: White

Material: Plastic

Package Contents:

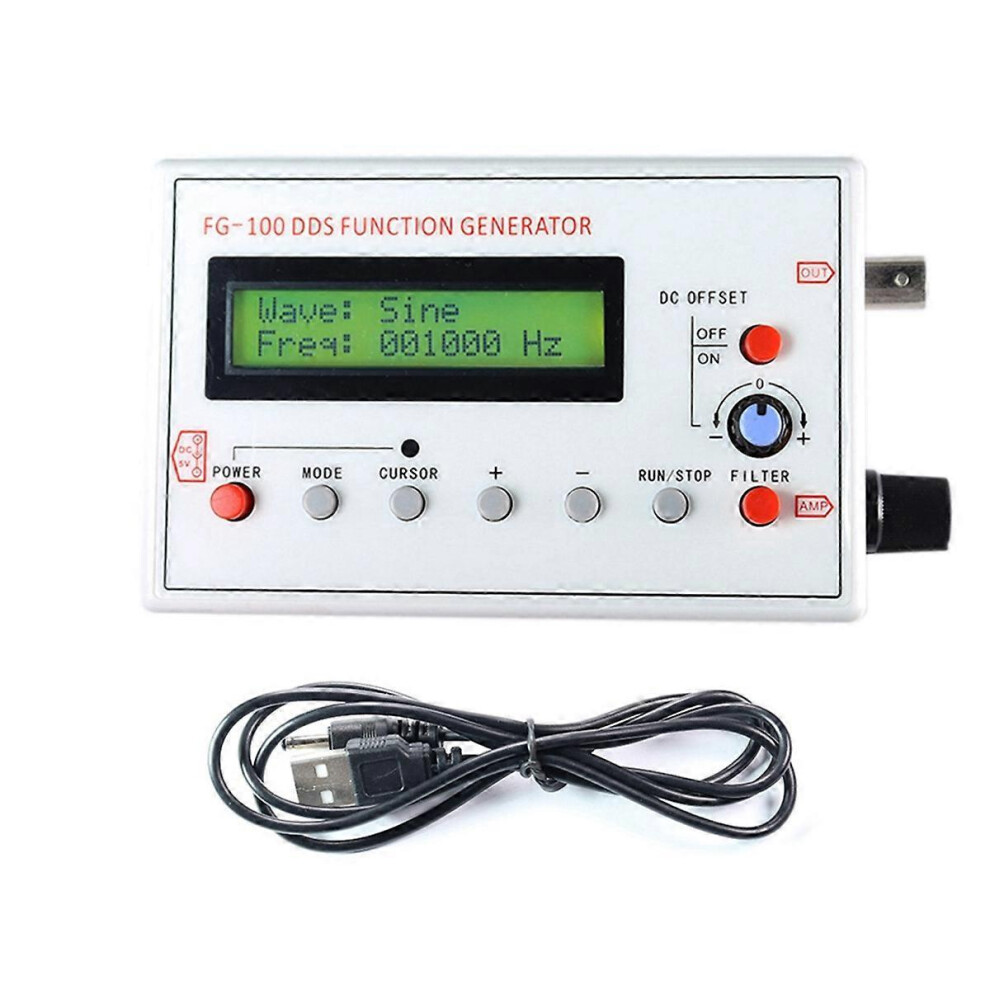

1*FG-100 DDS Signal Generator

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
